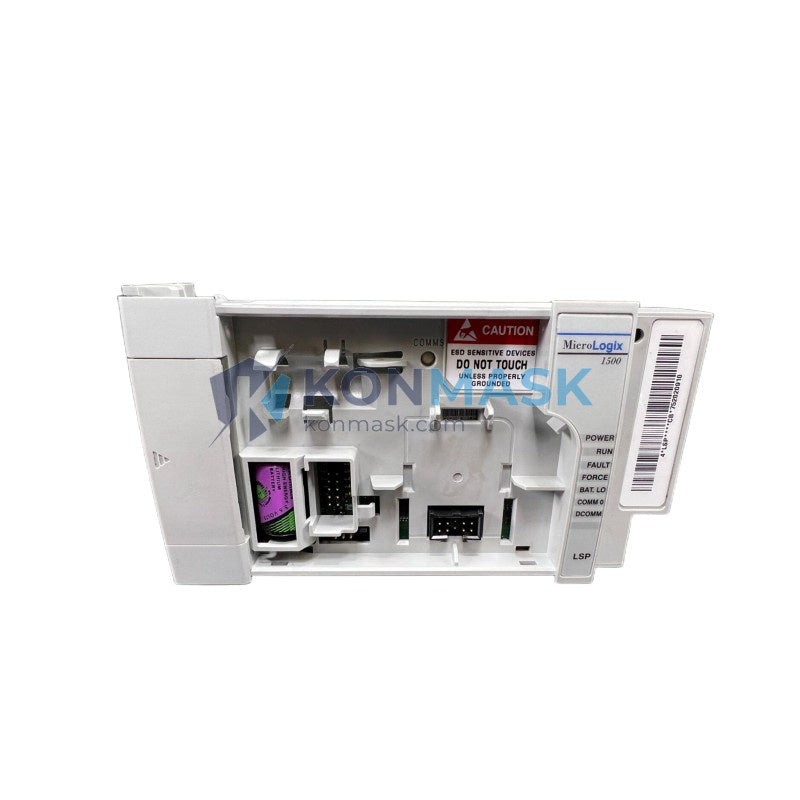

Machine & Process Automation Solution — Allen-Bradley 1764-24BWA | MicroLogix 1500 Series
Where This Product Is Used
The Allen-Bradley 1764-24BWA MicroLogix 1500 is a compact, high-performance programmable logic controller deployed across a wide range of industrial automation environments. Engineers and system integrators specify this controller for:
- Discrete Machine Control — Assembly lines, stamping presses, injection molding machines, and CNC auxiliary control panels requiring reliable I/O sequencing and ladder logic execution.
- Conveyor & Material Handling Systems — Sortation conveyors, accumulation lines, and palletizing stations where deterministic scan times and robust digital I/O are critical.
- HVAC & Building Automation — Air handling units, chiller plant sequencing, and pump control panels in commercial and industrial facilities.
- Packaging Machinery — Form-fill-seal machines, labelers, and case erectors requiring coordinated motion and sensor integration.
- Water & Wastewater Treatment — Pump stations, chemical dosing systems, and filtration control panels operating in harsh environments.
- Food & Beverage Processing — Mixing, batching, and filling lines where washdown-rated I/O and recipe management are required.
- OEM Panel Builders — Compact control panels where DIN-rail footprint, integrated power supply options, and broad communication support reduce BOM complexity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1764-24BWA |
| Series | MicroLogix 1500 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Total I/O Points | 24 (onboard) |
| Digital Inputs | 14 × 24V DC Sink/Source |
| Digital Outputs | 10 × Relay (Form A, 2A @ 240V AC) |
| Analog I/O | Via expansion modules (1764-LRP processor required) |
| Power Supply Input | 100–240V AC, 50/60 Hz |
| Communication Ports | RS-232 (Channel 0), RS-232/485 (Channel 1) |
| Supported Protocols | DF1, DH-485, Modbus RTU, ASCII |
| Program Memory | Up to 14K words (with 1764-LRP) |
| Data Memory | Up to 16K words |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating | IP20 (panel mount) |
| Weight | Approx. 200 g (base unit) |
| Certifications | UL, CE, CSA, C-Tick |
Why Engineers Specify This Model
- Relay Output Durability — The 24BWA’s relay outputs handle resistive and inductive AC/DC loads without external interposing relays, reducing panel wiring cost and failure points.
- AC Power Input — Direct 100–240V AC supply eliminates the need for a separate 24V DC power supply in many panel designs, saving space and cost.
- Dual Serial Ports — Simultaneous HMI communication on Channel 0 and Modbus RTU or DH-485 network on Channel 1 without additional communication modules.
- Modular Expansion — Up to 8 expansion I/O modules (1762-series) support analog, thermocouple, RTD, and specialty I/O for complex process applications.
- RSLogix 500 / Studio 5000 Compatibility — Familiar programming environment for Rockwell-trained engineers; extensive function block and ladder logic library.
- Long Product Lifecycle — Rockwell Automation’s extended support commitment makes this platform a safe long-term investment for OEM machine builders.
Complete System Bill of Materials
A typical MicroLogix 1500 control system built around the 1764-24BWA includes:
- 1764-24BWA — Base unit (this product), 14 DI / 10 Relay DO, AC power
- 1764-LRP — Processor module (required; provides program memory and communication)
- 1762-IQ16 — 16-point 24V DC digital input expansion module
- 1762-OW16 — 16-point relay output expansion module
- 1762-IF4 — 4-channel analog input module (0–10V / 4–20mA)
- 1762-OF4 — 4-channel analog output module
- 1764-MM1RTC — Memory module with real-time clock
- 2711P-T7C22D9P — PanelView Plus 7 HMI (recommended for operator interface)
- 1761-CBL-PM02 — Programming cable (RS-232 to USB adapter)
- 1783-US5T — Stratix 2000 unmanaged Ethernet switch (for networked installations)
Contact Konmask for bundle pricing on complete system configurations.
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment (USA)
- CSA C22.2 No. 142 — Process Control Equipment (Canada)
- EN 61131-2 — Programmable Controllers: Equipment Requirements and Tests (CE marking)
- IEC 61000-4 Series — EMC immunity (ESD, EFT, surge, conducted RF)
- RoHS Compliant — Restriction of Hazardous Substances Directive
- C-Tick / RCM — Australian Communications and Media Authority
Quality Assurance & Sourcing
Konmask sources Allen-Bradley MicroLogix 1500 components through verified industrial distribution channels. Every unit offered on Konmask.com undergoes the following before dispatch:
- Visual inspection for physical damage, counterfeit markings, and label authenticity
- Firmware version verification against Rockwell Automation published release notes
- Functional power-on test with I/O point verification where applicable
- Anti-static packaging with humidity indicator card for long-distance shipment
- Certificate of conformance available upon request for regulated industries
We maintain traceability records for all units. Bulk orders and project-specific procurement are supported with lead-time commitments.
How to Source This Part
- Add to Cart — In-stock units ship within 1–3 business days from our warehouse.
- Request a Quote — For quantities ≥ 5 units or project BOM sourcing, email support@konmask.com for volume pricing.
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for same-day response on critical plant-down situations.
- Cross-Reference — If you are replacing an older 1764-24AWA (DC input) unit, confirm your field wiring voltage before ordering the 24BWA (AC input) variant.
- Export Orders — We ship internationally. Contact us for customs documentation, HS code confirmation, and freight options.
Application-Specific FAQ
Q: Can the 1764-24BWA operate without the 1764-LRP processor module?
A: No. The 1764-24BWA is a base unit only. The 1764-LRP (or 1764-LSP) processor module must be installed to execute a user program. The base unit provides I/O, power supply, and communication ports.
Q: What is the maximum number of expansion I/O modules supported?
A: The MicroLogix 1500 supports up to 8 expansion modules from the 1762-series, providing up to 256 additional I/O points depending on module selection.
Q: Is Modbus TCP supported natively?
A: The 1764-24BWA supports Modbus RTU over the serial ports natively. Modbus TCP requires an Ethernet communication module (e.g., 1761-NET-ENI) added to the system.
Q: Can this controller be used in a Class I, Division 2 hazardous location?
A: The standard 1764-24BWA is rated IP20 and is not certified for hazardous locations. For Div 2 applications, consult Rockwell Automation for approved enclosure and purge/pressurization solutions.
Q: What programming software is required?
A: RSLogix 500 (v8.0 or later) is the standard programming environment. RSLogix Micro (free) supports basic ladder logic. Both are available from Rockwell Automation’s Software Portal.
Q: Do you provide warranty on used or refurbished units?
A: All units sold by Konmask carry a 90-day functional warranty. Extended warranty and repair services are available — contact us for details.
