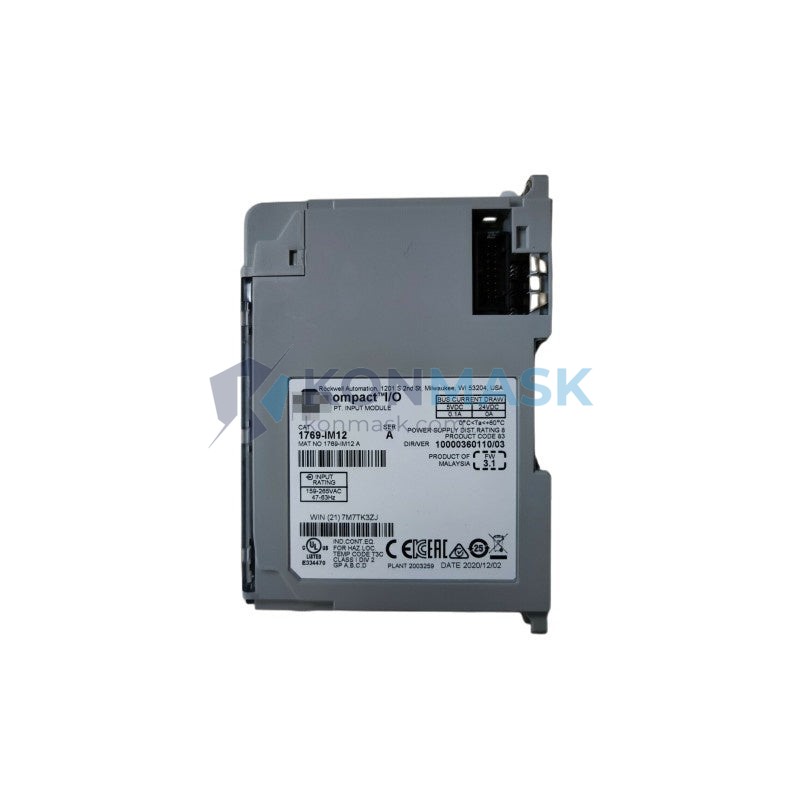

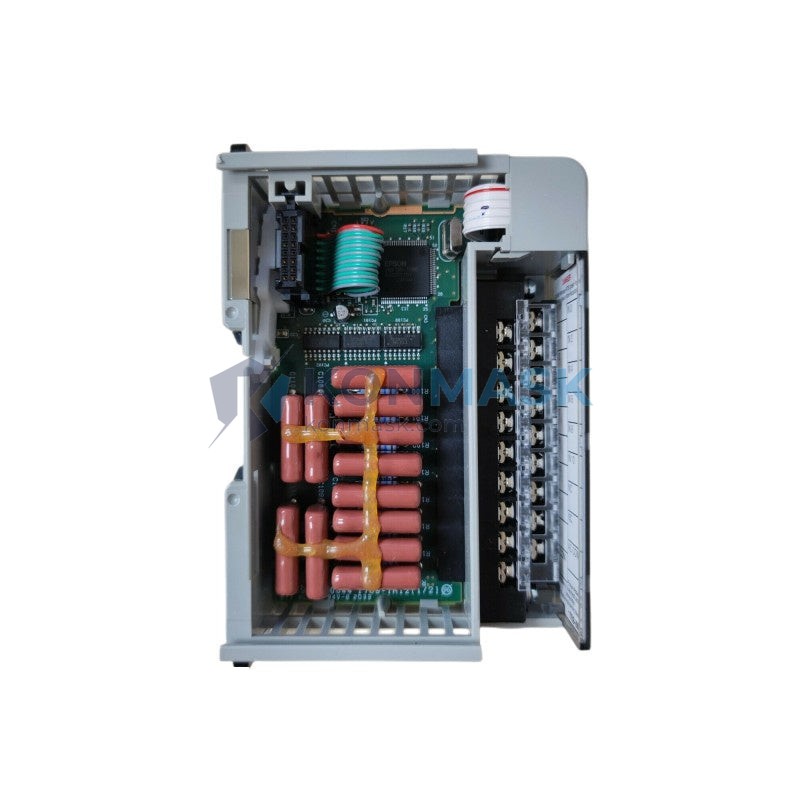

Genuine Allen-Bradley 1769-IM12 12-Point 240V AC Input Module | Compact I/O Series – Verified Source
The Allen-Bradley 1769-IM12 is a 12-point, 240V AC digital input module designed for the Compact I/O platform. Engineered for demanding industrial environments, this module delivers reliable signal acquisition from high-voltage AC field devices. At Konmask.com, every unit is sourced through verified supply channels and undergoes a rigorous 4-step quality verification process before shipment — giving B2B buyers the confidence they need when specifying critical automation components.
Technical Specifications
- Catalog Number: 1769-IM12
- Series: Allen-Bradley Compact I/O (1769)
- Module Type: Digital AC Input
- Number of Input Points: 12
- Input Voltage: 240V AC (nominal)
- Input Voltage Range: 74–265V AC
- Input Current: 5 mA @ 120V AC; 10 mA @ 240V AC (typical)
- ON-State Voltage: 74–265V AC
- OFF-State Voltage: 0–20V AC
- Input Impedance: 12 kΩ @ 60 Hz
- Isolation: 1500V AC (channel-to-backplane)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Backplane Current Draw: 100 mA @ 5V DC
- Weight: Approx. 400 g
- Certifications: UL, CE, CSA
Our 4-Step Quality Verification Process
Every 1769-IM12 unit shipped from Konmask.com passes through our standardized verification workflow:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors, OEM surplus channels, or factory-certified resellers. Supplier documentation is retained on file.
- Step 2 — Physical Inspection: Each module is inspected for label integrity, housing condition, connector pin alignment, and absence of counterfeit indicators (e.g., misprinted catalog numbers, incorrect font weight, non-standard label adhesives).
- Step 3 — Functional Bench Test: Where applicable, modules are powered and tested against known-good reference systems to confirm correct I/O response and backplane communication.
- Step 4 — Packaging & Documentation Review: Units are repackaged in anti-static ESD-safe materials. Original documentation, firmware revision labels, and lot codes are preserved and included where available.
Key Features & Benefits
- ✅ 12 isolated AC input points — maximizes I/O density per slot
- ✅ Wide voltage range (74–265V AC) — compatible with global 120V and 240V field devices
- ✅ High isolation voltage (1500V AC) — protects backplane from field-side transients
- ✅ Compact I/O form factor — hot-swappable, right-expandable architecture
- ✅ LED status indicators per channel — simplifies field diagnostics without a laptop
- ✅ Compatible with MicroLogix 1500 and CompactLogix controllers
- ✅ RoHS-compliant construction
Typical Applications
- Motor starter and contactor status feedback in MCC panels
- High-voltage pushbutton and selector switch inputs
- Limit switch monitoring on conveyors and packaging lines
- HVAC control systems with 240V AC field devices
- Water/wastewater treatment plant I/O expansion
- Food & beverage processing lines requiring compact panel layouts
- OEM machine builders standardizing on the 1769 Compact I/O platform
Compatible System Components
- Controllers: 1769-L16ER-BB1B, 1769-L18ER-BB1B, 1769-L24ER-QB1B (CompactLogix); 1764-LSP, 1764-LRP (MicroLogix 1500)
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- End Caps: 1769-ECR (right end cap), 1769-ECL (left end cap)
- Expansion Cables: 1769-CRR1, 1769-CRR3 (right-side expansion)
- Programming Software: Studio 5000 Logix Designer v21+, RSLogix 500 v8.0+
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China (Fujian Province) with bonded warehouse access
- Lead Time: In-stock units ship within 1–3 business days of payment confirmation
- Export Packaging: ESD-safe anti-static bag + foam-lined carton; double-boxing available on request
- Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight consolidation for bulk orders
- Supported Destinations: Southeast Asia, Middle East, Europe, North America, South America, Africa — worldwide coverage
- Export Documentation: Commercial invoice, packing list, certificate of origin available; Form E (ASEAN) on request
- Minimum Order Quantity: 1 unit (no MOQ for standard orders)
- Bulk Pricing: Tiered pricing available for orders of 5+ units — contact us for a formal quotation
Certifications & Compliance Statement
The Allen-Bradley 1769-IM12 carries the following certifications as issued by Rockwell Automation:
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- CSA Certified — Canadian Standards Association
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
Konmask.com does not manufacture this product. We are an independent distributor. All trademarks, catalog numbers, and brand names remain the property of Rockwell Automation / Allen-Bradley. Certification claims refer to the original manufacturer’s product specifications.
How to Order
- Online: Add to cart and proceed to checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your BOM or part list to support@konmask.com for a formal quotation within 24 hours
- WhatsApp / WeChat: +0086 19859288691 — preferred for urgent inquiries and real-time stock confirmation
- Bulk / Project Orders: Provide your project BOM for consolidated pricing and delivery scheduling
- Lead Time Confirmation: Always confirm stock availability before issuing a PO — we will provide a written lead time commitment
Authenticity & Trust FAQ
Q: Are these units genuine Allen-Bradley / Rockwell Automation products?
A: Yes. We source exclusively from verified supply chains. We do not sell clones, replicas, or relabeled third-party products. If you have authenticity concerns, we can provide supplier documentation upon request under NDA.
Q: Can you provide a test report or inspection certificate?
A: Yes, for orders of 3+ units we can provide a third-party inspection report. Contact us before placing your order to arrange this.
Q: What is your return policy for defective units?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Units must be returned in original packaging with fault description. We cover return shipping for confirmed defective units.
Q: Do you offer a warranty?
A: All units carry a 90-day functional warranty from date of shipment. Extended warranty options are available for project-volume purchases.
Q: Can I verify the firmware revision before shipment?
A: Yes. Specify your required firmware revision at time of order and we will confirm compatibility before shipping.
Q: Are you able to issue a VAT invoice or formal commercial invoice?
A: Yes. We issue formal commercial invoices for all international orders. VAT invoices (增值税发票) are available for domestic China orders.
