Allen-Bradley 1769-L20 CompactLogix 5320 Processor | Replacement, Equivalent & Selection Guide

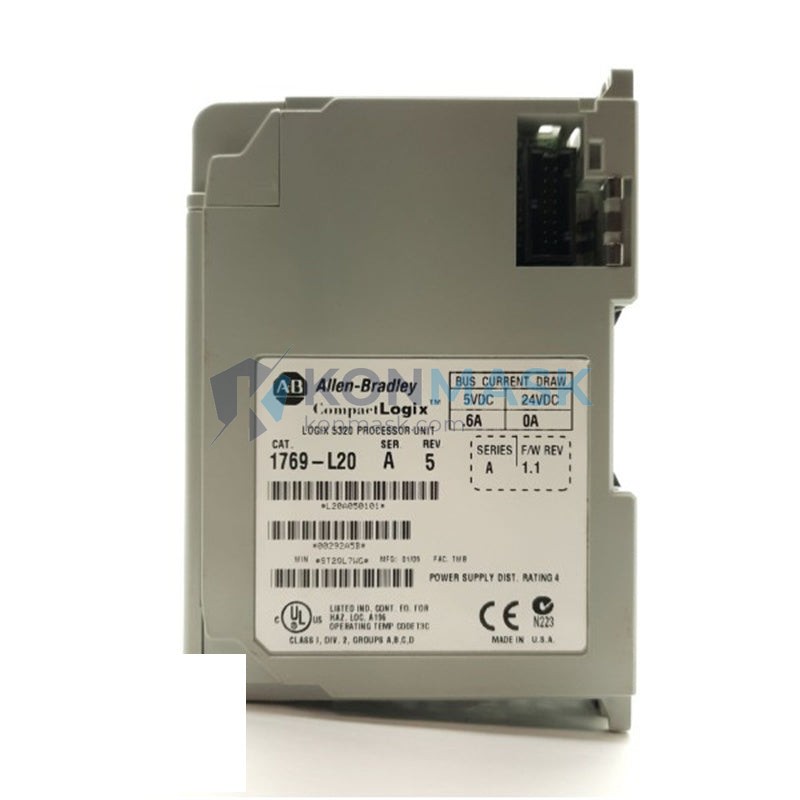

The Allen-Bradley 1769-L20 is a CompactLogix 5320 series programmable logic controller (PLC) processor manufactured by Rockwell Automation. It belongs to the 1769 CompactLogix platform — a mid-range, modular control system widely deployed in discrete manufacturing, material handling, and process automation. The 1769-L20 serves as the CPU of a CompactLogix local chassis, executing ladder logic, function block, and structured text programs while managing I/O communication over the backplane.
Selection Background
Industrial buyers frequently search for a 1769-L20 replacement or 1769-L20 equivalent when the original unit reaches end-of-life, is damaged, or is unavailable through standard distribution channels. Understanding which models are true drop-in substitutes versus functional equivalents — and which cross-brand alternatives require engineering review — is critical to minimizing downtime and avoiding costly reprogramming. This guide consolidates that information to support informed procurement decisions.
Technical Specifications
| Catalog Number | 1769-L20 |
| Series | CompactLogix 5320 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| User Memory | 512 KB (expandable with 1784-CF64 CompactFlash) |
| I/O Capacity | Up to 16 local I/O modules (1769 series) |
| Communication Ports | 1× RS-232 (DF1/DH-485), 1× USB (programming) |
| EtherNet/IP | Not native — requires 1761-NET-ENI or 1769-ENET bridge |
| Programming Software | RSLogix 5000 / Studio 5000 Logix Designer |
| Operating Voltage | 24 VDC (via 1769-PA2 or 1769-PB2 power supply) |
| Operating Temperature | 0 °C to 60 °C |
| Certifications | UL, CE, C-Tick |
| Firmware | Upgradeable via ControlFlash |
| ⚠ Key Replacement Parameter | Memory size and communication port configuration are the primary factors determining drop-in compatibility |
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These models share the same form factor, backplane connector, and firmware family. Substitution requires no chassis modification and minimal program adjustment:
- 1769-L20A — Revised series of the L20 with identical pinout and memory; verify firmware revision compatibility before swapping.
- 1769-L20B — Series B revision; same memory footprint, improved diagnostics. Recommended direct substitute when L20 is unavailable.
- 1769-L20C — Series C; adds enhanced USB programming port. Drop-in at hardware level; confirm Studio 5000 project compatibility.
2. Functional Equivalents (Same Platform, Higher Spec)
These processors fit the same 1769 chassis and run the same instruction set, but offer expanded memory or connectivity. Suitable when upgrading rather than like-for-like replacement:
- 1769-L23E-QB1B — CompactLogix 5323E with integrated EtherNet/IP; ideal if network connectivity upgrade is desired alongside replacement.
- 1769-L30 — 1 MB user memory; same chassis compatibility, higher capacity for complex programs.
- 1769-L32E — 1.5 MB memory + dual EtherNet/IP ports; recommended for future-proofing.
Note: Upgrading to a higher-spec processor may require program re-download and I/O configuration review in Studio 5000.
3. Cross-Brand Alternatives (Engineering Review Required)
These are functionally comparable PLCs from other manufacturers. They are not pin-compatible and require full I/O rewiring, program migration, and HMI reconfiguration:
- Siemens S7-1200 CPU 1214C — Comparable I/O count and memory; TIA Portal programming environment.
- Mitsubishi FX5U-32MT/ES — Compact modular PLC with similar discrete I/O capacity; GX Works3 software.
- Omron CP1H-X40DT-D — Mid-range CPU with USB programming; CX-Programmer environment.
⚠ Cross-brand substitution is only recommended for new installations or full system redesigns. Contact Konmask engineering support before proceeding.
Why Choose the Original 1769-L20
- Precision Compatibility: Guaranteed backplane and firmware compatibility with all 1769-series I/O modules — no integration risk.
- Rockwell Certification: UL, CE, and C-Tick certified; meets IEC 61131-3 programming standards for regulated industries.
- Ecosystem Continuity: Native integration with RSLinx, FactoryTalk View, and Studio 5000 — no middleware or protocol conversion required.
- Proven Field Record: Deployed in thousands of installations globally; extensive community knowledge base and Rockwell TechConnect support.
- Warranty & Traceability: Genuine units supplied by Konmask include full traceability documentation and manufacturer warranty coverage.
- Long-Term Availability: Konmask maintains verified stock of both current-series and legacy CompactLogix processors to support MRO and emergency replacement needs.
Typical Applications
- Automotive Assembly: Body-in-white welding lines, conveyor sequencing, and robotic cell coordination.
- Food & Beverage: Filling and capping machine control, CIP sequence management, and batch processing.
- Material Handling: Sortation systems, palletizers, and automated storage/retrieval (AS/RS) controllers.
- Packaging Machinery: Form-fill-seal machines, labeling systems, and case erectors.
- Water/Wastewater: Pump station control, dosing systems, and SCADA-integrated remote I/O.
- OEM Machine Builders: Embedded controller for standalone machines requiring compact footprint and modular I/O expansion.
System Compatibility
The 1769-L20 operates within the broader CompactLogix ecosystem. Key compatible components include:
- 1769-PA2 / 1769-PB2 — AC/DC power supply modules for the 1769 chassis
- 1769-IQ16 / 1769-OB16 — 16-point digital input/output modules
- 1769-IF4 / 1769-OF2 — Analog input/output modules (4-ch / 2-ch)
- 1769-SDN — DeviceNet scanner module for field device integration
- 1769-ENET — EtherNet/IP communication bridge module
- 1784-CF64 — 64 MB CompactFlash card for program backup and memory expansion
- 1761-NET-ENI — Serial-to-EtherNet/IP interface for legacy network integration
- 2711P-T7C22D9P (PanelView Plus 7) — HMI terminal for operator interface via RSLinx
Selection Guide
Before ordering, confirm the following three points to ensure the 1769-L20 (or its equivalent) is the right fit for your application:
- Is your chassis a 1769-series CompactLogix local chassis? The 1769-L20 is only compatible with 1769-series I/O modules. If your system uses 1756 (ControlLogix) or 1734 (POINT I/O) chassis, a different processor family is required.
- Does your program fit within 512 KB user memory? If your existing .ACD project file exceeds this limit, consider the 1769-L30 (1 MB) or 1769-L32E (1.5 MB) as functional equivalents.
- Do you require native EtherNet/IP connectivity? The 1769-L20 does not include a built-in EtherNet/IP port. If your network architecture requires it, the 1769-L23E or 1769-L32E are the recommended equivalents.
Not sure which model fits your system? Contact Konmask at support@konmask.com — our engineers will review your configuration and recommend the correct replacement or equivalent within 24 hours.
Quality Assurance & Sourcing
All 1769-L20 units supplied by Konmask are sourced through verified industrial distribution channels, including authorized Rockwell Automation distributors and certified MRO suppliers. We do not source from unverified secondary markets.
4-Step Inspection Process:
- Visual Inspection: Label authenticity, housing condition, connector integrity, and serial number verification.
- Functional Power-On Test: Unit is powered and firmware version confirmed against Rockwell’s published revision history.
- Communication Port Test: RS-232 and USB ports verified for signal integrity using calibrated test equipment.
- Documentation Package: Each unit ships with a test report, sourcing declaration, and available certificates of conformance.
Available Documentation: Certificate of Conformance · Sourcing Declaration · Functional Test Report · Firmware Revision Record
How to Order
- Submit Your Inquiry: Email support@konmask.com with catalog number, required quantity, and any firmware or series revision requirements.
- Receive Quote & Availability Confirmation: Konmask will respond within 24 hours with pricing, lead time, and stock status.
- Confirm & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full tracking information.
Replacement & Compatibility FAQ
Q: Can the 1769-L20B directly replace the 1769-L20 without reprogramming?
A: In most cases, yes. The 1769-L20B is a series revision of the L20 with the same memory and backplane interface. However, you should verify that your Studio 5000 project firmware revision matches the replacement unit before going live. Konmask can supply units with specific firmware revisions on request.
Q: Is the 1769-L20 compatible with 1756 ControlLogix I/O modules?
A: No. The 1769-L20 is only compatible with 1769-series CompactLogix I/O modules. It is not a substitute for 1756-series ControlLogix processors, and 1756 I/O modules cannot be used in a 1769 local chassis. These are separate product families with different backplane architectures.
Q: What is the closest equivalent to the 1769-L20 with built-in EtherNet/IP?
A: The 1769-L23E-QB1B (CompactLogix 5323E) is the closest functional equivalent with integrated EtherNet/IP. It uses the same 1769 chassis and I/O modules, runs the same instruction set, and is a recognized substitute for the L20 in network-connected applications. The 1769-L32E is recommended if higher memory capacity is also required.
