Genuine Allen-Bradley 1769-OF8C 8-Point Analog Output Current Module | CompactLogix – Verified Source

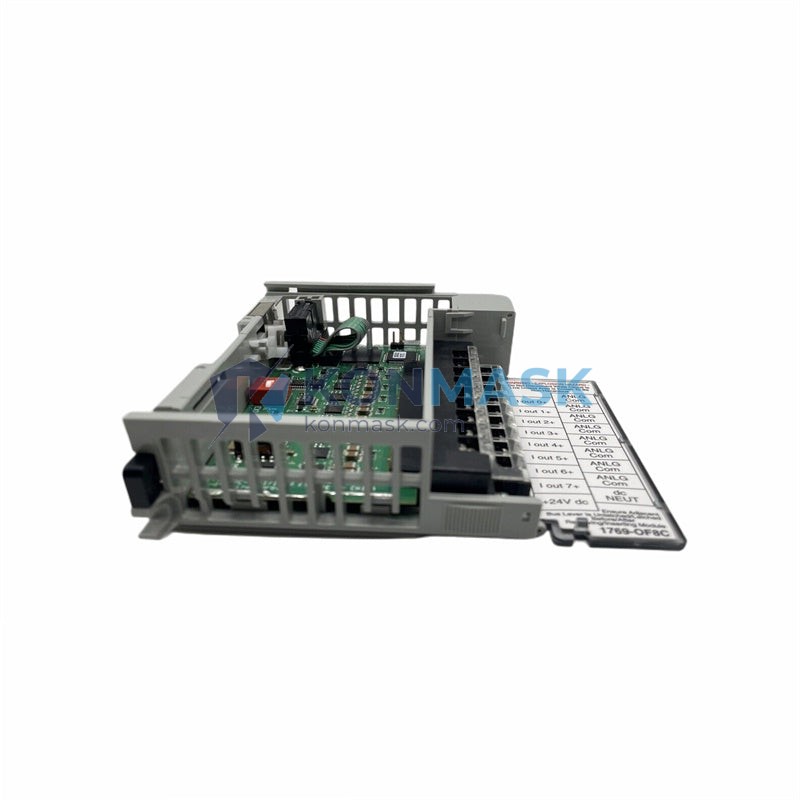

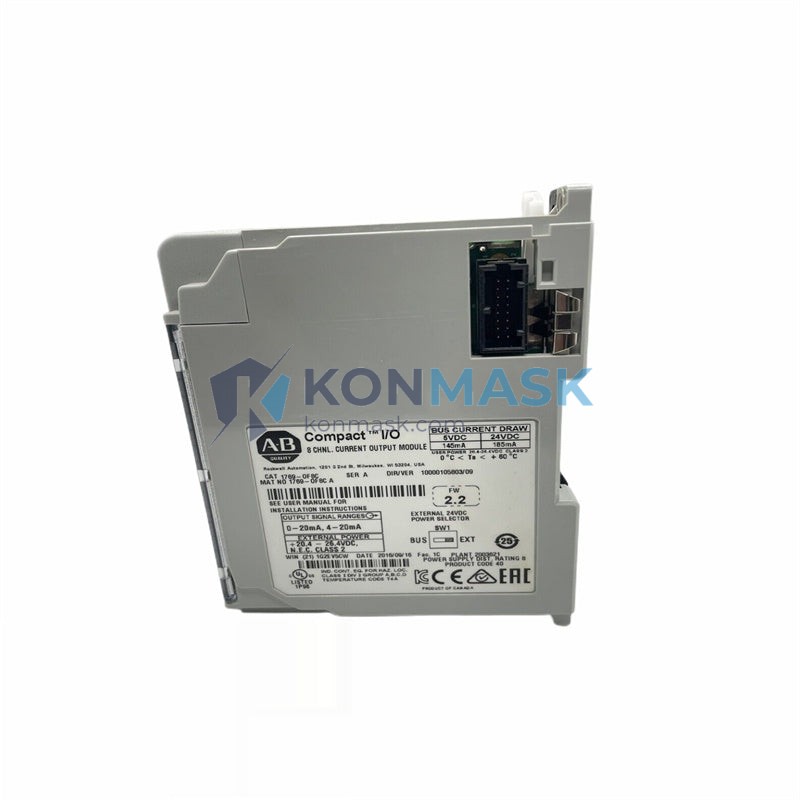

The Allen-Bradley 1769-OF8C is a high-precision 8-point analog output current module designed for CompactLogix control systems. Sourced directly through verified industrial distribution channels, every unit supplied by Konmask.com undergoes rigorous authenticity and functional verification before dispatch. Ideal for B2B buyers who demand spec-accurate, traceable components with zero compromise on quality.
Technical Specifications
- Part Number: 1769-OF8C
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: CompactLogix / MicroLogix 1500
- Output Points: 8 analog current outputs
- Output Range: 4–20 mA (standard); 0–20 mA (configurable)
- Resolution: 12-bit (0–4095 counts)
- Output Impedance: ≥ 1 kΩ load
- Isolation: 250 VAC channel-to-channel isolation
- Backplane Current Draw: 120 mA @ 5 VDC; 0 mA @ 24 VDC
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 118 mm × 35 mm × 87 mm
- Weight: Approx. 250 g
- Certifications: CE, UL, cUL, RoHS
Our 4-Step Quality Verification Process
Every 1769-OF8C unit shipped from Konmask.com passes through our standardized verification protocol:
- Step 1 — Source Traceability: All units are procured from authorized distributors or verified surplus channels with documented chain of custody.
- Step 2 — Physical Inspection: Label integrity, firmware revision markings, housing condition, and connector pin alignment are inspected against OEM reference standards.
- Step 3 — Functional Bench Test: Modules are powered and tested for correct analog output response across all 8 channels using calibrated test equipment.
- Step 4 — Packaging & Documentation: Units are packed in anti-static ESD bags with inspection records, and shipped with a Konmask authenticity slip.
Key Features & Benefits
- 8 independently configurable current output channels (4–20 mA / 0–20 mA)
- High-resolution 12-bit DAC for precise process control
- Channel-to-channel isolation minimizes cross-interference in multi-loop systems
- Compact 1769 form factor — plug-and-play with CompactLogix and MicroLogix 1500 backplanes
- Configurable fault and program states per channel for safe process shutdown
- Full RSLogix 5000 / Studio 5000 software compatibility
- Low backplane power draw — ideal for space-constrained panel builds
Typical Applications
- Process control loops (flow, pressure, temperature, level)
- Variable speed drive (VFD) speed reference signals
- Valve positioner control in oil & gas and water treatment
- Batch manufacturing and pharmaceutical process automation
- Building management systems (BMS) and HVAC control
- Food & beverage production line automation
Compatible System Components
- Controllers: 1769-L16ER, 1769-L18ER, 1769-L24ER, 1769-L27ERM, 1769-L30ER, 1769-L33ER, 1769-L36ERM
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Expansion Cables: 1769-ECR, 1769-ECL
- Programming Software: RSLogix 5000 v16+, Studio 5000 Logix Designer v21+
- Communication Modules: 1769-L series EtherNet/IP adapters
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock and ex-stock units available; lead time quoted within 24 hours for non-stock items
- Shipping Origins: China (Mainland), Hong Kong SAR — with DHL Express, FedEx International Priority, and sea freight options
- Export Compliance: All shipments comply with applicable export control regulations; commercial invoices and packing lists provided
- Minimum Order Quantity: 1 unit (bulk pricing available for orders of 5+ units)
- Lead Time: In-stock orders ship within 1–3 business days; ETA confirmation provided at order placement
- Customs Support: HS code documentation and customs value declarations provided upon request
Certifications & Compliance Statement
The Allen-Bradley 1769-OF8C carries the following certifications as issued by Rockwell Automation:
- CE Marking (EU Low Voltage Directive & EMC Directive)
- UL Listed / cUL Listed (North American safety standards)
- RoHS Compliant (Restriction of Hazardous Substances)
- ATEX / IECEx ratings available on select variants — confirm with our team
Konmask.com does not manufacture this product. We are an independent distributor. All trademarks, part numbers, and brand names belong to Rockwell Automation / Allen-Bradley.
How to Order
- Confirm Part Number: Verify 1769-OF8C matches your system’s I/O requirements and firmware revision.
- Request a Quote: Contact us at support@konmask.com or WhatsApp +0086 19859288691 for bulk pricing or lead time confirmation.
- Place Order: Add to cart and complete checkout, or request a proforma invoice for bank transfer / TT payment.
- Receive & Verify: Inspect your unit against the included authenticity slip. Contact us within 7 days if any discrepancy is found.
Authenticity & Trust FAQ
Q: Are these units genuine Allen-Bradley / Rockwell Automation products?
A: Yes. All units are sourced from verified industrial supply chains. We do not sell counterfeit, cloned, or re-labeled parts. Each unit includes a Konmask inspection record.
Q: Can you provide a certificate of conformance or test report?
A: Yes, upon request for orders of 3+ units. Contact us before placing your order.
Q: What is your return policy for defective units?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Units must be returned in original packaging with the authenticity slip intact.
Q: Do you support cross-border B2B procurement?
A: Yes. We regularly supply industrial buyers across Southeast Asia, the Middle East, Europe, and the Americas. Proforma invoices, packing lists, and customs documentation are standard.
Q: How do I verify the firmware revision before ordering?
A: Provide your current system firmware version and we will confirm compatibility before shipment.
