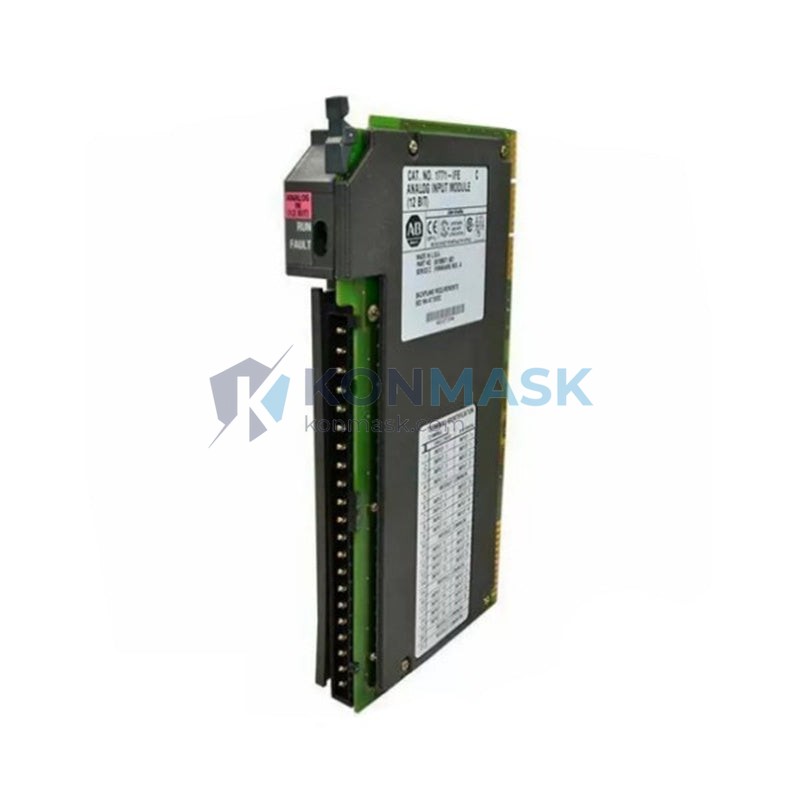

Allen-Bradley 1771-IFEK – Enhanced Analog Input Module | PLC-5 Platform

Engineering Background: The Allen-Bradley PLC-5 family (Rockwell Automation) has been the backbone of process control infrastructure in heavy industry since the 1980s. Deployed across continuous-process plants, power generation facilities, and municipal water treatment systems, PLC-5 racks remain operational in thousands of brownfield installations where migration costs and process-criticality make replacement impractical. Within this architecture, the 1771-IFEK occupies the analog front-end role: it is the boundary device between field instrumentation and the controller’s data table, converting real-world process variables into engineering-unit values the CPU can act upon.

Product Positioning: The 1771-IFEK is the enhanced variant of the 1771-IFE series, distinguished by its support for both voltage (±10 V DC) and current (4–20 mA) inputs on a per-channel basis without requiring external signal conditioners. Compared to the standard 1771-IFE (voltage-only) and the 1771-IFMS (single-ended, lower resolution), the IFEK targets applications where mixed sensor types coexist in a single rack slot—reducing slot count and wiring complexity. It is not a replacement for the 1771-IFE/B when differential isolation per channel is the primary requirement; consult the system architecture section below for substitution boundaries.

Complete Technical Specifications

Electrical

• Input Channels: 8 differential analog inputs
• Input Voltage Range: ±10 V DC (selectable per channel)
• Input Current Range: 4–20 mA (selectable per channel)
• Resolution: 12-bit (1 in 4,096)
• Accuracy: ±0.1% of full scale at 25 °C
• Input Impedance (Voltage Mode): >10 MΩ
• Input Impedance (Current Mode): 250 Ω (internal shunt)
• Conversion Rate: All 8 channels in <5 ms (block transfer)
• Backplane Current Draw: 800 mA @ 5 V DC
• Isolation: 1,500 V AC field-to-backplane (optical)

Mechanical

• Form Factor: Single-slot 1771 I/O chassis module
• Wiring: 40-pin removable terminal block (field wiring arm required: 1771-WN or 1771-WB)
• Weight: Approx. 0.6 kg
• Dimensions: Standard 1771 module profile (fits all 1771 chassis)

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +85 °C
• Relative Humidity: 5–95% non-condensing
• Vibration: 2 g, 10–500 Hz (IEC 68-2-6)
• Shock: 30 g, 11 ms (IEC 68-2-27)

Certifications

• UL Listed (UL 508)
• CE Marked (EMC Directive 2014/30/EU; LVD 2014/35/EU)
• CSA Certified
• RoHS Compliant

Data source: Allen-Bradley Publication 1771-6.5.116 (1771-IFEK Analog Input Module User Manual), Rockwell Automation.

Proven Application Environments

• Petroleum Refining: Crude distillation columns | Pressure transmitters (4–20 mA) monitoring tray differential pressure | Continuous 24/7 operation at elevated ambient temperatures up to 55 °C
• Thermal Power Generation: Boiler combustion control systems | Thermocouple signal conditioning via external transmitters feeding 4–20 mA to IFEK channels | High-vibration turbine hall environments
• Municipal Water Treatment: SCADA-integrated PLC-5 racks | pH, dissolved oxygen, and flow transmitters (4–20 mA) | Corrosive atmosphere pump stations requiring sealed enclosures
• Chemical Processing: Reactor temperature and pressure loop control | Mixed ±10 V DC signals from legacy analyzers alongside 4–20 mA field transmitters in the same module | Hazardous area installations with appropriate enclosure ratings
• Pulp & Paper: Stock preparation and digester control | High-noise electrical environments with VFD interference | Differential input configuration providing common-mode rejection >80 dB
• Automotive Manufacturing: Paint booth environmental monitoring | Mixed voltage/current sensor arrays | Continuous production lines where module hot-swap capability (with appropriate chassis) minimizes downtime

Engineering Advantages

• For mixed-sensor installations, this analog input module accepts both ±10 V DC and 4–20 mA on a per-channel basis, because the internal signal conditioning circuitry is software-selectable via the module configuration word—eliminating the need for external signal converters and reducing panel wiring density.
• For high-noise industrial environments, this module provides >80 dB common-mode rejection ratio (CMRR), because the differential input architecture cancels induced noise on long cable runs from field instruments to the control panel.
• For brownfield PLC-5 systems requiring slot-for-slot replacement, this module maintains full backward compatibility with existing 1771 chassis and field wiring arms, because it conforms to the original 1771 I/O bus protocol without firmware updates to the PLC-5 CPU.
• For process applications demanding measurement accuracy, this module delivers ±0.1% full-scale accuracy at 25 °C with 12-bit resolution, because the on-board A/D converter and calibration circuitry are factory-trimmed to NIST-traceable references.
• For safety-critical loops, this module provides 1,500 V AC optical isolation between field wiring and the backplane, because ground loops and transient overvoltages from field instrumentation are isolated before reaching the CPU backplane.
• For maintenance-constrained operations, this module supports block transfer read (BTR) instructions natively in RSLogix 5 and legacy 6200 software, because the data table mapping is fully documented and unchanged across firmware revisions—reducing re-commissioning time after replacement.

System Architecture & Signal Flow

Signal Flow: Field instrument → terminal block (1771-WN/WB) → differential input amplifier → multiplexer → 12-bit A/D converter → backplane data register → PLC-5 CPU data table (N-file or F-file via BTR ladder logic).

Compatible Models & Reason:

• 1771-IFE: Voltage-only predecessor; IFEK is a drop-in upgrade when current input capability is added to the requirement. Same chassis slot, same wiring arm.
• 1771-IFE/B: Revised voltage-only variant; IFEK replaces it when mixed signal types are needed. Wiring arm compatibility confirmed.
• 1771-IFMS: Single-ended, 16-channel variant; not interchangeable—different wiring arm (1771-WG) and different BTR data format. Use IFMS only when single-ended inputs and higher channel density are prioritized over differential noise rejection.
• 1771 Chassis (all sizes: 4, 8, 12, 16 slot): Fully compatible; module draws 800 mA from the 5 V backplane—verify chassis power supply budget before installation.

Substitution Conditions: The 1771-IFEK may be substituted for the 1771-IFE or 1771-IFE/B without ladder logic changes if the BTR instruction length and data file mapping remain unchanged. Substitution for the 1771-IFMS requires BTR instruction revision and wiring arm replacement—not a direct swap.

Sourcing & Quality Verification

Konmask.com sources the 1771-IFEK through established industrial surplus and authorized distribution channels. Each unit undergoes the following 4-step verification process before shipment:

1. Visual & Physical Inspection: Enclosure integrity, label authenticity (Rockwell Automation catalog label, date code, series letter), connector pin condition, and absence of counterfeit indicators (font inconsistencies, incorrect label materials).
2. Functional Power-On Test: Module is seated in a 1771 test chassis, powered, and verified to enumerate correctly on the backplane without fault indicators.
3. Channel Verification: Representative analog input channels are stimulated with calibrated voltage and current sources; output data table values are verified against expected engineering-unit conversion.
4. Documentation Package Assembly: Serial number, date code, and series letter are recorded and matched to the shipment record.

Available Documentation: Test report, high-resolution photos (all six faces), date code confirmation, series letter confirmation, and certificate of conformance upon request.

Procurement Process

1. Inquiry Submission: Submit the required quantity, delivery timeline, and any specific series letter or date code requirements via the contact form or email at support@konmask.com. Include the target application if expedited technical review is needed.
2. Quote & Availability Confirmation: A response with pricing, lead time, and stock confirmation is provided within 24 hours on business days. Urgent requirements are flagged for same-day response.
3. Order & Shipment: Orders are processed with DHL/FedEx international express as standard. Export documentation (commercial invoice, packing list, country of origin certificate) is included. Partial shipments are available for large quantity orders.

Technical Support: Pre-sale support covers compatibility verification, series letter differences, and system architecture questions. Post-sale support covers installation guidance, BTR instruction configuration, and troubleshooting assistance. Support is available in English and Chinese.

Technical FAQ

Q1: Is the 1771-IFEK compatible with all PLC-5 processor families (PLC-5/11, 5/20, 5/40, 5/80)?
Yes. The 1771-IFEK communicates via the standard 1771 I/O chassis backplane protocol, which is consistent across all PLC-5 processor variants. The BTR/BTW instruction set used to read the module is identical regardless of the PLC-5 CPU model. No firmware differences affect compatibility.

Q2: Can the 1771-IFEK directly replace a 1771-IFE/B in an existing installation without modifying the ladder logic?
In most cases, yes—provided the existing BTR instruction is configured for 8-channel block transfer and the data file length matches. The IFEK uses the same module configuration word structure as the IFE/B for voltage-mode channels. If current-mode channels are being added, the configuration word must be updated to select current input on the relevant channels. The wiring arm (1771-WN or 1771-WB) is compatible and does not require replacement.

Q3: Does the 1771-IFEK carry CE marking, and is it suitable for use in EU-regulated machinery?
Yes. The 1771-IFEK is CE marked in compliance with the EMC Directive (2014/30/EU) and Low Voltage Directive (2014/35/EU). It is also UL 508 listed and CSA certified. For machinery directive compliance (2006/42/EC), the module’s suitability depends on the overall machine safety architecture—the module itself does not carry SIL or PLe ratings and should not be used as a safety-rated input device without additional safety instrumentation.

---
