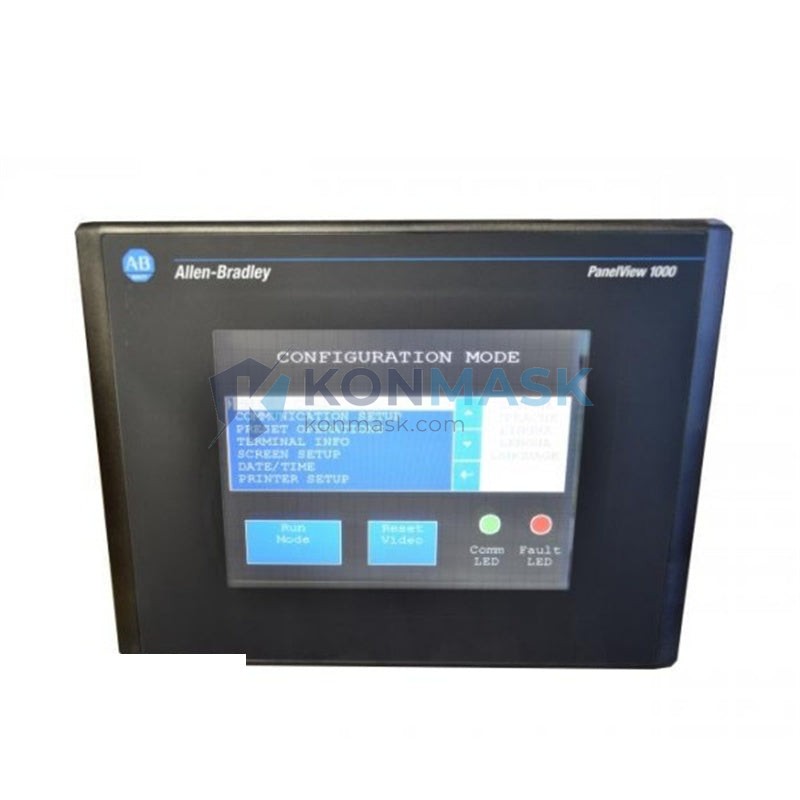

Allen-Bradley 2711-T10C8 – 10″ Color Touch Screen HMI Terminal | PanelView 1000 Series
Engineering Background
The Allen-Bradley PanelView 1000 series represents Rockwell Automation’s proven operator interface platform, engineered for demanding industrial environments where reliable human-machine interaction is critical. The 2711-T10C8 variant delivers a 10.4″ color TFT display with integrated touch screen input, purpose-built for process visualization, machine control, and real-time status monitoring across discrete and process manufacturing sectors.
Product Positioning
Designed for procurement engineers sourcing replacement or expansion HMI units for existing Allen-Bradley / ControlLogix / SLC 500 / PLC-5 architectures, the 2711-T10C8 offers a direct drop-in solution with full backward compatibility. Konmask.com supplies verified units with traceability documentation, supporting MRO, capital project, and OEM procurement workflows.
Complete Technical Specifications
| Part Number | 2711-T10C8 |
| Series | PanelView 1000 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 10.4″ (diagonal) |
| Display Type | Color TFT LCD |
| Input Type | Touch Screen (resistive) |
| Resolution | 640 × 480 (VGA) |
| Colors | 256 colors |
| Communication | DH+, DH-485, RS-232 (DF1) |
| Power Supply | 24 VDC nominal (18–32 VDC range) |
| Power Consumption | Approx. 30 W |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage Temperature | -40 °C to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Enclosure Rating | NEMA 4/4X, 12, 13 (front face) |
| Mounting | Panel mount (cutout required) |
| Panel Cutout | Refer to installation drawing 2711-TD001 |
| Weight | 3.6 kg (approx.) |
| Memory | 512 KB application memory |
| Programming Software | PanelBuilder 1400e / PanelBuilder32 |
| Certifications | UL, CE, CSA |
Proven Application Environments
- Automotive Manufacturing – Line control panels, conveyor HMI stations, press monitoring
- Food & Beverage – Batch process visualization, CIP cycle monitoring, recipe management
- Water & Wastewater – Pump station control, SCADA front-end display, alarm annunciation
- Oil & Gas – Wellhead control panels, compressor station HMI, pipeline monitoring
- Pharmaceutical – GMP-compliant process visualization, clean-room compatible panel integration
- Material Handling – Sortation system control, AGV dispatch interfaces, warehouse automation
- Power Generation – Generator set control, switchgear status display, load management
Engineering Advantages
- Native Rockwell Ecosystem Integration – Communicates directly with SLC 500, PLC-5, MicroLogix, and ControlLogix processors via DH+ and DH-485 without gateway hardware
- NEMA 4/4X Front-Face Rating – Suitable for washdown, dust-laden, and corrosive environments without additional enclosure modification
- Wide Operating Temperature Range – 0–55 °C continuous operation supports both climate-controlled and non-air-conditioned plant floors
- Resistive Touch Technology – Operable with gloved hands, stylus, or bare finger; immune to EMI-induced false touches
- Established Spare Parts Ecosystem – Extensive installed base ensures long-term availability of replacement units, backlights, and touch overlays
- PanelBuilder32 Compatibility – Existing application files (.pba) can be reused, reducing re-engineering cost for replacement projects
System Architecture & Signal Flow
The 2711-T10C8 operates as a master node on the DH+ or DH-485 network, polling the target PLC for tag data at configurable scan rates. Operator inputs (touch events) are translated into PLC write commands via the configured communication driver. The terminal supports both read-only display and read/write control configurations, enabling flexible deployment from simple status panels to full operator control stations.
Typical signal flow: PLC Controller → DH+/DH-485 Network → 2711-T10C8 Terminal → Operator Display & Touch Input → PLC Write-Back
For ControlLogix integration, a 1761-NET-AIC or 1770-KFD communication interface module is recommended to bridge the DH-485 port to the ControlLogix backplane.
Sourcing & Quality Verification
- Source Traceability – All units sourced from authorized distributors, OEM decommissions, or verified MRO channels with documented chain of custody
- Pre-Shipment Inspection – Each unit undergoes visual inspection, label verification (date code, revision level), and functional power-on test where applicable
- Counterfeit Mitigation – Part markings, PCB revision codes, and firmware version cross-checked against Rockwell Automation reference data
- Packaging – ESD-safe anti-static bags, foam-lined cartons; international export packaging available on request
- Documentation – Certificate of conformance, inspection report, and commercial invoice provided with each shipment
Procurement Process
- Submit RFQ – Contact support@konmask.com with quantity, required delivery date, and destination port
- Quotation & Lead Time – Formal quotation issued within 1 business day; lead time confirmed based on current stock position
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for prepayment or net-terms accounts
- Quality Hold & Inspection – Unit reserved and final inspection completed prior to dispatch
- Shipment & Documentation – DHL / FedEx / sea freight dispatched with full export documentation (commercial invoice, packing list, COC)
- After-Sales Support – Technical support available post-delivery for installation verification and communication configuration
Technical FAQ
Q: Is the 2711-T10C8 compatible with ControlLogix PLCs?
A: Direct DH+ connectivity to ControlLogix is not supported natively. A 1761-NET-AIC or 1770-KFD interface module is required to bridge DH-485 to the ControlLogix backplane. Alternatively, consider upgrading to a PanelView Plus terminal for EtherNet/IP native connectivity.
Q: Can existing PanelBuilder application files be reused?
A: Yes. Application files created in PanelBuilder 1400e or PanelBuilder32 (.pba format) are directly compatible with the 2711-T10C8 and can be downloaded via the RS-232 programming port.
Q: What is the backlight lifespan and is it field-replaceable?
A: The CCFL backlight has a rated lifespan of approximately 50,000 hours. Backlight replacement kits are available; however, replacement requires partial disassembly and is recommended to be performed by qualified service personnel.
Q: Does Konmask provide warranty on this unit?
A: Yes. Konmask.com provides a 90-day functional warranty covering defects identified during normal operation. Extended warranty options are available upon request.
Q: What certifications does the 2711-T10C8 carry?
A: The unit is UL Listed, CE marked, and CSA certified, meeting North American and European safety standards for industrial control equipment.
