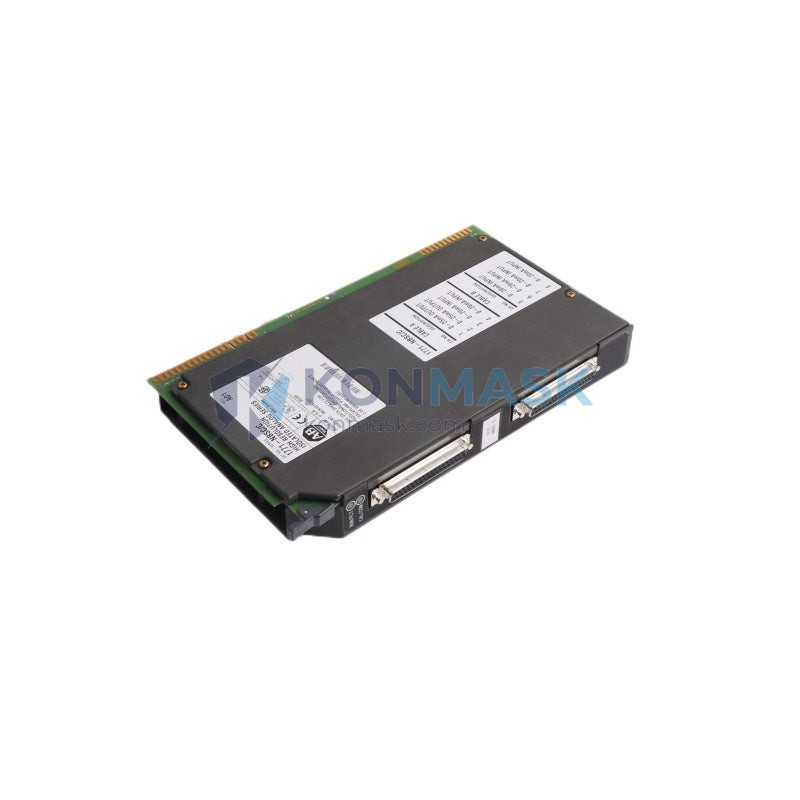

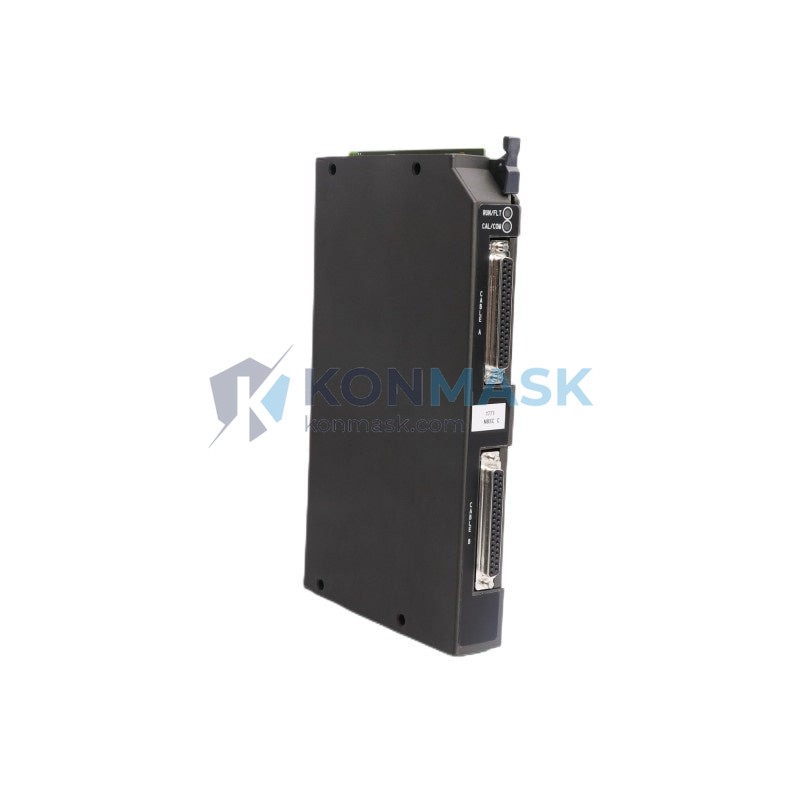

Analog I/O Solution – Allen-Bradley 1771-NBSC | PLC-5 Series
The Allen-Bradley 1771-NBSC is a thermocouple/millivolt analog input module engineered for the PLC-5 platform. Designed to interface directly with thermocouple sensors and low-level millivolt signal sources, this module delivers precision temperature and process measurement in demanding industrial environments where signal accuracy and system reliability are non-negotiable.
Where This Product Is Used
The 1771-NBSC is deployed across a wide range of temperature-critical and process-intensive industries:
- Steel & Metal Processing: Furnace temperature monitoring, heat treatment cycle control, and molten metal process management using Type J, K, and T thermocouples.
- Chemical & Petrochemical Plants: Reactor temperature profiling, distillation column monitoring, and exothermic process control where millivolt-level signal fidelity is essential.
- Food & Beverage Manufacturing: Pasteurization, sterilization, and cooking process temperature regulation compliant with HACCP and FDA thermal process requirements.
- Pharmaceutical Production: Autoclave and clean-in-place (CIP) temperature validation, supporting 21 CFR Part 11 audit trail requirements.
- Power Generation: Turbine exhaust temperature monitoring, boiler control, and heat exchanger performance tracking.
- Plastics & Rubber Extrusion: Barrel zone temperature control and mold temperature management for consistent product quality.
- HVAC & Building Automation: Legacy PLC-5 based building management systems requiring thermocouple-grade temperature sensing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1771-NBSC |
| Module Type | Thermocouple / Millivolt Analog Input |
| Platform | Allen-Bradley PLC-5 (1771 I/O Chassis) |
| Input Channels | 4 differential analog input channels |
| Input Signal Types | Thermocouple (J, K, T, E, R, S, B) and millivolt (±100 mV) |
| Resolution | 12-bit (1 in 4,096) |
| Accuracy | ±0.1% of full scale (typical) |
| Cold Junction Compensation | Automatic, internal reference |
| Open-Circuit Detection | Yes, per channel |
| Backplane Current Draw | 800 mA @ 5 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Module Weight | 660 g (approx.) |
| Chassis Compatibility | 1771 Series I/O Chassis (all sizes) |
| Keying | User-configurable hardware keying |
Why Engineers Specify This Model
- Direct Thermocouple Interface: Eliminates the need for external signal conditioners or transmitters, reducing panel complexity and potential failure points.
- Automatic Cold Junction Compensation: Built-in CJC ensures measurement accuracy without external reference junctions, critical for ambient temperature variation in plant environments.
- Per-Channel Open-Circuit Detection: Immediately flags broken or disconnected thermocouple wires, enabling rapid fault diagnosis and minimizing unplanned downtime.
- Multi-Thermocouple Type Support: A single module accommodates mixed thermocouple types across channels, providing flexibility in multi-zone temperature applications.
- Proven PLC-5 Ecosystem Compatibility: Fully validated within the 1771 I/O chassis architecture, ensuring deterministic scan-time performance and seamless integration with existing PLC-5 programs.
- Long-Term Availability: Sourced from verified industrial channels to support legacy system maintenance and life extension programs without forced platform migration.
Complete System Bill of Materials
For a fully operational thermocouple analog input subsystem based on the 1771-NBSC, the following components are typically required:
- 1771-NBSC — Thermocouple/mV Analog Input Module (this item)
- 1771-Axx — 1771 I/O Chassis (select slot count per application: 4, 8, 12, or 16 slots)
- 1771-P4S / 1771-P7 — I/O Chassis Power Supply
- 1771-WN — Wiring Arm / Terminal Block for field wiring termination
- 1785-Lxx — PLC-5 Processor (compatible series)
- Thermocouple Extension Cable — Type-matched, shielded, twisted-pair (specify per sensor type)
- 1747-KE / 1784-KTx — Programming Interface (if RSLogix 5 programming access required)
Contact our technical team for BOM validation and cross-reference support for your specific application.
Compliance & Industry Standards
- UL Listed: Recognized under UL 508 (Industrial Control Equipment)
- CE Marked: Compliant with EU Low Voltage Directive and EMC Directive
- RoHS: Evaluated per applicable Rockwell Automation product generation
- NEMA / IEC: Suitable for installation in NEMA 12 / IP54 enclosures and above
- ISA-5.1: Signal wiring practices compliant with ISA instrumentation standards
- FDA 21 CFR Part 11: Supports validated process control architectures in regulated industries (system-level validation required)
Note: Compliance status applies to original Rockwell Automation manufactured units. Verify certification marks on physical module label upon receipt.
Quality Assurance & Sourcing
At Konmask.com, every 1771-NBSC module is subject to a rigorous incoming inspection and sourcing verification process:
- Verified Supply Chain: Sourced exclusively from authorized distributors, certified industrial surplus channels, and traceable OEM inventory — no grey-market or counterfeit-risk sources.
- Physical Inspection: Each unit is inspected for label integrity, connector condition, housing damage, and firmware/revision markings prior to listing.
- Functional Testing: Where applicable, modules undergo bench-level power-on and communication verification.
- Revision Documentation: Firmware revision and hardware series are documented and disclosed in order confirmation.
- Packaging: Shipped in anti-static ESD packaging with foam cushioning, suitable for international freight.
How to Source This Part
- Add to Cart — Proceed directly for standard stock units.
- Request a Quote — For volume orders (5+ units), OEM project procurement, or expedited delivery requirements, contact us for preferential pricing.
- Provide Your BOM — Send your complete parts list to support@konmask.com for consolidated sourcing and a single-shipment solution.
- Lead Time — In-stock units ship within 1–3 business days. Special-order or low-availability units: 5–15 business days. DHL / FedEx international express available.
- Payment — T/T (Wire Transfer), PayPal, and major credit cards accepted. LC available for orders above USD 5,000.
Application-Specific FAQ
Q: Can the 1771-NBSC accept standard 4–20 mA process signals?
A: No. The 1771-NBSC is designed specifically for thermocouple and millivolt (±100 mV) inputs. For 4–20 mA analog inputs on the PLC-5 platform, specify the 1771-IFE or 1771-VHSC series modules.
Q: Is this module compatible with ControlLogix or CompactLogix platforms?
A: No. The 1771-NBSC is exclusive to the 1771 I/O chassis used with PLC-5 processors. For ControlLogix thermocouple input, specify the 1756-IT6I2 module.
Q: What thermocouple types are supported?
A: The module supports Type J, K, T, E, R, S, and B thermocouples, as well as direct millivolt inputs in the ±100 mV range. Type selection is configured via module DIP switches.
Q: Can I mix thermocouple types across the 4 input channels?
A: Yes. Each channel is independently configurable, allowing different thermocouple types to be connected to different channels on the same module.
Q: Is a replacement available if the unit is found defective upon arrival?
A: Yes. Konmask.com provides a 30-day DOA (Dead on Arrival) replacement guarantee. Contact support@konmask.com with your order number and fault description within 30 days of receipt.
Q: Do you provide RSLogix 5 configuration support?
A: We can provide module configuration reference documentation and block transfer programming examples. Full PLC programming services are available upon request as a paid engineering service.
