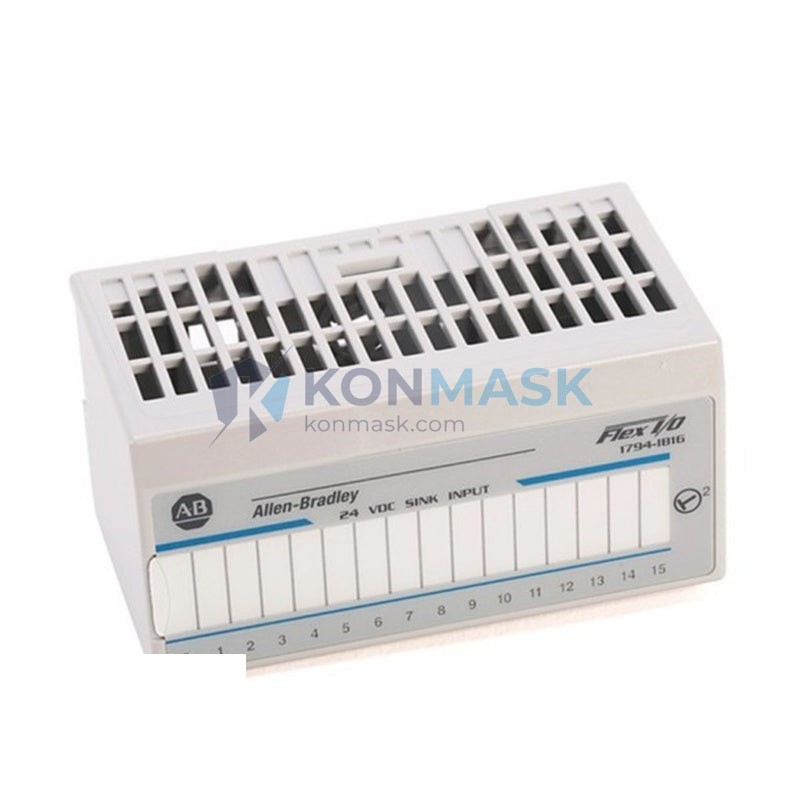

Allen-Bradley 1794-IB16D FLEX I/O 16-Point Digital Input Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1794-IB16D is a 16-point, 24V DC digital input module from Rockwell Automation’s FLEX I/O platform. Designed for distributed I/O applications, it delivers reliable signal acquisition in demanding industrial environments. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 1794-IB16D
- Brand: Allen-Bradley / Rockwell Automation
- Series: FLEX I/O
- Module Type: Digital Input (DC)
- Number of Points: 16 inputs
- Input Voltage: 24V DC
- Input Current: 8 mA per point (nominal)
- ON State Voltage: 15–30V DC
- OFF State Voltage: 0–5V DC
- Diagnostic Features: Point-level diagnostics (open-wire detection)
- Communication: Via FLEX I/O adapter (e.g., 1794-AENT, 1794-ACN15)
- Backplane Current: 75 mA @ 5V DC
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Certifications: UL, CE, CSA
- Mounting: DIN rail via FLEX I/O terminal base (1794-TB3, 1794-TB3S, etc.)
- Weight: Approx. 100 g
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 1794-IB16D. Always verify electrical and communication compatibility before substitution:
- 1794-IB16 — Standard 16-point 24V DC input module (no diagnostics); direct functional equivalent without open-wire detection
- 1794-IB32 — 32-point version for higher-density applications; requires compatible terminal base
- 1794-IB8 — 8-point version for lower-density or space-constrained panels
- 1756-IB16D — ControlLogix platform equivalent with diagnostics; requires chassis migration
- 1769-IQ16 — CompactLogix platform 16-point DC input; different form factor and adapter
- Siemens ET 200S 6ES7131-4BF00-0AA0 — Third-party distributed I/O equivalent; requires gateway or protocol conversion
- Beckhoff EL1809 — EtherCAT 16-channel digital input terminal; suitable for EtherCAT-based system migrations
Note: Cross-brand replacements require adapter or communication bridge. Consult your system integrator before substitution.
Why Choose the Original Model
- Point-Level Diagnostics: The “D” suffix indicates open-wire detection per input point — critical for safety-sensitive and high-availability systems
- Native FLEX I/O Integration: Plug-and-play compatibility with all 1794-series adapters and terminal bases
- Rockwell Ecosystem Support: Full Studio 5000 / RSLogix 5000 integration with Add-On Instructions (AOI) and EDS files
- Proven Field Reliability: Widely deployed in automotive, food & beverage, and material handling industries
- Long-Term Availability: Supported by Rockwell’s global service and repair network
Typical Applications
- Distributed I/O nodes in conveyor and material handling systems
- Machine tool and press control panels
- Automotive assembly line sensor interfacing
- Food & beverage processing lines with distributed control
- Water/wastewater treatment plant I/O expansion
- Building automation and HVAC control systems
- Oil & gas field instrumentation panels
System Compatibility
- Adapters: 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), 1794-ADN (DeviceNet), 1794-APB (PROFIBUS)
- Terminal Bases: 1794-TB3, 1794-TB3S, 1794-TB3G, 1794-TBN
- Controllers: ControlLogix (1756), CompactLogix (1769), SoftLogix, PLC-5 (via gateway)
- Software: Studio 5000 Logix Designer v21+, RSLogix 5000, FactoryTalk View
- Networks: EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP
Selection Guide
Use the following criteria to confirm the 1794-IB16D is the right module for your application:
- Point Count: Need exactly 16 inputs? → 1794-IB16D ✓ | Need 8? → 1794-IB8 | Need 32? → 1794-IB32
- Diagnostics Required? Yes → 1794-IB16D (open-wire detection) | No → 1794-IB16 (lower cost)
- Input Voltage: 24V DC → 1794-IB16D ✓ | 120V AC → consider 1794-IA8 series
- Network Protocol: Match your adapter: EtherNet/IP → 1794-AENT | ControlNet → 1794-ACN15 | DeviceNet → 1794-ADN
- Platform Migration: Moving to ControlLogix? → 1756-IB16D | Moving to CompactLogix? → 1769-IQ16
- Budget Constraint: Refurbished 1794-IB16D available — contact us for certified pre-owned stock
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, label verification, and functional power-on test where applicable
- Anti-counterfeit screening: hologram, date code, and PCB marking verification
- Packaging: original or equivalent ESD-safe packaging with desiccant
- Documentation: original datasheet, declaration of conformity available on request
- Warranty: 12-month replacement warranty on all stocked units
How to Order
- Step 1: Confirm part number: 1794-IB16D
- Step 2: Specify quantity and required delivery timeline
- Step 3: Submit inquiry via support@konmask.com or add to cart above
- Step 4: Receive quotation within 1 business day (stock items ship within 3–5 business days)
- Step 5: Payment via T/T, PayPal, or credit card; export documentation available for international orders
For urgent requirements or bulk orders (>10 units), call us directly: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 1794-IB16D with 1794-IB16 directly?
A: Yes, mechanically and electrically compatible. However, you will lose point-level diagnostic capability. Update your PLC program to remove diagnostic rungs if switching.
Q: Is the 1794-IB16D compatible with older PLC-5 systems?
A: Not natively. A 1794-APB adapter with a PROFIBUS gateway or a protocol converter is required for PLC-5 integration.
Q: What terminal base do I need?
A: The 1794-IB16D requires a 1794-TB3, 1794-TB3S, or 1794-TBN terminal base. The terminal base is sold separately.
Q: Can I use this module with a Siemens S7 controller?
A: Not directly. A protocol gateway (e.g., EtherNet/IP to PROFINET) is required. Consider native Siemens ET 200S modules for S7 systems.
Q: Do you supply refurbished units?
A: Yes. Certified pre-owned units are available with full inspection reports. Contact us for availability and pricing.
Q: What is the lead time for new stock?
A: In-stock units ship within 3–5 business days. Out-of-stock items typically have a 2–4 week lead time depending on supply chain conditions.
