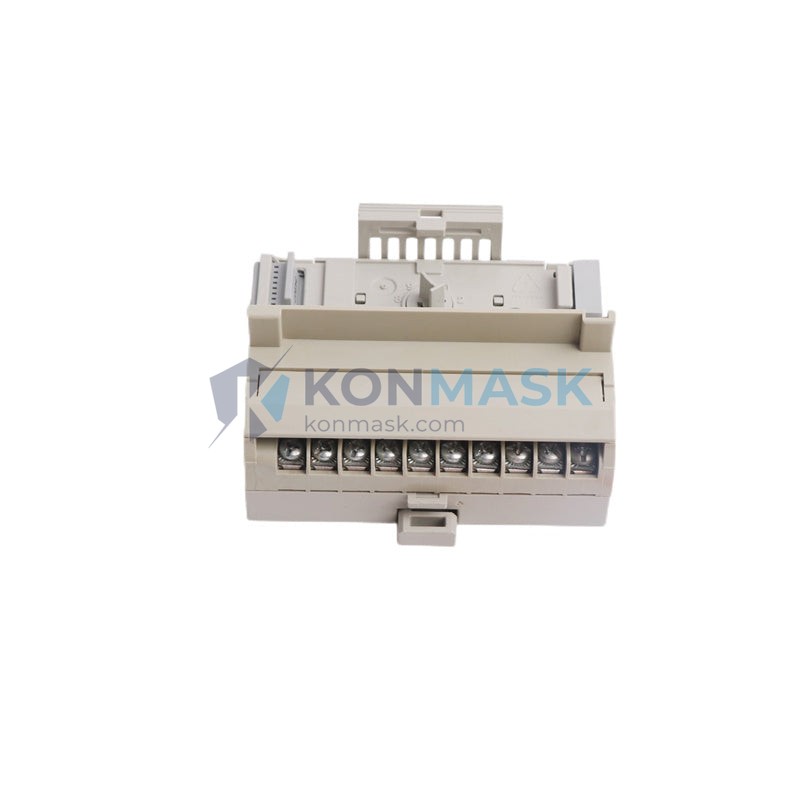

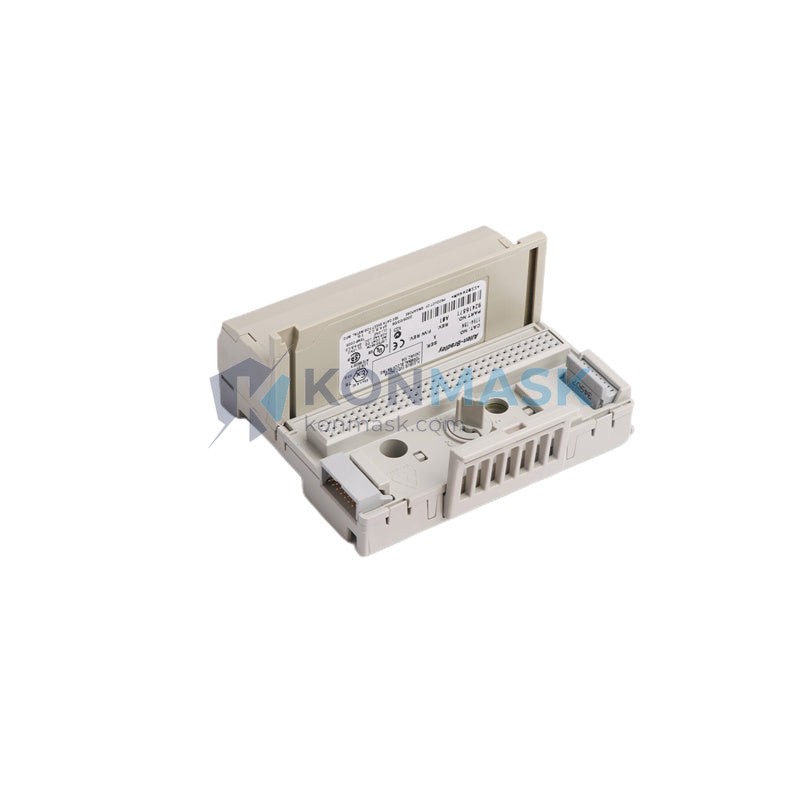

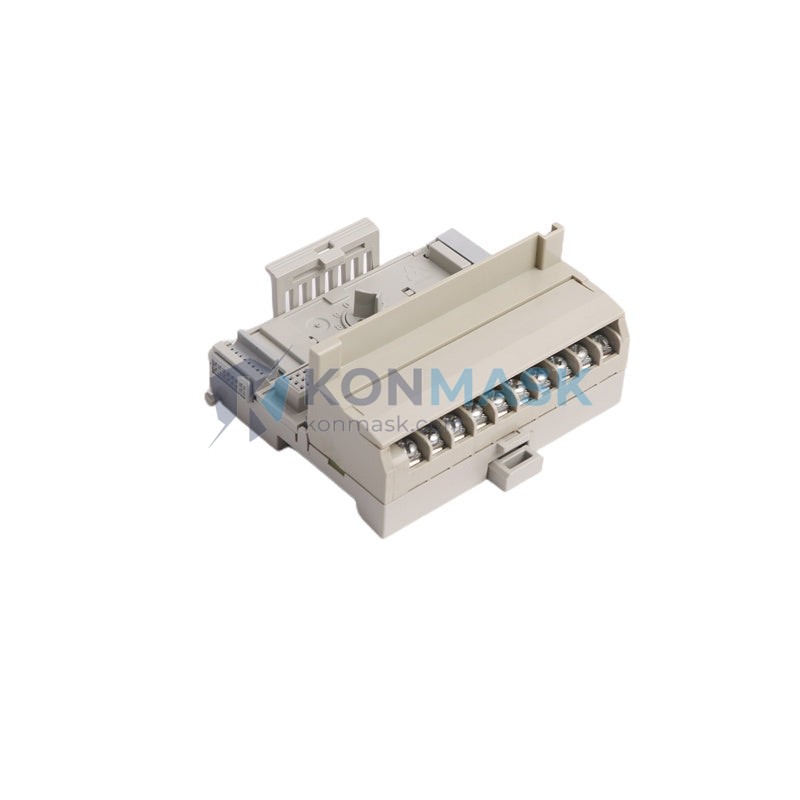

Allen-Bradley 1794-TBN – FLEX I/O Terminal Base Unit | Rockwell Automation FLEX I/O Platform
Engineering Background
The Allen-Bradley 1794-TBN is a standard terminal base unit within Rockwell Automation’s FLEX I/O distributed I/O platform. Designed for modular, rail-mounted control architectures, the 1794-TBN provides the physical and electrical interface between FLEX I/O adapter/modules and field wiring. It is a foundational component in distributed control systems (DCS) and PLC-based machine automation across process, discrete, and hybrid industries.
Product Positioning
The 1794-TBN is the workhorse terminal base for standard FLEX I/O deployments. It accepts any 1794-series I/O module and connects directly to the FLEX I/O backplane bus, enabling rapid module swap without rewiring field terminals. Procurement engineers specify this part for new panel builds, system expansions, and MRO replacement in existing Allen-Bradley FLEX I/O installations.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1794-TBN |
| Series | FLEX I/O |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | Terminal Base Unit (Standard) |
| Compatible Modules | All 1794-series FLEX I/O I/O modules |
| Backplane Connection | FLEX I/O backplane bus (right-to-left daisy chain) |
| Field Wiring Terminals | Removable screw-type terminal block |
| Terminal Capacity | Up to 16 field wiring points (application-dependent) |
| Operating Voltage | Supplied via FLEX I/O adapter/power supply |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail (EN 50022, 35 mm) |
| Enclosure Rating | Open type (requires enclosure) |
| Dimensions (W × H × D) | Approx. 94 mm × 94 mm × 60 mm |
| Weight | 140 g |
| Agency Certifications | UL, CE, CSA (refer to product label) |
| Country of Origin | USA / Global manufacturing |
| Rockwell Publication | 1794-IN006 (Installation Instructions) |
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, conveyor systems, and machine tool control panels using ControlLogix or CompactLogix PLCs with FLEX I/O remote I/O drops.
- Process Industries: Chemical, oil & gas, and water/wastewater plants requiring distributed I/O in junction boxes and marshalling cabinets.
- Packaging & Material Handling: High-density I/O panels where modular, hot-swap-capable terminal bases reduce downtime during maintenance.
- Building Automation & HVAC: BAS panels integrating FLEX I/O for analog and digital field device termination.
- MRO & System Expansion: Direct drop-in replacement for existing 1794-TBN units in legacy FLEX I/O installations without field rewiring.
Engineering Advantages
- Tool-free Module Swap: FLEX I/O modules latch onto the terminal base without disturbing field wiring — minimizing MTTR in live panels.
- Backplane Continuity: Interlocking backplane connectors maintain bus integrity across multi-module drops; no separate backplane cable required.
- Removable Terminal Block: Field wiring terminates on a removable block, enabling pre-wiring and staged commissioning.
- Universal Module Compatibility: Accepts the full 1794-series module library — digital, analog, specialty, and communication modules — on a single base form factor.
- Compact DIN-Rail Footprint: 94 mm width per base enables high-density I/O packing in space-constrained enclosures.
- Proven Platform Longevity: FLEX I/O has been in production since the 1990s; 1794-TBN is a stable, long-lifecycle part with broad global support.
System Architecture & Signal Flow
In a FLEX I/O system, the 1794-AENT / 1794-ACN15 adapter (or equivalent) mounts on the leftmost terminal base and provides the network interface (EtherNet/IP, ControlNet, DeviceNet, etc.). The 1794-TBN units daisy-chain to the right, each carrying one I/O module. The backplane bus passes power and data through the interlocking connectors. Field signals wire to the removable terminal block on each 1794-TBN, then route through the seated I/O module to the adapter and upstream to the PLC controller (e.g., ControlLogix 1756, CompactLogix 5380).
Signal path: Field Device → 1794-TBN Terminal Block → 1794-series I/O Module → FLEX I/O Backplane → 1794 Adapter → Network (EtherNet/IP / ControlNet / DeviceNet) → PLC Controller
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels with documented supply chain traceability.
- Each 1794-TBN is inspected for catalog label authenticity, backplane connector integrity, and terminal block condition prior to shipment.
- Konmask.com maintains a zero-tolerance policy on counterfeit components — suspect units are quarantined and not listed.
- New-in-box (NIB) and tested-surplus units are clearly differentiated in product listings. Condition is stated at time of quotation.
- Rockwell Automation product documentation (1794-IN006) available upon request for engineering verification.
Procurement Process
- Confirm Quantity & Condition: Contact us to verify current stock, condition (NIB / surplus / refurbished), and lead time before placing an order.
- Request a Formal Quote: Email support@konmask.com with your PO number, required quantity, and delivery address for a formal quotation with HTS/HS code documentation.
- Order Placement: Orders accepted via the Konmask.com storefront, email PO, or direct bank transfer (T/T) for B2B accounts.
- Shipping & Export: Domestic (CN) and international shipping available. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- Post-Sale Support: Technical questions and warranty claims handled directly by Konmask engineering support within 1 business day.
Technical FAQ
Q: Can the 1794-TBN be used with any FLEX I/O adapter?
A: Yes. The 1794-TBN is compatible with all 1794-series adapters (EtherNet/IP, ControlNet, DeviceNet, RIO, etc.) as it interfaces via the standard FLEX I/O backplane bus.
Q: Is the terminal block on the 1794-TBN removable without removing the module?
A: Yes. The field wiring terminal block can be removed independently of the I/O module, allowing field wiring to be pre-installed and the module to be seated separately.
Q: What is the maximum number of 1794-TBN bases per adapter?
A: Up to 8 terminal bases (I/O modules) per FLEX I/O adapter, depending on the adapter type and power budget.
Q: Is the 1794-TBN the same as the 1794-TBNS or 1794-TBNF?
A: No. The 1794-TBN is the standard base. The 1794-TBNS includes a shield terminal, and the 1794-TBNF is a fused variant. Verify your system requirement before ordering.
Q: Can I hot-swap an I/O module on the 1794-TBN?
A: Hot-swap capability depends on the adapter and controller configuration. Consult Rockwell publication 1794-UM001 and your system integrator before performing live module swaps.
Q: What is the lead time for the 1794-TBN from Konmask?
A: In-stock units ship within 1–3 business days. Contact us for current availability and expedited shipping options.
