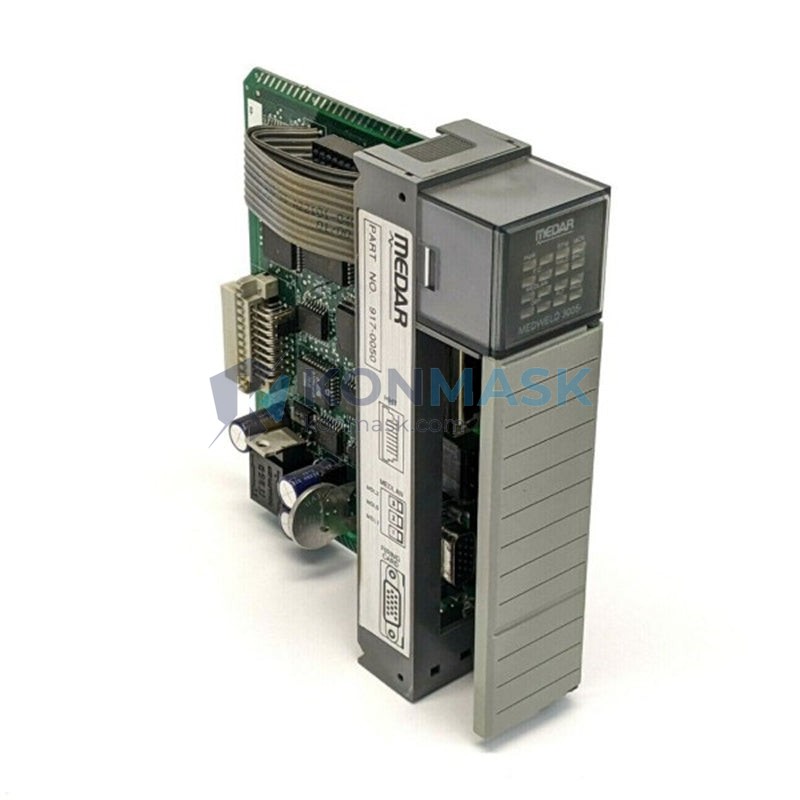

Allen-Bradley 917-0050 – Resistance Welding Control Module | MEDWELD 3005 Platform
Engineering Background
The Allen-Bradley MEDWELD 3005 is a dedicated resistance welding control module developed under Rockwell Automation’s industrial welding control platform. Designed for integration into programmable controller-based manufacturing cells, it provides precise weld schedule management, current regulation, and process monitoring for spot, projection, and seam welding applications. The 917-0050 module represents a mature, field-proven design widely deployed in automotive body-in-white, appliance manufacturing, and heavy fabrication environments.
Product Positioning
This module is positioned as a mission-critical component for OEM welding systems and MRO replacement in existing MEDWELD 3005 installations. Procurement engineers sourcing verified surplus or refurbished units will find this listing backed by Konmask’s quality verification process, ensuring functional integrity before shipment.
Complete Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Part Number: 917-0050
- Series / Platform: MEDWELD 3005
- Module Type: Resistance Welding Control Module
- Welding Modes Supported: Spot, Projection, Seam (application-dependent)
- Weld Schedule Storage: Multiple programmable weld schedules
- Control Interface: Compatible with Allen-Bradley PLC backplane architecture
- Communication: Backplane I/O; integrates with SLC 500 / PLC-5 controller families (verify compatibility with target system)
- Power Supply: Derived from system backplane (refer to system power budget)
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: −40 °C to 85 °C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 200 g
- Form Factor: Single-slot module (standard AB rack)
- Certifications: UL Listed; CE Mark (verify with original documentation)
- Country of Origin: USA
Proven Application Environments
- Automotive body-in-white (BIW) resistance spot welding lines
- Appliance manufacturing — door panel and frame welding cells
- Heavy fabrication and structural steel welding automation
- Tier 1 / Tier 2 automotive supplier production lines
- MRO replacement in legacy MEDWELD 3005 control systems
- OEM machine builders integrating Allen-Bradley welding control platforms
Engineering Advantages
- Dedicated Welding Intelligence: Offloads weld schedule execution from the main PLC CPU, reducing scan time impact on the controller.
- Precise Current Control: Closed-loop weld current regulation ensures consistent nugget formation across production runs.
- Multi-Schedule Capability: Supports multiple stored weld programs, enabling rapid changeover between part variants without reprogramming.
- Fault Diagnostics: Onboard fault detection and status reporting via backplane, simplifying troubleshooting and minimizing downtime.
- Proven Platform Longevity: MEDWELD 3005 architecture has decades of field deployment, with extensive third-party support and documentation availability.
- Drop-in Replacement: Direct form-fit-function replacement for existing 917-0050 installations — no re-engineering required.
System Architecture & Signal Flow
The MEDWELD 3005 module resides in a standard Allen-Bradley I/O rack and communicates with the host PLC via the backplane data highway. The control sequence follows this general flow:
- Weld Initiation: PLC outputs a weld-start command to the module via backplane output image.
- Schedule Execution: Module retrieves the selected weld schedule (squeeze time, weld time, hold time, heat %) and executes the firing sequence to the weld transformer/SCR contactor.
- Current Monitoring: Toroid feedback signal is processed by the module for closed-loop heat control.
- Completion & Status: Module returns weld-complete and fault status bits to the PLC input image for ladder logic processing.
- Data Logging: Weld count and fault history maintained in module memory for quality traceability.
Sourcing & Quality Verification
- Stock Condition: Verified industrial surplus / refurbished — functionally tested prior to listing
- Inspection Protocol: Visual inspection (PCB, connectors, housing), power-on functional test, backplane communication verification
- Traceability: Serial number recorded; original manufacturer date code noted where visible
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included
- Warranty: 90-day Konmask operational warranty against DOA / functional failure
- Return Policy: 30-day return window for verified non-functional units
Procurement Process
- Confirm Compatibility: Verify your rack type, backplane revision, and PLC firmware version against MEDWELD 3005 compatibility matrix (AB Publication 917-UM001 or equivalent).
- Request Quote: Contact support@konmask.com for volume pricing, lead time confirmation, and stock availability.
- Place Order: Purchase directly via this listing or via PO — Net 30 available for qualified accounts.
- Receive & Inspect: Inspect upon receipt; report any discrepancy within 48 hours of delivery.
- Technical Support: Post-installation technical queries supported via email or phone during business hours (CST).
Technical FAQ
Q: Is the 917-0050 compatible with SLC 500 racks?
A: The MEDWELD 3005 platform was designed for use with Allen-Bradley PLC-5 and compatible rack systems. SLC 500 compatibility depends on the specific rack and backplane revision — confirm with your system documentation or contact us before ordering.
Q: Can weld schedules be programmed via RSLogix?
A: Weld schedule configuration is typically performed via the MEDWELD programming software or dedicated HMI interface, not directly through RSLogix. Consult AB Publication 917-UM001 for programming procedures.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Contact us to confirm current availability.
Q: Do you provide a test report with the module?
A: A basic functional test record is available upon request. Contact support@konmask.com to request documentation.
Q: Is this a new or refurbished unit?
A: This listing covers verified industrial surplus / refurbished stock. New factory-sealed units may be available — inquire for current new-stock pricing.
