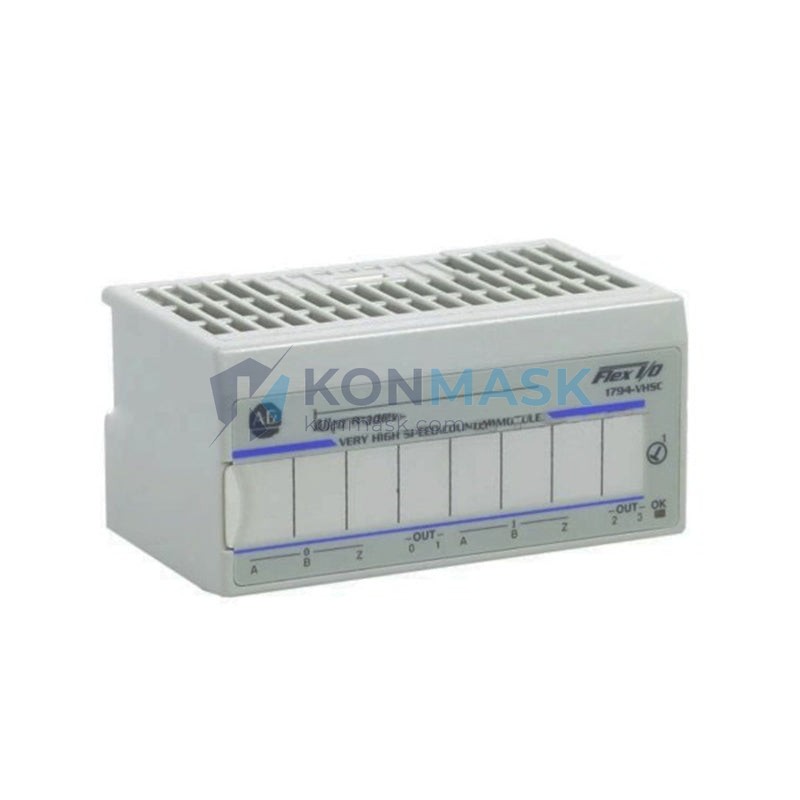

Allen-Bradley 1794-VHSC – Very High Speed Counter Module | FLEX I/O Platform
Engineering Background
The 1794-VHSC is a high-performance counter module designed for Rockwell Automation’s FLEX I/O platform. It is engineered to capture and process high-frequency pulse signals from encoders, proximity sensors, and other field devices in demanding industrial environments. As part of the 1794 FLEX I/O family, it integrates seamlessly into distributed I/O architectures controlled by Allen-Bradley PLCs via standard backplane communication.
Product Positioning
Targeted at motion control, speed monitoring, position tracking, and production counting applications, the 1794-VHSC delivers deterministic, high-resolution counting performance where standard digital input modules fall short. It is the preferred choice for OEM machine builders and system integrators requiring reliable pulse capture in high-speed manufacturing lines.
Complete Technical Specifications
| Catalog Number | 1794-VHSC |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series / Platform | FLEX I/O (1794 Series) |
| Module Type | Very High Speed Counter (VHSC) |
| Counter Channels | 2 independent counter channels |
| Maximum Input Frequency | Up to 1 MHz |
| Counter Resolution | 32-bit |
| Input Signal Types | Single-ended, Differential (RS-422), TTL |
| Encoder Support | Quadrature (A/B/Z), Pulse/Direction, Up/Down |
| Operating Modes | Counter, Rate Measurement, Period Measurement, Encoder |
| Output Channels | 2 discrete outputs (configurable preset/compare) |
| Supply Voltage | 24V DC (via FLEX I/O adapter) |
| Backplane Communication | FLEX I/O backplane (via 1794 adapter) |
| Compatible Adapters | 1794-ADN, 1794-AENT, 1794-ACN15, 1794-ACNR15, etc. |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Enclosure Rating | Open type (requires enclosure) |
| Certifications | UL, CE, cUL |
| Weight | Approx. 100 g |
Proven Application Environments
- Packaging Lines: Precise product counting and speed monitoring on high-speed conveyors
- CNC & Servo Systems: Encoder feedback for position and velocity control loops
- Printing & Converting: Web speed measurement and registration mark detection
- Bottling & Filling: High-speed fill count verification and reject control
- Material Handling: Pallet tracking, sorter divert control, and throughput monitoring
- Automotive Assembly: Torque tool pulse counting and fastener verification
- Flow Metering: Turbine and gear-type flow meter pulse accumulation
Engineering Advantages
- 1 MHz Counting Rate: Handles the fastest industrial encoders and proximity sensors without signal loss
- 32-Bit Resolution: Eliminates rollover errors in long-run counting applications
- Dual Independent Channels: Monitor two separate axes or processes from a single module slot
- Flexible Input Modes: Supports quadrature, pulse/direction, and up/down configurations without rewiring
- Onboard Discrete Outputs: Trigger downstream actions (gates, alarms, solenoids) directly from preset comparisons
- FLEX I/O Modularity: Hot-swap capable architecture minimizes downtime during maintenance
- Wide Adapter Compatibility: Works across DeviceNet, EtherNet/IP, ControlNet, and PROFIBUS FLEX adapters
System Architecture & Signal Flow
The 1794-VHSC occupies one slot on a FLEX I/O terminal base (1794-TB3 or equivalent). Field pulse signals enter via the terminal base wiring, are conditioned by the module’s input circuitry, and processed by the onboard counter ASIC. Accumulated counts, rate values, and status flags are mapped to the I/O image table of the controlling PLC through the FLEX I/O adapter. The PLC program reads counter data cyclically and can write preset/compare values to trigger the module’s discrete outputs in real time. Configuration is performed via RSLogix 5000 / Studio 5000 I/O tree or RSNetWorx, depending on the network adapter in use.
Sourcing & Quality Verification
- All 1794-VHSC units offered by Konmask.com are sourced from authorized distributors or verified surplus channels with documented chain of custody
- Each unit undergoes visual inspection: label integrity, connector condition, firmware revision marking, and housing authenticity check
- Functional power-on testing is performed where test fixtures are available
- Counterfeit-risk screening follows Rockwell Automation’s published authentication guidelines
- Units are shipped in anti-static packaging with individual serial number logging
Procurement Process
- Confirm Part Number: Verify 1794-VHSC matches your BOM and firmware revision requirements
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination country
- Order Confirmation: Receive proforma invoice with unit price, lead time, and shipping terms (EXW/DDP available)
- Payment & Dispatch: Payment via T/T or agreed terms; dispatch within 1–3 business days of clearance
- Shipping & Tracking: DHL / FedEx / SF Express with full tracking; export documentation provided for customs
- After-Sales Support: 12-month warranty on verified units; technical support via email or WhatsApp
Technical FAQ
Q: Can the 1794-VHSC be used with EtherNet/IP adapters?
A: Yes. It is compatible with the 1794-AENT adapter, enabling EtherNet/IP connectivity to ControlLogix and CompactLogix controllers.
Q: What is the maximum cable length for differential encoder inputs?
A: RS-422 differential inputs support cable runs up to 300 m (1,000 ft) at reduced frequencies. Consult Rockwell publication 1794-UM065 for derating curves.
Q: Does the module support SSI or absolute encoders?
A: No. The 1794-VHSC supports incremental encoder protocols only. For absolute encoder (SSI/EnDat) requirements, consider the 1794-APB or a dedicated motion module.
Q: Is the 1794-VHSC still in active production?
A: This module may be in a mature or end-of-life phase. Konmask.com maintains stock of verified surplus units. Contact us to confirm current availability and lead time.
Q: Can I mix 1794-VHSC with other FLEX I/O modules on the same adapter?
A: Yes. FLEX I/O is a modular platform; the 1794-VHSC can coexist with digital, analog, and specialty modules on the same adapter up to the adapter’s I/O capacity limits.
