Allen-Bradley 2094-BC07-M05-S Integrated Axis Module | Replacement, Equivalent & Selection Guide

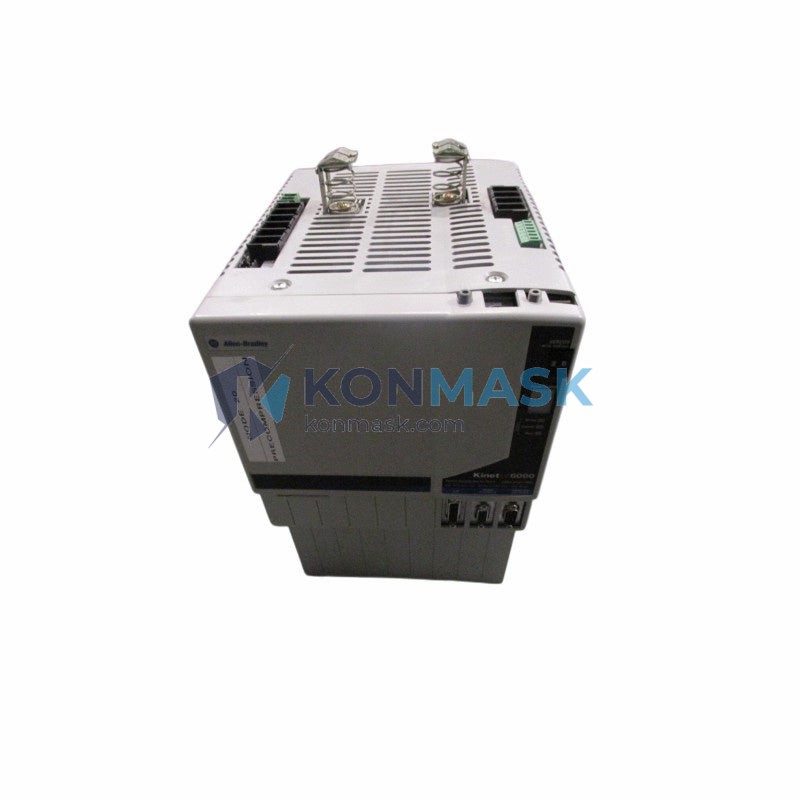

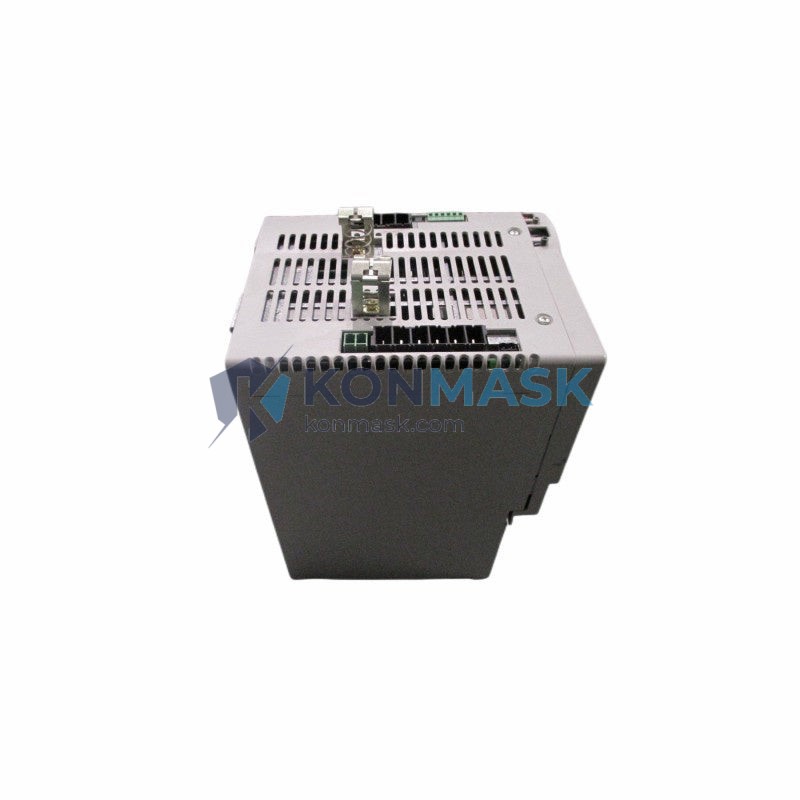

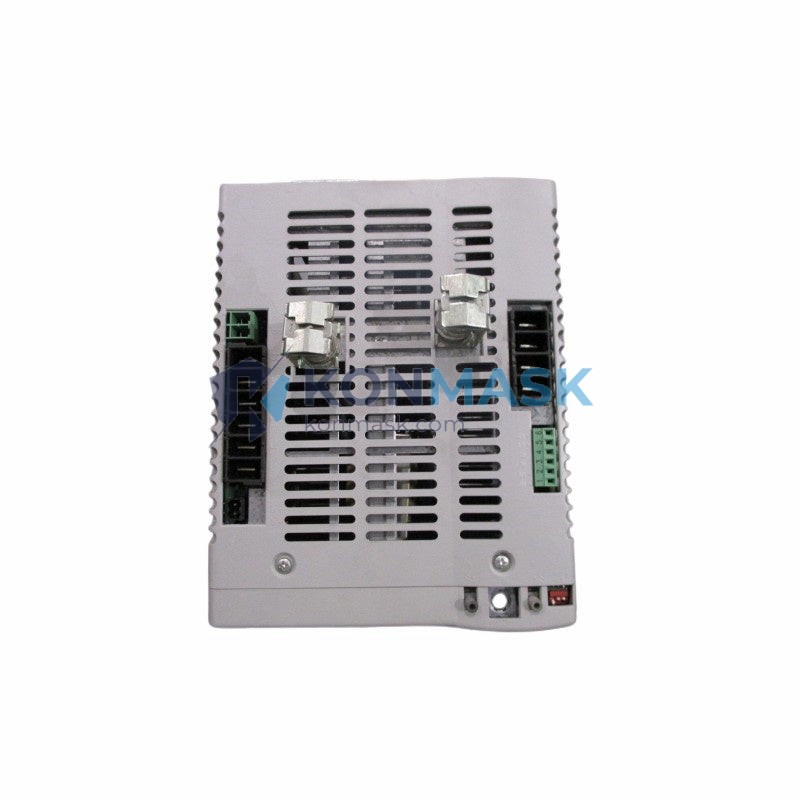

The Allen-Bradley 2094-BC07-M05-S is a Kinetix® 6 Integrated Axis Module (IAM) manufactured by Rockwell Automation. It serves as the primary power and control axis in a Kinetix 6 multi-axis servo drive system, delivering precise motion control for demanding industrial automation applications. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2094-BC07-M05-S |
| Series | Kinetix® 6 (2094 Series) |
| Module Type | Integrated Axis Module (IAM) |
| Converter Input Voltage | 195–264 VAC, 3-phase |
| Converter Output Power | 7 kW continuous |
| Inverter Output Current | 5 Arms continuous |
| Communication Interface | SERCOS II (fiber optic) |
| Safety Rating | Safe Torque Off (STO) — SIL 2 / PLd |
| Enclosure Rating | IP20 (panel mount) |
| Operating Temperature | 0 °C to +50 °C |
| Weight | Approx. 10.7 kg |
| Manufacturer | Rockwell Automation / Allen-Bradley |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 2094-BC07-M05-S. Always verify electrical and mechanical compatibility before substitution:
- 2094-BC07-M05 — Non-safe version of the same IAM; identical power ratings, lacks integrated STO safety function.
- 2094-BM02-S — Kinetix 6 Axis Module (AM); used as an expansion axis alongside an IAM in multi-axis configurations.
- 2094-BC01-MP5-S — Lower power IAM (0.5 kW converter / 5 Arms inverter); suitable for lighter-load single-axis applications.
- 2094-BC02-M02-S — 2 kW converter / 2 Arms inverter IAM; step-down replacement for reduced power requirements.
- 2198-D006-ERS3 — Kinetix 5700 series single-axis drive; next-generation platform with EtherNet/IP, suitable for system upgrades.
- 2198-H008-ERS3 — Kinetix 5700 dual-axis inverter; consider for new designs requiring higher density and EtherNet/IP connectivity.
Note: Cross-series replacements (e.g., Kinetix 6 → Kinetix 5700) require firmware, cabling, and controller compatibility review.
Why Choose the Original Model
- Proven platform reliability — The Kinetix 6 / 2094 series has an extensive installed base in automotive, packaging, and material handling industries.
- Integrated safety — The “-S” suffix denotes built-in Safe Torque Off (STO), eliminating the need for external safety contactors and simplifying SIL 2 / PLd compliance.
- SERCOS II synchronization — Deterministic fiber-optic communication ensures tight multi-axis coordination with ControlLogix and CompactLogix controllers.
- Drop-in compatibility — Maintains full backward compatibility within the 2094 Kinetix 6 power rail ecosystem, minimizing retrofit engineering effort.
- Rockwell ecosystem integration — Native support in Studio 5000 Logix Designer with pre-configured drive profiles and auto-tuning.
Typical Applications
- Automotive assembly lines — body welding, transfer systems, and press automation
- Packaging machinery — form-fill-seal, cartoning, and palletizing
- Material handling — conveyor indexing, gantry systems, and robotic end-of-arm tooling
- Printing and converting — web tension control and register synchronization
- Machine tool — CNC axis control requiring high dynamic response
- Semiconductor and electronics manufacturing — precision positioning stages
System Compatibility
- Controllers: ControlLogix (1756-L series), CompactLogix (1769-L series) with SERCOS II motion module (e.g., 1756-M08SE)
- Power Rail: 2094-PRS6 or 2094-PRS16 Kinetix 6 power rail
- Expansion Axes: 2094-BM02-S, 2094-BM03-S, 2094-BM05-S Axis Modules
- Servo Motors: MPL, MPM, MPS, and VPL series Allen-Bradley servo motors
- Software: Studio 5000 Logix Designer v20 and above; RSLogix 5000 v16+
- Safety: Compatible with GuardLogix safety controllers for SIL 2 / PLd STO applications
Selection Guide
Use the following criteria to confirm the 2094-BC07-M05-S is the correct module for your application, or to identify the appropriate alternative:
- Step 1 — Power requirement: Confirm your application requires ≤7 kW converter output and ≤5 Arms continuous inverter current. If higher, consider 2094-BC07-M07-S (7 Arms) or 2094-BC07-M15-S (15 Arms).
- Step 2 — Safety function: If STO is required, ensure the “-S” suffix is present. Non-safe variants (e.g., 2094-BC07-M05) do not include integrated STO.
- Step 3 — Communication protocol: Verify your controller motion module supports SERCOS II. For EtherNet/IP-based systems, evaluate Kinetix 5700 (2198 series) instead.
- Step 4 — Power rail: Confirm an existing 2094-series power rail is in place. The IAM must be the leftmost module on the rail.
- Step 5 — Motor compatibility: Match motor feedback type (high-resolution encoder, resolver, or linear scale) to the IAM’s supported feedback options.
- Step 6 — Ambient conditions: Verify panel temperature does not exceed 50 °C; derate output current if operating above 40 °C.
Quality Assurance & Sourcing
- All units sourced through authorized distributor channels or verified surplus with full traceability documentation.
- Pre-shipment inspection includes visual examination, label verification, and where applicable, functional power-on testing.
- Counterfeit risk mitigation: serial number and date code verification against Rockwell Automation records upon request.
- Packaging: original OEM packaging preferred; industrial anti-static packaging used for surplus stock.
- Lead time: in-stock units ship within 1–3 business days; factory-order lead times quoted on request.
How to Order
- Confirm the part number: 2094-BC07-M05-S (include firmware revision if required).
- Specify quantity and required delivery date.
- Contact us via the form below, email, or phone for a formal quotation.
- Provide end-use application details if export compliance documentation (EAR/ECCN) is required.
- Payment terms and shipping options confirmed upon order acceptance.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 2094-BC07-M05-S with a 2094-BC07-M05 (non-safe)?
A: Mechanically and electrically yes, but you will lose the integrated STO safety function. This may require redesign of your safety circuit to maintain SIL 2 / PLd compliance.
Q: Is the 2094-BC07-M05-S compatible with Kinetix 5700 (2198 series)?
A: No. The 2094 and 2198 series use different power rails, communication protocols (SERCOS II vs. EtherNet/IP), and are not directly interchangeable. A system-level migration is required.
Q: Can I use this IAM with a CompactLogix controller?
A: Yes, provided the CompactLogix system includes a compatible SERCOS II motion module (e.g., 1756-M08SE in a ControlLogix chassis bridged to CompactLogix, or a direct SERCOS-capable CompactLogix variant).
Q: What is the difference between IAM and AM modules?
A: The IAM (Integrated Axis Module) contains both the converter (AC-to-DC bus) and inverter (DC-to-motor) sections and must be the first module on the power rail. AM (Axis Module) contains only the inverter and shares the DC bus from the IAM.
Q: Do you provide a warranty on surplus units?
A: Yes. We offer a standard 12-month warranty on all tested surplus units. Contact us for full warranty terms.
