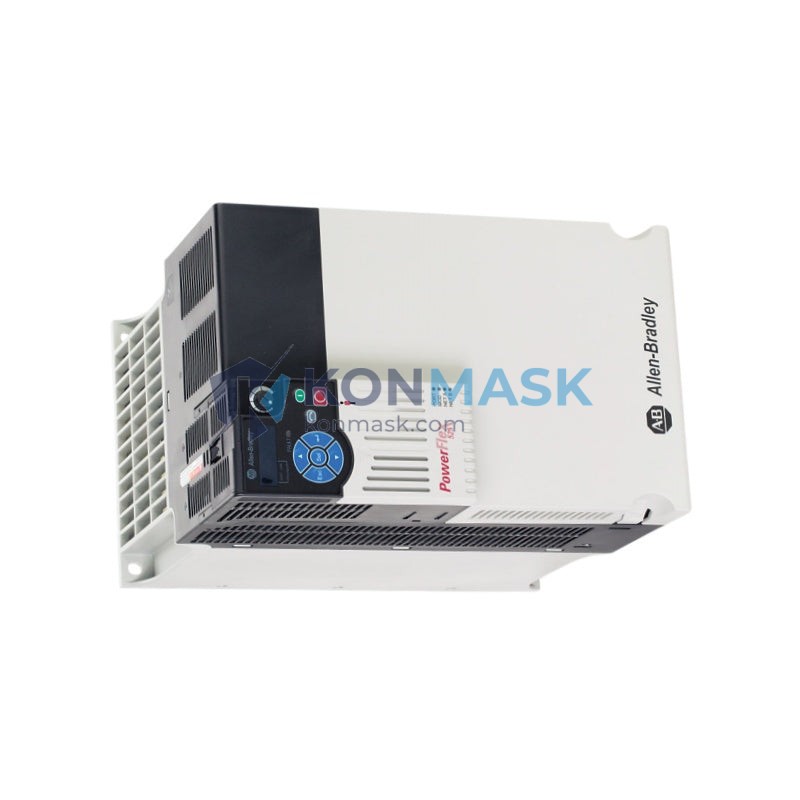

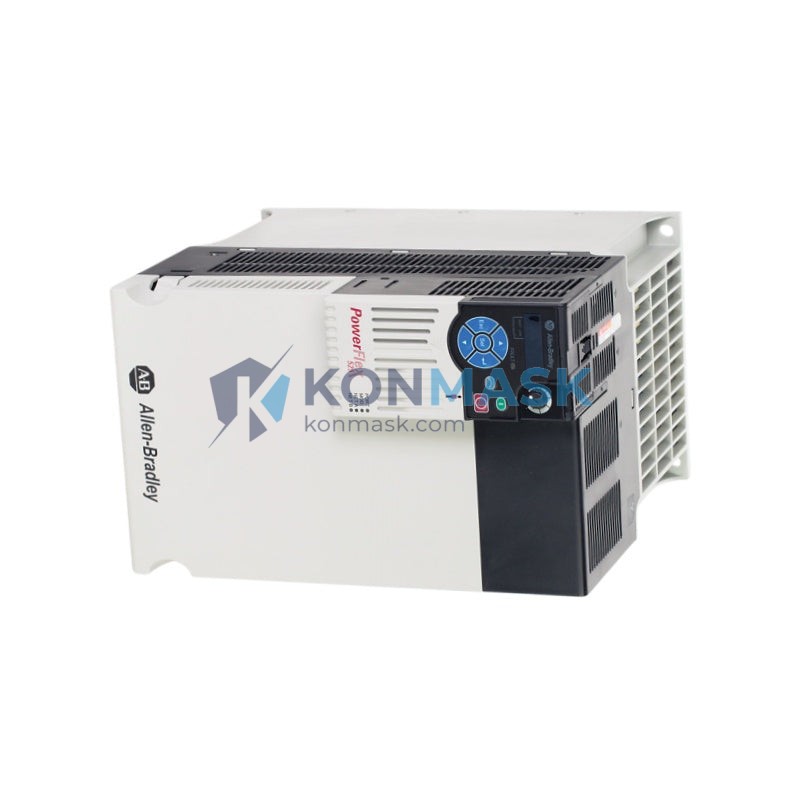

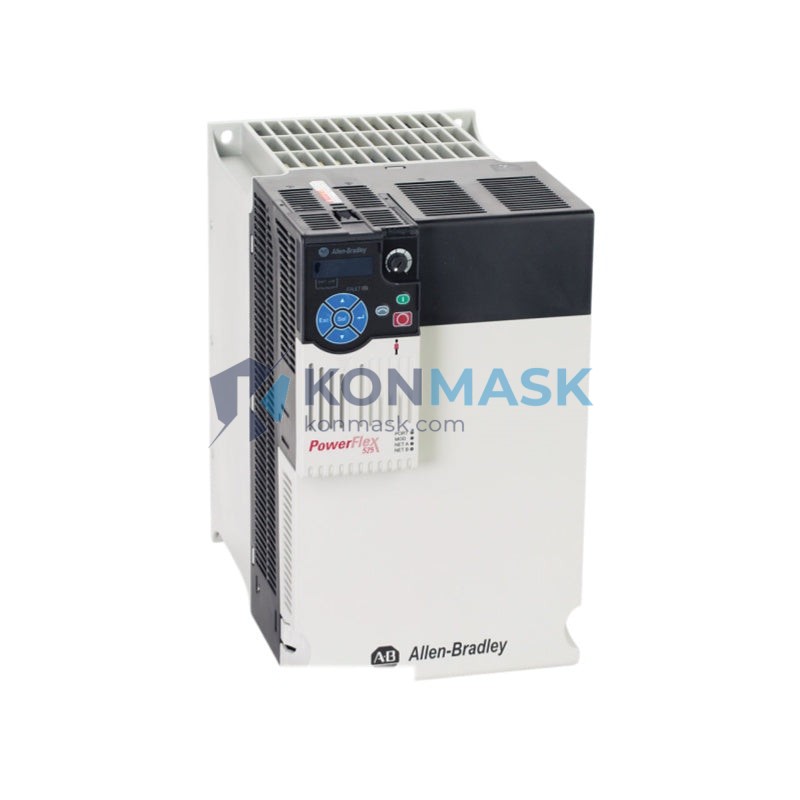

Allen-Bradley 25B-D037N114 PowerFlex 525 AC Drive | 2HP / 1.5kW Variable Frequency Drive
Engineering Background: The PowerFlex 525 is Rockwell Automation’s most versatile compact AC drive platform, engineered for standalone machine control and networked automation environments. Combining an embedded EtherNet/IP port with a modular design, the 525 series bridges the gap between simple speed control and full closed-loop vector performance — all within a DIN-rail-mountable footprint.
Product Positioning: The 25B-D037N114 is the 2HP (1.5kW) member of the PowerFlex 525 family, rated for 480V AC three-phase input with 3.7A continuous output current. It is the preferred choice for procurement engineers specifying compact drives for conveyor systems, pump stations, HVAC fans, and light-duty machine axes where EtherNet/IP connectivity and safety-ready architecture are mandatory requirements.
Complete Technical Specifications
| Catalog Number | 25B-D037N114 |
| Drive Series | PowerFlex 525 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 2 HP / 1.5 kW |
| Input Voltage | 480V AC, 3-Phase (342–528V AC range) |
| Input Frequency | 47–63 Hz |
| Output Current (Continuous) | 3.7 A |
| Output Frequency Range | 0–500 Hz |
| Control Method | V/Hz, Sensorless Vector (SVC), Closed-Loop Vector (with encoder option) |
| Enclosure Rating | IP20 / NEMA Type 1 (open chassis) |
| EMC Filter | None (N = no internal filter) |
| Brake Chopper | None (1 = no internal brake transistor) |
| Communication | Embedded EtherNet/IP (dual-port), DSI port |
| Safety | Safe Torque Off (STO) — SIL 2 / PLd Cat. 3 |
| Ambient Temperature | 0°C to +50°C (operating); –40°C to +70°C (storage) |
| Humidity | 5–95% RH, non-condensing |
| Altitude | Up to 1000 m without derating |
| Approvals | UL, cUL, CE, C-Tick, RoHS |
| Weight | 1.76 kg (3.88 lb) |
| Dimensions (H×W×D) | Approx. 180 × 72 × 172 mm |
| Firmware | Compatible with Studio 5000 / Connected Components Workbench (CCW) |
Proven Application Environments
- Conveyor & Material Handling: Precise speed ramping with SVC control eliminates mechanical shock on belt drives and roller conveyors.
- Pump & Fan Control: Energy-saving V/Hz curves reduce power consumption by up to 50% at partial loads in HVAC and process cooling loops.
- Packaging Machinery: Fast current-limit response and flying-start capability maintain throughput during product changeovers.
- Light CNC & Spindle Axes: Closed-loop vector mode (with optional encoder module) delivers ±0.01% speed regulation for precision machining.
- Water/Wastewater: IP20 chassis integrates into sealed control panels; STO function satisfies IEC 62061 safety requirements without external contactors.
- OEM Machine Builders: Compact DIN-rail footprint and EtherNet/IP native port reduce panel space and wiring cost versus legacy fieldbus solutions.
Engineering Advantages
- Embedded Dual-Port EtherNet/IP: Device-level ring (DLR) topology support eliminates the need for external managed switches in linear or ring network architectures.
- Modular Option Cards: Encoder feedback, additional I/O, and alternative fieldbus (PROFIBUS, DeviceNet, CANopen) via plug-in option modules — no rewiring required.
- Safe Torque Off (STO): Hardwired safety function certified to SIL 2 / PLd Cat. 3; eliminates the need for a separate safety relay in most machine safety circuits.
- AppView & CustomView: Configurable HMI parameter groups allow OEMs to present only application-relevant parameters to end-user operators.
- Energy Monitoring: Built-in kWh metering and power factor display support ISO 50001 energy management reporting without external meters.
- Flying Start: Reconnects to a spinning motor without speed search delay — critical for fan and pump restart scenarios.
System Architecture & Signal Flow
The 25B-D037N114 accepts 480V AC three-phase power through its input terminals (R/L1, S/L2, T/L3). The internal rectifier converts AC to a regulated DC bus (~680V DC), which feeds the IGBT inverter stage. PWM switching at up to 16 kHz synthesizes the variable-frequency, variable-voltage output delivered to the motor terminals (U/T1, V/T2, W/T3).
Control signals are processed by the onboard DSP: analog inputs (0–10V / 4–20mA), digital inputs (24V DC), and relay outputs are all configurable via parameter groups. The embedded EtherNet/IP port communicates directly with a Logix controller (ControlLogix, CompactLogix, Micro820) using the PowerFlex 525 Add-On Profile (AOP) in Studio 5000, enabling full drive parameter access and real-time diagnostics over the plant network.
Sourcing & Quality Verification
- Authenticity: All units sourced through authorized distribution channels or verified surplus with full traceability documentation available on request.
- Inspection Protocol: Each drive undergoes visual inspection (label integrity, connector condition, housing damage check) and functional power-on verification prior to shipment.
- Packaging: Anti-static bag + foam-lined carton; original Rockwell Automation packaging preserved where available.
- Documentation: Certificate of conformance, test report, and original datasheet available upon request for MRO and OEM procurement teams.
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure under normal operating conditions.
Procurement Process
- Confirm Quantity & Lead Time: Contact us via the product page or email to verify real-time stock levels and delivery schedule to your location.
- Request a Quote: For orders of 3+ units, request a volume pricing quote — typical response within 4 business hours.
- Place Order: Secure checkout via Konmask.com; accepted payment methods include T/T bank transfer, PayPal, and major credit cards.
- Shipping: DHL Express / FedEx International Priority standard; EXW, FOB Xiamen, or CIF terms available for freight orders.
- After-Sales: Technical support available via email or WhatsApp; replacement or refund processed within 7 business days for verified defective units.
Technical FAQ
Q: Can the 25B-D037N114 be used on a single-phase 480V supply?
A: No. This catalog number requires a balanced three-phase 480V AC input. For single-phase applications, refer to the PowerFlex 523 or 525 240V single-phase variants.
Q: Is an external EMC filter required for CE compliance?
A: Yes. The “N” in the catalog number indicates no internal EMC filter. An external Rockwell Automation 25-RF series filter is required to meet EN 61800-3 Category C2 limits.
Q: What is the maximum motor cable length?
A: Without an output reactor, maximum shielded cable length is 30 m (100 ft) at 4 kHz carrier frequency. With an output reactor, this extends to 100 m (328 ft).
Q: Can this drive be programmed without a Logix controller?
A: Yes. The drive can be fully configured using the integral LCD keypad or via Connected Components Workbench (CCW) software over USB or EtherNet/IP — no PLC required for standalone operation.
Q: What option modules are compatible?
A: The 25B frame accepts 25-COMM-E2P (dual-port EtherNet/IP — already embedded), 25-ENC-1 (encoder feedback), 25-IO-V (expanded analog I/O), and 25-COMM-P (PROFIBUS DP) among others.
