CNC Machining & Precision Motion Control Solution — Allen-Bradley 2098-DSD-010X-DN | Ultra3000 Series
Where This Product Is Used

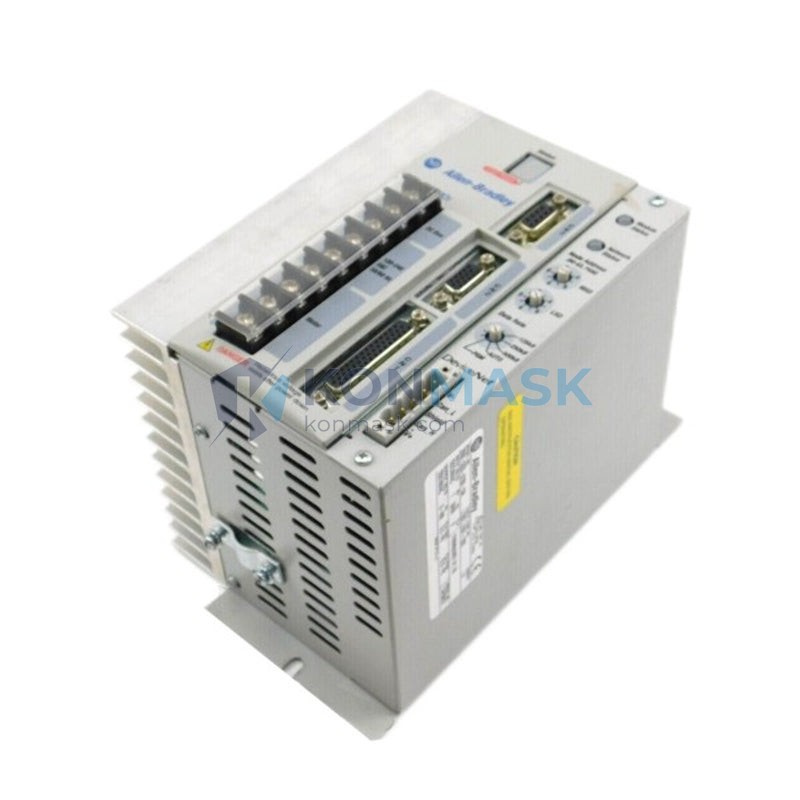

The Allen-Bradley 2098-DSD-010X-DN is a DeviceNet-enabled digital servo drive from the Ultra3000 series, engineered for high-precision motion control in demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers — Axis positioning for milling, turning, and grinding machines requiring sub-millimeter repeatability.
- Packaging & Labeling Lines — High-speed indexing, registration control, and synchronized multi-axis motion.
- Robotics & Gantry Systems — Coordinated servo control for Cartesian and SCARA robot arms.
- Semiconductor & Electronics Assembly — Ultra-precise pick-and-place and wafer-handling stages.
- Printing & Converting Machinery — Tension control, web guiding, and register correction.
- Material Handling & Conveyors — Variable-speed drives with position feedback for sortation and palletizing.
Technical Specifications
| Part Number | 2098-DSD-010X-DN |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | Ultra3000 Digital Servo Drive |
| Communication Interface | DeviceNet (DN suffix) |
| Drive Type | Digital Servo Drive (DSD) |
| Continuous Output Current | 10 A RMS |
| Input Voltage | 120/240 VAC, Single or Three Phase |
| Feedback Compatibility | Incremental Encoder, Absolute Encoder, Resolver |
| Control Modes | Position, Velocity, Torque |
| Weight | 2,200 g (approx.) |
| Mounting | Panel / DIN Rail |
| Operating Temperature | 0 °C to 50 °C |
| Protection Rating | IP20 |
| Programming Software | Ultraware™ (Rockwell Automation) |
Why Engineers Specify This Model
- DeviceNet Connectivity — Native DeviceNet port enables seamless integration into existing Allen-Bradley ControlLogix / CompactLogix networks without additional gateway hardware.
- Multi-Mode Control — Supports position, velocity, and torque control modes in a single unit, reducing spare-parts inventory.
- Broad Feedback Compatibility — Works with incremental encoders, absolute encoders, and resolvers, giving engineers flexibility across motor brands and legacy installations.
- Compact Form Factor — Panel-mount design fits standard industrial enclosures, minimizing cabinet footprint.
- Proven Ultra3000 Platform — Widely deployed across automotive, food & beverage, and semiconductor industries with extensive field history and Rockwell support documentation.
- Ultraware™ Software — Intuitive commissioning and tuning software reduces startup time and simplifies parameter backup.
Complete System Bill of Materials
For a fully operational servo axis using the 2098-DSD-010X-DN, the following components are typically required:
- Allen-Bradley 2098-DSD-010X-DN — Servo Drive (this unit)
- Compatible MPL / MPM Series Servo Motor (e.g., MPL-B310P-MK22AA)
- Motor Power Cable — 2090-XXNPMP-16Sxx
- Encoder Feedback Cable — 2090-XXNFMF-Sxx
- DeviceNet Drop Cable — 1485P-P1Cxx
- 24 VDC Control Power Supply (e.g., 1606-XLP95E)
- Circuit Breaker / Fusing per NEC/IEC requirements
- ControlLogix / CompactLogix PLC with DeviceNet Scanner (e.g., 1756-DNB)
- Ultraware™ Software License for commissioning
Compliance & Industry Standards
- CE Marked — Compliant with EU Low Voltage Directive and EMC Directive
- UL Listed — Recognized under UL 508C (Power Conversion Equipment)
- DeviceNet Conformance Tested — ODVA certified interoperability
- RoHS Compliant
- Designed to IEC 61800 series (Adjustable Speed Electrical Power Drive Systems)
Quality Assurance & Sourcing
Konmask.com sources the 2098-DSD-010X-DN through verified industrial automation supply channels. Every unit offered undergoes the following quality process:
- Visual Inspection — Label integrity, connector condition, and housing checked against OEM specifications.
- Traceability — Lot codes and date codes documented for full supply-chain transparency.
- Functional Verification — Where applicable, units are bench-tested for power-on response and communication handshake.
- Secure Packaging — Anti-static packaging with foam cushioning to prevent transit damage.
- Warranty — 90-day replacement warranty against defects in materials and workmanship.
How to Source This Part
- Add the 2098-DSD-010X-DN to your cart and proceed to checkout.
- For volume orders (5+ units) or project-based procurement, contact support@konmask.com for a formal quotation.
- Lead time: In-stock units ship within 1–3 business days. Special-order or refurbished units: 5–10 business days.
- Export documentation (commercial invoice, packing list, COO) available upon request for international shipments.
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted.
Application-Specific FAQ
Q: Is the 2098-DSD-010X-DN compatible with ControlLogix PLCs?
A: Yes. Via the 1756-DNB DeviceNet Scanner module, the drive integrates directly into a ControlLogix backplane and is programmable through RSLogix 5000 / Studio 5000.
Q: Can this drive replace a 2098-DSD-010X (non-DN) unit?
A: Mechanically and electrically yes, but the DN variant adds DeviceNet communication. Ensure your network scanner supports the additional node before substituting.
Q: What servo motors are compatible?
A: Allen-Bradley MPL, MPM, and MPF series motors are factory-matched. Third-party motors with compatible encoder interfaces can also be used with custom motor files in Ultraware™.
Q: Is a regenerative braking resistor required?
A: For applications with frequent deceleration or vertical loads, an external shunt resistor (e.g., 2090-UXXX-D) is recommended to dissipate regenerative energy safely.
Q: Do you provide Ultraware™ software with the drive?
A: Ultraware™ is available as a free download from Rockwell Automation’s website. We can provide configuration backup files (.udb) from previously commissioned units upon request.
