Process Control & Analog Signal Acquisition Solution — Allen-Bradley 1771-IFM | 1771 I/O Series

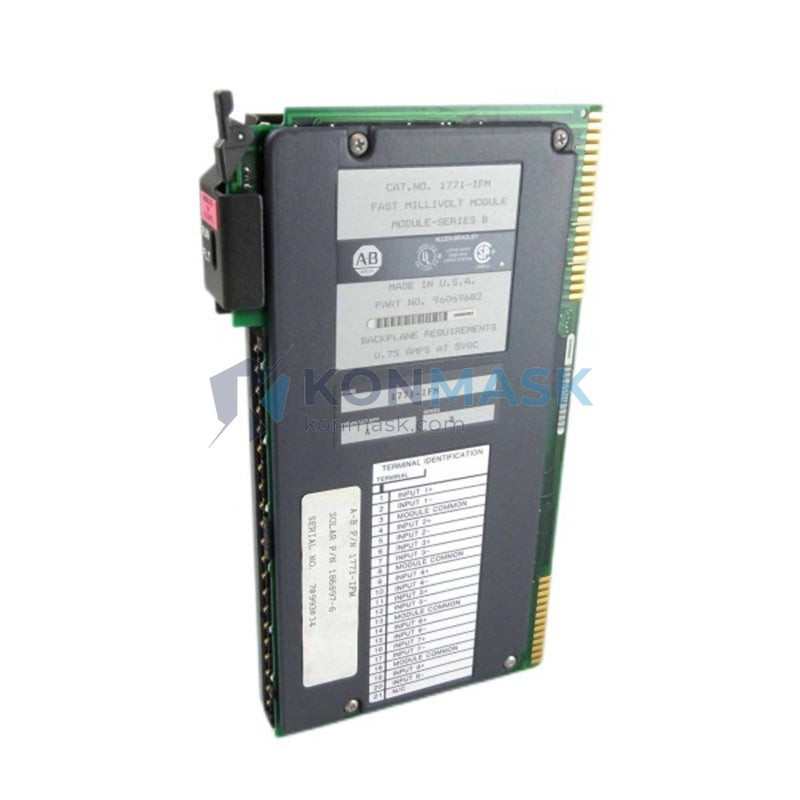

The Allen-Bradley 1771-IFM Analog Input Module is a field-proven signal acquisition card designed for PLC-5 rack-based control architectures. Engineered for continuous process environments, it converts real-world analog signals—temperature, pressure, flow, and level—into digital values the PLC-5 processor can act on. Konmask.com stocks verified, tested units ready for immediate deployment or system expansion.
Where This Product Is Used
The 1771-IFM is specified across demanding industrial verticals where analog signal fidelity and system uptime are non-negotiable:
- Oil & Gas: Wellhead pressure monitoring, pipeline flow measurement, separator level control
- Chemical & Petrochemical: Reactor temperature profiling, feed-rate regulation, distillation column control
- Water & Wastewater Treatment: Influent flow metering, pH/ORP signal acquisition, pump station automation
- Power Generation: Turbine inlet temperature monitoring, boiler drum level sensing, generator load feedback
- Pulp & Paper / Food & Beverage: Continuous process lines requiring multi-channel analog input with channel-to-channel isolation
- Mining & Minerals: Conveyor load-cell integration, crusher pressure feedback, slurry density monitoring
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1771-IFM |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | PLC-5 / 1771 I/O |
| Module Type | Analog Input Module |
| Input Channels | 8 (single-ended) / 4 (differential) |
| Input Signal Range | 4–20 mA, 0–20 mA, 0–10 VDC, ±10 VDC |
| Resolution | 12-bit (1 in 4,096) |
| Isolation | Channel-to-backplane isolated |
| Backplane Compatibility | 1771 I/O chassis (all sizes) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Power Consumption | Supplied via 1771 backplane |
| Certifications | UL Listed, CE Marked |
| Form Factor | Single-slot 1771 I/O module |
Why Engineers Specify This Model
- Proven PLC-5 Ecosystem Fit: Native 1771 backplane interface — no adapters, no compatibility risk
- Multi-Range Flexibility: Configurable per channel for current or voltage inputs, reducing BOM complexity
- Channel Isolation: Prevents ground-loop interference in multi-transmitter field wiring topologies
- 12-Bit Resolution: Sufficient for most process control loops without over-engineering the I/O layer
- Long Service Life: Rockwell’s 1771 platform has decades of field history; spare parts and expertise are widely available
- Drop-In Replacement: Identical footprint and pinout to legacy installed base — minimizes downtime during maintenance windows
Complete System Bill of Materials
A typical PLC-5 analog input subsystem using the 1771-IFM includes the following components:
| Item | Part Number | Description |
|---|---|---|
| Processor | 1785-LT / LT4 / L40 | PLC-5 CPU (select per scan-time and memory requirements) |
| I/O Chassis | 1771-A1B / A2B / A3B / A4B | 4, 8, 12, or 16-slot 1771 backplane chassis |
| Power Supply | 1771-P4S / P6S | 1771 chassis power supply (select per load) |
| Analog Input Module | 1771-IFM | This module — 8-ch analog input |
| Field Wiring Arm | 1771-WN / WB | Terminal block wiring arm for 1771 modules |
| Programming Terminal | RSLogix 5 (software) | Ladder logic programming and I/O configuration |
| Communication Module | 1771-KGM / 1785-KA5 | DH+ or Remote I/O adapter (if remote rack) |
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS Compliant — Restriction of Hazardous Substances (where applicable to production date)
- NEMA / IEC — Compatible with IEC 61131-2 analog input signal standards
- ISA-5.1 — Instrumentation signal and loop wiring conventions supported
Quality Assurance & Sourcing
Every 1771-IFM unit shipped from Konmask.com undergoes the following verification process:
- ✅ Visual Inspection: PCB, connector pins, faceplate label, and housing integrity check
- ✅ Functional Power-On Test: Module seated in 1771 chassis, backplane communication verified
- ✅ Firmware / Revision Verification: Series and revision documented and disclosed pre-shipment
- ✅ Anti-Static Packaging: ESD-safe bag + foam-lined carton for transit protection
- ✅ Traceability: Serial number and test record retained for 12 months post-sale
Units are sourced from decommissioned OEM systems, authorized distributors, and certified refurbishers. Counterfeit-risk screening is applied to all inbound stock.
How to Source This Part
- Confirm your chassis slot availability — verify open single-slot positions in your 1771 rack
- Identify your field signal types — current (mA) or voltage (V), single-ended or differential
- Check revision compatibility — contact us to confirm the series/revision matches your existing installed modules
- Request a quote — email support@konmask.com or call +0086 19859288691 for volume pricing
- Place order — add to cart for standard lead time, or contact us for expedited same-day dispatch options
Application-Specific FAQ
Q: Is the 1771-IFM compatible with all PLC-5 processor variants?
A: Yes. The 1771-IFM operates in any 1771 I/O chassis paired with PLC-5 processors (1785-Lxx series). It is not compatible with ControlLogix (1756) or CompactLogix (1769) platforms without a chassis adapter.
Q: Can I mix current and voltage inputs on the same module?
A: Channel input type is configured via jumper settings on the module. Consult the 1771-IFM User Manual (Pub. 1771-6.5.109) for per-channel jumper configuration details.
Q: What is the scan time impact of adding a 1771-IFM to my rack?
A: Analog modules add a small overhead to the I/O scan. For time-critical loops, configure the module in a local rack rather than a remote I/O drop to minimize latency.
Q: Do you supply the field wiring arm (1771-WN) with the module?
A: The wiring arm is available as a separate line item. Please specify when ordering if you require the complete assembly.
Q: What warranty applies to refurbished units?
A: Konmask.com provides a 90-day functional warranty on all tested units. Extended warranty options are available — contact us for details.
Q: Can this module be used in a hazardous (Class I, Div 2) location?
A: The 1771-IFM itself is not intrinsically safe rated. For Div 2 installations, use appropriate zener barriers or galvanic isolators between field instruments and module inputs.
