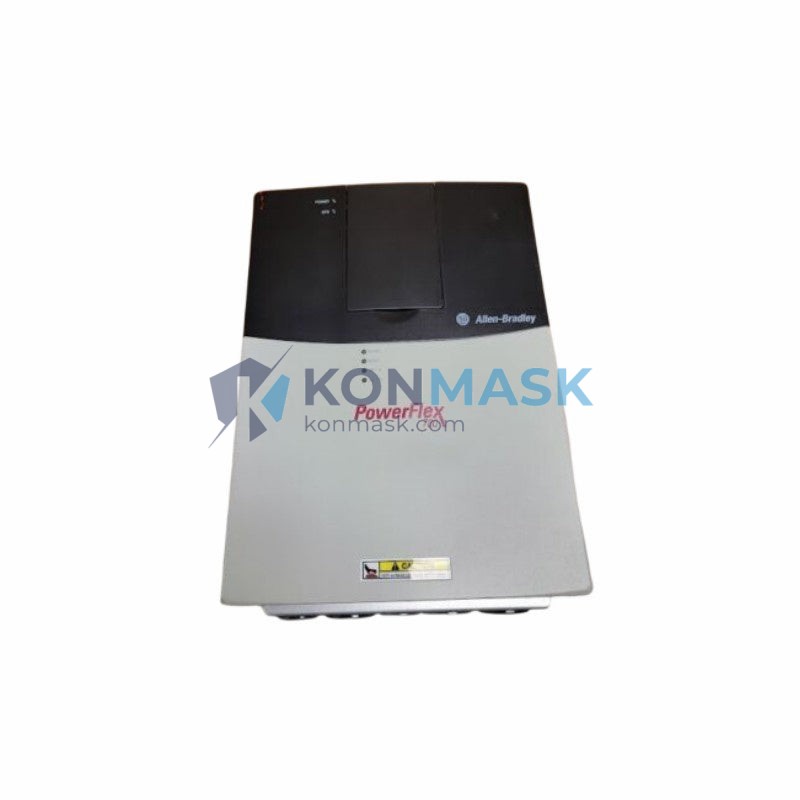

Genuine PLC 20BC030A0AYNANC0 PowerFlex 700 - Industrial Automation Part

Allen-Bradley 20BC030A0AYNANC0 PowerFlex 700 AC Drive 30A 15kW

SKU: 20BC030A0AYNANC0 Category: Allen-Bradley

Description

Allen-Bradley 20BC030A0AYNANC0 PowerFlex 700 AC Drive 30A 15kW | Replacement, Equivalent & Selection Guide

The Allen-Bradley (Rockwell Automation) 20BC030A0AYNANC0 is a high-performance AC variable frequency drive from the PowerFlex 700 series, rated at 30 A / 15 kW (20 HP) for 400–480 V three-phase applications. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.

Technical Specifications

Manufacturer: Allen-Bradley / Rockwell Automation
Series: PowerFlex 700
Part Number: 20BC030A0AYNANC0
Output Current: 30 A (Normal Duty)
Power Rating: 15 kW / 20 HP
Input Voltage: 400–480 V AC, 3-Phase
Input Frequency: 50/60 Hz
Output Frequency Range: 0–400 Hz
Control Method: Sensorless Vector / Flux Vector
Enclosure: IP20 / Open Type (Frame C)
Communication Options: DeviceNet, EtherNet/IP, ControlNet (via adapter)
Braking: Dynamic braking transistor built-in
Protection: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault
Certifications: UL, CE, cUL
Weight: Approx. 4.0 kg

Compatible Replacement & Equivalent Models

The following models are commonly evaluated as direct or functional replacements for the 20BC030A0AYNANC0. Always verify electrical ratings, control interface, and mechanical dimensions before substitution.

Allen-Bradley 20BD030A0AYNANC0 — PowerFlex 700S, same frame, enhanced vector control; drop-in for high-performance applications
Allen-Bradley 25B-D030N104 — PowerFlex 525, 15 kW, 480 V; cost-effective alternative with EtherNet/IP built-in
Siemens 6SL3210-1PE23-8UL0 — SINAMICS G120, 15 kW, 400 V; equivalent power class, requires adapter for AB PLC integration
ABB ACS580-01-033A-4 — 15 kW, 380–480 V; general-purpose VFD with comparable I/O and protection features
Schneider Electric ATV630D15N4 — Altivar 630, 15 kW, 380–480 V; suitable for pump/fan and general machine applications
Yaskawa GA700 CIMR-GU4A0018FAA — 15 kW, 400 V; high-performance alternative with advanced vector control

Note: Cross-brand replacements may require parameter re-configuration and I/O rewiring. Consult Konmask technical support for compatibility verification.

Why Choose the Original Model

Native Rockwell Integration: Seamless communication with Studio 5000, RSLogix 5000, and ControlLogix/CompactLogix PLCs via Add-On Profiles (AOPs)
Proven Reliability: PowerFlex 700 is one of the most widely deployed VFD platforms in North American and global industrial automation
Advanced Motor Control: Sensorless vector and closed-loop flux vector modes deliver precise speed and torque regulation
Scalable Architecture: Supports a wide range of communication adapters (20-COMM-E, 20-COMM-D, 20-COMM-C) for flexible network integration
Long-term Support: Rockwell Automation provides extended lifecycle support, firmware updates, and global spare parts availability
Safety Options: Compatible with Safe Torque Off (STO) and Safe Speed Monitor (SSM) safety modules

Typical Applications

Conveyor and material handling systems
Pump and fan speed control (HVAC, water treatment)
Compressor and blower drives
Packaging and bottling machinery
Extruders and mixers in process industries
Crane and hoist applications (with appropriate braking resistor)
CNC machine tool spindle drives

System Compatibility

PLC Platforms: ControlLogix (1756), CompactLogix (1769), MicroLogix (via DeviceNet)
HMI: PanelView Plus, FactoryTalk View
Networks: EtherNet/IP, DeviceNet, ControlNet, Modbus RTU (via adapter)
Software: Studio 5000 Logix Designer, DriveExecutive, Connected Components Workbench
Accessories: 20-COMM-E (EtherNet/IP adapter), 20-750-DNET (DeviceNet), dynamic braking resistors, EMC filters, line reactors

Selection Guide

Use the following criteria to confirm the 20BC030A0AYNANC0 is the right drive for your application:

Motor Power: 15 kW / 20 HP — confirm motor nameplate rating matches
Supply Voltage: 400–480 V AC, 3-Phase — verify site supply voltage and tolerance
Load Type: Normal Duty (constant torque) at 30 A; derate for heavy-duty/high-inertia loads
Control Mode: Select Sensorless Vector for general speed control; Flux Vector for high-precision torque applications (encoder required)
Communication: Specify required network adapter (EtherNet/IP, DeviceNet, ControlNet) at time of order
Enclosure: IP20 open type — install in a suitable control cabinet (NEMA 12 or IP54 minimum recommended)
Braking: Built-in braking transistor; external braking resistor required for high-inertia or frequent stop applications
Ambient Temperature: 0–50°C operating range; derate above 40°C

Quality Assurance & Sourcing

Authenticity: All units sourced by Konmask.com are verified against manufacturer documentation and serial number databases
Condition Options: New (factory-sealed), Surplus New (unused, original packaging), and Tested Refurbished available — condition clearly stated on each listing
Testing: Refurbished units undergo full power-on functional testing and parameter verification prior to shipment
Warranty: 12-month warranty on new units; 6-month warranty on refurbished units (contact us for details)
Packaging: Anti-static packaging with foam protection; export carton available for international shipments
Lead Time: In-stock items ship within 1–3 business days; contact us for availability on specific configurations

How to Order

Confirm part number: 20BC030A0AYNANC0
Specify required condition: New / Surplus New / Refurbished
Specify communication adapter if required (e.g., 20-COMM-E for EtherNet/IP)
Submit inquiry via support@konmask.com or add to cart directly
Receive quotation with lead time and shipping options within 24 business hours
Payment accepted: T/T (Bank Transfer), PayPal, Western Union, Trade Assurance

Replacement & Compatibility FAQ

Q: Can the PowerFlex 525 (25B-D030N104) replace the PowerFlex 700 20BC030A0AYNANC0?
A: For many standard applications, yes. The PowerFlex 525 offers similar power ratings and built-in EtherNet/IP. However, it lacks the advanced flux vector control and some I/O options of the PF700. Evaluate based on your control requirements.

Q: Is the 20BC030A0AYNANC0 compatible with 380 V systems?
A: The drive is rated for 400–480 V. Operation at 380 V is possible but may require derating. Consult Rockwell Automation’s derating guidelines or contact Konmask for application support.

Q: What is the difference between 20BC030A0AYNANC0 and 20BC030A0AYNANC1?
A: The last digit typically denotes a firmware or hardware revision. Functionally equivalent in most cases; verify with Rockwell Automation’s product configurator for exact differences.

Q: Can I use a third-party VFD as a direct replacement without rewiring?
A: Terminal layouts and control signal levels vary by manufacturer. A cross-brand replacement will typically require I/O rewiring and parameter reconfiguration. Konmask can provide a wiring comparison guide upon request.

Q: Do you provide installation and commissioning support?
A: Konmask provides remote technical support for parameter setup and commissioning guidance. On-site support is available in select regions — contact us for details.
