Industrial HMI Solution – Allen-Bradley 2711P-RDT12C | PanelView Plus 1250

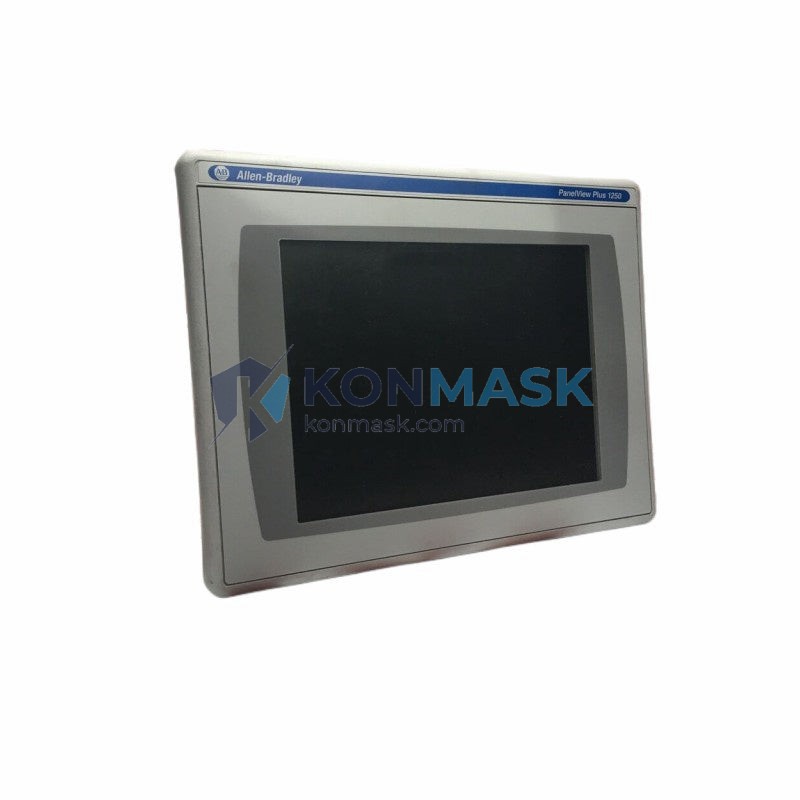

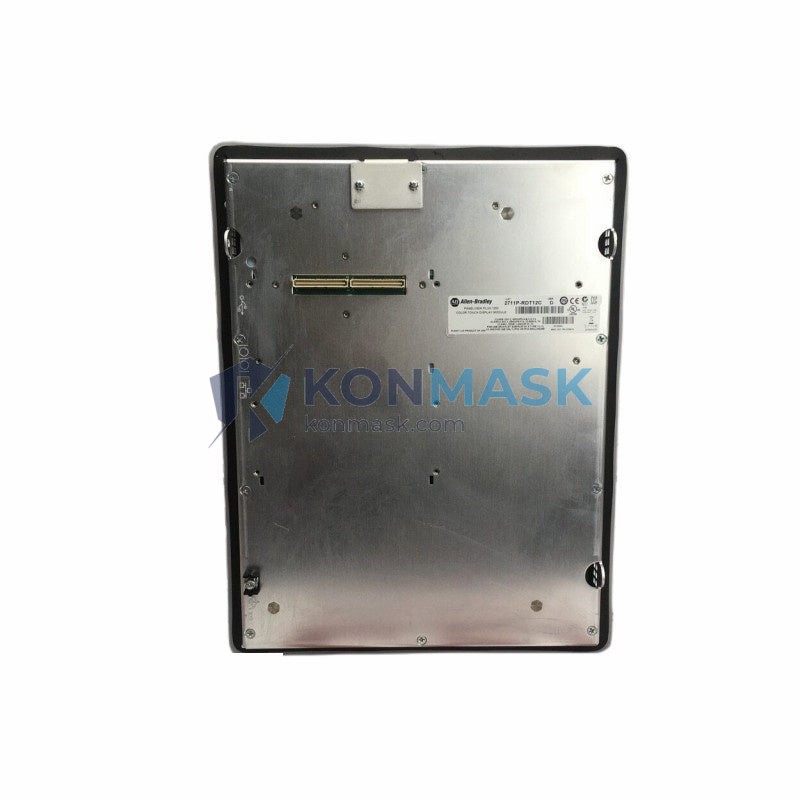

The Allen-Bradley 2711P-RDT12C is the 12.1″ SVGA color touch screen display assembly for the PanelView Plus 1250 HMI terminal. Engineered for demanding industrial environments, this replacement touch screen restores full operator interface functionality to your control panel without requiring a complete terminal replacement — minimizing downtime and capital expenditure.
Where This Product Is Used
The 2711P-RDT12C is deployed across a wide range of industrial automation applications where reliable operator interface is mission-critical:
- Automotive Assembly Lines — Operator stations controlling robotic welding cells, paint booths, and conveyor sequencing via RSLogix 5000 / Studio 5000 programs.
- Food & Beverage Processing — HMI terminals on filling, capping, and packaging lines requiring washdown-adjacent enclosures with NEMA 4/4X ratings.
- Water & Wastewater Treatment — SCADA-integrated operator panels at pump stations, filtration skids, and chemical dosing systems.
- Oil & Gas Upstream/Midstream — Control room and field panel HMIs interfacing with ControlLogix and CompactLogix PLCs on wellhead and pipeline systems.
- Pharmaceutical Manufacturing — GMP-compliant production lines where validated HMI configurations must be preserved during screen replacement.
- Material Handling & Warehousing — Sortation systems, palletizers, and AGV dispatch stations requiring high-visibility 12″ displays.
- Power Generation & Utilities — Substation control panels and turbine management systems with extended lifecycle requirements.
Technical Specifications
- Part Number: 2711P-RDT12C
- Series: PanelView Plus 1250
- Display Size: 12.1″ diagonal
- Display Type: SVGA Color TFT LCD
- Resolution: 800 × 600 pixels
- Touch Technology: Analog resistive touch screen
- Backlight: CCFL (Cold Cathode Fluorescent Lamp)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 70°C
- Enclosure Rating: NEMA 4/4X, 12, 13; IP65 (front face)
- Compatible Terminal: 2711P-T12C4D1, 2711P-T12C4D8, 2711P-T12C4A8
- Interface: Internal display assembly — direct replacement module
- Weight: 2.9 kg
- Certifications: UL, CE, cUL
Why Engineers Specify This Model
- Drop-in Replacement: Exact OEM form factor — no mechanical modification, no re-programming of the terminal logic or FactoryTalk View ME application.
- Preserved Validation: For FDA 21 CFR Part 11 environments, replacing only the display assembly (not the logic module) avoids full revalidation of the HMI application.
- 12.1″ SVGA Advantage: Larger viewing area vs. 10″ models enables more process data on a single screen, reducing operator navigation steps on complex P&ID displays.
- NEMA 4X Front Rating: Suitable for washdown zones and corrosive atmospheres without additional enclosure upgrades.
- Extended Availability: Rockwell Automation has transitioned PanelView Plus 1250 to limited lifecycle; sourcing replacement display assemblies through specialist distributors like Konmask ensures continued operation of installed base.
- Cost Efficiency: Display assembly replacement costs a fraction of a full terminal replacement (2711P-T12C4D8), preserving existing wiring, mounting cutout, and software investment.
Complete System Bill of Materials
For a complete PanelView Plus 1250 operator station, engineers typically specify the following alongside the 2711P-RDT12C:
- 2711P-T12C4D8 — PanelView Plus 1250 terminal (12.1″, DC power, DH-485/DH+/DF1)
- 2711P-RN15S — Wireless network card (802.11a/b/g) for wireless Ethernet connectivity
- 2711P-RN6 — Dual-port EtherNet/IP communication module
- 2711P-RSACDIN — DIN rail mounting kit for panel installation
- 2711P-RAK12 — Replacement keypad overlay (if keypad model)
- 2711-NC13 — DH-485 communication cable (if legacy network)
- 1756-L71 — ControlLogix L71 PLC (typical host controller for large installations)
- 1769-L33ER — CompactLogix L33ER (typical host for mid-size applications)
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment (UL Listed)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- cUL — Canadian Standards compliance
- NEMA 250 — Type 4, 4X, 12, 13 enclosure ratings (front face)
- IEC 61131-2 — Programmable controllers: equipment requirements and tests
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
- ATEX / Class I Div 2 — Not rated; install in appropriate enclosure for hazardous locations
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for the global B2B market. Every 2711P-RDT12C unit we supply undergoes the following process:
- Source Verification: Units are sourced from authorized distributors, OEM surplus channels, or factory-refurbished stock — never counterfeit or grey-market assemblies.
- Visual & Functional Inspection: Each display assembly is inspected for physical integrity, connector condition, and backlight function prior to dispatch.
- Serialization Check: Serial numbers are cross-referenced against known recalled or counterfeit batches.
- Secure Packaging: Anti-static packaging with foam cushioning to prevent transit damage to the LCD panel and touch digitizer.
- Documentation: Certificate of conformity and sourcing declaration available upon request for regulated industries.
How to Source This Part
To place an order or request a quotation for the 2711P-RDT12C:
- Add to Cart directly on this page for standard stock orders.
- Request a Quote for volume orders (5+ units), project BOM pricing, or lead-time confirmation — email support@konmask.com.
- Phone / WhatsApp: +0086 19859288691 for urgent requirements or technical pre-sales questions.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock or sourced units: 5–15 business days depending on origin.
- Export Documentation: Commercial invoice, packing list, and CO available for international shipments. HS Code: 8537.10 (indicative — confirm with your customs broker).
Application-Specific FAQ
Q: Will the 2711P-RDT12C work with my existing FactoryTalk View ME application?
A: Yes. The display assembly replacement does not affect the terminal’s logic module, memory, or installed FactoryTalk View ME application. Your existing program, tags, and communication configuration remain intact.
Q: My terminal shows a blank screen but the backlight is on — is this the right part?
A: A lit backlight with no image typically indicates a failed LCD panel or inverter board within the display assembly. The 2711P-RDT12C replaces the complete display assembly and resolves this fault in most cases. Contact us to confirm diagnosis before ordering.
Q: Can I replace the touch screen only, without replacing the full display assembly?
A: The touch digitizer is bonded to the display assembly in the 2711P-RDT12C. Konmask recommends replacing the complete assembly for reliability. Digitizer-only replacement is technically possible but requires specialized tooling and is not recommended for production environments.
Q: Is this compatible with the 2711P-T12C4A8 (AC power) terminal?
A: Yes. The display assembly is common across AC and DC power variants of the PanelView Plus 1250 12.1″ terminal family.
Q: Do you offer exchange / core return programs?
A: Yes, for qualified customers. Contact support@konmask.com to discuss exchange pricing if you have a defective core unit to return.
