HMI Operator Interface Solution — Allen-Bradley 2711P-T10C22D9P | PanelView Plus 7 Standard Series
Where This Product Is Used
The Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Standard is deployed across demanding industrial environments where reliable human-machine interaction is critical. Typical application sites include:
- Automotive Assembly Lines — Real-time monitoring of robotic welding cells, conveyor sequencing, and torque verification stations integrated with Studio 5000 / RSLogix 5000 programs.
- Food & Beverage Processing Plants — Hygienic-area panel installations for batch recipe management, CIP cycle control, and line speed adjustment on filling and packaging equipment.
- Water & Wastewater Treatment Facilities — SCADA-edge operator stations for pump station control, chemical dosing, and alarm annunciation in remote lift stations.
- Oil & Gas Upstream / Midstream — Wellhead and compressor skid HMI panels requiring wide-temperature tolerance and vibration resistance.
- Pharmaceutical Manufacturing — 21 CFR Part 11-compliant operator interfaces for batch record entry, audit trail display, and equipment status visualization.
- Material Handling & Warehousing — Sortation system control, AGV dispatch panels, and conveyor junction operator stations.
- Power Generation & Utilities — Substation auxiliary control panels and turbine governor HMI stations requiring high-brightness displays in bright ambient light.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 2711P-T10C22D9P |
| Series | PanelView Plus 7 Standard |
| Manufacturer | Allen-Bradley / Rockwell Automation |

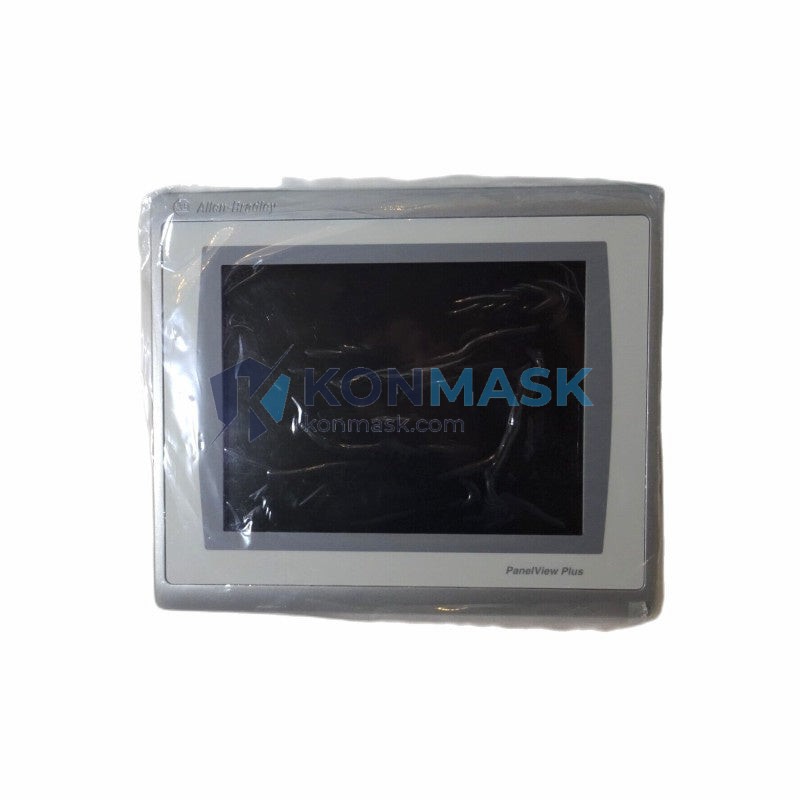

| Display Size | 10.4 inch (diagonal) |
| Display Type | Color TFT LCD with Touchscreen |
| Resolution | 640 × 480 (VGA) |
| Backlight | LED |
| Input Type | Touch (analog resistive) |

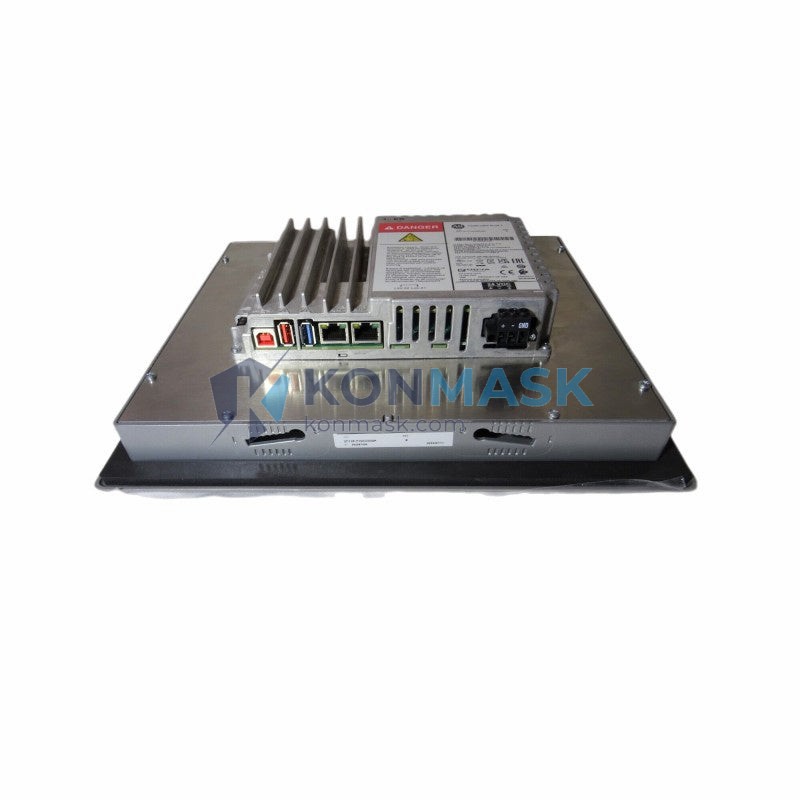

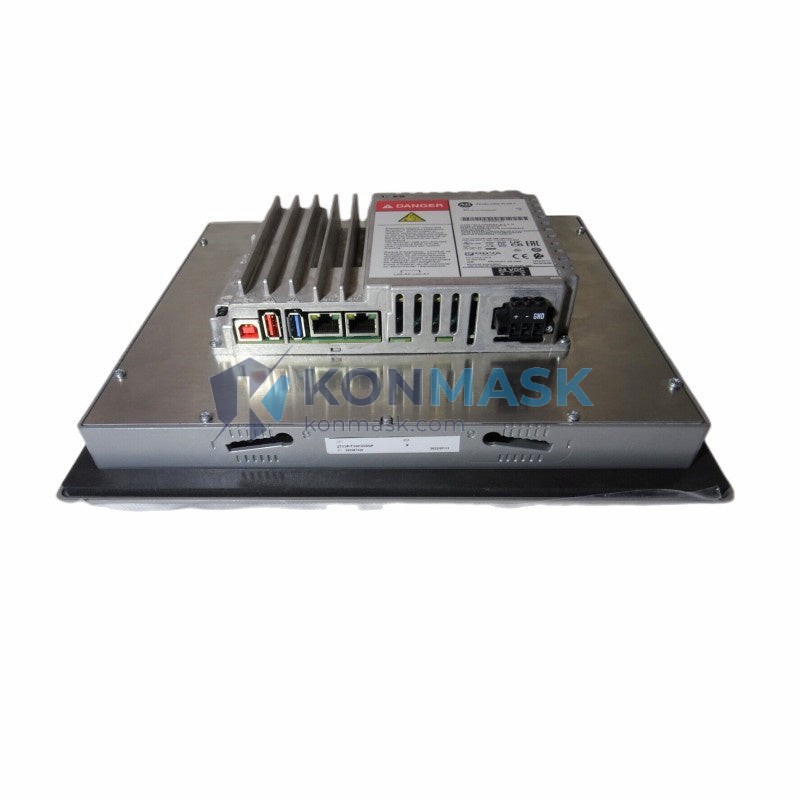

| Communication Ports | Dual Ethernet (EtherNet/IP), USB Host × 2, USB Device × 1, RS-232 |
| Network Protocol | EtherNet/IP (native), DH-485 via adapter |
| Power Supply | 24 VDC nominal (18–32 VDC range) |
| Power Consumption | Approx. 30 W typical |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front face) |
| Weight | Approx. 2.3 kg |
| Mounting | Panel cutout, landscape orientation |
| Memory | 512 MB RAM; 1 GB Flash storage |
| OS | Windows CE 6.0 embedded |
| FactoryTalk View ME Version | Compatible with FT View ME 8.x and later |
| Catalog Suffix | D9P = Dual Ethernet, 24 VDC, no keypad |
Why Engineers Specify This Model
- Dual Ethernet Ports (Device-Level Ring) — The D9P suffix provides two independent EtherNet/IP ports enabling DLR topology without an external switch, reducing panel BOM cost and improving network fault tolerance.
- Seamless Rockwell Ecosystem Integration — Native EtherNet/IP communication with ControlLogix, CompactLogix, and MicroLogix PLCs eliminates gateway hardware and simplifies tag browsing in FactoryTalk View Studio.
- IP65 / NEMA 4X Front Face — Suitable for wash-down environments and outdoor enclosures without additional protective covers.
- Wide Operating Temperature Range — 0–55 °C continuous operation covers most industrial panel environments without forced-air cooling.
- Proven Platform Longevity — PanelView Plus 7 is a mature, widely supported platform with long-term Rockwell Automation parts availability and a large installed base of trained integrators.
- USB Peripheral Support — Dual USB host ports allow barcode scanners, keyboards, and USB drives for recipe upload/download without network dependency.
- FactoryTalk Alarms & Data Logging — Built-in alarm management and data logging to USB or network share reduces reliance on external SCADA for basic historian functions.
Complete System Bill of Materials
A typical EtherNet/IP panel station using this HMI includes the following components:
| Item | Description | Typical Part Number |
|---|---|---|
| HMI Terminal | PanelView Plus 7 Standard 10.4″ Color Touch | 2711P-T10C22D9P |
| PLC (Compact) | CompactLogix 5380 Controller | 5069-L306ER |
| I/O Module | Compact 5000 Digital I/O | 5069-IB16 / 5069-OB16 |
| Power Supply | 24 VDC Panel Power Supply, 10 A | 1606-XLP240E |
| Ethernet Switch | Stratix 2000 Unmanaged Switch (if DLR not used) | 1783-US5T |
| Panel Enclosure | NEMA 4X Stainless Steel Enclosure | Per project spec |
| HMI Software | FactoryTalk View Studio ME | 9701-VWSTENE |
| USB Programming Cable | USB-A to USB-B for HMI configuration | Standard USB |
Compliance & Industry Standards
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- NEMA 4 / 4X / 12 / 13 — Front panel ingress protection ratings
- IP65 — IEC 60529 front-face ingress protection
- RoHS Compliant — Restriction of Hazardous Substances Directive
- EtherNet/IP Conformance Tested — ODVA conformance certification
- 21 CFR Part 11 Ready — Supports audit trail and electronic signature workflows via FactoryTalk Security (application-level configuration required)
Quality Assurance & Sourcing
Konmask.com sources Allen-Bradley PanelView Plus 7 terminals through verified industrial distribution channels. Every unit offered is subject to the following quality process:
- Visual & Physical Inspection — Enclosure integrity, connector condition, label legibility, and screen surface checked prior to listing.
- Power-On Functional Test — Unit is powered at 24 VDC; display, touch calibration, and boot sequence verified.
- Firmware Version Documentation — Installed FactoryTalk View ME runtime version recorded and disclosed.
- Traceability — Serial number and date code documented for each unit.
- Packaging — Anti-static bag, foam-lined carton, and moisture desiccant for safe international transit.
Units are offered as new surplus, refurbished, or used-tested — condition is explicitly stated in each listing. Contact us to confirm current stock condition before ordering.
How to Source This Part
- Confirm your application requirements — Verify display size, communication protocol (EtherNet/IP vs. DH-485), power supply voltage, and enclosure rating match your panel design.
- Check current stock & lead time — Contact support@konmask.com or call +0086 19859288691 for real-time inventory status and delivery timeline.
- Request a quotation — Provide quantity, required condition (new/refurbished/tested), and destination country for an accurate landed-cost quote including shipping and duties.
- Place your order — Orders accepted via this storefront, bank transfer (T/T), or PayPal. Volume pricing available for orders of 3+ units.
- Receive & verify — Each shipment includes a packing list with serial numbers. Inspect on arrival and contact us within 5 business days for any discrepancy claims.
Application-Specific FAQ
Q: Is the 2711P-T10C22D9P compatible with ControlLogix L8x series controllers?
A: Yes. Communication is via EtherNet/IP and is fully compatible with all ControlLogix, CompactLogix, and GuardLogix controllers running RSLogix 5000 / Studio 5000 Logix Designer.
Q: Can this terminal run FactoryTalk View ME version 13 or later?
A: The PanelView Plus 7 Standard platform supports FT View ME up to version 13.x. Verify the installed runtime version matches your application file version before deployment.
Q: What is the difference between the 2711P-T10C22D9P and the 2711P-T10C21D8S?
A: The D9P suffix indicates dual Ethernet ports and 24 VDC power; the D8S suffix indicates single Ethernet and 24 VDC. The D9P is preferred for DLR ring topologies.
Q: Is this unit suitable for outdoor installation?
A: The front face is rated IP65/NEMA 4X, making it suitable for outdoor enclosures when the rear of the panel is protected. Ensure ambient temperature remains within 0–55 °C.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested and refurbished units. New surplus units carry a 12-month warranty. Terms available on request.
Q: Can I use this HMI with a Siemens or Mitsubishi PLC?
A: The 2711P-T10C22D9P communicates natively via EtherNet/IP and RS-232. Third-party PLC connectivity is possible via protocol gateways (e.g., ProSoft or Anybus), but is not a standard configuration. Contact us for integration guidance.
