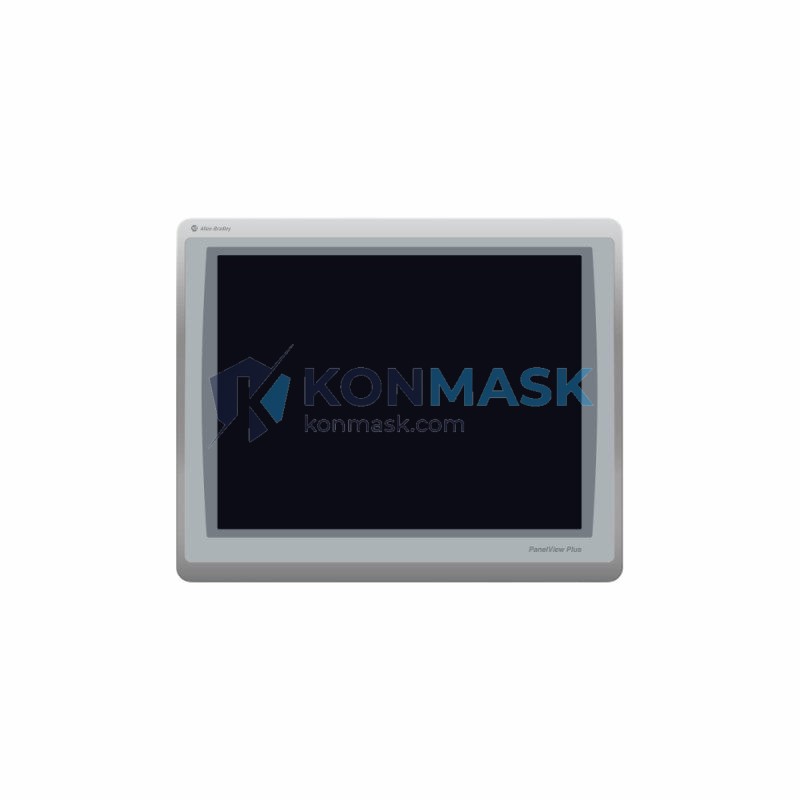

Allen-Bradley 2711P-T15C22A9P – 15″ TFT Multi-Touch HMI Graphic Terminal | PanelView Plus 7 Platform
Engineering Background: The PanelView Plus 7 series represents Rockwell Automation’s seventh-generation operator interface platform, engineered for demanding industrial environments where uptime, scalability, and seamless ControlLogix/CompactLogix integration are non-negotiable. The 2711P-T15C22A9P is the flagship 15-inch variant, combining a high-brightness capacitive touch display with a hardened aluminum bezel and a real-time Windows CE 6.0 runtime environment.
Product Positioning: Designed for procurement engineers sourcing a proven, specification-verified HMI for machine control, SCADA visualization, and process monitoring applications. Konmask.com supplies this unit from verified surplus and authorized channels, with full traceability documentation available on request.
Complete Technical Specifications
- Part Number: 2711P-T15C22A9P
- Series: PanelView Plus 7 Standard
- Display Size: 15.0″ (381 mm) diagonal TFT LCD
- Resolution: 1024 × 768 (XGA)
- Touch Technology: Analog resistive (single-touch); capacitive variant available as -C suffix
- Brightness: 400 cd/m² (typical)
- Color Depth: 65,536 colors (16-bit)
- Processor: 800 MHz ARM-based
- RAM: 512 MB DDR
- Flash Storage: 512 MB internal; SD card slot (up to 32 GB)
- Operating System: Windows CE 6.0 with FactoryTalk View ME runtime
- Communication Ports: 2× USB 2.0 Type-A, 1× USB 2.0 Type-B (programming), 2× Ethernet 10/100 Mbps (RJ-45), 1× RS-232/RS-422/RS-485 (DB-9)
- Network Protocols: EtherNet/IP, DH-485, DF1, Modbus TCP/RTU
- Power Supply: 24 VDC (18–32 VDC range), 40 W max
- Operating Temperature: 0 °C to +55 °C (32 °F to 131 °F)
- Storage Temperature: –40 °C to +85 °C
- Humidity: 5–95% RH non-condensing
- Enclosure Rating: NEMA 4/4X, 12, 13; IP66 (front panel)
- Vibration: IEC 60068-2-6: 5–150 Hz, 1 G
- Shock: IEC 60068-2-27: 15 G, 11 ms
- Certifications: UL Listed, CE Marked, cUL, RCM, KC
- Panel Cutout: 381 mm × 295 mm (W × H)
- Mounting Depth: 88.9 mm (behind panel)
- Weight: 3.89 kg (8.58 lb)
- Catalog Suffix Breakdown: T = Touch screen; 15 = 15″; C = Color; 22 = 512 MB RAM/Flash; A9 = 24 VDC; P = PanelView Plus 7
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, robotic cell HMI stations, conveyor control panels
- Process Industries: Water/wastewater SCADA visualization, chemical batch control, oil & gas wellhead monitoring
- Food & Beverage: Hygienic wash-down environments (IP66 front panel), recipe management displays
- Packaging Machinery: High-speed line control, multi-axis motion visualization
- Building Automation: HVAC control rooms, energy management dashboards
- Mining & Metals: High-vibration, high-dust environments with NEMA 4X compliance
Engineering Advantages
- Native EtherNet/IP Integration: Direct tag browsing with ControlLogix, CompactLogix, and MicroLogix PLCs — no gateway required
- Dual Ethernet Ports: Supports device-level ring (DLR) topology for redundant network architectures
- FactoryTalk View ME Compatibility: Full runtime license included; supports alarm management, trending, and multi-language displays
- SD Card Expandability: Application backup, data logging, and firmware updates via standard SD media
- Wide Input Voltage Range: 18–32 VDC tolerance accommodates real-world panel power fluctuations
- IP66 Front Panel: Withstands high-pressure wash-down without seal degradation
- Long Product Lifecycle: Rockwell Automation committed lifecycle support through 2030+
System Architecture & Signal Flow
The 2711P-T15C22A9P operates as an EtherNet/IP Class 1 I/O adapter and explicit messaging client simultaneously. In a typical ControlLogix architecture:
- Layer 1 – Field Devices: Sensors, actuators, and drives communicate to the PLC via DeviceNet or EtherNet/IP
- Layer 2 – Controller: ControlLogix L7x or CompactLogix L3x executes ladder/FBD logic and publishes tag data to the EtherNet/IP network
- Layer 3 – HMI (this unit): 2711P-T15C22A9P subscribes to PLC tags via FactoryTalk Linx gateway or direct EtherNet/IP connection; renders operator displays at up to 100 ms scan rate
- Layer 4 – Supervisory: Optional FactoryTalk View SE or SCADA system connects via OPC-UA or FactoryTalk Live Data for enterprise historian integration
Both Ethernet ports support simultaneous connections: Port 1 for PLC network, Port 2 for IT/OT DMZ or remote access VPN — enabling zero-downtime network segmentation.
Sourcing & Quality Verification
- Stock Origin: Verified surplus from decommissioned OEM lines and authorized distributor overstock; no gray-market or counterfeit risk
- Inspection Protocol: Each unit undergoes visual inspection, power-on self-test (POST), display uniformity check, and communication port verification before shipment
- Traceability: Date code, firmware version, and serial number documented; available upon request with purchase order
- Firmware: Units shipped with factory-default firmware; latest FactoryTalk View ME runtime version available for customer-specified upgrade
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure under normal operating conditions
- Counterfeit Prevention: All units verified against Rockwell Automation catalog specifications; holographic labels and PCB markings inspected
Procurement Process
- Step 1 – Inquiry: Submit RFQ via Konmask.com product page or email support@konmask.com with quantity, required delivery date, and destination country
- Step 2 – Quote: Receive itemized quotation within 4 business hours including unit price, shipping cost, lead time, and payment terms
- Step 3 – Order Confirmation: Issue PO or confirm via email; proforma invoice issued for T/T wire transfer or credit card payment
- Step 4 – Inspection & Dispatch: Unit inspected, photographed, and packed in anti-static ESD packaging with foam cushioning; tracking number provided within 24 hours of payment clearance
- Step 5 – Delivery: DHL Express / FedEx International Priority standard; EXW, FOB Xiamen, or CIF terms available for bulk orders
- Step 6 – After-Sales: Technical support via email and WhatsApp; RMA process initiated within 48 hours for warranty claims
Technical FAQ
Q: Is the 2711P-T15C22A9P compatible with Studio 5000 Logix Designer?
A: The HMI itself does not run Studio 5000. However, it communicates natively with any ControlLogix or CompactLogix controller programmed in Studio 5000 via EtherNet/IP tag browsing in FactoryTalk View ME Studio.
Q: Can this unit replace a 2711P-T15C21D8S (older generation)?
A: Yes, with minor application migration. The -T15C22A9P uses the same panel cutout dimensions. FactoryTalk View ME applications from older PanelView Plus 6 units can be imported and converted using the ME Studio migration wizard.
Q: What is the maximum number of PLC connections supported simultaneously?
A: FactoryTalk View ME supports up to 4 simultaneous EtherNet/IP device connections (servers) and unlimited explicit messaging connections depending on application configuration.
Q: Does the unit support VNC remote access?
A: Yes. The built-in VNC server allows remote monitoring and control from any VNC client on the same network. Authentication is configurable via the terminal’s system settings.
Q: What is the backlight lifespan?
A: Rated at 50,000 hours (MTBF) at 25 °C. Backlight replacement is a field-serviceable procedure; replacement kits available from Rockwell Automation.
Q: Can I order with a specific firmware version pre-loaded?
A: Yes. Specify the required FactoryTalk View ME runtime version in your RFQ and Konmask will configure accordingly at no additional charge.
