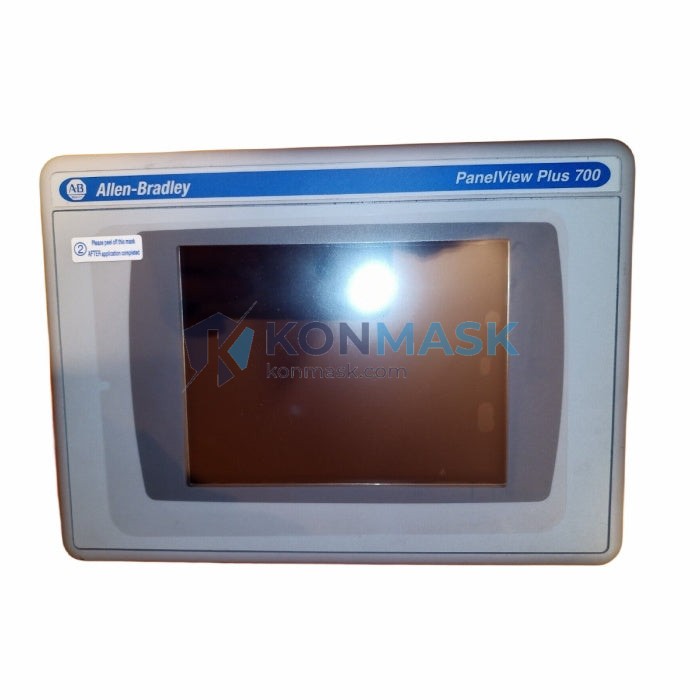

Allen-Bradley 2711P-T7C4D8 – 7″ Color Touch Screen HMI | PanelView Plus 700 Platform
Engineering Background
The 2711P-T7C4D8 is part of Rockwell Automation’s PanelView Plus 700 series — a field-proven human-machine interface platform widely deployed across discrete manufacturing, process control, and infrastructure automation. Designed to integrate natively with Allen-Bradley PLCs via EtherNet/IP and DH-485, this unit delivers reliable operator visualization in demanding industrial environments.
Product Positioning
This unit is sourced as verified surplus and is suited for OEM replacement, system expansion, and MRO procurement. It is an ideal drop-in replacement for aging PanelView Plus 700 installations without requiring software or network reconfiguration.
Complete Technical Specifications
- Part Number: 2711P-T7C4D8
- Series: PanelView Plus 700
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Size: 7.0″ (diagonal)
- Display Type: Color TFT LCD with analog resistive touch screen
- Resolution: 640 × 480 (VGA)
- Touch Technology: Analog resistive (single-touch)
- Communication Ports: EtherNet/IP (RJ-45), RS-232 (DH-485 / DF1), USB Type-A (host), USB Type-B (programming)
- Operating System: Windows CE 5.0
- Processor: Intel PXA270 (520 MHz)
- Memory: 128 MB RAM / 128 MB Flash
- Power Supply: 24 VDC (18–32 VDC range), Class 2
- Power Consumption: Approx. 18 W typical
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −20 °C to +70 °C
- Humidity: 5–95% RH (non-condensing)
- Protection Rating: NEMA 4/4X, 12, 13 (front face); IP65 (front)
- Certifications: UL Listed, CE Marked, cUL
- Panel Cutout: 214.5 mm × 158.0 mm
- Unit Dimensions: 236 mm × 180 mm × 57 mm
- Weight: Approx. 1.2 kg
- Software: FactoryTalk View ME (ME Station)
- Catalog Number: 2711P-T7C4D8
Proven Application Environments
- Automotive assembly lines and body-in-white stations
- Food & beverage packaging and filling lines
- Water/wastewater SCADA operator panels
- Pharmaceutical batch control and CIP stations
- Oil & gas wellhead and pipeline monitoring
- Material handling conveyors and sortation systems
- Building automation and HVAC control panels
- OEM machine builder retrofit and upgrade projects
Engineering Advantages
- Native EtherNet/IP integration — zero-configuration tag browsing with ControlLogix, CompactLogix, and MicroLogix PLCs
- NEMA 4/4X front-face sealing — suitable for washdown and dusty environments without additional enclosure modification
- FactoryTalk View ME compatibility — existing application files (.mer) transfer directly; no re-engineering required
- Dual USB ports — supports USB flash drive for application backup, firmware update, and data logging
- Wide DC input range (18–32 VDC) — tolerates voltage sag common in large panel installations
- Compact panel footprint — fits standard 1/4 DIN cutouts used across legacy and new enclosures
System Architecture & Signal Flow
The 2711P-T7C4D8 operates as a FactoryTalk View ME Station terminal. Operator inputs are processed locally on the Windows CE runtime and communicated to the target PLC via EtherNet/IP (RSLinx Enterprise driver) or legacy serial (DH-485 / DF1). Tag-based data exchange eliminates hardwired I/O dependencies. Alarm management, trending, and recipe handling are executed on-device with data logged to USB or network share. The unit supports simultaneous multi-controller connections for distributed architectures.
Sourcing & Quality Verification
- All units are sourced from verified industrial surplus channels and authorized distributors
- Pre-shipment inspection includes: power-on test, touch calibration verification, display uniformity check, and port continuity test
- Original Rockwell Automation firmware retained unless customer specifies upgrade
- Units shipped with anti-static packaging, foam cushioning, and moisture barrier bag
- Traceability documentation available upon request (lot number, source record)
- 30-day functional warranty included as standard; extended warranty available
Procurement Process
- Confirm part number — verify 2711P-T7C4D8 against your existing panel label or FactoryTalk project file
- Check firmware version — contact us with your current .mer application version to confirm compatibility
- Request a quote — email support@konmask.com or call +0086 19859288691 for volume pricing and lead time
- Place order — purchase directly via this listing or via purchase order (PO accepted for qualified accounts)
- Receive & verify — inspect unit against packing list; report any discrepancy within 48 hours of receipt
Technical FAQ
Q: Is this unit compatible with FactoryTalk View ME v8.x and v10.x?
A: Yes. The 2711P-T7C4D8 supports FactoryTalk View ME versions 5.0 through 10.0. Confirm your .mer file version before deployment.
Q: Can this HMI connect to a non-Rockwell PLC via Modbus TCP?
A: Native Modbus TCP is not supported. Third-party drivers (e.g., Kepware OPC-DA bridge) can be used with additional configuration.
Q: What is the replacement part for a cracked touch screen overlay?
A: The touch screen assembly is catalog 2711P-T7C4D8 (complete unit). Individual overlay replacement is not field-serviceable; contact Rockwell Automation repair services or inquire with us for refurbished exchange.
Q: Does the unit support remote access or VNC?
A: Yes. Windows CE includes a VNC server accessible via the EtherNet/IP port for remote monitoring (read-only recommended for production environments).
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Contact us for current availability confirmation.
