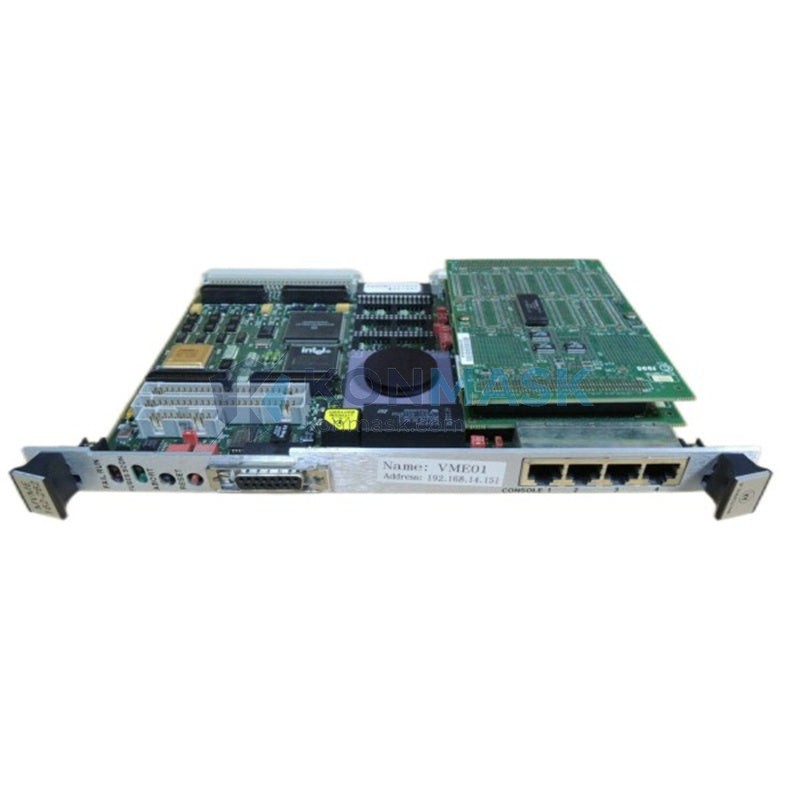

Allen-Bradley MVME 162-262 – High-Performance Embedded Controller | MVME VMEbus Platform
Engineering Background
The Allen-Bradley MVME 162-262 is a VMEbus-compliant single-board embedded controller engineered for demanding real-time industrial automation and process control environments. Built on Motorola’s proven MVME architecture, this module delivers deterministic performance and robust I/O integration for mission-critical control system deployments.
Product Positioning
Designed for procurement engineers sourcing reliable replacement or expansion modules for existing VMEbus-based control systems, the MVME 162-262 offers a cost-effective, specification-verified alternative to OEM new stock — with full traceability and quality assurance backed by Konmask’s industrial sourcing network.
Complete Technical Specifications
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | MVME 162-262 |
| Module Type | VMEbus Embedded Controller (Single-Board Computer) |
| Bus Standard | VMEbus (IEEE 1014-1987), 6U form factor |
| Processor | Motorola 68040 RISC-enhanced CISC CPU |
| Operating System Support | VxWorks, OS-9, LynxOS, bare-metal RTOS |
| Memory | DRAM expandable; SRAM battery-backed; Flash EPROM for firmware |
| Serial Ports | 4× RS-232/RS-422 asynchronous serial channels |
| Ethernet | 10BASE-T / AUI LAN interface (onboard) |
| SCSI Interface | NCR 53C710 SCSI-2 controller |
| VMEbus Interface | A32/A24/A16 addressing; D32/D16/D8 data widths; SYSFAIL, SYSRESET support |
| Interrupt Handling | 7-level VMEbus interrupt; programmable interrupt controller |
| Power Supply | +5 VDC (primary); ±12 VDC (auxiliary) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 460 g |
| Form Factor | 6U VMEbus single-slot module |
| Certifications | UL, CE (subject to system-level certification) |
Proven Application Environments
- Discrete Manufacturing Automation — CNC machine tool control, robotic cell coordination, and multi-axis motion sequencing via VMEbus backplane integration.
- Process Control & DCS Integration — Real-time supervisory control nodes within distributed control architectures for chemical, petrochemical, and power generation plants.
- Defense & Aerospace Ground Support — Ruggedized VMEbus deployments in test & measurement systems, radar signal processing, and avionics ground support equipment.
- Utilities & Energy Infrastructure — SCADA front-end controllers and substation automation systems requiring deterministic scan cycles and high-availability uptime.
- Legacy System Maintenance & Life Extension — Drop-in replacement for aging MVME 162-series boards in installed base systems where re-engineering is cost-prohibitive.
Engineering Advantages
- Deterministic Real-Time Performance — 68040 processor with hardware FPU delivers consistent sub-millisecond interrupt latency for time-critical control loops.
- Full VMEbus Compliance — IEEE 1014-1987 conformant; interoperable with all standard VMEbus I/O, memory, and communication modules across vendors.
- Integrated Multi-Protocol I/O — Onboard Ethernet, SCSI-2, and 4-channel serial eliminate the need for additional interface cards, reducing slot count and system complexity.
- Battery-Backed SRAM — Retains critical process parameters, calibration data, and program state through power interruptions without external UPS dependency.
- Broad RTOS Ecosystem — Validated with VxWorks, OS-9, and LynxOS; existing application software ports without hardware modification.
- Extended Temperature Tolerance — Rated to +55°C continuous operation; suitable for non-air-conditioned industrial enclosures and panel environments.
System Architecture & Signal Flow
The MVME 162-262 occupies a single 6U VMEbus slot and functions as the System Controller (Slot 1) or as a secondary processor node in multi-CPU VMEbus configurations. The onboard 68040 CPU arbitrates the VMEbus via the integrated VMEchip2 ASIC, which manages bus arbitration, interrupt routing, and address decoding across A32/A24/A16 address spaces.
Data flows from field I/O modules (analog, digital, serial) through the VMEbus backplane to the CPU’s local bus, where the RTOS scheduler dispatches control tasks. Ethernet and SCSI interfaces connect directly to the CPU local bus via dedicated DMA controllers, ensuring I/O operations do not stall the control scan cycle. Battery-backed SRAM provides a persistent data store accessible at full CPU bus speed.
Sourcing & Quality Verification
All MVME 162-262 units offered by Konmask are sourced through our verified industrial surplus network and subject to the following quality gates before listing:
- Visual inspection: PCB, connectors, component integrity, and label legibility
- Functional power-on test where applicable
- Firmware revision identification and documentation
- Anti-static packaging with humidity indicator cards
- Photographic documentation of actual unit shipped
Konmask does not list units that fail inspection. Condition grade (Refurbished / Tested Surplus / New Surplus) is stated explicitly on each listing.
Procurement Process
- Confirm Part Number — Verify MVME 162-262 against your system’s backplane slot assignment and firmware revision requirements.
- Request Availability & Lead Time — Contact support@konmask.com or WhatsApp +0086 19859288691 for real-time stock confirmation and lead time.
- Submit Purchase Order — PO accepted via email; proforma invoice issued within 1 business day.
- Payment & Export Documentation — T/T bank transfer, PayPal, or trade assurance accepted. Commercial invoice, packing list, and CO available upon request.
- Shipping & Tracking — DHL / FedEx / UPS express with full tracking. EXW Xiamen or CIF destination available. Typical transit: 3–7 business days globally.
- Incoming Inspection Support — Konmask provides technical support during your incoming inspection. Discrepancy claims accepted within 7 days of receipt.
Technical FAQ
- Q: Is the MVME 162-262 compatible with my existing MVME 162-2xx series backplane?
- A: Yes. The -262 variant is pin-compatible with all standard 6U VMEbus backplanes used across the MVME 162 family. Verify firmware revision compatibility with your RTOS image before installation.
- Q: What is the difference between MVME 162-262 and MVME 162-263?
- A: The -263 variant typically includes additional DRAM or Flash capacity. Consult the Motorola MVME162 Programmer’s Reference Manual (M68040) for variant-specific memory maps.
- Q: Can this module run VxWorks 6.x?
- A: The MVME 162-262 is validated with VxWorks 5.x BSPs. VxWorks 6.x support depends on Wind River BSP availability for the 68040 target; consult Wind River’s legacy BSP archive.
- Q: Do you provide a warranty?
- A: Konmask offers a 90-day functional warranty on all tested surplus units. Extended warranty and exchange programs are available — contact us for details.
- Q: Can you supply the original Allen-Bradley / Motorola documentation?
- A: We can provide links to publicly available OEM documentation. Proprietary manuals are subject to OEM copyright; Konmask does not redistribute restricted documents.
