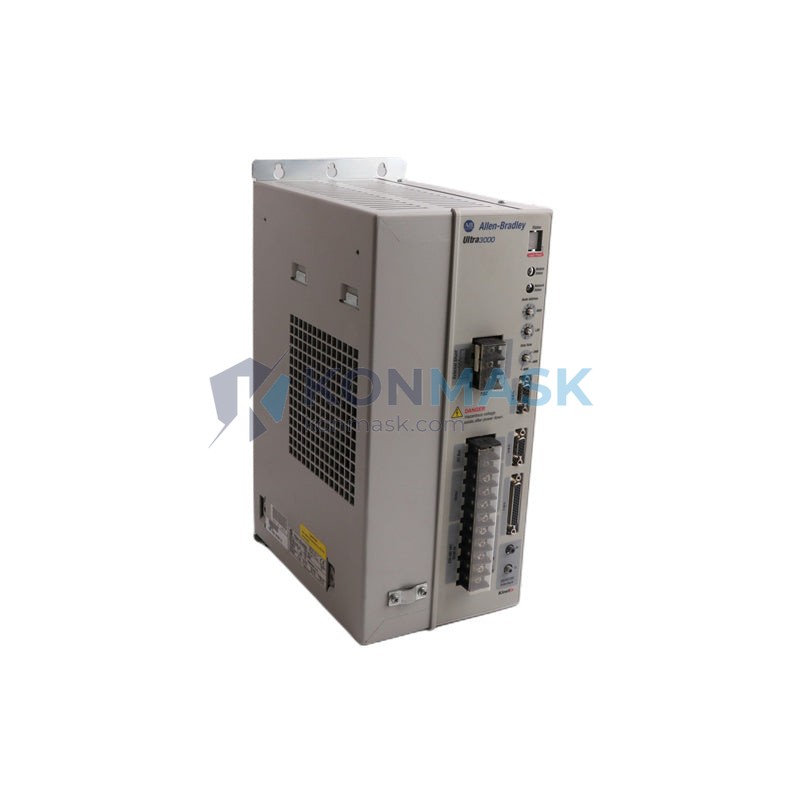

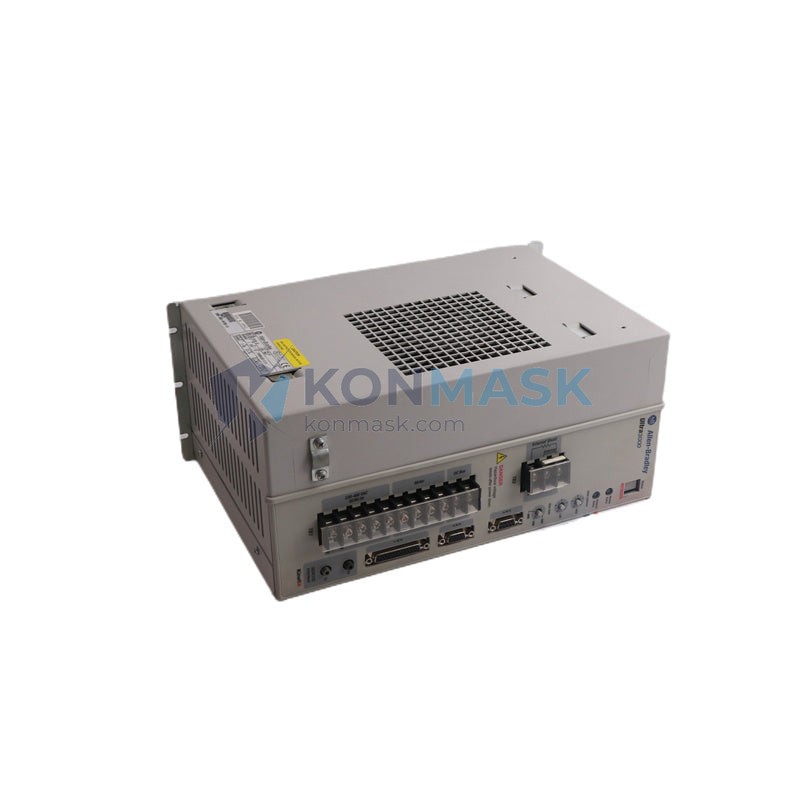

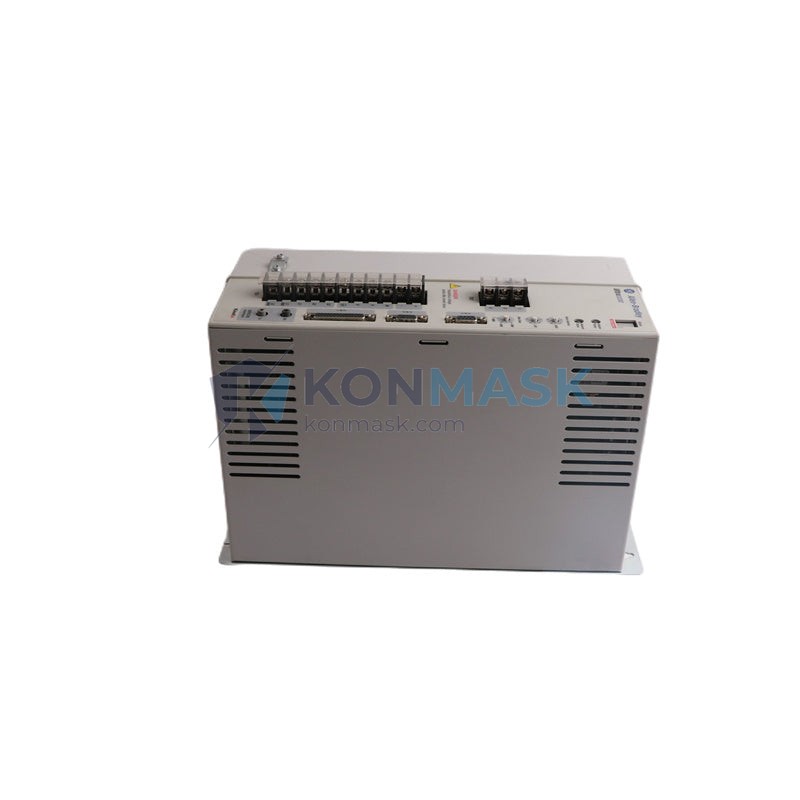

Motion Control Solution — Allen-Bradley 2098-DSD-HV150-SE | Ultra 3000 Series
The Allen-Bradley 2098-DSD-HV150-SE is a high-performance digital servo drive from the Ultra 3000 Series, engineered for demanding multi-axis motion control applications. Equipped with a SERCOS (Serial Real-time Communication System) fiber-optic interface, this drive delivers deterministic, synchronized control across complex machine architectures — making it the preferred choice for engineers specifying precision motion in industrial automation.
Where This Product Is Used
The 2098-DSD-HV150-SE is deployed across a wide range of high-demand industrial environments:
- CNC Machining Centers — Provides synchronized multi-axis servo control for spindle and feed axes, enabling tight contouring accuracy and high surface finish quality.
- Packaging Machinery — Drives servo axes on form-fill-seal machines, cartoners, and case packers where coordinated motion and rapid changeover are critical.
- Robotic Welding & Assembly — Supports coordinated joint control in articulated robot arms requiring real-time torque and velocity loop closure.
- Printing & Converting Equipment — Maintains register accuracy across web-fed printing lines through SERCOS synchronization.
- Semiconductor & Electronics Manufacturing — Used in pick-and-place and wafer-handling systems demanding sub-micron repeatability.
- Material Handling & Conveyors — Controls servo-driven indexing tables, gantries, and transfer systems in automotive and logistics facilities.
Technical Specifications
- Part Number: 2098-DSD-HV150-SE
- Series: Ultra 3000 Digital Servo Drive
- Manufacturer: Allen-Bradley / Rockwell Automation
- Interface: SERCOS (fiber-optic, IEC 61491)
- Peak Output Current: 150 A
- Input Voltage: 230/460 VAC, 3-phase
- Control Modes: Position, Velocity, Torque
- Feedback Supported: Incremental encoder, absolute encoder, resolver
- Communication: SERCOS fiber-optic ring (2 Mbps / 4 Mbps / 8 Mbps / 16 Mbps)
- Protection Class: IP20
- Weight: 10.38 kg
- Compliance: CE, UL, cUL
- Compatible Controller: Rockwell 1756-M02AE, 1756-M08SE, 1756-M16SE (ControlLogix SERCOS modules)
Why Engineers Specify This Model
- SERCOS Fiber-Optic Ring — Eliminates EMI susceptibility inherent in copper-based fieldbus systems; ideal for electrically noisy environments such as welding cells and large motor rooms.
- 150 A Peak Current — Handles high-inertia loads and aggressive acceleration profiles without derating, reducing the need for oversized motor-drive combinations.
- Deterministic Synchronization — SERCOS protocol guarantees cycle-time jitter <1 µs across all axes on the ring, critical for electronic gearing and cam profiling.
- Seamless ControlLogix Integration — Native integration with Rockwell’s Studio 5000 / RSLogix 5000 environment reduces commissioning time and simplifies diagnostics.
- Proven Field Reliability — Ultra 3000 drives have accumulated millions of operating hours across global installations; spare parts and technical documentation remain widely available.
- Flexible Feedback — Supports incremental, absolute, and resolver feedback types, allowing reuse across diverse motor inventories without additional interface hardware.
Complete System Bill of Materials
A typical SERCOS servo axis using the 2098-DSD-HV150-SE includes the following components:
- 2098-DSD-HV150-SE — Ultra 3000 Servo Drive (this unit)
- 1756-M08SE or 1756-M16SE — ControlLogix SERCOS Motion Module
- MPL-B Series or TL-Series Servo Motor (matched to torque/inertia requirements)
- 2090-Series Servo Power and Feedback Cables
- 2098-DBR-HV150 — Dynamic Brake Resistor (for high-inertia or vertical axis applications)
- 2098-UWCPG-F20 — Ultra 3000 Programming Cable (for local configuration)
- SERCOS Fiber-Optic Cable (plastic or glass, per ring topology)
- 24 VDC Control Power Supply (e.g., 1606-XLP Series)
Compliance & Industry Standards
- CE Marking — Conforms to EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU
- UL / cUL Listed — Certified to UL 508C (Power Conversion Equipment)
- SERCOS Interface Standard — IEC 61491 compliant
- RoHS Compliant — Meets EU Directive 2011/65/EU on restriction of hazardous substances
- ISO 13849 / IEC 62061 — Compatible with safety-rated motion architectures when paired with appropriate safety modules
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 2098-DSD-HV150-SE unit is subject to a rigorous pre-shipment verification process:
- Visual Inspection — Enclosure, connector pins, and fiber-optic ports inspected for physical damage or corrosion.
- Functional Power-On Test — Drive is energized and firmware version confirmed prior to dispatch.
- Authenticity Verification — Serial number and date code cross-referenced against Rockwell Automation production records where available.
- Secure Packaging — Anti-static foam and double-wall carton packaging to prevent transit damage.
- Traceability Documentation — Certificate of conformance and inspection record provided upon request.
How to Source This Part
Konmask.com maintains stock of the 2098-DSD-HV150-SE for immediate dispatch. For volume orders, project-based procurement, or urgent replacement requirements:
- Online Order: Add to cart and proceed to checkout — secure payment via major cards and wire transfer accepted.
- Email RFQ: support@konmask.com — include quantity, required delivery date, and project details.
- Phone / WhatsApp: +0086 19859288691 — available Monday–Friday, 09:00–18:00 CST.
- Lead Time: In-stock units ship within 1–3 business days; ex-stock sourcing typically 5–10 business days.
- Export & Customs: We handle export documentation, HS code classification, and commercial invoices for international shipments.
Application-Specific FAQ
Q: Is the 2098-DSD-HV150-SE compatible with ControlLogix 1756-L series PLCs?
A: Yes. The drive communicates via a SERCOS motion module (e.g., 1756-M08SE) installed in the ControlLogix chassis. Programming is performed in Studio 5000 / RSLogix 5000 using the Axis_Servo_Drive tag type.
Q: Can this drive operate on 230 VAC single-phase input?
A: No. The 2098-DSD-HV150-SE requires 3-phase AC input (230 VAC or 460 VAC). Single-phase operation is not supported at this power rating.
Q: What is the maximum SERCOS ring speed supported?
A: The drive supports SERCOS baud rates of 2, 4, 8, and 16 Mbps. Ring speed must match the setting configured in the ControlLogix SERCOS module.
Q: Do you supply matching servo motors and cables?
A: Yes. Konmask.com stocks compatible MPL-B and TL-Series motors as well as 2090-Series power and feedback cables. Contact us with your axis requirements for a matched system quote.
Q: Is a warranty provided?
A: All units are covered by Konmask.com’s standard 90-day functional warranty. Extended warranty options are available — contact support for details.
Q: Can you provide a datasheet or Rockwell publication?
A: Yes. The relevant Rockwell Automation publication is 2098-UM001 (Ultra 3000 Digital Servo Drive Installation Manual). Contact us and we will provide the PDF along with your order confirmation.
