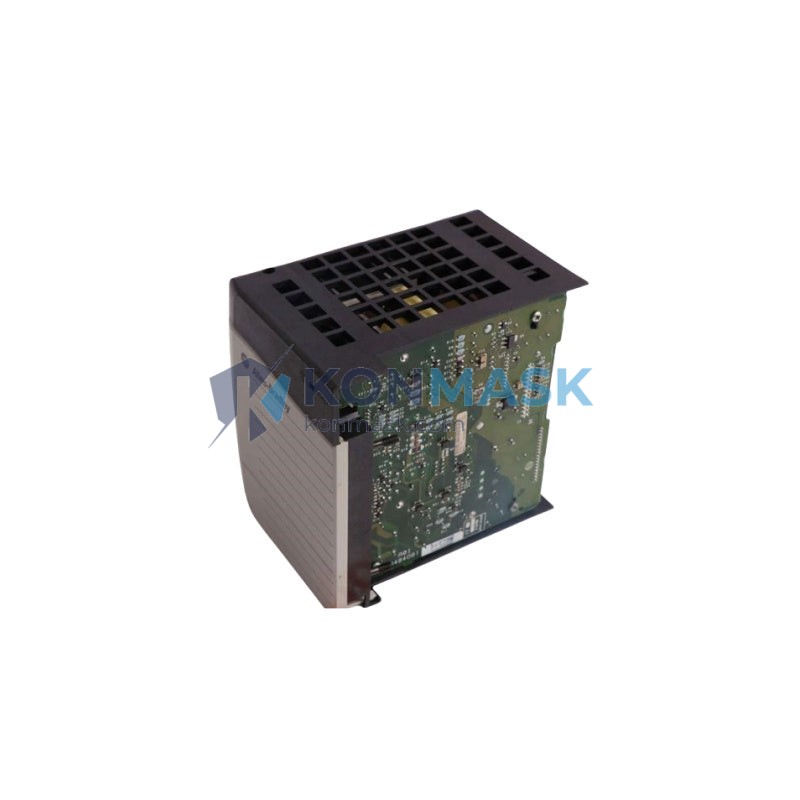

Genuine Allen-Bradley 1756-IF4XOF2F Analog Combo I/O Module | ControlLogix Series – Verified Source
The Allen-Bradley 1756-IF4XOF2F is a ControlLogix platform analog combination I/O module featuring 4 isolated analog inputs and 2 analog outputs. Sourced directly through verified authorized distribution channels, every unit sold by Konmask.com undergoes a documented multi-step inspection before shipment. Ideal for process control, machine automation, and critical infrastructure applications where signal accuracy and system reliability are non-negotiable.
Technical Specifications
- Catalog Number: 1756-IF4XOF2F
- Series: ControlLogix (1756 Platform)
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Analog Combination I/O (4 Inputs × 2 Outputs)
- Input Channels: 4 × Isolated Analog Inputs
- Output Channels: 2 × Analog Outputs
- Input Signal Range: ±10V DC / 0–20 mA / 4–20 mA (software selectable)
- Output Signal Range: ±10V DC / 0–20 mA / 4–20 mA (software selectable)
- Resolution: 16-bit
- Isolation: Channel-to-channel and channel-to-backplane isolation
- Backplane Current Draw: 250 mA @ 5V DC; 3 mA @ 24V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 94.0 × 94.5 × 58.6 mm
- Weight: Approx. 0.200 kg
- Certifications: UL, CE, C-Tick
Our 4-Step Quality Verification Process
Every 1756-IF4XOF2F unit shipped from Konmask.com passes through our documented verification protocol before dispatch:
- Step 1 — Source Traceability Check: We verify the supply chain origin of each unit, confirming it originates from authorized distributors or OEM-certified channels. Lot codes and date codes are cross-referenced against manufacturer records.
- Step 2 — Physical Authenticity Inspection: Our technicians inspect label printing quality, holographic seals, housing mold consistency, connector pin alignment, and PCB markings against known-genuine reference units.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and tested for backplane communication, channel response, and firmware version confirmation using Rockwell Studio 5000 / RSLogix 5000 diagnostic tools.
- Step 4 — Packaging & Documentation Audit: Units are repackaged in anti-static ESD-safe materials with inspection records enclosed. A certificate of inspection is available upon request.
Key Features & Benefits
- ✅ Isolated Analog Channels — Eliminates ground loop interference in noisy industrial environments
- ✅ High-Resolution 16-bit Conversion — Delivers precise process variable measurement for tight control loops
- ✅ Software-Selectable Signal Ranges — Reduces wiring changes when reconfiguring process inputs/outputs
- ✅ Hot-Swap Compatible — Supports removal and insertion under power (RIUP) within the ControlLogix chassis
- ✅ Seamless Studio 5000 Integration — Native Add-On Profile (AOP) support for rapid commissioning
- ✅ Compact ControlLogix Form Factor — Fits any 1756 chassis slot; no special mounting required
- ✅ Verified Genuine Hardware — Backed by Konmask’s 4-step inspection protocol
Typical Applications
- Process control loops (temperature, pressure, flow, level)
- Analog sensor signal conditioning in manufacturing lines
- Oil & gas SCADA and DCS integration via ControlLogix gateway
- Water treatment and utilities automation
- Pharmaceutical batch process control
- Food & beverage production line monitoring
- Power generation and energy management systems
Compatible System Components
- Chassis: Any 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot)
- Controllers: 1756-L6x, 1756-L7x, 1756-L8x ControlLogix CPUs
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PH75 series
- Communication Modules: 1756-EN2T, 1756-EN3TR, 1756-ENBT (EtherNet/IP)
- Programming Software: Studio 5000 Logix Designer v21.00 or later; RSLogix 5000 v16+
- Wiring Arm: 1756-TBCH or 1756-TBS6H removable terminal block
Global Sourcing & Shipping Capabilities
Konmask.com maintains established procurement relationships across Asia-Pacific, European, and North American supply networks, enabling us to source both current-production and legacy/discontinued Allen-Bradley modules with competitive lead times.
- Domestic (China): Same-day or next-day dispatch from Fujian warehouse stock
- Asia-Pacific: 3–7 business days via DHL Express / SF International
- Europe & Americas: 5–10 business days via FedEx International Priority / UPS Worldwide
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided for customs clearance
- Urgent Requirements: Contact us for expedited sourcing on critical plant shutdowns or emergency MRO needs
Certifications & Compliance Statement
- UL Listed — Underwriters Laboratories industrial control equipment standard
- CE Marked — Compliant with EU Low Voltage Directive and EMC Directive
- C-Tick / RCM — Australian and New Zealand EMC compliance
- RoHS Compliant — Restriction of Hazardous Substances (where applicable to production date)
- Konmask Compliance Note: All units sold are represented as genuine OEM hardware. Konmask.com does not sell counterfeit, refurbished-as-new, or grey-market goods. Any unit failing our verification process is quarantined and not listed for sale.
How to Order
- Confirm Part Number: Verify 1756-IF4XOF2F matches your ControlLogix chassis slot and firmware revision requirements.
- Check Quantity & Lead Time: Contact us via email or phone to confirm current stock availability and estimated ship date.
- Request a Quote: For orders of 2+ units or project-based procurement, request a formal quotation with volume pricing.
- Place Order: Add to cart and complete checkout, or send a purchase order to support@konmask.com for B2B invoicing.
- Receive & Verify: Inspect packaging upon arrival. Our inspection certificate is enclosed. Contact us within 5 business days if any discrepancy is found.
Authenticity & Trust FAQ
Q: How do I know the module is genuine Allen-Bradley?
A: Every unit passes our 4-step verification process including physical label inspection, PCB marking cross-check, and where possible, live functional testing. We provide an inspection certificate upon request.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day warranty against defects in materials and workmanship. Units confirmed DOA (dead on arrival) are replaced or refunded within 30 days of delivery.
Q: Can you source discontinued or hard-to-find catalog numbers?
A: Yes. Our global sourcing network covers legacy Allen-Bradley and Rockwell Automation catalog numbers. Contact us with your full BOM for availability assessment.
Q: What if I order the wrong part?
A: Unopened units in original packaging may be returned within 14 days. Please contact support@konmask.com before returning any item.
Q: Do you provide export documentation for international orders?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and can arrange HS code documentation for customs clearance in most jurisdictions.
