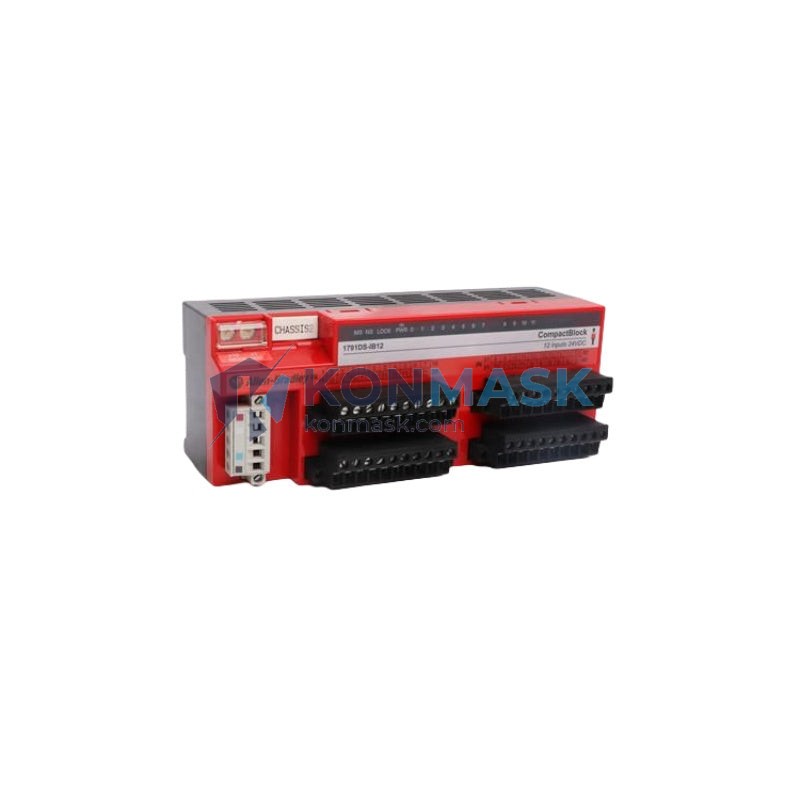

Allen-Bradley 1791DS-IB12 – 12-Point Digital Combo Safety Module | Guard I/O Platform
Engineering Background
The Allen-Bradley 1791DS-IB12 is a compact, high-density safety I/O module designed for machine safety applications requiring IEC 61508 SIL 2 / SIL 3 compliance. As part of Rockwell Automation’s Guard I/O™ platform, it integrates seamlessly with GuardLogix and Compact GuardLogix safety controllers via DeviceNet Safety or EtherNet/IP Safety networks, enabling distributed safety architectures without dedicated safety relays.
Product Positioning
Targeted at OEMs, system integrators, and plant engineers who require certified safety I/O in space-constrained panels, the 1791DS-IB12 delivers 12 digital combo points (configurable as inputs or outputs) in a single DIN-rail module. It eliminates the need for external safety relay modules, reducing panel footprint and wiring complexity while maintaining full SIL 2 certification per IEC 61508.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1791DS-IB12 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | Guard I/O™ 1791DS |
| I/O Points | 12 Digital Combo (Input/Output configurable) |
| Safety Rating | SIL 2 (IEC 61508), PLd (ISO 13849-1) |
| Network Interface | DeviceNet Safety / EtherNet/IP Safety |
| Input Voltage | 24V DC |
| Input Current (max) | 6.0 mA per point |
| Output Current (max) | 0.5 A per point |
| Power Consumption | 3.5 W (typical) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Enclosure Rating | IP20 (panel mount) |
| Mounting | 35 mm DIN Rail |
| Weight | Approx. 400 g |
| Certifications | UL, CE, TÜV, cUL |
| Firmware Compatibility | GuardLogix 5570 / 5580, Compact GuardLogix 5370 / 5380 |
Proven Application Environments
- Machine Guarding: Light curtains, safety mats, and two-hand control stations connected via Guard I/O for Category 3 / PLd safety functions.
- Robotic Cells: Distributed safety I/O at robot perimeter fencing, enabling zone-selective stop functions without home-run wiring to the main panel.
- Conveyor & Material Handling: E-stop and safety gate monitoring across long conveyor lines using DeviceNet Safety trunk-and-drop topology.
- Press & Stamping: Dual-channel safety input monitoring for press clutch/brake control meeting OSHA 1910.217 requirements.
- Packaging Lines: High-speed safety output control for pneumatic valves and servo drives in SIL 2 packaging machinery.
- Automotive Assembly: Integration with GuardLogix in body-in-white welding cells requiring IEC 62061 SILCL 2 compliance.
Engineering Advantages
- Dual-Channel Input Architecture: Supports single and dual-channel safety input configurations with cross-fault detection, eliminating external safety relays for most SIL 2 applications.
- Combo I/O Flexibility: Each of the 12 points can be independently configured as a safety input or standard output via RSLogix 5000 / Studio 5000 software — no hardware jumpers required.
- Integrated Diagnostics: On-module LED status indicators and network-reported diagnostics (short circuit, open wire, cross-fault) reduce MTTR in production environments.
- Compact Form Factor: Single-wide DIN-rail module consolidates 12 I/O points, reducing panel space by up to 60% versus discrete safety relay solutions.
- Hot-Swap Capable: Supports replacement under power on DeviceNet Safety networks, minimizing unplanned downtime during maintenance windows.
- Seamless Studio 5000 Integration: Add-On Profiles (AOPs) provide drag-and-drop configuration with automatic parameter validation and safety signature management.
System Architecture & Signal Flow
The 1791DS-IB12 operates as a DeviceNet Safety slave or EtherNet/IP Safety adapter node. Safety data is transmitted in Safety I/O Connection format with CRC-protected packets and time-stamped heartbeat monitoring. The GuardLogix controller acts as the Safety Scanner, polling the module at configurable RPI (Requested Packet Interval) rates as low as 1 ms.
Typical Signal Flow:
- Field device (e.g., E-stop, light curtain OSSD) → 1791DS-IB12 input point (dual-channel)
- Module performs cross-fault and discrepancy time checking internally
- Safety status transmitted over DeviceNet Safety / EtherNet/IP Safety to GuardLogix
- GuardLogix executes safety ladder logic and commands safety outputs
- 1791DS-IB12 output point drives actuator (e.g., safety relay coil, valve solenoid)
Sourcing & Quality Verification
All 1791DS-IB12 units supplied by Konmask.com are sourced from verified industrial surplus channels and authorized distribution networks. Each unit undergoes the following pre-shipment process:
- Visual inspection for physical damage, label integrity, and firmware revision marking
- Functional power-on test with DeviceNet Safety network enumeration verification
- Counterfeit screening against Rockwell Automation catalog reference standards
- ESD-safe packaging with anti-static bag, foam insert, and moisture barrier
- Certificate of conformance (CoC) available upon request for regulated industries
Procurement Process
- Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691 for lead time and quantity confirmation.
- Quotation: Receive a formal quotation within 1 business day including unit price, shipping options (DHL / FedEx / sea freight), and estimated delivery.
- Order Confirmation: Place order via this product page or via proforma invoice for bank transfer / TT payment.
- Quality Check & Dispatch: Unit tested, photographed, and dispatched within 1–3 business days with tracking number provided.
- After-Sales Support: 90-day warranty on all units. Technical support available for integration and commissioning questions.
Technical FAQ
Q: Is the 1791DS-IB12 compatible with CompactLogix (non-safety) controllers?
A: No. The 1791DS-IB12 requires a GuardLogix or Compact GuardLogix safety controller to utilize its safety I/O connections. It cannot be used as a standard I/O module with non-safety CompactLogix or ControlLogix controllers.
Q: What is the maximum cable length for DeviceNet Safety with this module?
A: Per DeviceNet specification, thick cable supports up to 500 m trunk length at 125 kbps. Thin cable drop length is limited to 6 m. Actual limits depend on network topology and baud rate selection.
Q: Can I mix safety inputs and standard outputs on the same module?
A: Yes. Each of the 12 combo points is independently configurable in Studio 5000. Safety inputs and standard (non-safety) outputs can coexist on the same module without affecting the safety integrity of the input channels.
Q: What discrepancy time setting is recommended for dual-channel E-stop inputs?
A: Rockwell Automation recommends a discrepancy time of 500 ms for manually operated devices (E-stops, gate switches). For automated devices (OSSD outputs from light curtains), 0 ms discrepancy time is typical.
Q: Do you provide the original Rockwell Automation documentation?
A: Yes. We can provide links to the official publication 1791DS-IB12 Guard I/O Safety Module Installation Instructions (Pub. 1791DS-IN001) and the Guard I/O DeviceNet Safety Modules User Manual (Pub. 1791DS-UM001). Contact us for assistance.
