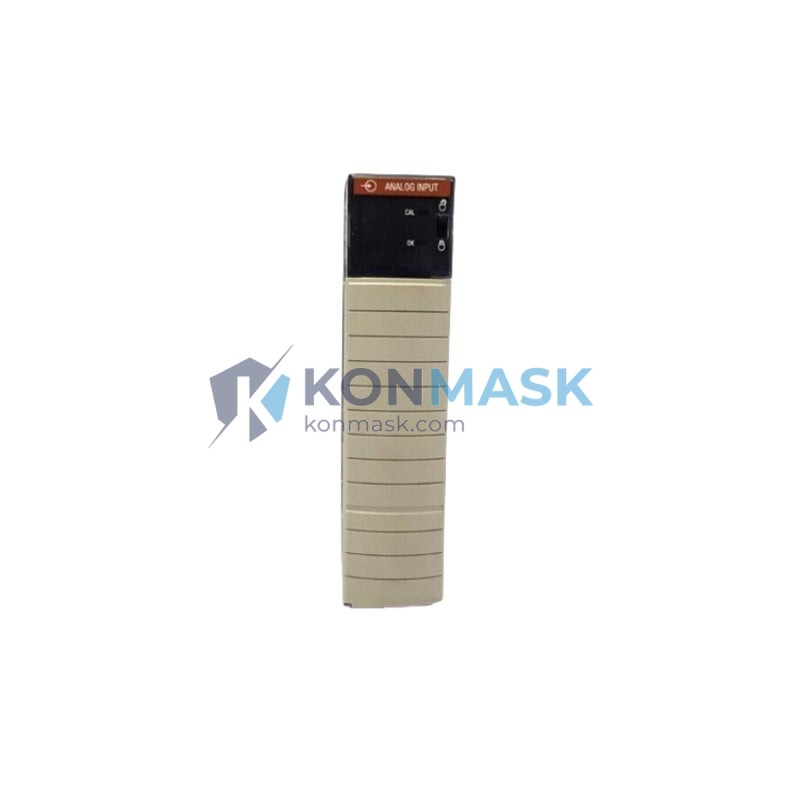

Allen-Bradley 1756-IF16/A ControlLogix 16-Channel Analog Input Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1756-IF16/A is a 16-channel analog input module designed for the Rockwell Automation ControlLogix platform. It accepts voltage and current signals from field devices such as sensors, transmitters, and transducers, converting them to digital values for the ControlLogix controller. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 1756-IF16/A
- Series: A
- Platform: Allen-Bradley ControlLogix (1756 chassis)
- Number of Channels: 16 single-ended / 8 differential
- Input Signal Range: ±10 V DC, 0–10 V DC, 0–20 mA, 4–20 mA
- Resolution: 16-bit
- Input Impedance (Voltage): ≥ 1 MΩ
- Input Impedance (Current): 249 Ω
- Backplane Current Draw: 250 mA @ 5 V DC; 2 mA @ 24 V DC
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: −40 °C to 85 °C
- Relative Humidity: 5–95% non-condensing
- Isolation: 250 V AC continuous, channel-to-backplane
- Certifications: UL, CE, C-Tick
- Module Slot Width: Single slot
- Wiring: Removable terminal block (RTB), 36-pin
- Weight: Approx. 0.1 kg
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the 1756-IF16/A. Always verify firmware compatibility and channel configuration before substitution.
- 1756-IF16/B — Series B revision; direct drop-in replacement with identical pinout and improved noise immunity. Preferred upgrade path.
- 1756-IF8 — 8-channel analog input module; suitable when fewer channels are required, reducing chassis slot usage.
- 1756-IF8H — HART-enabled 8-channel analog input; recommended when HART device communication is required.
- 1756-IF6I — 6-channel isolated analog input; use when full channel-to-channel isolation is a design requirement.
- 1756-IF6CIS — 6-channel isolated current/voltage input with HART; for high-integrity process loops.
- 1756-IF16H — 16-channel HART-enabled analog input; direct functional upgrade for HART-capable field devices.
Note: Series A and Series B modules share the same firmware base. Confirm RSLogix 5000 / Studio 5000 project compatibility before replacement.
Why Choose the Original Model
- Proven field reliability — The 1756-IF16/A has an extensive installed base in process and discrete manufacturing environments worldwide.
- Exact firmware compatibility — Eliminates re-validation effort in existing ControlLogix programs; no tag remapping required.
- 16-channel density — Maximizes chassis slot efficiency compared to lower-channel-count alternatives.
- Dual-mode input — Supports both voltage and current inputs per channel, reducing the need for signal conditioners.
- Rockwell Automation ecosystem — Fully integrated with RSLogix 5000 / Studio 5000 Add-On Instructions (AOIs) and FactoryTalk diagnostics.
Typical Applications
- Process control: temperature, pressure, flow, and level measurement via 4–20 mA transmitters
- Discrete manufacturing: analog feedback from servo drives, VFDs, and position sensors
- Oil & gas: wellhead monitoring and pipeline instrumentation
- Water & wastewater: pump station telemetry and SCADA integration
- Power generation: turbine and generator analog monitoring
- Pharmaceutical: batch process analog data acquisition (FDA 21 CFR Part 11 environments)
- Food & beverage: CIP process monitoring with hygienic sensor inputs
System Compatibility
- Chassis: All 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot)
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75, and all standard ControlLogix PSUs
- Controllers: All 1756-Lxx ControlLogix controllers (L1x through L8x series)
- Software: RSLogix 5000 v13.0+, Studio 5000 Logix Designer v21.0+
- Communication: Compatible with EtherNet/IP, ControlNet, and DeviceNet bridge configurations via 1756 communication modules
- Redundancy: Supported in ControlLogix redundancy systems with 1756-RM/A or 1756-RM2/A redundancy modules
Selection Guide
Use the decision criteria below to confirm the 1756-IF16/A is the right module for your application, or to identify a more suitable alternative:
- Channel count needed ≥ 9: → 1756-IF16/A or 1756-IF16H (HART)
- Channel count needed ≤ 8: → 1756-IF8 (standard) or 1756-IF8H (HART)
- Full channel-to-channel isolation required: → 1756-IF6I or 1756-IF6CIS
- HART device communication required: → 1756-IF8H or 1756-IF16H
- Existing Series A installation, like-for-like replacement: → 1756-IF16/B (Series B, direct replacement)
- Budget-sensitive retrofit: → Certified refurbished 1756-IF16/A from Konmask.com with 12-month warranty
- High-integrity SIL-rated loop: → Consult Rockwell Automation safety documentation; consider 1756-IF6CIS with SIL assessment
Quality Assurance & Sourcing
- Source: Konmask.com sources 1756-IF16/A modules from authorized distributors and verified surplus channels.
- Inspection: Every unit undergoes visual inspection, firmware version verification, and functional bench testing prior to shipment.
- Warranty: 12-month replacement warranty on all stocked units.
- Traceability: Batch records and supplier documentation available upon request for regulated industries.
- Counterfeit Prevention: All modules are verified against Rockwell Automation catalog markings, date codes, and label authenticity indicators.
- Packaging: Anti-static ESD packaging with original-style protective inserts.
How to Order
- Confirm your chassis series and available slot count.
- Verify your Studio 5000 / RSLogix 5000 version supports the module series.
- Select quantity and add to cart, or contact us for volume pricing.
- Provide your project PO number and required delivery date at checkout.
- For urgent requirements, email support@konmask.com with subject line: URGENT – 1756-IF16/A.
Lead Time: In-stock units ship within 1–3 business days. Out-of-stock units: 5–15 business days depending on sourcing channel.
Replacement & Compatibility FAQ
Q: Is the 1756-IF16/B a direct replacement for the 1756-IF16/A?
A: Yes. Series B is a hardware revision of Series A with identical form, fit, and function. No program changes are required in most cases. Verify your Studio 5000 project module definition accepts Series B.
Q: Can I use the 1756-IF16/A in a ControlLogix redundancy system?
A: Yes, provided the redundancy module (1756-RM or 1756-RM2) and controller firmware support the analog module. Refer to Rockwell Publication 1756-UM001 for redundancy configuration details.
Q: What wiring terminal block does the 1756-IF16/A use?
A: It uses a 36-pin removable terminal block (RTB). The compatible RTB catalog numbers are 1756-TBNH (standard) and 1756-TBSH (spring clamp).
Q: Can I mix Series A and Series B modules in the same chassis?
A: Yes. ControlLogix chassis support mixed module series. Each module is independently addressed and configured in the I/O tree.
Q: Does the 1756-IF16/A support HART communication?
A: No. For HART pass-through capability, use the 1756-IF8H or 1756-IF16H.
Q: What is the difference between single-ended and differential wiring on this module?
A: In single-ended mode, 16 channels share a common reference (COM). In differential mode, 8 channel pairs each have independent high/low inputs, providing better noise rejection for long cable runs or noisy environments.
