Allen-Bradley 2711P-RDT10C Display Module | Replacement, Equivalent & Selection Guide

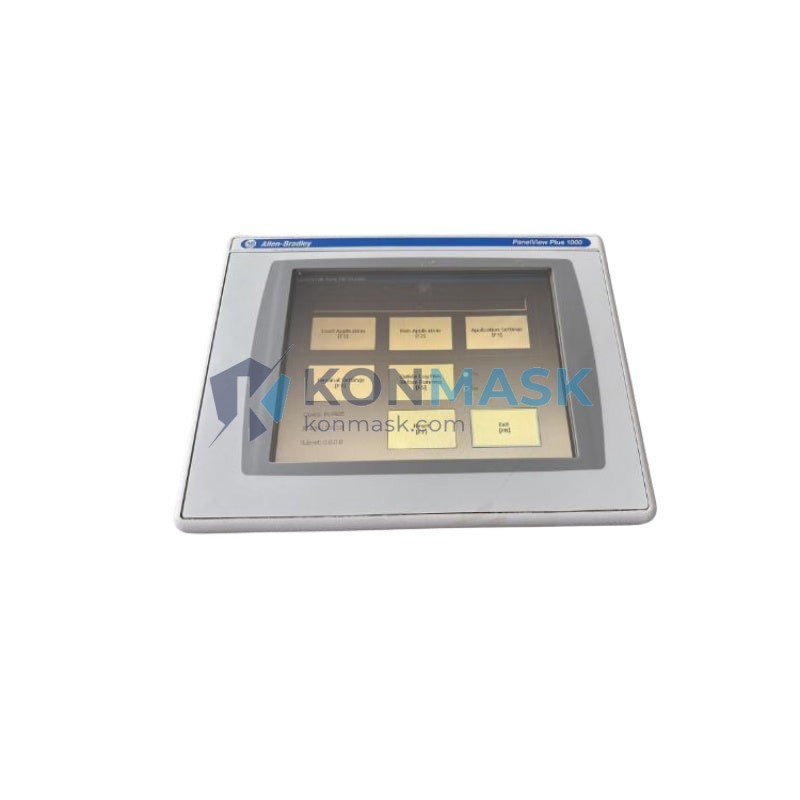

The Allen-Bradley 2711P-RDT10C is a 10.4″ color TFT display module designed for the PanelView Plus 6 family of Human-Machine Interface (HMI) terminals. It serves as the front-panel display assembly, providing operators with a high-resolution touchscreen interface for industrial process visualization and control. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Part Number: 2711P-RDT10C
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Series: PanelView Plus 6
- Display Type: 10.4″ Color TFT LCD
- Resolution: 640 × 480 (VGA)
- Touchscreen: Analog Resistive
- Backlight: CCFL (Cold Cathode Fluorescent Lamp)
- Interface: Internal ribbon connector (proprietary PanelView Plus bus)
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: −40 °C to 85 °C
- Protection Rating: NEMA 4/4X, 12, 13; IP65 (front panel)
- Certifications: UL, CE, cUL
- Compatible Logic Module: 2711P-RP Series
- Weight: Approx. 2.0 kg
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the 2711P-RDT10C. Always verify firmware revision and logic module compatibility before substitution.
- 2711P-RDT10C — Original OEM module (this listing)
- 2711P-RDT10CK — Keypad variant of the same 10.4″ display assembly
- 2711P-RDT10H — High-brightness version for high-ambient-light environments
- 2711P-RDT12H — 12.1″ upgrade option; requires compatible logic module
- 2711-T10C8 — Legacy PanelView 1000 (older generation, not pin-compatible; software migration required)
- 6AV2124-0QC02-0AX1 (Siemens SIMATIC HMI) — Cross-brand functional equivalent for new installations; requires engineering re-configuration
Note: Third-party display replacements may void OEM warranty. Konmask.com supplies both genuine Allen-Bradley modules and verified compatible alternatives.
Why Choose the Original Model
- Guaranteed Compatibility: Plug-and-play with all PanelView Plus 6 logic modules (2711P-RP Series) without firmware changes.
- Rockwell Automation Support: Full access to FactoryTalk View Studio, remote diagnostics, and OEM technical support.
- Proven Reliability: Designed and validated for 24/7 industrial operation in harsh environments.
- Regulatory Compliance: Pre-certified UL/CE — no re-certification required for existing panel designs.
- Spare Parts Ecosystem: Readily available replacement backlights, touch overlays, and logic modules from Rockwell’s global distribution network.
Typical Applications
- Automotive assembly line HMI stations
- Food & beverage process control panels
- Water/wastewater SCADA operator terminals
- Oil & gas upstream/downstream control rooms
- Pharmaceutical batch process visualization
- Material handling and conveyor system interfaces
- Building automation and HVAC control panels
System Compatibility
The 2711P-RDT10C display module is mechanically and electrically compatible with the following Allen-Bradley logic modules and enclosures:
- Logic Modules: 2711P-RP8D, 2711P-RP8A, 2711P-RP6A, 2711P-RP4A (PanelView Plus 6 series)
- Communication: EtherNet/IP, DH-485, DF1, DH+ (via logic module)
- Software: FactoryTalk View Studio ME v5.0 and above
- PLC Compatibility: Allen-Bradley ControlLogix, CompactLogix, MicroLogix, SLC 500, PLC-5 (via appropriate communication card)
- Enclosure Cutout: Standard PanelView Plus 10″ panel cutout (refer to installation drawing 2711P-IN006)
Selection Guide
Use the following criteria to confirm the 2711P-RDT10C is the correct module for your application, or to identify a suitable alternative:
- Screen Size: Need 10.4″? → 2711P-RDT10C ✓ | Need 12.1″? → 2711P-RDT12H
- Input Method: Touchscreen only? → 2711P-RDT10C ✓ | Touchscreen + Keypad? → 2711P-RDT10CK
- Ambient Light: Standard indoor? → 2711P-RDT10C ✓ | High-brightness outdoor/sunlit? → 2711P-RDT10H
- Existing Logic Module: PanelView Plus 6 (2711P-RP series)? → Direct replacement ✓ | PanelView Plus 7 (2711R series)? → Not compatible; select 2711R-T10T instead
- Budget Constraint: Refurbished/equivalent acceptable? → Contact Konmask.com for verified compatible options
- New Installation vs. Replacement: For new designs, consider PanelView Plus 7 series for longer lifecycle support
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers requiring verified, spec-accurate parts. Our sourcing and QA process includes:
- Authenticity Verification: All Allen-Bradley modules are inspected for genuine Rockwell Automation markings, date codes, and serial number traceability.
- Functional Testing: Display modules are powered-on tested for backlight uniformity, touch calibration, and communication handshake prior to shipment.
- Packaging: ESD-safe anti-static bags with foam cushioning; original OEM packaging where available.
- Documentation: Certificate of conformance and test report available upon request.
- Warranty: 12-month warranty against manufacturing defects on all stocked units.
How to Order
- Online: Add to cart directly from this page — stock availability shown in real time.
- Bulk / OEM Inquiry: Email [email protected] with quantity, required delivery date, and project details.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock orders ship within 1–3 business days; sourced orders 7–21 business days depending on availability.
- Export / Cross-border: We support international shipping with commercial invoice, packing list, and HS code documentation for customs clearance.
Replacement & Compatibility FAQ
Q: Can I replace just the display module without replacing the logic module?
A: Yes. The 2711P-RDT10C is a field-replaceable display assembly. The logic module (2711P-RP series) remains in place. No software re-programming is required.
Q: Is the 2711P-RDT10C compatible with PanelView Plus 7?
A: No. PanelView Plus 7 (2711R series) uses a different mechanical form factor and connector. Select the 2711R-T10T for that platform.
Q: Can I use a third-party display as a replacement?
A: Third-party displays with matching connector pinouts may function, but Rockwell Automation does not certify them. Konmask.com can advise on verified compatible options that have been tested in the field.
Q: What is the typical failure mode for this display module?
A: The most common failure is CCFL backlight degradation (dimming or flickering). In many cases, a backlight replacement is sufficient rather than replacing the entire display module.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are available at reduced cost and carry a 6-month warranty. Please specify “refurbished” in your inquiry.
