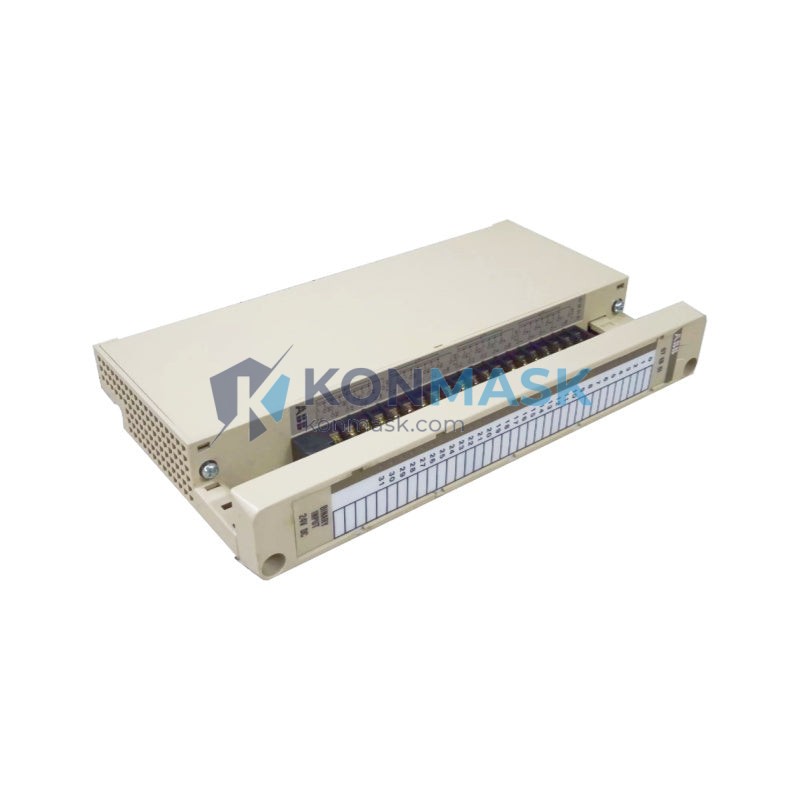

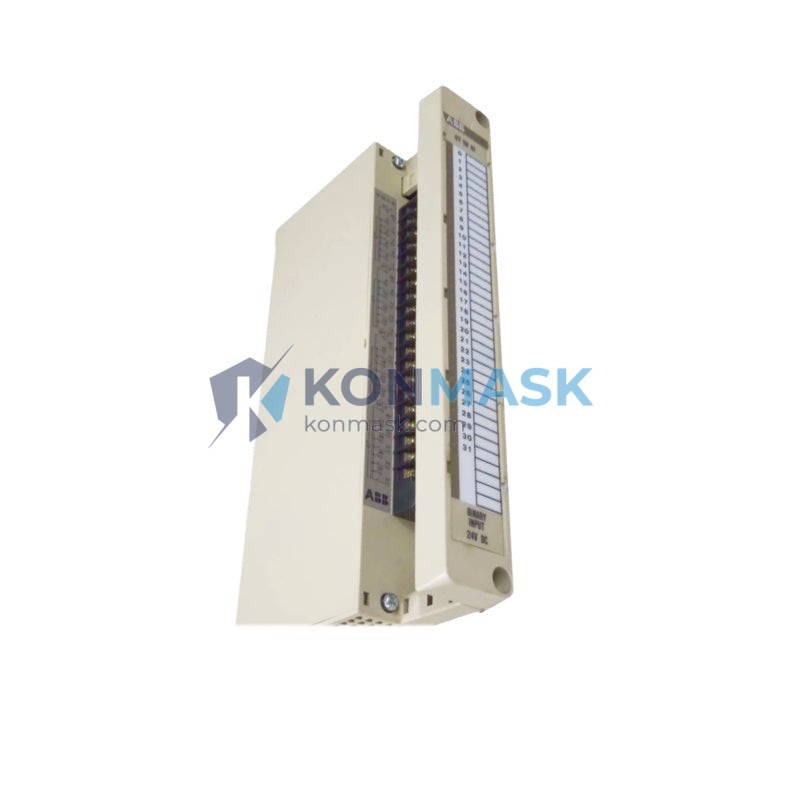

ABB 07EB60R1 Digital Input Module | Replacement, Equivalent & Selection Guide
The ABB 07EB60R1 is a digital input module designed for the ABB AC500 PLC series, delivering reliable signal acquisition in demanding industrial automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing the 07EB60R1 or evaluating equivalent alternatives.
Technical Specifications
- Part Number / SKU: 07EB60R1
- Manufacturer: ABB
- Series: AC500
- Module Type: Digital Input (DI)
- Input Channels: 16 channels (typical for this series — verify datasheet)
- Input Voltage: 24 V DC
- Signal Type: Digital / Discrete
- Communication Interface: S500 I/O bus (AC500 backplane)
- Mounting: DIN rail via AC500 I/O terminal unit
- Protection Class: IP20
- Operating Temperature: 0 °C to +60 °C
- Weight: Approx. 1000 g (with terminal unit)
- Compliance: CE, UL, cUL
Always verify specifications against the official ABB 07EB60R1 datasheet before final design-in.
Compatible Replacement & Equivalent Models
When the 07EB60R1 is unavailable or discontinued, the following ABB and cross-brand equivalents may be considered. Confirm electrical and mechanical compatibility before substitution.
- ABB DI524 — AC500 16-channel 24 V DC digital input module (direct series equivalent)
- ABB DI532 — 32-channel variant for higher-density applications
- ABB DI522 — 8-channel compact alternative
- Siemens 6ES7321-1BH02-0AA0 — SM321 16 DI 24 V DC (cross-brand, verify bus compatibility)
- Schneider Electric TM5SDI12D — 12-channel 24 V DC DI (cross-brand reference)
Cross-brand replacements require engineering validation. Contact Konmask for sourcing support.
Why Choose the Original ABB 07EB60R1
- ✅ Guaranteed compatibility with ABB AC500 CPU and S500 I/O bus — no firmware or configuration changes required
- ✅ Proven reliability in process, manufacturing, and infrastructure automation
- ✅ ABB-certified diagnostics via Automation Builder / PS501 engineering tool
- ✅ Long lifecycle support with ABB spare parts availability
- ✅ Consistent signal integrity with hardware-level filtering and isolation
Typical Applications
- Discrete signal acquisition from pushbuttons, limit switches, and proximity sensors
- Machine safety interlocking and status monitoring
- Process plant I/O expansion for AC500-based control panels
- Water & wastewater treatment automation
- Building management and HVAC control systems
- Power distribution and substation automation
System Compatibility
- Compatible CPUs: ABB AC500 PM5xx, PM5xx-ETH series (PM554, PM564, PM573, PM583, PM591, PM592, PM595)
- Terminal Unit Required: TU515 / TU516 (standard) or TU531 / TU532 (extended)
- Engineering Software: ABB Automation Builder (PS501 Control Builder Plus)
- Bus: S500 I/O local bus; expandable via FieldBusPlug (FBP) for PROFIBUS, DeviceNet, CANopen
- Not compatible with: ABB AC31 / Advant series (different bus architecture)
Selection Guide
Use the following criteria to confirm the 07EB60R1 is the right module for your application:
- Channel count: Do you need 16 digital inputs? If more, consider DI532 (32-ch).
- Voltage level: Confirm field devices output 24 V DC signals.
- Terminal unit: Verify TU515/TU516 is available or already installed in your panel.
- CPU slot budget: Each S500 I/O module occupies one slot on the local bus.
- Environment: For harsh environments (>60 °C or high vibration), consult ABB for extended-range variants.
- Redundancy: For redundant I/O, pair with AC500-S safety CPU and certified safety I/O modules.
Quality Assurance & Sourcing
Konmask.com sources the ABB 07EB60R1 through verified industrial distribution channels. Every unit is:
- Inspected for original ABB labeling, hologram, and date codes
- Tested for packaging integrity and factory seal
- Traceable to authorized distributor invoices upon request
- Covered by Konmask’s 90-day quality guarantee
We do not supply counterfeit, refurbished-as-new, or grey-market goods. All stock is declared accurately.
How to Order
- Confirm your required quantity and delivery timeline.
- Add the ABB 07EB60R1 to cart, or contact us for bulk / project pricing.
- Provide your PO number or project reference for B2B invoicing.
- We ship worldwide via DHL, FedEx, and UPS with full tracking.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Is the ABB 07EB60R1 still in production?
A: ABB periodically updates its AC500 I/O lineup. Contact us to confirm current availability and recommended successors.
Q: Can I use a DI524 as a direct drop-in replacement for the 07EB60R1?
A: The DI524 is the current-generation AC500 16-channel DI module and is generally compatible with the same terminal units. Verify firmware version requirements in Automation Builder.
Q: Do you provide a certificate of conformity (CoC)?
A: Yes. CoC and distributor traceability documents are available upon request for B2B orders.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on ABB supply chain status.
Q: Can I return a module if it is incompatible?
A: Yes, within 30 days of receipt, provided the module is unused and in original packaging. Contact support@konmask.com to initiate a return.
