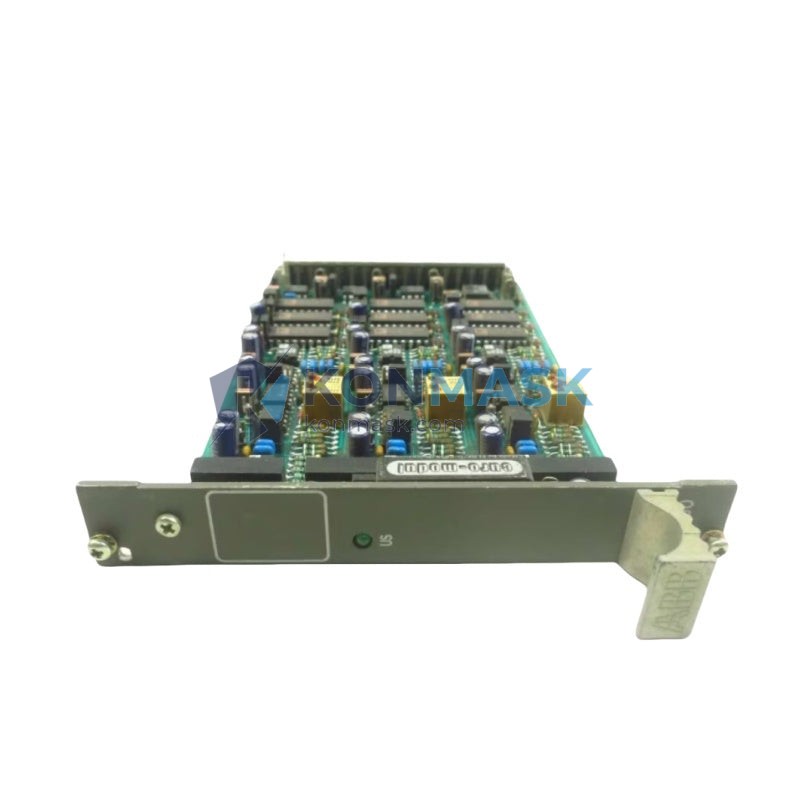

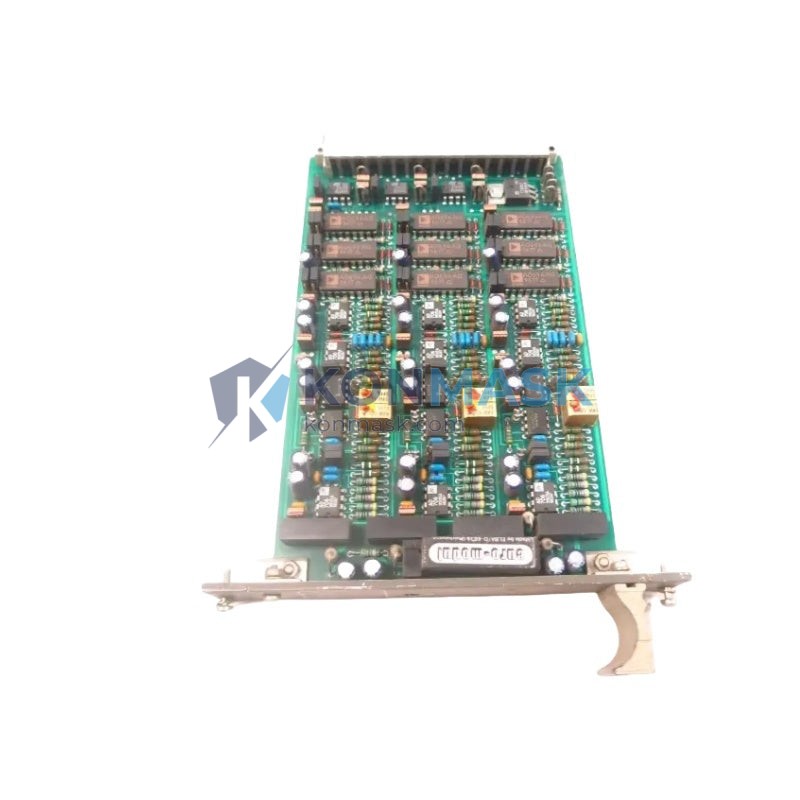

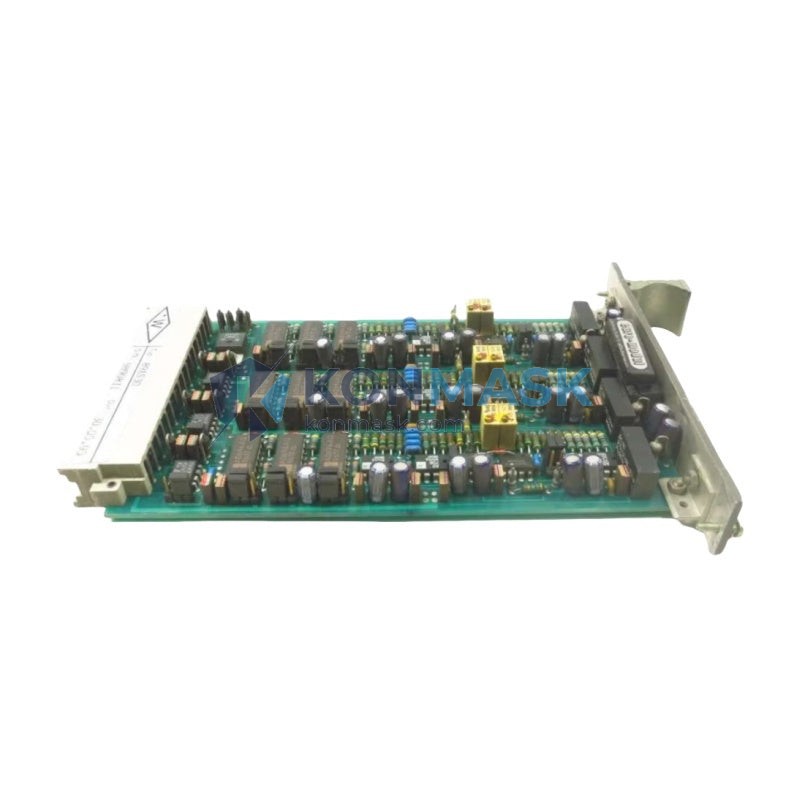

ABB 89AS30 (GKWN000317R0100) Analog Signal Multiplier | Replacement, Equivalent & Selection Guide
The ABB 89AS30 (part number GKWN000317R0100) is a precision Analog Signal Multiplier module engineered for industrial automation and process control systems. It multiplies two analog input signals and outputs a proportional analog signal — essential for flow computation, power metering, and multi-variable process control. This page provides full technical specifications, compatible replacement models, and a structured selection guide for engineers and procurement teams.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model / SKU | 89AS30 |
| Part Number | GKWN000317R0100 |
| Function | Analog Signal Multiplier |
| Signal Type | Analog (4–20 mA / 0–10 V, application-dependent) |
| Inputs | 2 × Analog Input Channels |
| Output | 1 × Analog Output (proportional product signal) |
| Power Supply | 24 V DC (typical) |
| Mounting | DIN Rail (35 mm) |
| Weight | 800 g (approx.) |
| Origin | ABB Group (Sweden / Global Manufacturing) |
| Compliance | CE, RoHS (verify with official datasheet) |
Always verify specifications against the official ABB datasheet before installation.
Compatible Replacement & Equivalent Models
If the ABB 89AS30 / GKWN000317R0100 is discontinued, on long lead-time, or outside budget, the following models may serve as functional equivalents. Always confirm signal range, power supply, and output compatibility before substitution.
| Brand | Model | Function | Compatibility Notes |
|---|---|---|---|
| ABB | 89AS30 (GKWN000317R0100) | Analog Signal Multiplier | Original — direct fit |
| ABB | 89AS series variants | Analog Signal Conditioning | Same series; verify I/O range |
| Siemens | SITRANS / SIPART analog modules | Analog Signal Processing | Cross-brand; wiring adaptation required |
| Phoenix Contact | MCR-SL-MUL series | Signal Multiplier / Isolator | DIN rail; confirm signal range |
| Weidmüller | ACT20P series | Analog Signal Conditioner | Functional equivalent; check output type |
| Pepperl+Fuchs | KFD2-MU series | Analog Multiplier / Isolator | HART-compatible variants available |
Need help selecting the right replacement? Contact our engineering team at support@konmask.com.
Why Choose the Original ABB 89AS30 (GKWN000317R0100)
- OEM Accuracy: Factory-calibrated to ABB’s precision standards — no re-calibration required on installation.
- Guaranteed Compatibility: Native fit for ABB control systems and DCS architectures.
- Long Service Life: Industrial-grade components rated for continuous operation in demanding environments.
- Full Traceability: Sourced with original documentation, serial numbers, and manufacturer certification.
- Reduced Integration Risk: Eliminates cross-brand wiring adaptation and firmware compatibility concerns.
Typical Applications
- Flow rate × pressure computation in oil & gas pipelines
- Power metering (V × I multiplication) in energy management systems
- Multi-variable process control in chemical and petrochemical plants
- Heat quantity measurement in HVAC and district heating systems
- Ratio control and feed-forward control loops in manufacturing
- Water treatment and utilities process automation
System Compatibility
The ABB 89AS30 integrates with the following platforms and architectures:
- ABB DCS / PLC Systems: AC500, AC800M, Symphony Plus, and compatible ABB control platforms
- Standard Analog Buses: 4–20 mA current loop and 0–10 V voltage signal systems
- DIN Rail Enclosures: Standard 35 mm DIN rail mounting for panel integration
- SCADA / HMI Integration: Compatible with Modbus RTU, PROFIBUS, and HART-enabled systems (verify with specific variant)
Confirm system compatibility with your ABB system integrator or our technical team before ordering.
Selection Guide
Use this guide to confirm the ABB 89AS30 is the right choice for your application:
| Criteria | Recommendation |
|---|---|
| Existing ABB DCS/PLC system | ✅ Use original ABB 89AS30 for guaranteed fit |
| Budget-sensitive project | Consider Phoenix Contact MCR-SL-MUL or Weidmüller ACT20P |
| HART protocol required | Evaluate Pepperl+Fuchs KFD2-MU series |
| Long lead-time / EOL concern | Contact Konmask for stock availability and alternatives |
| Hazardous area (Ex-rated) | Specify Ex-rated variant — confirm with ABB or P+F |
| High-accuracy metering | Original ABB 89AS30 recommended for best calibration baseline |
Quality Assurance & Sourcing
At Konmask.com, every ABB 89AS30 unit is:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, label authenticity, and packaging condition
- Shipped with original documentation where available
- Backed by our 30-day return policy and dedicated technical support
We specialize in industrial automation components for B2B buyers in manufacturing, energy, and process industries worldwide.
How to Order
- Add the ABB 89AS30 (GKWN000317R0100) to your cart on this page.
- For bulk orders (>5 units) or urgent requirements, email support@konmask.com for a custom quote.
- Provide your project specs if you need a compatibility review before purchase.
- We ship globally — DHL, FedEx, and sea freight options available.
Replacement & Compatibility FAQ
Q: Is the ABB 89AS30 still in production?
A: Contact us to confirm current availability. We maintain stock of both new and refurbished units.
Q: Can I replace the 89AS30 with a Phoenix Contact MCR-SL-MUL?
A: Functionally possible in many applications, but wiring and signal range must be verified. Our team can assist with the comparison.
Q: What is the difference between 89AS30 and other ABB 89AS series modules?
A: The 89AS series covers various analog signal conditioning functions. The 89AS30 specifically performs multiplication. Other variants may perform addition, division, or square root extraction.
Q: Do you provide a warranty?
A: Yes — 30-day return guarantee. Extended warranty options available for bulk orders.
Q: Can you source the GKWN000317R0100 if it’s out of stock?
A: Yes. Submit a sourcing request to support@konmask.com and we will locate it through our global supplier network.
