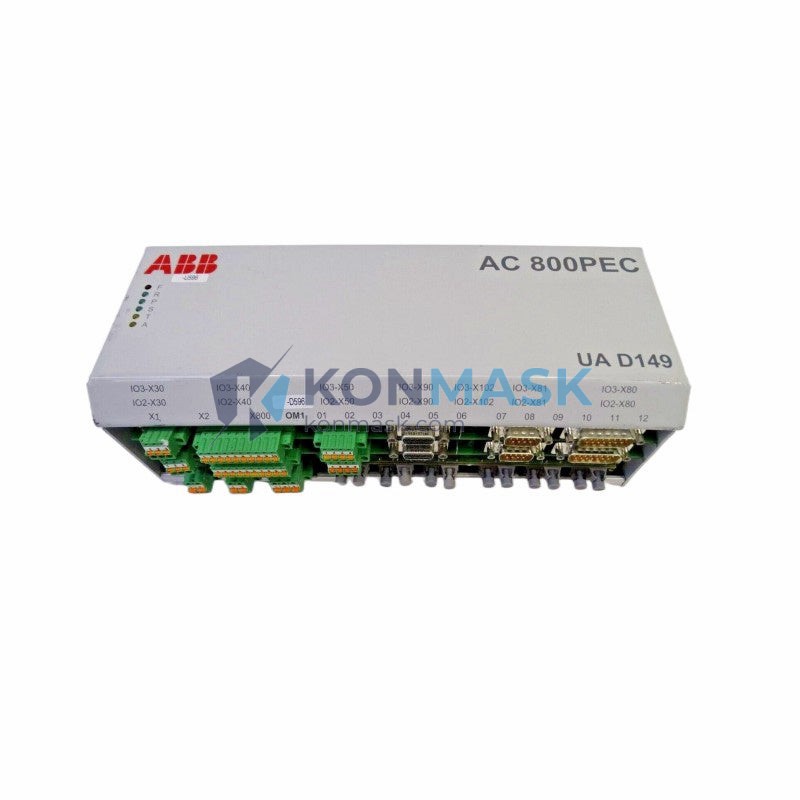

ABB UAD149 (3BHE014135R0011) – Analog I/O Module | AC800M DCS Platform
Engineering Background
The UAD149 is a high-density analog input/output module designed for ABB’s AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, pulp & paper, and chemical processing industries. Part number 3BHE014135R0011 identifies the UAD149A00-0-11 hardware revision, which incorporates enhanced signal conditioning circuitry for improved noise immunity in electrically harsh plant environments.
Product Positioning
The UAD149 serves as a critical field interface node within AC800M controller cabinets, bridging physical process signals (4–20 mA, ±10 V) with the digital control layer. Procurement engineers specifying replacement or expansion modules for existing AC800M installations will find the UAD149 a direct, drop-in compatible solution requiring no firmware reconfiguration when substituting like-for-like hardware revisions.
Complete Technical Specifications
| Manufacturer | ABB |
| Part Number | 3BHE014135R0011 |
| Module Designation | UAD149A00-0-11 (UAD149) |
| Module Type | Analog I/O Module |
| Platform Compatibility | ABB AC800M DCS |
| Communication Bus | S800 I/O Bus (ModuleBus) |
| Signal Types | 4–20 mA current loop; ±10 V voltage; HART pass-through (channel-dependent) |
| Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Operating Temperature | 0 °C to +55 °C (storage: −40 °C to +70 °C) |
| Humidity | 5–95% RH, non-condensing |
| Power Supply | 24 V DC via S800 backplane |
| Weight | Approx. 2,440 g (module + packaging) |
| Certifications | CE, UL, IEC 61131-2 compliant |
| Mounting | S800 I/O station baseplate (hot-swap capable) |
| Firmware | Managed via AC800M Controller Builder / Control Builder M |
Proven Application Environments
- Power Generation: Turbine control and boiler management systems using AC800M as the primary DCS controller
- Oil & Gas: Upstream wellhead automation and downstream refinery process control cabinets
- Pulp & Paper: Continuous digester and recovery boiler control loops requiring high-channel-density analog I/O
- Chemical Processing: Reactor temperature and pressure monitoring with HART device integration
- Water Treatment: SCADA-integrated flow and level measurement in municipal and industrial water facilities
- Marine & Offshore: Vessel automation systems certified for harsh vibration and humidity environments
Engineering Advantages
- Hot-Swap Capability: Modules can be replaced under power without shutting down the I/O station, minimizing process downtime during maintenance windows
- HART Transparency: Supports HART protocol pass-through for smart field device diagnostics without additional multiplexers
- High Noise Immunity: Galvanic isolation and shielded signal paths suppress common-mode interference in high-EMI plant environments
- Seamless Integration: Recognized automatically by AC800M controller upon insertion; no manual address configuration required
- Long Service Life: ABB industrial-grade components rated for continuous 24/7 operation in IEC 60068 environmental classes
System Architecture & Signal Flow

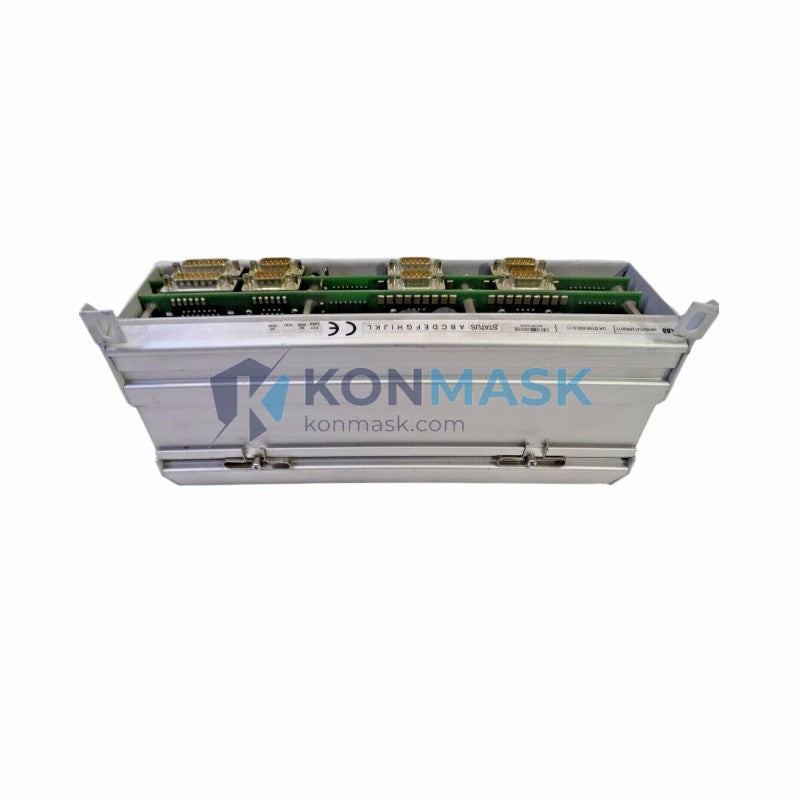

Within an AC800M cabinet, the UAD149 mounts onto an S800 I/O baseplate connected to the PM8xx controller module via the ModuleBus. Field wiring terminates at the module’s front-face terminal block. Analog signals are conditioned, digitized via onboard ADC/DAC, and transmitted over the ModuleBus to the controller’s process image. Configuration is performed in ABB’s Control Builder M engineering tool, where channel type (AI/AO), range, and HART enable are set per channel. The module’s LED status indicators provide real-time channel health and bus communication status visible from the cabinet front.
Sourcing & Quality Verification
- Origin: OEM-sourced from authorized ABB distribution channels and decommissioned plant inventories with documented service history
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on test prior to dispatch
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included for long-distance shipments
- Documentation: ABB datasheet, test report, and certificate of conformity available upon request
- Warranty: 12-month replacement warranty against manufacturing defects and functional failure
Procurement Process
- Confirm Part Number: Verify 3BHE014135R0011 matches your existing module label and AC800M hardware revision requirements
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port/Incoterm preference
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day
- Inspection & Dispatch: Unit tested, photographed, and shipped within 3–5 business days; tracking number provided
- Customs & Compliance: HS code documentation and commercial invoice prepared for smooth customs clearance
- After-Sales Support: Technical assistance available for installation verification and Control Builder M configuration guidance
Technical FAQ
Q: Is the UAD149A00-0-11 compatible with earlier AC800M controller revisions (PM860, PM861)?
A: Yes. The UAD149 is compatible with all PM8xx series controllers operating AC800M firmware v5.0 and above. Confirm firmware version in Control Builder M before installation.
Q: Can this module replace a UAD149A00-0-10 (previous revision)?
A: In most cases, yes — the -0-11 revision is backward compatible. However, verify with your ABB system integrator if the application uses revision-specific firmware features.
Q: What is the maximum cable length for 4–20 mA field wiring?
A: ABB recommends a maximum loop resistance of 600 Ω for current output channels. Practical cable runs of up to 300 m with 0.75 mm² shielded twisted-pair are typical in plant installations.
Q: Do you provide an incoming inspection report?
A: Yes. A functional test report with power-on status, LED verification, and bus communication check is available upon request at no additional charge.
Q: What are the lead times for bulk orders (>5 units)?
A: Lead times for bulk procurement are 7–15 business days depending on stock availability. Contact us early to reserve allocation for planned maintenance shutdowns.
