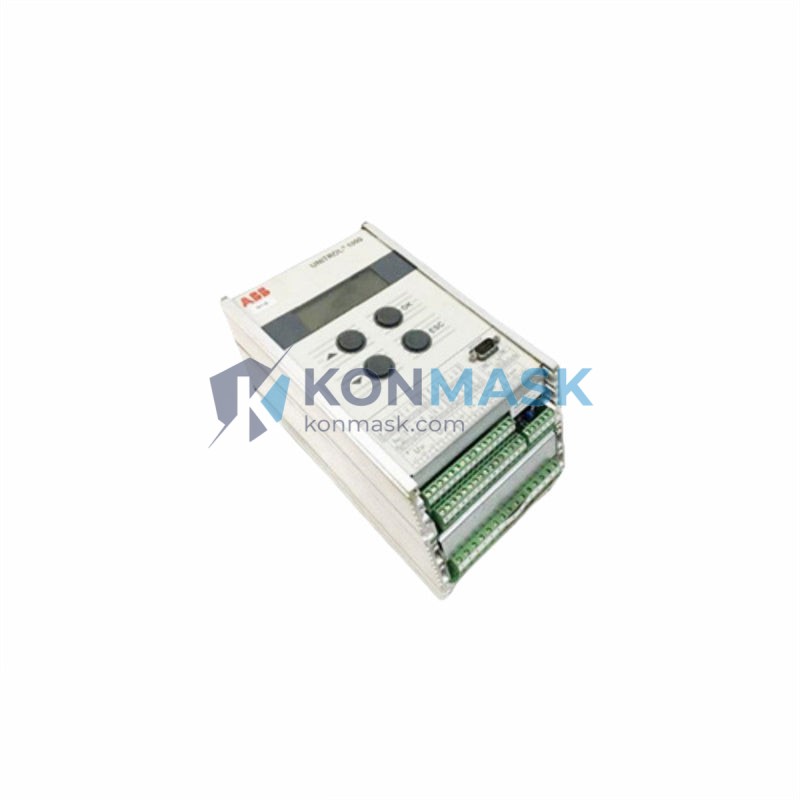

ABB 3BHE014557R6104 – UN1000B-Z V6104 Control Unit | ACS1000 Medium Voltage Drive Platform
Engineering Background: The ABB ACS1000 is a globally recognized medium voltage variable speed drive platform deployed in heavy industrial environments including oil & gas, mining, water treatment, and power generation. The control unit is the intelligence core of the drive system — responsible for real-time vector control, fault diagnostics, I/O coordination, and communication with supervisory systems.
Product Positioning: The ABB 3BHE014557R6104 (UN1000B-Z, V6104) is the OEM control board for ACS1000 series drives. Sourced from verified ABB-authorized channels, this unit is suitable for direct replacement, spare parts inventory, and system commissioning. Konmask.com supplies this component to procurement engineers and MRO teams worldwide with full traceability documentation.
Complete Technical Specifications
- Part Number: 3BHE014557R6104
- Module Designation: UN1000B-Z
- Firmware / Hardware Version: V6104
- Compatible Platform: ABB ACS1000 Medium Voltage Drive Series
- Voltage Class: Medium Voltage (2.3 kV – 6.9 kV application range)
- Function: Main Control Unit – vector control, I/O management, fault diagnostics, fieldbus interface
- Communication Interfaces: DDCS fiber optic, optional fieldbus adapters (PROFIBUS, Modbus, DeviceNet)
- Mounting: DIN rail / panel-mount within ACS1000 control cabinet
- Operating Temperature: 0°C to +55°C (storage: -40°C to +70°C)
- Humidity: 5% – 95% RH, non-condensing
- Protection Class: IP20 (installed in drive enclosure)
- Weight: Approx. 2.0 kg
- Country of Origin: Germany
- OEM Manufacturer: ABB Ltd. (Power Grids / Drives Division)
Proven Application Environments
- Oil & Gas: compressor drives, pump stations, subsea motor control
- Mining: conveyor drives, mill drives, hoisting systems
- Water & Wastewater: high-power pump variable speed control
- Power Generation: boiler feed pump drives, fan control, turbine auxiliaries
- Cement & Steel: kiln drives, rolling mill control, cooling fan systems
- Marine: propulsion control, thruster management systems
Engineering Advantages
- Direct OEM Replacement: 100% pin-compatible with original ACS1000 control slot — no hardware modification required
- V6104 Firmware: Mature, field-proven firmware version with stable vector control algorithms and comprehensive fault code library
- DDCS Fiber Optic Architecture: Noise-immune high-speed communication between control and power boards eliminates EMI-induced faults
- Integrated Diagnostics: Onboard fault logging, parameter backup, and real-time monitoring reduce MTTR in critical applications
- Wide Compatibility: Supports multiple ACS1000 frame sizes and power ratings within the UN1000B-Z hardware generation
System Architecture & Signal Flow
The UN1000B-Z control unit interfaces with the ACS1000 power section via DDCS fiber optic links. It receives speed/torque references from the supervisory PLC or DCS via fieldbus adapters, executes direct torque control (DTC) or vector control algorithms in real time, and outputs PWM gate signals to the IGCT power modules. Analog and digital I/O terminals on the control board connect to process sensors, interlocks, and operator panels. All parameter sets and fault histories are stored in non-volatile memory on the board.
Sourcing & Quality Verification
- Source: ABB-authorized distributors and certified MRO channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-check before shipment
- Documentation: Certificate of conformity, packing list, and traceability records available on request
- Packaging: Anti-static ESD bag + foam-lined export carton, suitable for international air and sea freight
- Warranty: 12-month limited warranty against manufacturing defects
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com
- Receive quotation with lead time, stock status, and shipping options within 24 hours
- Confirm purchase order — payment via T/T, PayPal, or trade assurance
- Shipment via DHL / FedEx / UPS with full tracking; sea freight available for bulk orders
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is 3BHE014557R6104 compatible with all ACS1000 power ratings?
A: The UN1000B-Z hardware generation covers a range of ACS1000 frame sizes. Please confirm your drive’s full nameplate data (kW rating, voltage, serial number) to verify compatibility before ordering.
Q: Can this control unit be used with a different firmware version?
A: V6104 is the factory-loaded firmware. Firmware upgrades require ABB service tools and authorization. Contact us if you require a specific firmware version.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 4–8 weeks depending on ABB production schedule.
Q: Do you provide installation support?
A: We provide technical documentation and remote guidance. On-site commissioning support can be arranged through our partner network.
Q: Is this a new or refurbished unit?
A: We supply both new OEM units and certified refurbished units. Please specify your requirement at the time of inquiry.
