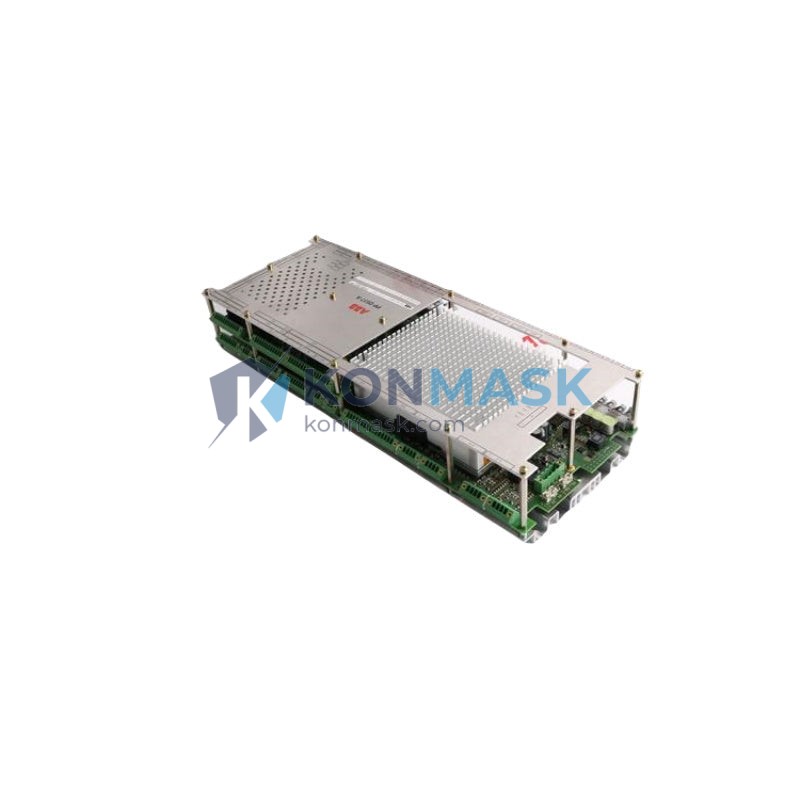

ABB 3BHE036342R0101 – High-Performance Processor Module | AC800M / AC800PEC Platform
Engineering Background
The ABB 3BHE036342R0101 is a central processor module designed for ABB’s AC800M and AC800PEC distributed control system (DCS) and PLC platforms — the backbone of mission-critical process automation in power generation, oil & gas, pulp & paper, and heavy industry. ABB’s AC800 series represents decades of field-proven reliability in demanding industrial environments where uptime is non-negotiable.
Product Positioning
As the computational core of the AC800M controller rack, the 3BHE036342R0101 handles real-time process execution, I/O coordination, and communication management. Procurement engineers sourcing this module require verified provenance, functional test records, and assured compatibility — all of which Konmask.com provides as standard.
Complete Technical Specifications
| Part Number | 3BHE036342R0101 |
| Manufacturer | ABB |
| Series / Platform | AC800M / AC800PEC |
| Module Type | Central Processor Module (CPU) |
| Form Factor | Rack-mount, DIN-rail compatible controller unit |
| Communication Interfaces | Ethernet (CEX-Bus), PROFIBUS, Modbus, OPC |
| Programming Standard | IEC 61131-3 (Function Block, Ladder, Structured Text) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | 24 VDC (via backplane) |
| Weight | Approx. 400 g |
| Compliance | CE, UL, IEC 61508 (SIL-capable platform) |
| Firmware | Compatible with ABB Automation Builder / Control Builder M |
Proven Application Environments
- Power Generation: Turbine control, excitation systems, and grid synchronization in thermal and hydro plants
- Oil & Gas: Wellhead automation, pipeline SCADA, and compressor station control
- Pulp & Paper: Continuous process control for digesters, bleach plants, and paper machines
- Chemical & Petrochemical: Reactor management, batch processing, and safety interlock systems
- Water & Wastewater: Pump station automation and treatment plant process control
- Mining & Minerals: Conveyor systems, crusher control, and flotation cell management
Engineering Advantages
- Deterministic Real-Time Execution: Guarantees cycle-time consistency critical for closed-loop process control
- Hot-Swap Capability: Supports module replacement without full system shutdown (rack-dependent)
- Redundancy Support: Compatible with AC800M redundant CPU configurations for high-availability architectures
- Scalable I/O: Interfaces with the full S800 I/O module family via CEX-Bus expansion
- Integrated Diagnostics: Built-in self-test and fault logging accessible via Control Builder M
- Long Service Life: Designed for 10+ year operational cycles in continuous-process industries
System Architecture & Signal Flow
The 3BHE036342R0101 sits at the top of the AC800M control hierarchy. The processor communicates upstream to the plant DCS network via Ethernet/OPC, and downstream to distributed I/O modules via the CEX-Bus backplane. Application logic programmed in Control Builder M is compiled and downloaded directly to the module’s non-volatile memory. During runtime, the CPU executes scan cycles, manages alarm states, and maintains communication with operator workstations (800xA or Symphony Plus). Redundant configurations mirror execution state across primary and secondary CPUs with automatic bumpless switchover on fault detection.
Sourcing & Quality Verification
- Origin: Sourced from decommissioned plant upgrades, authorized distributors, and verified surplus channels
- Inspection Protocol: Visual inspection, board-level cleaning, functional power-on test, and firmware version verification
- Packaging: Anti-static ESD bag, foam-lined carton, humidity indicator card
- Documentation: Test report and traceability record available on request
- Warranty: 12-month operational warranty against manufacturing defects
- Counterfeit Prevention: All units verified against ABB part marking standards; no remarked or cloned modules supplied
Procurement Process
- Inquiry: Submit your RFQ with required quantity and delivery timeline via support@konmask.com or the on-site inquiry form
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net terms (approved accounts)
- Quality Check: Pre-shipment inspection completed; test report issued
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination available
- After-Sales: Technical support available post-delivery for integration and commissioning queries
Technical FAQ
Q: Is the 3BHE036342R0101 compatible with ABB 800xA?
A: Yes. The AC800M platform is the native controller for ABB System 800xA. The module integrates directly with 800xA engineering and operator workstations.
Q: Can this module be used in a redundant CPU configuration?
A: Yes, provided the rack and firmware version support redundancy. Contact us to confirm compatibility with your existing hardware revision.
Q: What programming software is required?
A: ABB Control Builder M (part of Automation Builder suite). Legacy projects may use Control Builder M 5.x or 6.x depending on firmware.
Q: Do you provide a functional test certificate?
A: Yes. A functional test report is available upon request at no additional charge.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. Out-of-stock items typically have a 2–4 week sourcing lead time.
Q: Can you supply multiple units for a plant-wide upgrade?
A: Yes. We support bulk procurement for plant upgrades and MRO stocking programs. Volume pricing available on request.
