ABB 3BHE037649R0101 – Drive Control Board | ACS800 / AC800M Series Platform
Engineering Background

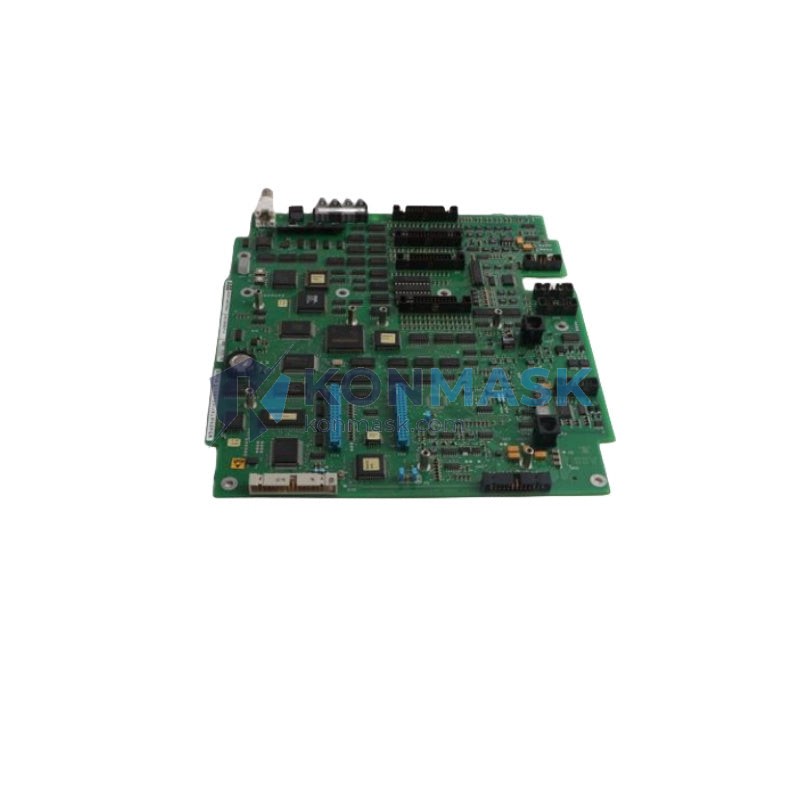

The ABB 3BHE037649R0101 is a precision-engineered drive control board designed for ABB’s flagship ACS800 variable frequency drive and AC800M distributed control platform. Developed to meet the rigorous demands of continuous industrial operation, this board serves as the core signal processing and gate-drive interface within high-power AC drive systems. It is widely deployed in energy, pulp & paper, metals, marine, and process automation sectors where uptime and signal integrity are non-negotiable.
Product Positioning
As a direct OEM-equivalent replacement module, the 3BHE037649R0101 enables maintenance engineers to restore full drive functionality without full-drive replacement — dramatically reducing downtime costs and capital expenditure. Konmask.com stocks verified units sourced through authorized industrial channels, providing procurement teams with a reliable, traceable supply path.
Complete Technical Specifications
| Part Number | 3BHE037649R0101 |
| Manufacturer | ABB Ltd. |
| Module Type | Drive Control / Gate Drive Board |
| Compatible Platform | ACS800 Series VFD / AC800M DCS |
| Form Factor | PCB Module (plug-in card) |
| Operating Voltage | Per ACS800 drive bus specification |
| Operating Temperature | 0°C to +55°C (ambient) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Weight | Approx. 400 g |
| Certifications | CE, UL (per parent drive system) |
| Condition | New / Refurbished (specify on order) |
| Warranty | 12 months from shipment date |
Proven Application Environments
- Oil & Gas: Pump and compressor VFD control in upstream and midstream facilities
- Pulp & Paper: Winder, refiner, and conveyor drive systems requiring precise torque control
- Metals & Mining: Rolling mill and hoist drive control with high-cycle duty requirements
- Marine & Offshore: Thruster and propulsion drive boards in DNV-class vessels
- Water & Wastewater: Variable-speed pump control for energy-efficient flow management
- Power Generation: Auxiliary drive control in thermal and renewable energy plants
Engineering Advantages
- Drop-in Replacement: Exact OEM form, fit, and function — no firmware reconfiguration required in most ACS800 configurations
- Signal Integrity: Isolated gate-drive outputs minimize EMI coupling in high-dV/dt switching environments
- Thermal Resilience: Industrial-grade components rated for extended temperature cycling and vibration per IEC 60068
- Rapid Commissioning: Plug-and-play installation reduces mean time to repair (MTTR) to under 30 minutes for trained technicians
- Long Service Life: Designed for 10+ year operational lifespan under rated conditions
System Architecture & Signal Flow
The 3BHE037649R0101 interfaces directly with the ACS800 IGBT power module stack, receiving modulation commands from the drive’s main control unit (RMIO/RDCU board) via a high-speed fiber-optic or direct-bus link. It conditions and amplifies gate-drive pulses for each IGBT phase leg, monitors DC bus voltage and overcurrent fault signals, and returns status feedback to the supervisory control layer. In AC800M-integrated architectures, the board participates in the drive’s fieldbus communication loop (PROFIBUS, Modbus, or DDCS) for real-time diagnostics.
Sourcing & Quality Verification
- All units undergo incoming inspection including visual PCB audit, component verification, and functional bench test where applicable
- Serial numbers and date codes are logged and traceable to source documentation
- Anti-static packaging (ESD bags + foam insert) with humidity indicator card for long-distance shipping
- Certificate of conformance (CoC) available upon request for regulated procurement environments
- Counterfeit-mitigation protocol: units sourced exclusively from documented industrial channels — no gray-market or unverified brokers
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline to support@konmask.com
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or NET terms (qualified accounts)
- Quality Check & Dispatch: Unit inspected, packed, and dispatched with tracking number and CoC documentation
- After-Sales Support: 12-month warranty coverage; technical support available via email or WhatsApp (+0086 19859288691)
Technical FAQ
Q: Is the 3BHE037649R0101 compatible with all ACS800 variants?
A: It is designed for specific ACS800 power ratings and firmware revisions. Please confirm your drive’s full type code before ordering. Our engineers can cross-reference compatibility.
Q: Can this board be used in AC800M controller cabinets?
A: Yes, in configurations where the AC800M interfaces with ACS800 drive modules. Standalone AC800M CPU applications require different module types.
Q: Do you offer exchange/repair services?
A: Yes. We offer board-level repair and exchange programs. Contact us with your faulty unit’s condition report for a repair quotation.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Out-of-stock lead times vary from 2–6 weeks depending on sourcing channel.
Q: Is a test report available?
A: Functional test reports are available for refurbished units. New OEM units ship with manufacturer documentation.
