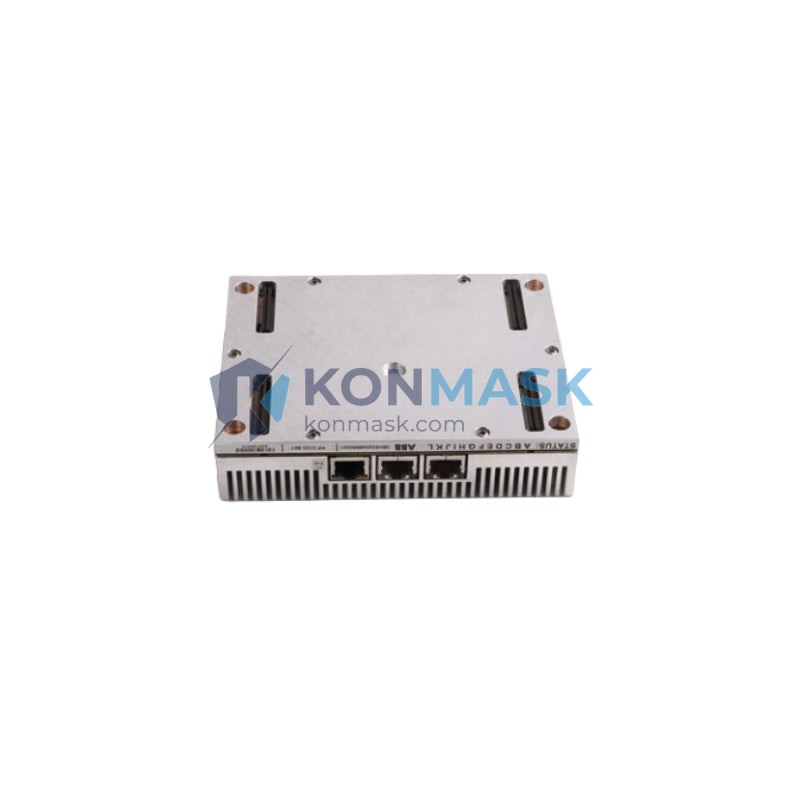

ABB 3BHE041626R0101 PDD405A101 – Power Distribution Module | Symphony Plus DCS Platform
Engineering Background
The ABB Symphony Plus platform represents ABB’s flagship distributed control system (DCS) architecture, widely deployed in power generation, oil & gas, pulp & paper, and chemical processing industries. The PDD405A101 (part number 3BHE041626R0101) is a dedicated power distribution module engineered to deliver stable, conditioned DC power to I/O and controller modules within the Symphony Plus cabinet infrastructure.
Product Positioning
Designed for mission-critical process control environments, the PDD405A101 ensures uninterrupted power delivery across the Symphony Plus backplane. It is the preferred replacement and spare module for maintenance engineers managing aging Symphony Plus installations, offering OEM-equivalent performance with full backward compatibility.
Complete Technical Specifications
- Manufacturer: ABB
- Part Number: 3BHE041626R0101
- Module Type: PDD405A101 – Power Distribution Module
- Platform: ABB Symphony Plus DCS
- Form Factor: Rack-mount module, Symphony Plus cabinet compatible
- Weight: 880 g (approx.)
- Power Input: 24 VDC nominal (refer to ABB Symphony Plus system documentation for exact ratings)
- Output: Distributed DC power to backplane I/O and controller modules
- Protection: Over-voltage, over-current, and short-circuit protection
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH, non-condensing
- Compliance: CE, RoHS
- Country of Origin: Germany / Sweden (ABB manufacturing)
Proven Application Environments
- Power generation plants (coal, gas, hydro, nuclear auxiliary systems)
- Oil & gas upstream and downstream process control
- Pulp & paper mill DCS infrastructure
- Chemical and petrochemical batch/continuous process control
- Water treatment and municipal utility SCADA/DCS systems
- Pharmaceutical manufacturing with validated control environments
Engineering Advantages
- OEM-Grade Reliability: Genuine ABB module with full traceability to ABB’s manufacturing standards
- Drop-in Replacement: Direct plug-in compatibility with existing Symphony Plus cabinet slots — no firmware reconfiguration required
- Stable Power Rail: Eliminates voltage sag and noise on the backplane, protecting sensitive I/O modules
- Extended Service Life: Supports long-term maintenance of Symphony Plus installations beyond standard product lifecycle
- Reduced Downtime Risk: Stocking this module as a critical spare minimizes unplanned shutdown exposure
System Architecture & Signal Flow
Within the Symphony Plus cabinet, the PDD405A101 receives primary 24 VDC input from the system power supply unit (PSU) and distributes conditioned power across the backplane bus to connected I/O modules, communication modules, and controller cards. The module incorporates internal protection circuitry to isolate faults and prevent cascade failures across the power rail. It interfaces directly with the Symphony Plus S900 and related I/O families.
Sourcing & Quality Verification
- All units sourced from authorized ABB distribution channels or verified industrial surplus with full inspection
- Pre-shipment functional test and visual inspection performed on every unit
- Original ABB labeling, firmware version, and serial number intact
- Anti-static packaging with humidity indicator card for safe international transit
- Certificate of conformance available upon request
Procurement Process
- Submit your inquiry with required quantity and delivery timeline via support@konmask.com
- Receive stock confirmation and formal quotation within 24 business hours
- Order confirmation and proforma invoice issued upon agreement
- Secure payment via T/T, PayPal, or trade finance instruments
- Shipment via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) provided
- Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Is 3BHE041626R0101 the same as PDD405A101?
A: Yes. 3BHE041626R0101 is ABB’s catalog part number; PDD405A101 is the module type designation. Both refer to the identical hardware unit.
Q: Is this module compatible with Symphony Plus S800 I/O?
A: The PDD405A101 is designed for the Symphony Plus cabinet power distribution architecture. Compatibility with specific I/O families should be verified against your system’s engineering documentation. Contact us for application support.
Q: Can this replace a failed power module in an existing Symphony Plus system without reconfiguration?
A: In most cases, yes — the module is a direct hardware replacement. No software or firmware changes are required on the module itself. System-level validation per your site’s MOC procedure is recommended.
Q: What is the lead time?
A: In-stock units ship within 2–5 business days. For out-of-stock inquiries, typical lead time is 2–6 weeks depending on sourcing. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. Konmask provides a 90-day functional warranty on all modules. Extended warranty options are available upon request.
