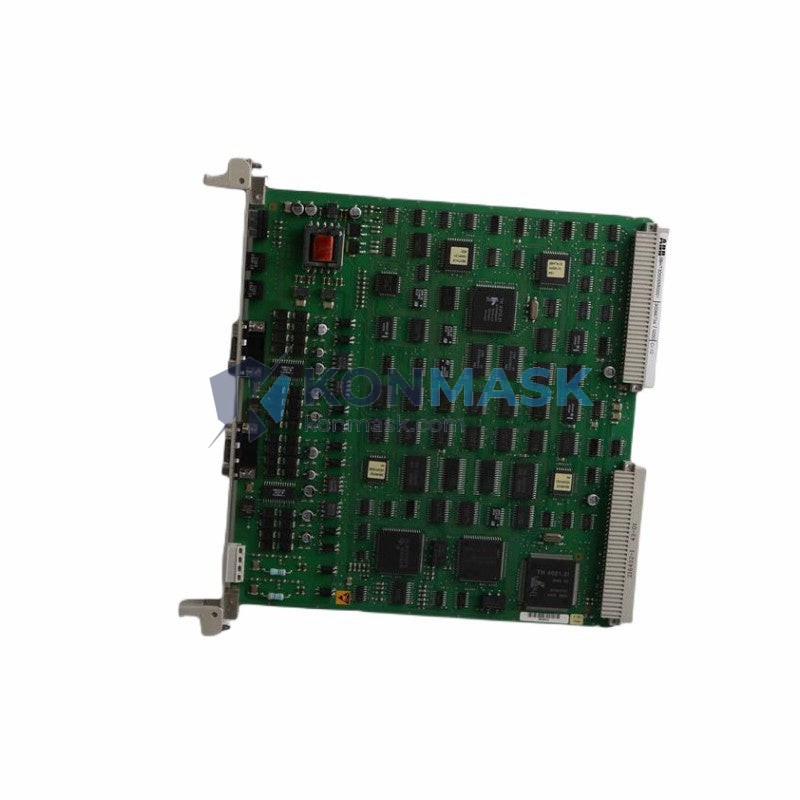

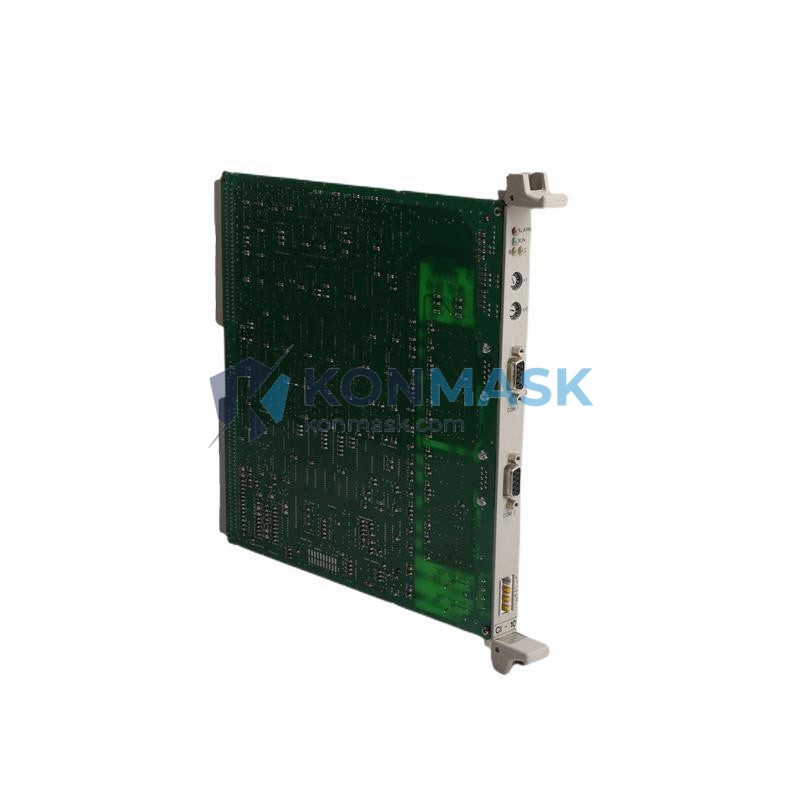

ABB 3BHT300055R0001 CI-10 – Communication Interface Circuit Board | AC800M DCS Platform
Engineering Background
The ABB 3BHT300055R0001 CI-10 is a communication interface circuit board designed for integration within ABB’s AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in the power generation, oil & gas, pulp & paper, and chemical industries. This board serves as a critical signal routing and protocol bridging component within the controller backplane, enabling reliable data exchange between field devices and the central control logic.
Product Positioning
Konmask.com supplies this module to maintenance engineers and procurement teams requiring a verified replacement or spare for existing AC800M installations. Whether you are managing a planned shutdown, an emergency repair, or building a strategic spare-parts inventory, this board is sourced through traceable channels and undergoes pre-shipment inspection to ensure functional integrity.
Complete Technical Specifications
| Manufacturer | ABB |
| Part Number | 3BHT300055R0001 |
| Module Designation | CI-10 |
| Module Type | Communication Interface Circuit Board |
| Platform Compatibility | ABB AC800M DCS |
| Form Factor | PCB / Backplane-mounted board |
| Net Weight | Approx. 410 g |
| Operating Temperature | 0°C to +55°C (typical industrial range) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Condition | New / Refurbished (specify at inquiry) |
| Lead Time | Subject to stock availability — contact for confirmation |
| Warranty | 12 months from date of shipment |
Proven Application Environments
- Power Generation — Turbine control and boiler management systems running on AC800M architecture
- Oil & Gas — Upstream and downstream process control panels requiring high-reliability communication boards
- Pulp & Paper — Continuous process lines with legacy AC800M controller racks
- Chemical & Petrochemical — Safety-critical DCS installations demanding traceable spare parts
- Water Treatment — Municipal and industrial water/wastewater automation systems
- Mining & Minerals — Remote site operations requiring long-lifecycle component availability
Engineering Advantages
- Drop-in Replacement — Direct form-fit-function substitute for failed or degraded CI-10 boards in existing AC800M racks; no firmware re-flashing required in most configurations
- Backplane Compatibility — Designed to interface natively with AC800M controller backplanes without additional adapters
- Signal Integrity — Engineered to ABB’s industrial-grade PCB standards for noise immunity in high-EMI plant environments
- Long Service Life — Suitable for installations targeting 10+ year operational horizons common in process industries
- Reduced Downtime Risk — Stocking this board as a critical spare eliminates lead-time exposure during unplanned outages
System Architecture & Signal Flow
Within the AC800M architecture, the CI-10 board occupies a defined slot in the controller module assembly. It manages the communication layer between the PM8xx processor module and connected I/O modules or fieldbus segments. Signal flow is bidirectional: process data from field instruments is received, conditioned, and forwarded to the processor; control outputs from the processor are routed back to actuators and drives. The board’s onboard logic handles protocol translation, error detection, and watchdog supervision to maintain system availability.
Note: Exact slot assignment and configuration parameters should be verified against the site-specific AC800M hardware configuration documentation (ABB document series 3BSE).
Sourcing & Quality Verification
- Traceable Supply Chain — All units sourced from authorized distributors, OEM surplus, or decommissioned systems with documented provenance
- Pre-Shipment Inspection — Visual inspection for PCB damage, component integrity, and connector condition prior to dispatch
- Anti-Static Packaging — Shipped in ESD-safe bags with moisture barrier and shock-absorbing outer packaging
- Counterfeit Mitigation — Part markings, date codes, and board revisions cross-referenced against ABB reference data
- Test Report Available — Functional test documentation available upon request for critical applications
Procurement Process
- Submit Inquiry — Contact us via email or phone with your part number, required quantity, and delivery timeline
- Stock Confirmation — We confirm availability, condition grade, and lead time within 1 business day
- Quotation & Terms — Formal quotation issued with pricing, warranty terms, and shipping options
- Order Placement — Purchase order accepted; payment terms confirmed per account standing
- Quality Check & Dispatch — Pre-shipment inspection completed; unit dispatched with packing list and test documentation
- After-Sales Support — Technical support available post-delivery for installation verification queries
Technical FAQ
Q: Is the 3BHT300055R0001 CI-10 compatible with all AC800M controller variants?
A: The CI-10 is designed for the AC800M platform. Compatibility with specific PM8xx processor variants should be confirmed against ABB’s hardware compatibility matrix or by contacting our technical team with your controller revision details.
Q: Can this board be used in a Safety Instrumented System (SIS)?
A: The standard CI-10 is not rated for SIL-classified safety loops. For SIS applications, consult ABB’s safety-certified module portfolio (e.g., AC800M HI series).
Q: What is the typical lead time if not in stock?
A: Lead times vary by sourcing channel. We maintain relationships with multiple supply partners and typically resolve availability within 5–15 business days for out-of-stock items. Contact us for a firm commitment.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC can be provided upon request, detailing part number, revision, condition, and inspection results.
Q: What shipping methods are available for international orders?
A: We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide. Export documentation including commercial invoice and packing list is provided as standard.
