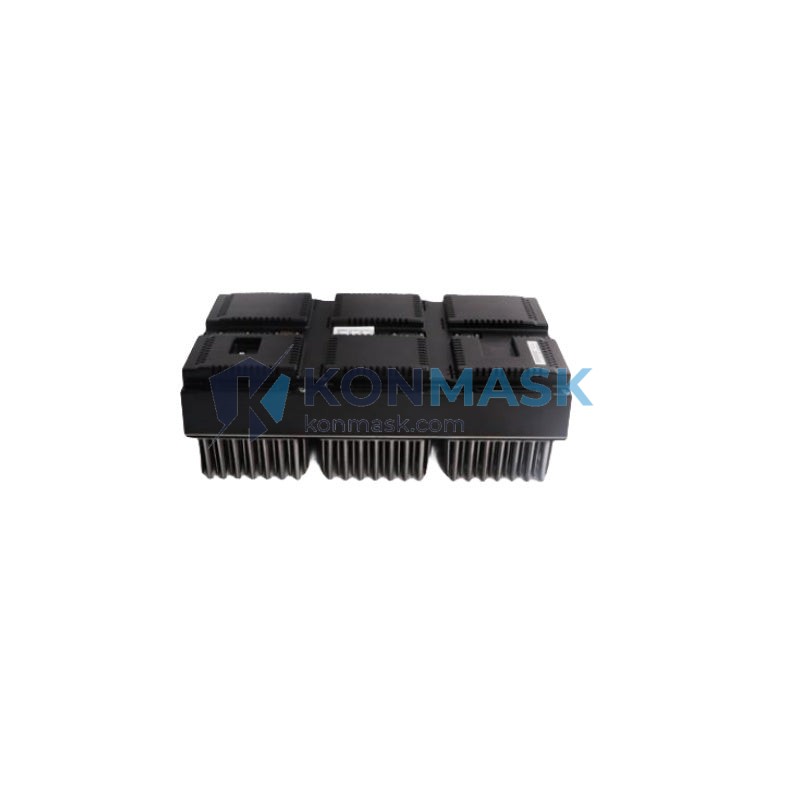

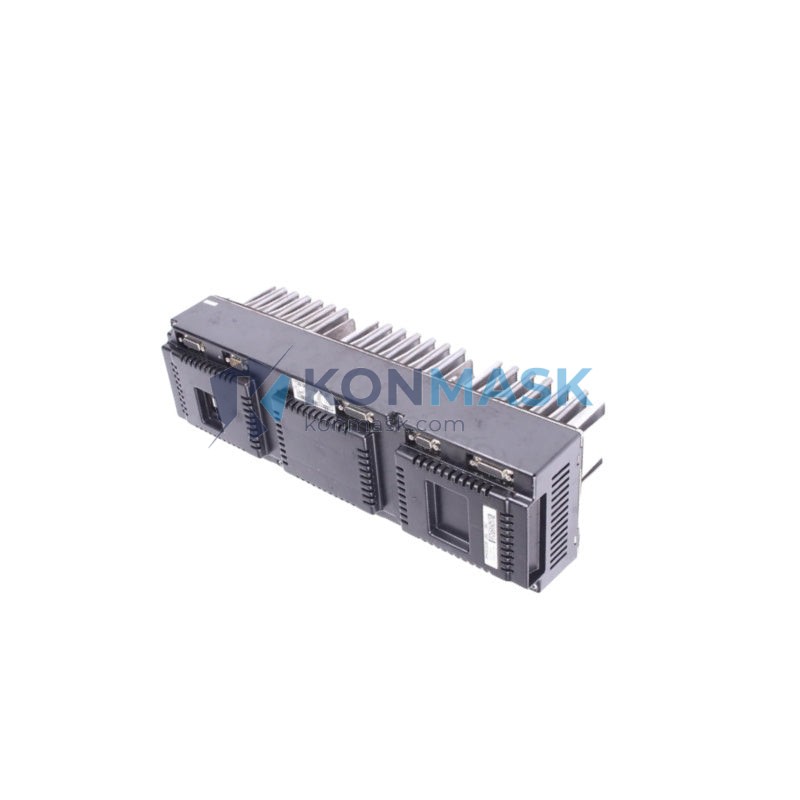

ABB 3HAC038457-001 Weldguide III Basic – Adaptive Seam Tracking Module | Weldguide III Platform
Engineering Background: The ABB Weldguide III system represents ABB Robotics’ third-generation through-arc seam tracking (TAST) technology, engineered for high-duty-cycle arc welding cells where weld joint deviation must be corrected in real time without external vision systems. The 3HAC038457-001 is the foundational hardware module of this platform, providing the core signal acquisition and processing capability required for adaptive weld path correction on IRC5-based robot systems.
Product Positioning: Designed for procurement engineers specifying automation upgrades, replacement parts, or new welding cell builds on ABB IRC5 robot platforms. This module enables closed-loop arc welding with automatic correction for joint gap variation, thermal distortion, and fixture tolerances — reducing scrap rates and eliminating manual re-teaching cycles.
Complete Technical Specifications
- Part Number: 3HAC038457-001
- Product Name: Weldguide III Basic Module
- Manufacturer: ABB Robotics (Sweden)
- Platform Compatibility: ABB IRC5 Robot Controller (Single Cabinet & Dual Cabinet)
- Function: Through-Arc Seam Tracking (TAST) — real-time weld path correction via arc current/voltage feedback
- Tracking Method: Arc sensor (no external camera or laser required)
- Welding Process Compatibility: MIG/MAG (GMAW), Flux-Cored Arc Welding (FCAW)
- Interface: Integrated with RobotWare Arc and IRC5 DSQC modules
- Weight: 560 g
- Country of Origin: Sweden
- Condition Available: New OEM / Refurbished / Exchange
Proven Application Environments
- Automotive body-in-white (BIW) structural welding lines
- Heavy equipment and construction machinery frame welding
- Shipbuilding and offshore structural fabrication
- Pressure vessel and pipe spool welding
- Agricultural and rail vehicle manufacturing
- High-volume robotic welding cells with IRC5 M2004 / M2010 / M2014 controllers
Engineering Advantages
- No External Sensor: TAST technology uses the welding arc itself as the sensor — eliminates laser/camera maintenance and calibration overhead
- Real-Time Correction: Continuously adjusts TCP path during welding to compensate for joint deviation up to ±several mm
- Reduced Scrap & Rework: Maintains consistent fusion and bead geometry even with fixture variation or thermally distorted workpieces
- Seamless RobotWare Integration: Fully supported by ABB RobotWare Arc option — no third-party middleware required
- Drop-In Replacement: Direct OEM form-factor replacement for IRC5 systems already running Weldguide III
- Reduced Downtime: Stocked for immediate dispatch — critical for minimizing unplanned production stops
System Architecture & Signal Flow
The 3HAC038457-001 interfaces with the IRC5 controller’s internal bus and the welding power source via the DSQC weld interface board. Arc current and voltage signals are sampled at high frequency during weaving motion; the Weldguide III algorithm computes lateral and vertical deviation from the joint centerline and issues real-time path correction commands to the robot motion controller. The Basic variant provides single-axis (lateral) tracking suitable for fillet and butt joints with consistent joint geometry.
Sourcing & Quality Verification
- All units sourced through verified ABB authorized channels or certified industrial surplus with full traceability
- Pre-shipment functional inspection and packaging integrity check
- Original ABB part number and revision label verified before dispatch
- Certificates of conformance available on request
- ESD-safe packaging for all electronic modules
Procurement Process
- Step 1: Confirm IRC5 controller serial number and RobotWare Arc version with your ABB system integrator or service engineer
- Step 2: Verify 3HAC038457-001 is the correct Weldguide III variant for your application (Basic vs. Advanced)
- Step 3: Submit purchase order via Konmask.com or contact support@konmask.com for volume pricing and lead time
- Step 4: Receive unit with documentation; perform installation per ABB Product Manual 3HAC028284-001
Technical FAQ
Q: Is 3HAC038457-001 compatible with IRC5 Compact controllers?
A: Compatibility depends on the RobotWare Arc option installed. Confirm with your ABB service engineer before ordering.
Q: Does this module support vertical (height) tracking in addition to lateral tracking?
A: The Basic variant provides lateral seam tracking. For dual-axis (lateral + vertical) tracking, the Weldguide III Advanced module is required.
Q: What welding power sources are compatible?
A: Any power source supported by ABB RobotWare Arc with analog or digital interface to the IRC5 DSQC weld board — including Lincoln Electric, Fronius, Miller, and ESAB units configured for ABB integration.
Q: Can I use this module on a non-ABB robot controller?
A: No. The Weldguide III system is proprietary to ABB IRC5 architecture and RobotWare Arc software.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact support@konmask.com for current availability.
