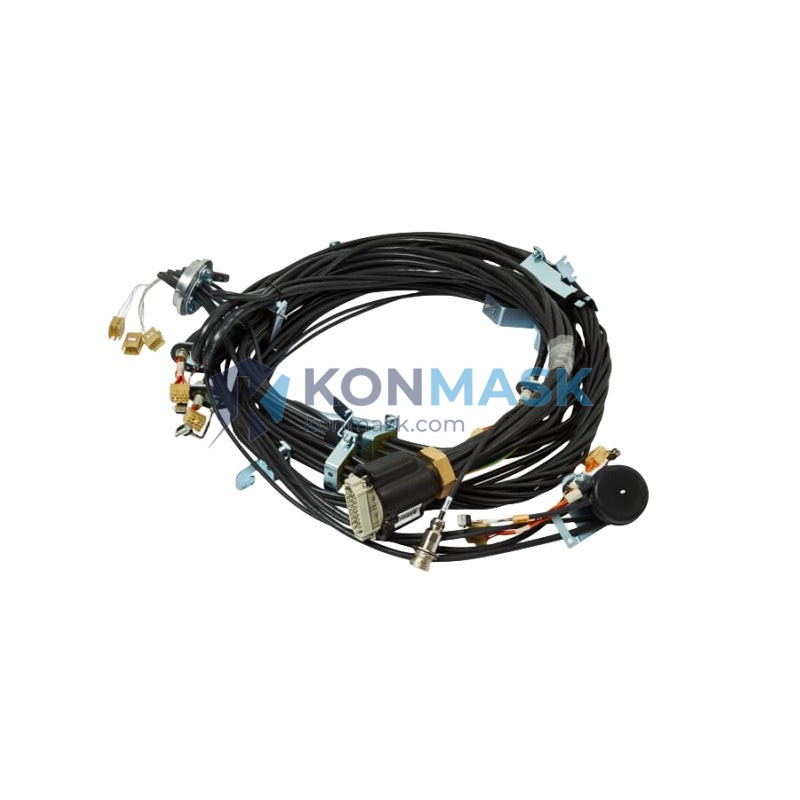

ABB 3HAC066543-001 – Axis 4-6 Cable Unit | IRC5 Robot Platform
Engineering Background
The ABB 3HAC066543-001 is the OEM-specified cable unit for axes 4 through 6 on ABB IRB 6620 and IRB 4400 series industrial robots. Designed to operate within the IRC5 control architecture, this harness assembly manages power and signal routing through the robot’s wrist and forearm segments — the highest-stress cable zone in any 6-axis manipulator. Procurement engineers sourcing this part for scheduled maintenance or unplanned downtime replacement will find this listing provides full cross-reference coverage across the three primary part numbers: 3HAC066543-001, 3HAC3157-1, and HAC5697-1.
Product Positioning
This cable unit is a direct OEM-equivalent replacement stocked for immediate dispatch. It is suited for MRO (Maintenance, Repair & Operations) procurement, robot refurbishment projects, and spare-parts inventory programs at automotive, foundry, and general manufacturing facilities running ABB IRC5-based robot cells.
Complete Technical Specifications
| Part Number (Primary) | 3HAC066543-001 |
| Cross-Reference | 3HAC3157-1 / HAC5697-1 |
| Description | Cable Unit, Axes 4–6 |
| Compatible Robots | ABB IRB 6620 / IRB 4400 / IRB 4400/4-63 |
| Control System | ABB IRC5 |
| Cable Zone | Forearm / Wrist (Axes 4, 5, 6) |
| Connector Type | OEM multi-pin harness (per ABB spec) |
| Weight | 420 g (approx.) |
| Country of Origin | China (CN) |
| Condition | New / OEM-equivalent |
| HS Code | 8544.42 (insulated electric conductors, fitted with connectors) |
Proven Application Environments
- Automotive Body & Paint Shops — IRB 6620 cells performing spot welding and sealing operations with high-cycle cable fatigue
- Foundry & Die-Casting — IRB 4400 units operating in high-temperature, high-vibration environments requiring robust cable management
- General Assembly Lines — Multi-robot IRC5 cells where axes 4–6 cable wear is a primary scheduled maintenance item
- Robot Refurbishment & Rebuild — OEM-spec harness replacement during full mechanical overhaul
- Spare Parts Inventory Programs — MRO stocking for facilities with 5+ ABB IRB 6620 or IRB 4400 units
Engineering Advantages
- OEM Cross-Reference Verified — Covers 3HAC066543-001, 3HAC3157-1, and HAC5697-1 under a single procurement line item
- Drop-In Replacement — Connector geometry and harness routing match ABB factory specification; no modification required
- IRC5 Signal Integrity — Shielding and conductor gauge maintain signal fidelity for resolver and brake circuits on axes 4–6
- Fatigue-Rated Construction — Cable jacket and bend-radius management designed for continuous articulation duty cycles
- Reduced Downtime Risk — In-stock availability supports same-week dispatch to minimize robot cell downtime
System Architecture & Signal Flow
In the ABB IRC5 architecture, the axes 4–6 cable unit originates at the upper arm junction and routes through the forearm housing to the wrist flange. It carries:
- Motor power conductors — 3-phase supply to axes 4, 5, and 6 servo motors
- Resolver/encoder signals — Position feedback to the IRC5 drive module
- Brake control circuits — Holding brake release signals for each wrist axis
- Customer I/O (where applicable) — Tool-side signal conductors routed through the wrist
Failure modes addressed by this replacement include: intermittent resolver faults (error codes 50xxx series on IRC5), brake release failures, and insulation breakdown from repeated flexing at the forearm exit point.
Sourcing & Quality Verification
- All units are inspected against ABB part number markings and connector pin-out before dispatch
- Packaging includes part number label, batch reference, and inspection record
- Konmask.com maintains traceability records for all ABB spare parts shipments
- Returns accepted within 30 days for unused, unopened units with original packaging
Procurement Process
- Confirm compatibility — Verify your robot model (IRB 6620 or IRB 4400 variant) and existing part number on the cable harness label
- Request a quote — Contact support@konmask.com for volume pricing or urgent delivery requirements
- Place order — Add to cart and complete checkout; DDP and DAP Incoterms available for international shipments
- Receive & install — Follow ABB service manual section for axes 4–6 cable replacement (IRC5 robot service documentation)
Technical FAQ
Q: Is 3HAC066543-001 backward-compatible with older IRB 4400 units using 3HAC3157-1?
A: Yes. The 3HAC066543-001 supersedes 3HAC3157-1 and HAC5697-1 per ABB’s spare parts revision history. It is a direct fit for all listed IRB 4400 and IRB 6620 variants.
Q: What IRC5 error codes indicate axes 4–6 cable failure?
A: Common indicators include Error 50001–50006 (resolver fault), Error 20223 (motor current deviation), and intermittent joint position errors on axes 4, 5, or 6. Physical inspection of the forearm cable exit point for chafing or kinking is recommended.
Q: Can this cable unit be used on IRB 6640 or IRB 6650?
A: No. The 3HAC066543-001 is specific to IRB 6620 and IRB 4400 mechanical platforms. IRB 6640/6650 use different harness assemblies. Contact us to identify the correct part for other models.
Q: Do you provide installation support?
A: Konmask.com provides part identification and procurement support. Installation should follow ABB’s official service manual. Our engineering team can assist with cross-reference queries via email.
