ABB 3HAC069651-001 – Cable Harness, Basic | IRB 4600-1/63 Robot Platform
Engineering Background
The ABB IRB 4600 series is one of ABB’s most widely deployed 6-axis industrial robots, engineered for high-speed assembly, arc welding, machine tending, and material handling in automotive, electronics, and general manufacturing environments. Maintaining signal and power integrity across the robot arm is critical to uptime — and the cable harness is the central nervous system of that architecture.
Product Positioning

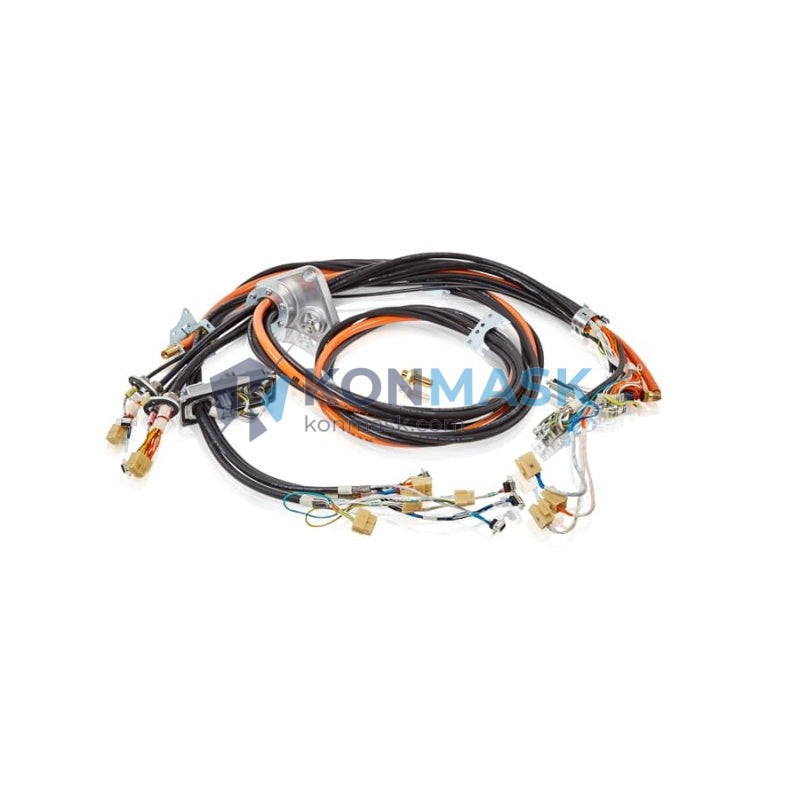

The ABB 3HAC069651-001 (also referenced as 3HAC043964-001) is the OEM-specified basic cable harness assembly for the IRB 4600-1/63 variant. It routes motor power, resolver feedback, and I/O signals through the robot’s lower arm structure. Procurement engineers sourcing this part for preventive maintenance or post-fault replacement will find this a direct OEM-equivalent replacement with full compatibility assurance.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (Primary) | 3HAC069651-001 |
| Alternate Part Number | 3HAC043964-001 |
| Compatible Robot Model | ABB IRB 4600-1/63 |
| Assembly Type | Cable Harness, Basic |
| Manufacturer | ABB Robotics |
| Country of Origin | Sweden (SE) |
| Approximate Weight | 100 g |
| Condition | New / OEM-Grade |
| Warranty | 12 months (contact for details) |
Proven Application Environments
- Automotive Body-in-White: Spot welding and sealing lines using IRB 4600 cells requiring high-cycle harness durability.
- Arc Welding Stations: Continuous-duty welding robots where cable fatigue is the primary failure mode.
- Machine Tending: CNC loading/unloading cells with repetitive arm motion profiles stressing lower-arm wiring.
- Electronics Assembly: High-precision pick-and-place applications demanding signal integrity across resolver and I/O circuits.
- Preventive Maintenance Programs: Scheduled harness replacement at OEM-recommended intervals to prevent unplanned downtime.
Engineering Advantages
- OEM Part Number Compliance: Direct cross-reference to ABB’s own BOM — no compatibility guesswork for maintenance engineers.
- Dual P/N Coverage: Supersedes legacy P/N 3HAC043964-001, ensuring correct sourcing regardless of which revision your documentation references.
- Signal & Power Integrity: Factory-terminated connectors maintain impedance and shielding specifications critical for resolver accuracy and motor control.
- Plug-and-Play Replacement: Designed for direct swap without re-routing or modification, minimizing MTTR (Mean Time to Repair).
- Verified Traceability: Each unit sourced with full supply-chain documentation available upon request.
System Architecture & Signal Flow
The basic cable harness on the IRB 4600-1/63 serves as the primary conduit between the robot controller (IRC5 or OmniCore) and the lower arm actuators. Signal flow includes:
- Motor Power Circuits: 3-phase AC power delivery to axis 2 and axis 3 servo motors.
- Resolver/Encoder Feedback: Position feedback signals routed back to the drive unit for closed-loop motion control.
- Brake Control Lines: Electromagnetic brake engagement/release signals for safe hold during power-off states.
- I/O Signal Conductors: Auxiliary I/O for end-of-arm tooling or integrated sensors depending on cell configuration.
Harness routing follows ABB’s defined cable management path through the lower arm casting, secured at factory-specified clamp points to prevent chafing and fatigue cracking.
Sourcing & Quality Verification
- All units are sourced from authorized ABB distribution channels or verified OEM-surplus inventories.
- Pre-shipment inspection includes connector integrity check, continuity verification, and visual inspection for insulation damage.
- Certificates of conformance and traceability documentation available upon request for regulated industries.
- Packaging: Anti-static bag + foam-lined carton to prevent transit damage to connectors and conductors.
Procurement Process
- Confirm Compatibility: Verify your robot’s type plate reads IRB 4600-1/63 and cross-reference P/N 3HAC069651-001 or 3HAC043964-001 in your ABB spare parts manual.
- Request a Quote: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline.
- Order Confirmation: We issue a proforma invoice with lead time and shipping options (DHL Express, FedEx, sea freight for bulk).
- Shipment & Tracking: Real-time tracking provided upon dispatch. Typical delivery: 3–7 business days internationally.
- After-Sales Support: Technical support available post-installation for commissioning verification.
Technical FAQ
Q: Is 3HAC069651-001 a direct replacement for 3HAC043964-001?
A: Yes. ABB issued 3HAC069651-001 as the current revision superseding 3HAC043964-001. Both part numbers refer to the same functional assembly for the IRB 4600-1/63.
Q: Is this compatible with IRB 4600-20/250 or other IRB 4600 variants?
A: This harness is specified for the IRB 4600-1/63 payload/reach variant. Other IRB 4600 configurations may use different harness assemblies. Please confirm your robot’s exact type designation before ordering.
Q: What controller generations is this compatible with?
A: The IRB 4600-1/63 is compatible with the IRC5 controller family. Verify your controller revision with ABB documentation if integrating with OmniCore.
Q: Can you provide a certificate of conformance?
A: Yes. CoC and traceability documentation are available upon request at time of order.
Q: What is the lead time?
A: In-stock units ship within 1–2 business days. Contact us for current stock status and bulk pricing.
