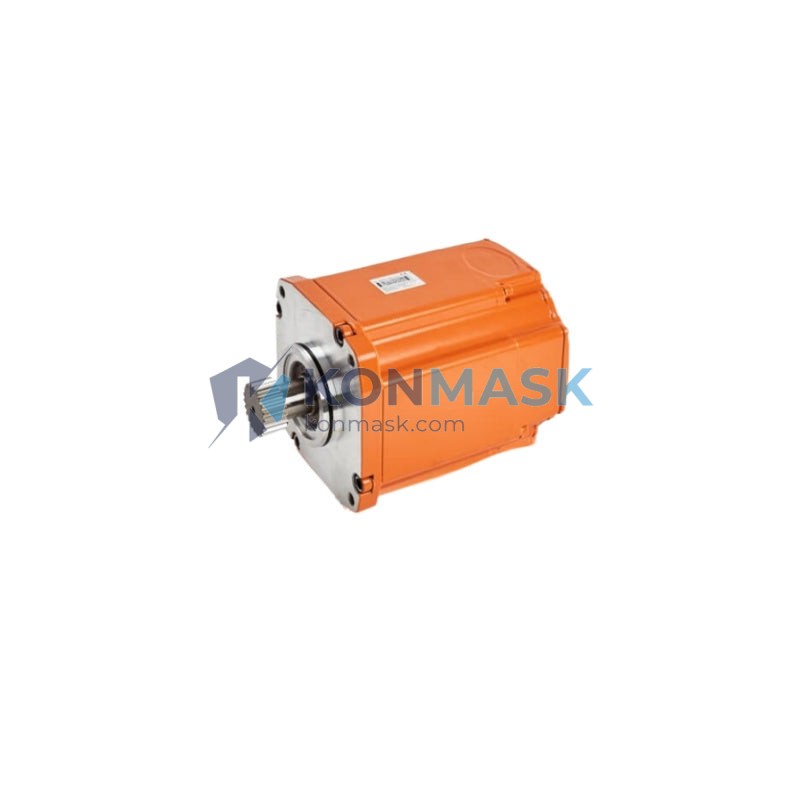

ABB 3HAC12732-9 – Axis Servo Motor | IRB 6600 Robot Platform
The ABB 3HAC12732-9 is the OEM-specified servo motor assembly for the ABB IRB 6600 industrial robot series — one of ABB’s most widely deployed heavy-payload manipulators in automotive, foundry, and heavy manufacturing environments. This listing covers the complete motor kit comprising three matched part numbers: 3HAC12732-9 (motor body), 3HAC023639-001 (encoder/resolver feedback unit), and 3HAC024793-001 (electromagnetic brake assembly).
Konmask.com sources this assembly through verified industrial channels, providing procurement engineers with a reliable, traceable supply path for planned maintenance, emergency replacement, and capital spares programs.
Complete Technical Specifications
- Part Number (Motor Body): 3HAC12732-9
- Part Number (Encoder Unit): 3HAC023639-001
- Part Number (Brake Assembly): 3HAC024793-001
- OEM Brand: ABB Robotics
- Compatible Platform: ABB IRB 6600 Series (all variants)
- Motor Type: AC Brushless Servo Motor
- Feedback Type: Resolver / Absolute Encoder
- Brake Type: Electromagnetic Spring-Applied Fail-Safe Brake
- Mounting Interface: IRB 6600 axis-specific flange (OEM-matched)
- Insulation Class: F (155°C)
- Protection Rating: IP65 (motor body)
- Operating Temperature: 0°C to +45°C ambient
- Controller Compatibility: ABB IRC5 / S4C+ controller cabinets
- Condition: New OEM / Refurbished OEM (specify at inquiry)
Proven Application Environments
- Automotive body-in-white welding and press-tending lines
- Foundry and die-casting material handling (high-temperature environments)
- Heavy-payload palletizing and machine-tending cells
- Aerospace structural component assembly
- Steel and metal fabrication transfer systems
- Preventive maintenance (PM) and capital spares programs for IRB 6600 fleets
Engineering Advantages
- OEM-matched geometry: Direct bolt-on replacement — no adapter plates or re-parameterization required in most IRC5 configurations.
- Integrated brake assembly (3HAC024793-001): Fail-safe spring-applied design ensures axis hold under E-stop and power-loss conditions, meeting ISO 10218-1 safety requirements.
- High-resolution feedback (3HAC023639-001): Resolver/absolute encoder maintains position accuracy across power cycles, eliminating homing routines after replacement.
- Thermal margin: Class F insulation provides headroom above typical IRB 6600 duty-cycle thermal loads, extending service intervals.
- Reduced downtime: Matched kit (motor + encoder + brake) eliminates multi-vendor sourcing delays for complete axis restoration.
System Architecture & Signal Flow
In the IRB 6600 drive chain, the 3HAC12732-9 motor receives torque commands from the IRC5 drive module via a dedicated axis drive board. The 3HAC023639-001 encoder feeds position and velocity data back to the IRC5 computer unit (DSQC 661/662 or equivalent) over the resolver interface. The 3HAC024793-001 brake is energized (released) by the safety board upon axis enable and de-energized (engaged) on E-stop, STO activation, or power loss — providing a fully integrated, fail-safe motion control loop compliant with SIL 2 / PLd safety architectures.
Sourcing & Quality Verification
- All units are inspected upon receipt against ABB part number markings and date codes.
- Refurbished units undergo no-load run-in, insulation resistance (IR) testing, and encoder signal verification before dispatch.
- Traceability documentation (part number, serial number, test record) provided upon request.
- Packaging: anti-static foam-lined export carton with desiccant; suitable for air and sea freight.
Procurement Process
- Confirm compatibility: Provide your IRB 6600 variant (e.g., IRB 6600-175/2.55) and axis number — we will cross-reference against ABB’s spare parts catalog.
- Request quotation: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and condition options.
- Order & dispatch: Standard lead time 3–7 business days for in-stock units; expedited options available for critical downtime situations.
- After-sales support: Technical assistance available for installation guidance and IRC5 parameter verification post-replacement.
Technical FAQ
Q: Can 3HAC12732-9 be used on IRB 6650S or IRB 6640?
A: The IRB 6600 platform shares some axis motor specifications with IRB 6640 and 6650S variants, but axis assignment and flange geometry may differ. Always confirm with your robot’s spare parts manual (3HAC028284-001 or equivalent) before ordering.
Q: Is the encoder (3HAC023639-001) pre-calibrated?
A: OEM new units are factory-calibrated. After installation, a fine calibration routine via RobotStudio or the FlexPendant is recommended to restore full path accuracy.
Q: What is the brake release voltage for 3HAC024793-001?
A: Standard ABB IRB 6600 brake circuits operate at 24 VDC. Verify against your IRC5 safety board specification sheet.
Q: Do you offer exchange/core return programs?
A: Yes. Contact us to discuss core exchange pricing for refurbished units — this can significantly reduce total replacement cost.
