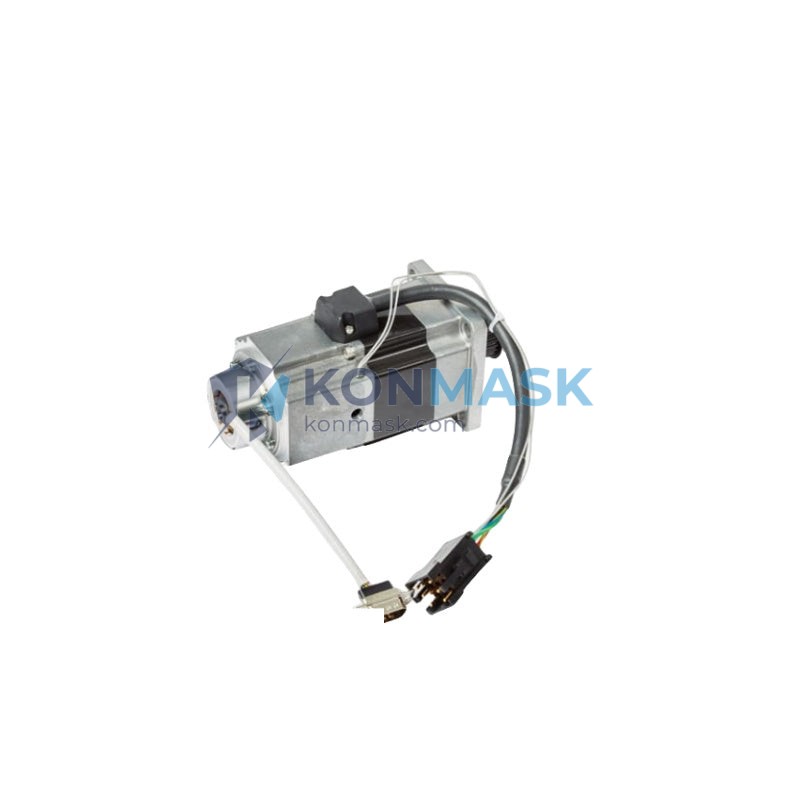

ABB 3HAC17810-1 / 3HAB8101-3 – Axis 5/6 Servo Motor with Pinion | IRB 52 Robotic Platform
The ABB 3HAC17810-1 (cross-reference: 3HAB8101-3, assembly ref: 3HNA014908-001) is the OEM-specified servo motor with integrated pinion gear for Axis 5 and Axis 6 of the ABB IRB 52 articulated robot. Designed for high-cycle spray and process applications, this motor delivers the torque density and positional accuracy required by S4C+ and IRC5 controller architectures. Procurement engineers sourcing verified ABB spare parts will find this unit fully traceable and ready for immediate integration.
Product Positioning: Direct OEM replacement for IRB 52 wrist-axis drive train. Eliminates the need for field modification or adapter kits. Suitable for both scheduled preventive maintenance and emergency breakdown recovery.
Complete Technical Specifications
- Primary Part Number: 3HAC17810-1
- Cross-Reference / Alternate PN: 3HAB8101-3
- Assembly Reference: 3HNA014908-001
- Application: ABB IRB 52 Robot – Axis 5 & Axis 6 Drive
- Component Type: AC Servo Motor with Integrated Pinion Gear
- Compatible Controller: S4C+ / IRC5
- Motor Series: ABB MotiFlex / IRB Wrist Drive Series
- Pinion: Factory-installed, pre-aligned to OEM specification
- Weight: Approx. 600 g
- Condition: New OEM / Refurbished OEM (specify at inquiry)
- Country of Origin: Sweden / EU (OEM production)
- Warranty: 12 months from date of shipment
Proven Application Environments
- Automotive body-in-white spray painting lines using IRB 52 robots
- General industrial coating and dispensing cells
- Sealing and adhesive application stations
- High-duty-cycle wrist articulation in confined-space process robots
- Preventive maintenance programs for ABB IRB 52 fleets (S4C+ and IRC5 generations)
Engineering Advantages
- Drop-in OEM Fit: Pinion pre-installed and torqued to ABB factory specification — no field alignment required.
- Dual-Axis Coverage: Single part number covers both Axis 5 and Axis 6, simplifying spare-parts inventory management.
- Controller Compatibility: Validated for S4C+ and IRC5 drive modules without firmware modification.
- Reduced Downtime: Ready-to-install unit cuts mean-time-to-repair (MTTR) versus field-rebuild alternatives.
- Traceability: Each unit ships with part label, cross-reference documentation, and optional test report on request.
System Architecture & Signal Flow
In the IRB 52 kinematic chain, Axis 5 (wrist bend) and Axis 6 (wrist rotation) are driven by compact servo motors mounted in the upper arm housing. The 3HAC17810-1 motor interfaces directly with the axis gearbox via the factory-installed pinion. Encoder feedback is routed to the S4C+/IRC5 drive module via the robot’s internal harness (connector type per ABB wiring diagram 3HAC026254-001). The drive module closes the position loop at the controller level, enabling sub-millimeter TCP repeatability.
Sourcing & Quality Verification
- Source: Authorized ABB spare-parts channel and certified secondary market
- Inspection: Visual, dimensional, and electrical continuity check performed prior to shipment
- Packaging: Anti-static bag + foam-lined export carton
- Documentation: Packing list with part number, serial/batch reference, and country of origin
- Test Report: Available on request for refurbished units
Procurement Process
- Submit your RFQ via support@konmask.com or the on-site inquiry form, quoting part number 3HAC17810-1.
- Receive lead time, stock confirmation, and formal quotation within 1 business day.
- Issue PO against the quotation; payment via T/T, PayPal, or credit card.
- Unit ships within 2–5 business days; DHL / FedEx express available for urgent orders.
- Post-delivery technical support available via email or WhatsApp.
Technical FAQ
Q: Is 3HAB8101-3 the same as 3HAC17810-1?
A: Yes. 3HAB8101-3 is the legacy ABB part number superseded by 3HAC17810-1. Both refer to the same physical motor assembly for IRB 52 Axis 5/6.
Q: Does this motor work with the IRC5 controller?
A: Yes. The motor is compatible with both S4C+ and IRC5 drive architectures without hardware or firmware modification.
Q: Is the pinion pre-installed?
A: Yes. The pinion is factory-installed and pre-torqued. No additional assembly is required before installation into the robot arm.
Q: Can I get a test report?
A: Test reports are available on request for refurbished units. Please specify at the time of inquiry.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for sourced units is 7–15 business days. Contact us for current stock status.
