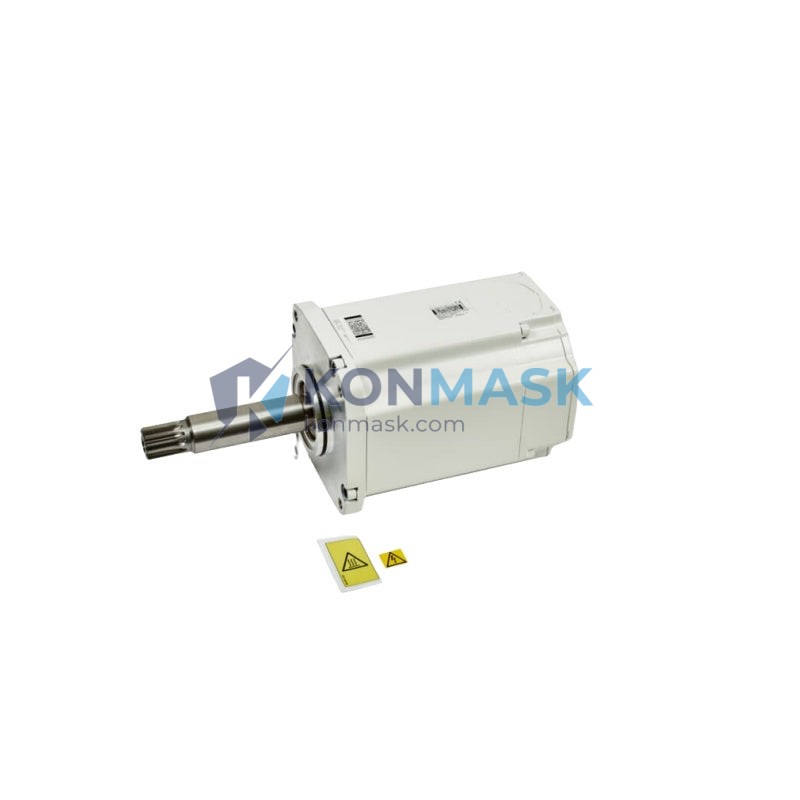

ABB MTD5003HAC038210-002 / 3HAC034644-003 / 3HAC052991-005 – Axis 1 Servo Motor incl Pinion | IRB 6600 / IRB 6650 Platform
Engineering Background
The ABB IRB 6600 and IRB 6650 series are heavy-payload industrial robots widely deployed in automotive body-in-white welding, press-tending, and large-part material handling. Axis 1 (base rotation) carries the full dynamic load of the robot arm and payload, demanding a servo motor assembly with exceptional torque density, thermal stability, and mechanical precision. The MTD5003HAC038210-002 motor assembly — cross-referenced as 3HAC034644-003 and 3HAC052991-005 — is the OEM-specified drive unit for this axis.
Product Positioning
This listing supplies the complete Axis 1 motor assembly including the integrated pinion gear, ready for direct installation. It is sourced through verified industrial channels and is suitable for both emergency breakdown replacement and planned preventive maintenance programs. Konmask.com maintains stock to support short lead-time procurement requirements common in production-critical environments.
Complete Technical Specifications
- OEM Part Numbers: MTD5003HAC038210-002 / 3HAC034644-003 / 3HAC052991-005
- Manufacturer: ABB Robotics
- Compatible Platforms: IRB 6600 (all variants), IRB 6650 (all variants)
- Robot Axis: Axis 1 – Base Rotation
- Assembly Type: Servo Motor with Integrated Pinion Gear
- Motor Technology: AC Brushless Servo
- Drive Interface: ABB S4C+ / IRC5 Controller Compatible
- Encoder Type: Resolver / Absolute Encoder (OEM specification)
- Mounting: Direct-mount flange per ABB IRB 6600 mechanical interface standard
- Weight: Approx. 500 g (motor assembly)
- Condition: New / Surplus New (specify at inquiry)
- Country of Origin: Sweden / EU (ABB OEM)
Proven Application Environments
- Automotive body-in-white (BIW) welding lines – Axis 1 base rotation replacement
- Press-tending and stamping automation – high-cycle duty motor overhaul
- Large-part material handling and palletizing – planned PM motor swap
- Foundry and heavy-industry robot refurbishment programs
- OEM robot rebuilders and certified ABB service partners
- Spare parts inventory replenishment for multi-robot production cells
Engineering Advantages
- OEM Dimensional Accuracy: Pinion gear machined to ABB tolerance stack-up; no shimming or re-meshing required on installation
- Thermal Management: Motor windings rated for continuous duty in high-ambient foundry and press environments
- Encoder Integrity: Factory-calibrated resolver eliminates the need for axis mastering recalibration in most replacement scenarios
- Drop-in Compatibility: Matches OEM connector pinout and cable routing for IRB 6600/6650 Axis 1 without harness modification
- Reduced Downtime: Complete assembly (motor + pinion) ships as one unit — no sub-assembly required on the production floor
System Architecture & Signal Flow
In the IRB 6600/6650 control architecture, the IRC5 controller issues torque commands via the drive module to the Axis 1 servo motor. The motor’s resolver feeds position and velocity feedback through the Measurement Board (DSQC) back to the IRC5 motion controller. The integrated pinion transmits motor torque to the main gearbox ring gear, driving base rotation. Replacing this assembly restores the full closed-loop servo chain without requiring gearbox disassembly.
Sourcing & Quality Verification
- All units are sourced from authorized industrial distributors or verified surplus channels
- Part numbers cross-checked against ABB spare parts catalog (SPARESDB) prior to listing
- Physical inspection: connector condition, pinion gear tooth profile, encoder housing integrity
- Packaging: anti-static bag + foam-lined export carton; suitable for air and sea freight
- Documentation available: ABB part number label, packing list, certificate of conformity on request
Procurement Process
- Step 1: Confirm your robot serial number and controller type (S4C+ or IRC5) to validate compatibility
- Step 2: Submit your purchase order or RFQ via the product page or email support@konmask.com
- Step 3: Receive proforma invoice with lead time and shipping options (DHL Express / sea freight)
- Step 4: Payment via T/T bank transfer or approved trade terms
- Step 5: Shipment with tracking; export documentation (commercial invoice, packing list, COO) included
Technical FAQ
Q: Are all three part numbers (MTD5003HAC038210-002, 3HAC034644-003, 3HAC052991-005) the same physical part?
A: Yes. These are ABB’s internal cross-reference numbers representing the same Axis 1 motor assembly across different catalog revisions and robot variants within the IRB 6600/6650 family.
Q: Does this motor require axis mastering after installation?
A: In most cases, axis mastering (calibration) is required after any motor replacement on ABB robots. We recommend following ABB’s standard mastering procedure using the FlexPendant after installation.
Q: Is this compatible with both S4C+ and IRC5 controllers?
A: The motor assembly is mechanically identical across controller generations. Electrical compatibility depends on the drive module version — please confirm your controller type at inquiry.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For surplus or sourced units, lead time is typically 5–15 business days. Contact us for real-time availability.
Q: Can you provide a warranty?
A: New OEM units carry the standard ABB warranty. Surplus-new units are covered by Konmask’s 90-day functional warranty against manufacturing defects.
