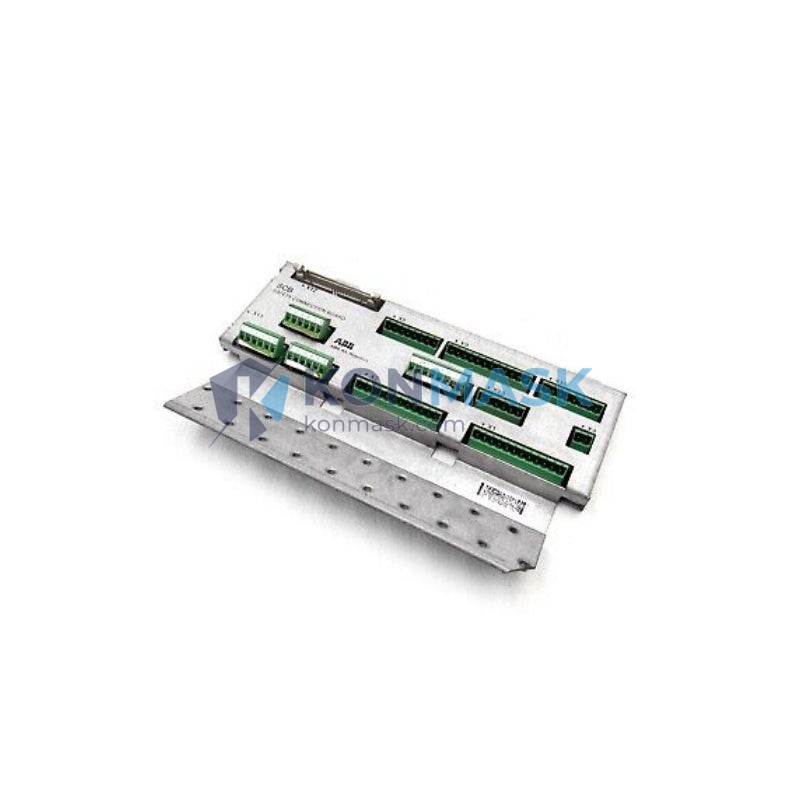

ABB 3HAC7998-1 / 3HAC7998-2 Safety Connection Board (SCB-01) – IRB2400 Robot Controller Series
When a Safety Connection Board fails on an ABB IRB2400 industrial robot, the entire production line comes to a halt. The robot controller immediately enters a fault state, emergency stop circuits lose their integrity, and safety-rated I/O communication between the robot and its peripheral safety devices is severed. In high-throughput automotive, metal fabrication, and electronics assembly environments, every minute of unplanned downtime translates directly into lost revenue and missed delivery commitments. The ABB 3HAC7998-1 / 3HAC7998-2 SCB-01 is not a peripheral accessory — it is the safety backbone of the entire robot cell.
The 3HAC7998-1 (and its revision counterpart 3HAC7998-2) is the OEM-specified Safety Connection Board for the ABB IRB2400 series, one of the most widely deployed 6-axis industrial robots in global manufacturing. Mounted within the IRC5 or S4C+ controller cabinet under part reference 3HAC4790-1 and assembly code 3HNA011334-001, this board manages all safety-critical signal routing — including emergency stop chains, safeguard inputs, and enabling device circuits — in full compliance with IEC 62061 and ISO 13849 safety standards. Its global installed base across tens of thousands of robot cells makes it one of the most sought-after spare parts in the ABB robotics aftermarket.
Technical Specifications
- Part Numbers: 3HAC7998-1 / 3HAC7998-2 (revision B)
- Assembly Reference: 3HAC4790-1
- Full Assembly Code: 3HNA011334-001
- Board Designation: SCB-01 (Safety Connection Board)
- Compatible Robot: ABB IRB2400 (all variants: IRB2400/10, IRB2400/16)
- Compatible Controller: IRC5 / S4C+
- Function: Safety-rated I/O signal routing, emergency stop chain management, safeguard input processing
- Safety Standard Compliance: IEC 62061, ISO 13849-1 (PLd/Cat.3)
- Weight: Approx. 300 g
- Condition Available: New OEM, Refurbished, Tested Used
Key Features & Benefits
- Dual Part Number Coverage: Covers both 3HAC7998-1 and 3HAC7998-2 revisions, ensuring compatibility across different production batches of the IRB2400 controller.
- Safety-Rated Signal Integrity: Maintains the integrity of dual-channel emergency stop and safeguard circuits required for SIL2/PLd-rated robot cell safety.
- Drop-in OEM Replacement: Designed to the original ABB specification — no firmware modification or parameter re-teaching required after installation.
- Tested Before Shipment: Every unit sourced by Konmask.com undergoes functional verification against ABB diagnostic protocols before dispatch.
- Fast Global Dispatch: In-stock units ship within 1–3 business days to destinations worldwide, minimizing robot downtime.
- Long-Term Availability: Stocked to support legacy IRB2400 fleets that remain in active production well beyond the standard OEM support window.
Industry & Equipment Applications
- Automotive Manufacturing: Spot welding, body-in-white assembly, and press-tending lines using ABB IRB2400 robots.
- Metal Fabrication: Arc welding and cutting cells where continuous safety circuit monitoring is mandatory.
- Electronics Assembly: High-precision pick-and-place and PCB handling lines with strict safety interlock requirements.
- Plastics & Injection Molding: Machine-tending robots integrated with safety-rated mold-open signals.
- Food & Beverage Packaging: Palletizing and case-packing cells requiring IEC 62061-compliant safety architecture.
- General Industrial Automation: Any ABB IRB2400 robot cell where the SCB-01 board requires replacement due to fault codes or physical damage.
System Integration & Compatible Parts
The 3HAC7998-1 SCB-01 interfaces directly with the following ABB IRB2400 controller components:
- 3HAC4790-1 — Main assembly housing for the SCB-01 board
- 3HNA011334-001 — Full controller assembly reference
- DSQC 604 / DSQC 661 — Power supply units within the IRC5 cabinet
- DSQC 679 — FlexPendant teach pendant (communicates via safety-rated channels managed by SCB-01)
- 3HAC026254-001 — IRC5 main computer board (M2004)
- Emergency Stop & Safeguard I/O Modules — All external safety devices connected to the robot controller
When replacing the SCB-01, it is recommended to simultaneously inspect the DSQC 604 power supply and all safety I/O wiring harnesses for signs of wear or corrosion.
Our Quality Assurance Process
- Step 1 — Source Verification: All units are sourced from authorized ABB distributors, certified MRO suppliers, or decommissioned OEM equipment with documented service history.
- Step 2 — Visual Inspection: Each board is inspected for physical damage, burnt components, corrosion, and connector integrity.
- Step 3 — Functional Testing: Units are bench-tested using ABB-compatible diagnostic equipment to verify all safety I/O channels are operational.
- Step 4 — ESD-Safe Packaging: Boards are packed in anti-static bags with foam cushioning and clearly labeled with part number and test date.
- Step 5 — Documentation: A test report and packing list are included with every shipment for traceability.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required part number, quantity, and destination country.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and shipping options.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods. A proforma invoice is issued upon order confirmation.
- Shipment & Tracking: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking provided.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: We focus exclusively on PLC, DCS, robot controller, and industrial drive spare parts — not a general electronics marketplace.
- ✅ Global B2B Experience: We have supplied spare parts to maintenance teams and system integrators in over 40 countries.
- ✅ Transparent Sourcing: We disclose the condition and origin of every unit — new OEM, refurbished, or tested used — so you can make an informed procurement decision.
- ✅ Technical Support: Our team includes engineers with hands-on ABB robotics experience who can assist with part identification and compatibility verification.
- ✅ Fast Response: Inquiries are answered within 1 business day. Urgent requests are prioritized.
Frequently Asked Questions
Q: What is the difference between 3HAC7998-1 and 3HAC7998-2?
A: 3HAC7998-2 is a minor revision of 3HAC7998-1. Both are functionally equivalent and are direct replacements for each other in the ABB IRB2400 controller. ABB issued the revision to address minor component-level changes; the electrical interface and software compatibility remain identical.
Q: Is this board compatible with the IRC5 and S4C+ controllers?
A: Yes. The SCB-01 (3HAC7998-1 / 3HAC7998-2) is used in both the S4C+ and early IRC5 controller variants paired with the IRB2400 robot. Please confirm your controller generation when submitting your inquiry.
Q: Do I need to re-configure the robot after replacing the SCB-01?
A: In most cases, no parameter re-teaching is required. However, you should perform a full safety function test (emergency stop, safeguard, and enabling device verification) after installation as per ABB’s commissioning procedure.
Q: What ABB fault codes indicate a failed Safety Connection Board?
A: Common fault codes associated with SCB-01 failure include 20001 (Emergency stop), 20002 (Safeguard stop), 20252 (Safety board communication error), and related safety chain faults. Always consult the ABB IRC5 Troubleshooting Manual for definitive diagnosis.
Q: Can you supply multiple units for a fleet maintenance program?
A: Yes. We regularly supply spare parts in bulk quantities for planned maintenance programs. Contact us for volume pricing and lead time on multi-unit orders.
© 2026 Konmask.com. All rights reserved.
Original Source: https://Konmask.com
Contact: support@konmask.com | +0086 19859288691
{
