ABB 3HNA010059-001/02 – Digital I/O Module | IRC5 Robot Control Platform

Engineering Background

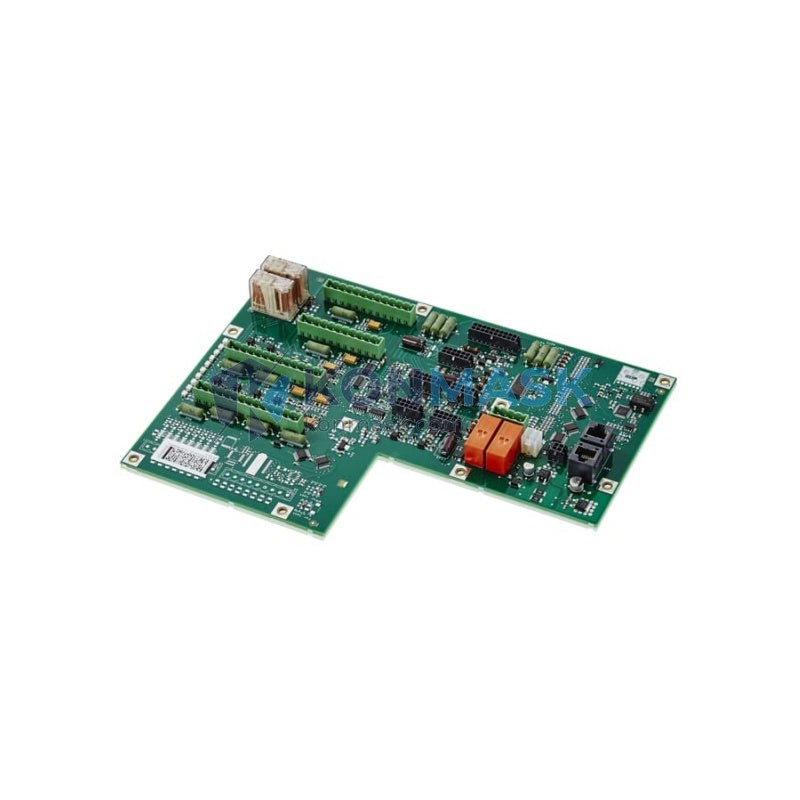

The ABB 3HNA010059-001/02 (board revision AA16C0778, firmware assembly 3HAC021455-001/05) is a factory-original Digital I/O Module engineered for ABB’s IRC5 robot controller family. Designed to ABB’s industrial-grade specifications, this module serves as the primary discrete signal interface between the IRC5 controller and field devices — enabling deterministic, high-speed I/O communication in demanding automation environments.

Product Positioning

This module is the OEM-specified replacement and expansion component for ABB IRB series industrial robots operating under IRC5 control architecture. It is the preferred choice for maintenance engineers, system integrators, and OEM rebuild teams requiring exact form-fit-function compatibility without re-engineering the control cabinet.

Complete Technical Specifications

Part Number: 3HNA010059-001/02
Board Revision: AA16C0778
Assembly Reference: 3HAC021455-001/05
Module Type: Digital I/O Module
Compatible Platform: ABB IRC5 Robot Controller
Compatible Robots: ABB IRB Series (IRB 1600, IRB 2600, IRB 4600, IRB 6640, IRB 6700 and others)
Signal Type: Digital Input / Digital Output (discrete)
Manufacturer: ABB Robotics
Country of Origin: Sweden
Weight: 420 g
Condition: New / Refurbished OEM (specify at inquiry)

Proven Application Environments

Automotive body-in-white welding and assembly lines
Palletizing and material handling systems
Arc welding and spot welding robot cells
Machine tending and press-tending automation
Painting and surface treatment robot installations
Semiconductor and electronics manufacturing lines
Food & beverage packaging automation

Engineering Advantages

OEM Exact Match: Factory-specified part number ensures zero compatibility risk — no firmware conflicts, no re-parameterization required.
Deterministic I/O Response: Designed for real-time robot control loops; meets ABB’s timing and signal integrity requirements for IRC5 architecture.
Plug-and-Play Replacement: Direct board swap with existing IRC5 I/O slots — minimizes downtime during maintenance or expansion.
Dual Reference Traceability: Both the board revision (AA16C0778) and assembly number (3HAC021455-001/05) are documented, enabling precise spare parts management and audit compliance.
Industrial Robustness: Built to ABB’s environmental and EMC standards for continuous 24/7 operation in industrial cabinets.

System Architecture & Signal Flow

Within the IRC5 controller, the 3HNA010059-001/02 module interfaces with the main computer unit (MCU) via the internal I/O bus. Digital inputs receive 24 VDC field signals from sensors, safety devices, and PLCs; digital outputs drive actuators, relays, and indicator signals. The module’s firmware (3HAC021455-001/05) manages signal debouncing, short-circuit protection, and status reporting to RobotWare, ensuring full integration with ABB’s RAPID programming environment and FlexPendant diagnostics.

Sourcing & Quality Verification

All units are sourced through verified ABB-authorized distribution channels or certified industrial surplus with full traceability documentation.
Each module undergoes visual inspection, board-level verification of revision markings (AA16C0778), and functional pre-shipment testing where applicable.
Packaging includes anti-static protection and moisture barrier per IPC/JEDEC J-STD-033 handling standards.
Certificate of conformity and test report available upon request for regulated industries.

Procurement Process

Confirm Compatibility: Verify your IRC5 controller variant and existing I/O slot configuration against your robot’s electrical documentation.
Request Quote: Contact [email protected] with your robot model, serial number, and required quantity for a tailored quotation.
Order & Lead Time: In-stock units ship within 1–3 business days. Special-order or refurbished units: 5–10 business days.
Shipping: DHL Express / FedEx International Priority available worldwide. Export documentation (commercial invoice, packing list, HS code 8537.10) provided.
After-Sales Support: 12-month warranty on new OEM units. Technical support available via email and phone.

Technical FAQ

Q: Is 3HNA010059-001/02 compatible with IRC5 Compact and IRC5 Panel Mounted Controller?
A: Compatibility depends on the specific I/O configuration of your controller variant. Please provide your controller type and serial number for confirmation.

Q: What is the difference between 3HNA010059-001/02 and earlier revisions?
A: The /02 revision incorporates board-level improvements per ABB’s engineering change order (ECO) process. It is backward-compatible with /01 installations in most configurations. Consult ABB’s spare parts manual or contact us for revision-specific guidance.

Q: Can this module be used with RobotWare 6.x and 7.x?
A: This hardware module is designed for IRC5 controllers running RobotWare 5.x and 6.x. Compatibility with RobotWare 7 (OmniCore platform) requires separate verification.

Q: Do you provide installation support?
A: Yes. Our engineering team can provide remote installation guidance, wiring diagrams, and configuration parameters for qualified maintenance personnel.
