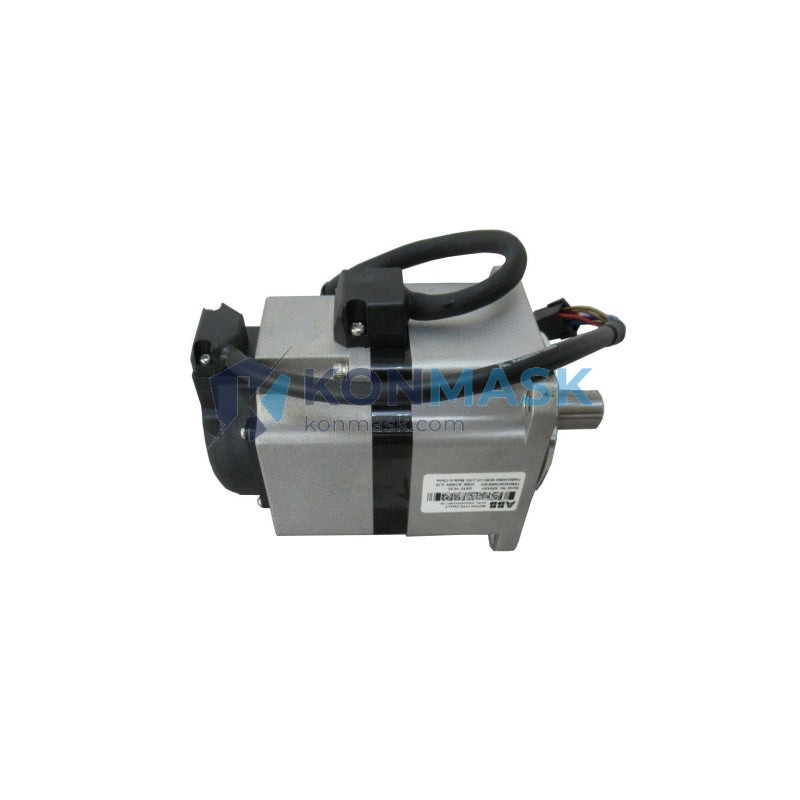

ABB 3HNA023200-001 Motor with Pinion – IRB 6600 Series (DSQC1018 / 3HAC075048-001 / DSQC1024 / 3HNA011788-001)
When a robot axis motor fails on the production floor, the consequences are immediate and costly: assembly lines halt, automotive body welds go incomplete, palletizing cells freeze, and every idle minute translates directly into lost revenue. The ABB 3HNA023200-001 Motor with Pinion — cross-referenced as DSQC1018, 3HAC075048-001, DSQC1024, and 3HNA011788-001 — is the OEM-specified drive component that restores axis motion and gets your robot back online with zero compromise on precision or torque delivery.
Within the ABB IRB 6600 family, this motor occupies a critical position as the primary axis drive unit, engineered to deliver high torque density in a compact form factor. The IRB 6600 series is one of ABB’s most widely deployed heavy-payload robot platforms globally, trusted in automotive, foundry, and heavy-industry environments where reliability under continuous duty cycles is non-negotiable. The 3HNA023200-001 is the factory-matched replacement that maintains the servo loop integrity and positional accuracy demanded by these applications.
Technical Specifications
- Part Number: 3HNA023200-001
- Cross References: DSQC1018 / 3HAC075048-001 / DSQC1024 / 3HNA011788-001
- Type: Motor with Pinion (Axis Drive Unit)
- Compatible Platform: ABB IRB 6600 Series Industrial Robot
- Manufacturer: ABB Robotics
- Weight: 500 g (approx.)
- Condition: New / Refurbished (specify at inquiry)
Note: Detailed electrical specifications (voltage, current rating, encoder resolution) are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- OEM Part Number Accuracy: Sourced and verified against ABB’s official part numbering system — no substitutions, no compatibility guesswork.
- Integrated Pinion Design: The pinion is factory-assembled and pre-aligned, eliminating field alignment errors that cause premature gear wear.
- Multi-Reference Compatibility: Covers DSQC1018, 3HAC075048-001, DSQC1024, and 3HNA011788-001 cross-references, simplifying procurement across different documentation revisions.
- Drop-In Replacement: Designed for direct swap into IRB 6600 axis assemblies without mechanical modification.
- Rapid Dispatch: In-stock units ship within 1–3 business days to minimize your downtime window.
- Traceability: Each unit is documented with source traceability records available upon request for quality audits.
Industry & Equipment Applications
- Automotive Manufacturing: Spot welding, body-in-white assembly, press tending, and material handling on IRB 6600-equipped lines.
- Foundry & Die Casting: High-temperature part extraction and machine tending where the IRB 6600’s robust build is essential.
- Heavy Palletizing: End-of-line palletizing cells handling large, heavy payloads in food, beverage, and logistics facilities.
- Metal Fabrication: Arc welding and cutting applications requiring sustained axis precision over long duty cycles.
- General Industrial Automation: Any facility running ABB IRB 6600 variants (6600-175/2.55, 6600-205/2.75, 6600-245/3.0, etc.).
System Integration & Compatible Parts
The 3HNA023200-001 motor integrates within the ABB IRC5 controller ecosystem. For a complete axis repair or preventive maintenance kit, consider pairing with:
- ABB DSQC652 / 3HAC025917-001 – Digital I/O Unit
- ABB 3HAC026254-001 – Axis Computer Unit
- ABB 3HAC044168-001 – Drive Unit
- ABB 3HNA023199-001 – Gearbox Assembly (axis-specific)
- ABB 3HAC028357-001 – Teach Pendant (FlexPendant)
Contact our technical team to confirm compatibility with your specific robot serial number and software version.
Our Quality Assurance Process
- Source Verification: All parts are sourced from authorized distributors or directly from OEM-certified channels.
- Visual & Mechanical Inspection: Each unit undergoes inspection for physical integrity, connector condition, and pinion mesh quality before dispatch.
- Documentation: Shipment includes packing list with part number confirmation; test reports and certificates of conformity available on request.
- Packaging: Anti-static, shock-resistant packaging to protect sensitive motor electronics during international transit.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your robot model, serial number, and required quantity.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm order and arrange payment via T/T, PayPal, or other agreed terms.
- Unit ships with full tracking; typical delivery 5–10 business days internationally.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, robot, and drive components — not a generalist marketplace.
- Global B2B Supply: Serving maintenance engineers, MRO buyers, and system integrators across 40+ countries.
- Technical Pre-Sales Support: Our team can cross-reference part numbers, confirm compatibility, and advise on alternatives when stock is constrained.
- Competitive Lead Times: Extensive supplier network ensures faster sourcing than traditional distribution channels.
- Transparent Communication: No hidden fees. Clear quotations, honest lead times, and responsive after-sales support.
Frequently Asked Questions
Q: Is 3HNA023200-001 the same as DSQC1018 and 3HAC075048-001?
A: Yes. These are cross-reference part numbers used across different ABB documentation revisions and regional catalogs. All refer to the same motor with pinion assembly for the IRB 6600 series.
Q: Which IRB 6600 variants is this motor compatible with?
A: This motor is designed for the ABB IRB 6600 platform. Please provide your robot’s serial number and axis number when inquiring so we can confirm the exact fit for your configuration.
Q: Do you supply new or refurbished units?
A: We supply both new OEM units and professionally refurbished units depending on availability and your budget requirements. Condition is clearly stated in the quotation.
Q: What is the warranty on this part?
A: Standard warranty is 90 days from shipment date. Extended warranty options are available — please discuss at the time of inquiry.
Q: Can you ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, UPS, and freight forwarder options. Export documentation including commercial invoice and packing list is provided for customs clearance.
Q: How quickly can you deliver?
A: In-stock units typically ship within 1–3 business days. International delivery is 5–10 business days depending on destination and shipping method.
