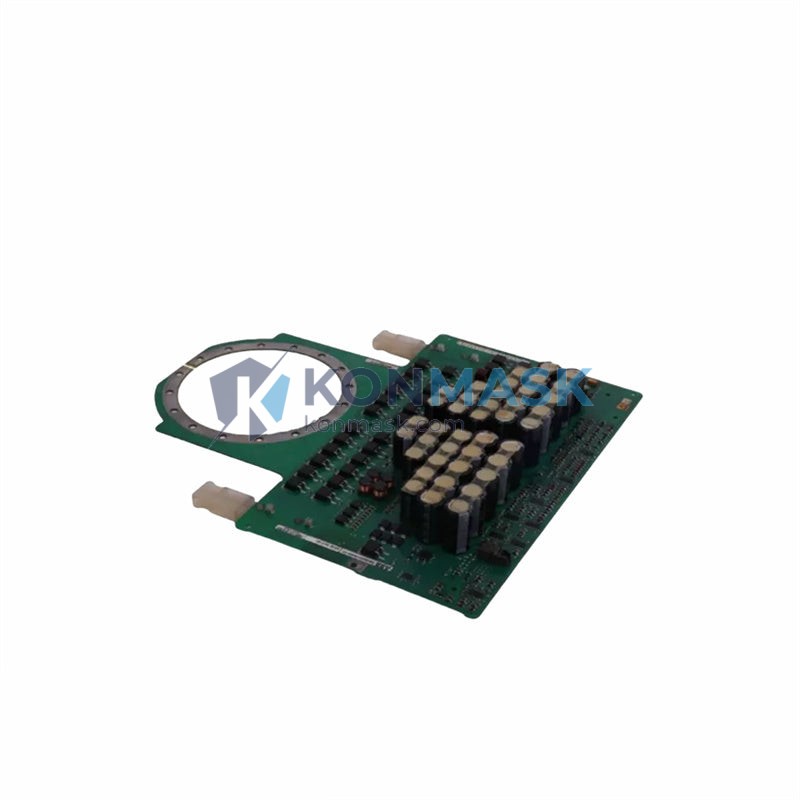

Medium-Voltage Drive Solution – ABB 5SHY3545L0020 | Integrated Gate Bipolar Transistor Module
Where This Product Is Used
The ABB 5SHY3545L0020 is a high-power IGBT module engineered for demanding industrial and infrastructure applications where switching efficiency, thermal stability, and long service life are non-negotiable. Typical deployment environments include:
- Medium-Voltage Variable Frequency Drives (MV VFDs): Motor control systems in cement mills, mining hoists, pump stations, and compressor trains operating at 2.3 kV–6.6 kV bus voltages.
- Rail Traction Inverters: Locomotive and EMU traction converters requiring robust 3300 V blocking capability and high surge-current tolerance.
- Wind Turbine Power Converters: Full-power and doubly-fed converter topologies in multi-MW wind generators where low switching losses directly improve energy yield.
- STATCOM & SVG Reactive Power Compensation: Grid-connected reactive power compensators in steel plants, substations, and renewable integration projects.
- Industrial UPS & Energy Storage Systems: High-capacity battery energy storage inverters and online UPS systems requiring reliable DC-link switching.
- Marine Propulsion & Offshore Drives: Variable-speed propulsion drives and thruster controls on vessels and offshore platforms.
Technical Specifications
| Part Number | 5SHY3545L0020 |
| Manufacturer | ABB Semiconductors (Switzerland) |
| Module Type | Integrated Gate Bipolar Transistor (IGBT) with Anti-Parallel Diode |
| Collector-Emitter Voltage (VCES) | 3300 V |
| Collector Current (IC) | 1400 A (DC) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Switching Frequency | Up to 500 Hz (application-dependent) |
| Package / Housing | Press-Pack (Flat-Base) — ABB StakPak® compatible |
| Thermal Resistance (Rth j-c) | Refer to ABB datasheet 5SYA 1401 |
| Operating Junction Temperature | –40 °C to +125 °C |
| Weight | 1280 g (approx.) |
| Cooling Method | Double-sided liquid or forced-air cooling (press-pack assembly) |
| RoHS Compliance | Yes |
Why Engineers Specify This Model
- 3300 V Blocking Voltage: Directly addresses medium-voltage bus requirements without series-stacking lower-rated devices, reducing BOM complexity and gate-drive channel count.
- 1400 A Continuous Current: Supports multi-MW converter designs in a single-module footprint, minimizing parallel-device derating calculations.
- Press-Pack Construction: Eliminates wire-bond fatigue failure modes common in baseplate modules — critical for high-cycle traction and wind applications with frequent thermal cycling.
- ABB StakPak® Compatibility: Enables modular stacking for series/parallel configurations in multi-level converter topologies (NPC, ANPC, MMC).
- Low Tail-Current Design: Optimized for low switching losses at medium frequencies, directly reducing heatsink size and cooling system CAPEX.
- Proven Field Reliability: ABB’s 5SHY series has accumulated millions of operating hours in global traction and drive installations.
Complete System Bill of Materials
When designing a converter stage around the 5SHY3545L0020, engineers typically source the following complementary components — all available at Konmask.com:
- ABB Gate Drive Unit (GDU) — 5SXE10-0181 or equivalent 3300 V-class driver
- ABB Snubber Capacitors — DC-link film capacitors rated ≥3600 V
- ABB Clamping Hardware — StakPak® press-pack clamp assemblies and torque hardware
- Thermal Interface Material — Indium foil or graphite pads for press-pack contact surfaces
- Current Transducers — LEM HAL / HAIS series for phase-current feedback
- DC-Link Voltage Sensors — ABB VSN300 or equivalent isolated voltage transducer
- Fiber-Optic Gate Signal Cables — for isolated PWM signal transmission to GDU
Compliance & Industry Standards
- IEC 60747-9: Discrete semiconductor devices — Insulated-gate bipolar transistors (IGBTs)
- IEC 62477-1: Safety requirements for power electronic converter systems
- EN 50155: Railway applications — Electronic equipment used on rolling stock
- RoHS 2011/65/EU: Restriction of hazardous substances
- CE Marking: Applicable to end-system integrators per EU Machinery Directive
Quality Assurance & Sourcing
Every ABB 5SHY3545L0020 unit shipped from Konmask.com undergoes the following verification process:
- Visual Inspection: Housing integrity, terminal condition, and label authenticity check against ABB factory markings.
- Parametric Verification: VCES, VGES, and leakage current spot-checks using calibrated semiconductor test equipment.
- Traceability: Lot code and date code recorded; original ABB packaging retained where available.
- Sourcing: Procured through authorized ABB distribution channels and verified surplus from OEM decommissions — no gray-market or counterfeit risk.
- Warranty: 12-month replacement warranty against manufacturing defects under normal operating conditions.
How to Source This Part
- Request a Quote: Email support@konmask.com with your required quantity, delivery timeline, and project details.
- Stock Confirmation: Our team confirms availability and lead time within 24 business hours.
- Secure Payment: T/T bank transfer, PayPal, or trade-assurance options available for international orders.
- Global Shipping: DHL Express, FedEx, or sea freight — EXW Xiamen, China. Export documentation (commercial invoice, packing list, COO) provided.
- After-Sales Support: Technical application support available via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Can the 5SHY3545L0020 be used in a 3-level NPC inverter topology?
A: Yes. The 3300 V rating is well-suited for the outer switch positions in a 3-level NPC converter operating from a 2800–3000 V DC link. Consult ABB application note 5SYA 2053 for NPC design guidelines.
Q: What gate resistance is recommended for this module?
A: ABB recommends Rg(on) and Rg(off) values in the range of 1.5–3.3 Ω for this device class. Refer to the official datasheet 5SYA 1401 for switching energy vs. gate resistance curves.
Q: Is double-sided cooling mandatory for press-pack modules?
A: Double-sided cooling is strongly recommended to achieve rated current capacity and maximize module lifetime. Single-sided cooling is possible at derated current levels — contact our engineering team for derating curves.
Q: What is the minimum clamping force for the press-pack assembly?
A: ABB specifies a clamping force of 60–80 kN for the 5SHY3545L0020 press-pack assembly. Incorrect clamping is the leading cause of premature failure — always use a calibrated torque system.
Q: Do you offer incoming inspection reports?
A: Yes. A parametric test report can be provided upon request for orders of 2 or more units. Contact us before placing your order to arrange this service.
