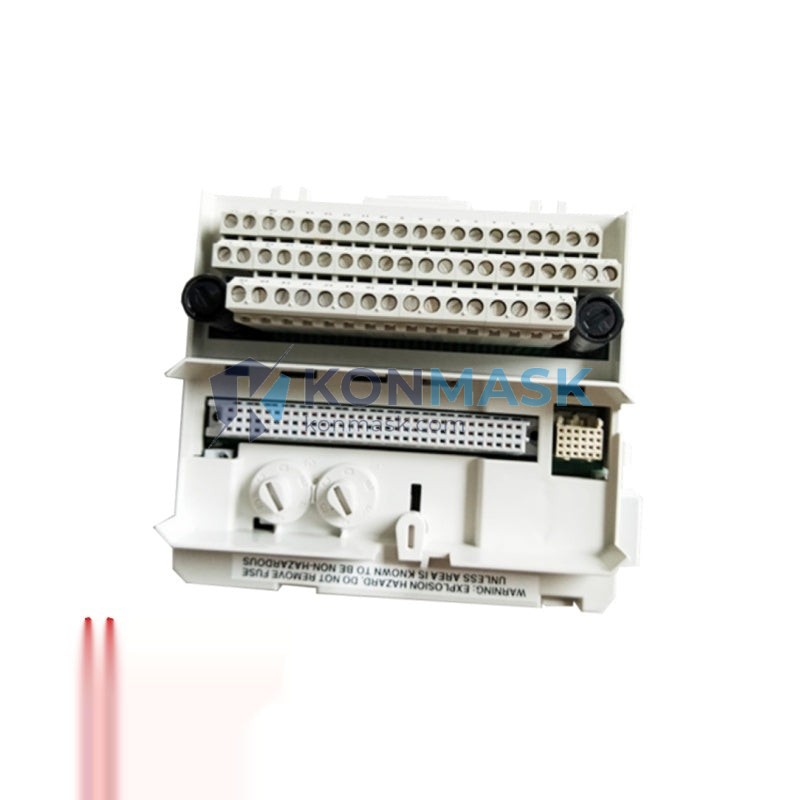

ABB BAMU-01C (3AUA0000054712) – Modbus RTU/TCP Adapter Option Board | ACS880 & ACS580 Drive Platform
Engineering Background
The ABB BAMU-01C is a fieldbus adapter option board engineered for seamless Modbus RTU and Modbus TCP/IP integration within ABB’s ACS880 and ACS580 variable frequency drive (VFD) platforms. Designed for demanding industrial environments, this option board enables deterministic, low-latency communication between the drive and PLC/SCADA control systems — a critical requirement in process automation, material handling, and energy management applications.
Product Positioning
As a certified OEM component (Part No. 3AUA0000054712), the BAMU-01C is the factory-recommended solution for engineers who require reliable Modbus connectivity without compromising drive performance or warranty integrity. Konmask.com supplies this module as a verified, traceable unit sourced through authorized industrial distribution channels.
Complete Technical Specifications
- Manufacturer: ABB Ltd.
- Model / SKU: BAMU-01C
- Part Number: 3AUA0000054712
- Module Type: Fieldbus Adapter Option Board
- Protocol Support: Modbus RTU (RS-485) / Modbus TCP/IP
- Compatible Drive Series: ACS880, ACS580, ACS380 (slot-compatible variants)
- Mounting Interface: Option slot (D-type) on ACS880 / ACS580 control unit
- Baud Rate (RTU): 1,200 – 115,200 bps (auto-detect)
- Network Topology: RS-485 multi-drop (up to 32 nodes); Ethernet star/line (TCP)
- Isolation: Galvanic isolation between fieldbus and drive logic
- Power Supply: Powered via option slot (no external supply required)
- Operating Temperature: -10 °C to +55 °C
- Storage Temperature: -40 °C to +70 °C
- Humidity: 5 – 95% RH (non-condensing)
- Protection Class: IP20 (installed in drive enclosure)
- Weight: 110 g
- Certifications: CE, UL, RoHS
- Firmware: Upgradeable via ABB Drive Composer / Panel
Proven Application Environments
- Process Automation: Chemical, oil & gas, and water treatment plants requiring Modbus SCADA integration
- Material Handling: Conveyor systems, hoists, and cranes with PLC-based speed/torque control
- HVAC & Building Automation: BMS-integrated fan and pump drives via Modbus TCP
- Energy Management: Power monitoring and demand-response systems
- Marine & Offshore: Thruster and auxiliary drive control in harsh environments
- Pulp & Paper / Metal Processing: High-cycle, high-reliability production lines
Engineering Advantages
- Plug-and-Play Integration: Installs directly into the drive option slot — no external gateway or wiring harness required
- Dual Protocol Flexibility: Supports both Modbus RTU and TCP/IP on a single module, reducing BOM complexity
- Deterministic Latency: Cyclic data exchange with configurable polling intervals for real-time control loops
- Parameter Mapping: Full access to ABB drive parameter set (speed ref, torque ref, status words, fault codes) via standard Modbus registers
- Galvanic Isolation: Protects PLC/SCADA infrastructure from drive-side electrical noise
- ABB Drive Composer Compatible: Firmware updates and diagnostics via standard ABB toolchain
System Architecture & Signal Flow
The BAMU-01C inserts into the option slot of the ACS880/ACS580 control unit. The fieldbus master (PLC or SCADA) communicates with the module over Modbus RTU (RS-485 terminal) or Modbus TCP (RJ-45 port). The module translates Modbus register read/write commands into ABB’s internal DDCS/RDCO protocol, updating drive control words, speed references, and status registers in real time. Cyclic and acyclic data exchange are both supported, enabling both closed-loop speed control and diagnostic polling from a single network connection.
Sourcing & Quality Verification
- Origin: OEM manufactured by ABB Ltd., verified against ABB part number 3AUA0000054712
- Traceability: Each unit ships with original ABB labeling and batch traceability documentation upon request
- Inspection: Pre-shipment functional verification — option slot connector integrity, firmware version check, and communication loopback test
- Packaging: ESD-safe anti-static bag + foam-lined carton; suitable for international air and sea freight
- Warranty: 12-month Konmask warranty covering manufacturing defects; ABB OEM warranty terms apply where applicable
Procurement Process
- Confirm Compatibility: Verify your ACS880/ACS580 control unit firmware version supports BAMU-01C (refer to ABB option board compatibility matrix)
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation
- Order Placement: Purchase directly via this listing or submit a PO to our sales team
- Shipping: DHL / FedEx express (3–7 business days worldwide); sea freight available for bulk orders
- After-Sales: Technical support available via email and WhatsApp for installation and commissioning queries
Technical FAQ
Q: Is the BAMU-01C compatible with ACS355 or ACS550 drives?
A: No. The BAMU-01C uses the D-type option slot interface specific to ACS880/ACS580/ACS380 platforms. For ACS355/ACS550, refer to the FMBA-01 or RMBA-01 modules.
Q: Can Modbus RTU and TCP/IP be used simultaneously?
A: Only one protocol is active at a time, selectable via drive parameter configuration. Switching requires a drive restart.
Q: What Modbus register map is used?
A: The BAMU-01C uses ABB’s standard fieldbus register mapping. Full register tables are available in ABB document 3AUA0000054712 (BAMU-01C User’s Manual).
Q: Does this module support Modbus TCP over fiber?
A: The onboard RJ-45 port supports copper Ethernet only. Fiber conversion requires an external media converter.
Q: Is firmware upgrade required after installation?
A: Not mandatory, but recommended. Use ABB Drive Composer Pro to verify and update firmware to the latest release for full feature support.
