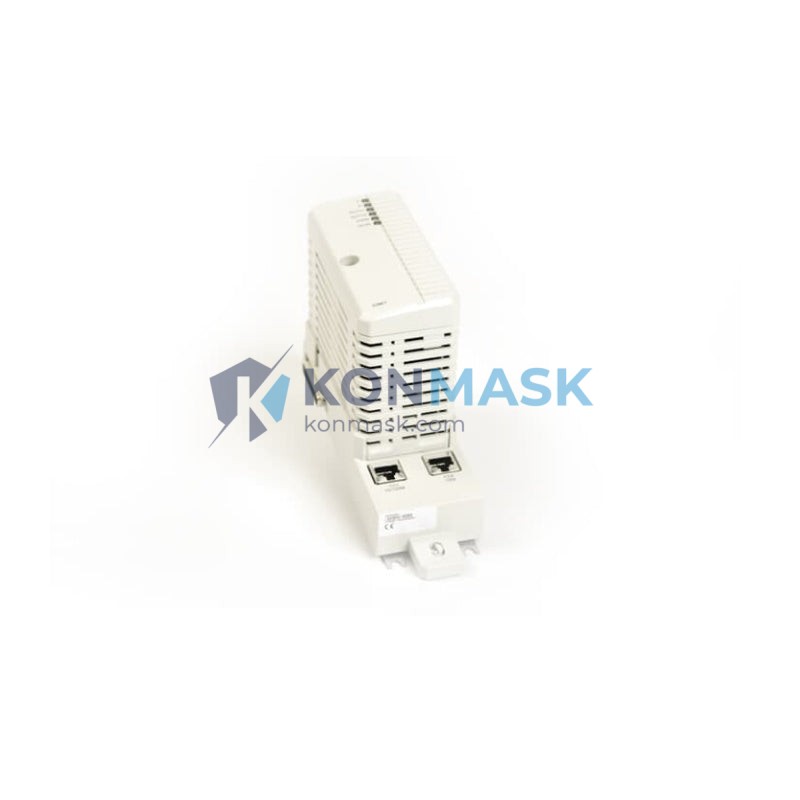

ABB CI867K01 (3BSE043660R1) – Modbus TCP Communication Interface Module | AC800M Platform
The ABB CI867K01, part number 3BSE043660R1, is a dedicated Modbus TCP communication interface module engineered for integration within ABB’s AC800M Distributed Control System (DCS) and PLC platform. Designed for procurement engineers and system integrators operating in process-critical environments, this module delivers deterministic Ethernet-based fieldbus connectivity with the reliability and interoperability demanded by modern industrial automation architectures.
Product Positioning: The CI867K01 serves as the primary Modbus TCP gateway within the AC800M controller rack, enabling seamless data exchange between the AC800M CPU and third-party Modbus TCP-compliant devices — including drives, meters, remote I/O, and SCADA systems — without additional protocol converters or middleware.
Complete Technical Specifications
- Manufacturer: ABB Ltd. (Switzerland/Sweden)
- Part Number / SKU: CI867K01 / 3BSE043660R1
- Module Type: Modbus TCP Communication Interface
- Platform Compatibility: AC800M (PM851, PM856, PM860, PM861, PM864, PM866, PM891)
- Communication Protocol: Modbus TCP/IP (IEEE 802.3)
- Physical Interface: RJ-45 Ethernet (10/100 Mbps)
- Modbus Function Codes: FC01, FC02, FC03, FC04, FC05, FC06, FC15, FC16
- Max Modbus TCP Connections: Up to 10 simultaneous client/server connections
- Backplane Bus: AC800M internal CEX-Bus
- Power Supply: Supplied via AC800M backplane (no external power required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20
- Dimensions (W × H × D): Approx. 25 × 130 × 110 mm
- Weight: ~700 g
- Country of Origin: Sweden
- HS Code: 8537.10
- Certifications: CE, UL, cUL, ATEX (zone 2 with appropriate enclosure)
- Configuration Tool: ABB Control Builder M (Professional / Plus)
Proven Application Environments
- Oil & Gas: Offshore platform DCS integration with third-party flow computers and RTUs via Modbus TCP
- Power Generation: Turbine control systems communicating with energy meters and protection relays
- Chemical & Petrochemical: Reactor monitoring with distributed Modbus TCP sensor networks
- Water & Wastewater: SCADA-to-PLC integration for pump stations and treatment facilities
- Pulp & Paper: Drive coordination and process data acquisition across multi-vendor environments
- Marine & Offshore: Vessel automation systems requiring DNV-GL-compatible DCS architectures
Engineering Advantages
- Native AC800M Integration: Plug-and-play insertion into the AC800M rack — no external gateway hardware, no additional wiring
- Deterministic Scan Cycle: Modbus TCP polling synchronized with AC800M task execution for consistent data latency
- Dual-Role Operation: Configurable as Modbus TCP Master (client) or Slave (server) within the same module
- Redundancy Support: Compatible with AC800M redundant CPU configurations (hot-standby)
- Diagnostics: Full module health status visible in Control Builder M; LED indicators for link, activity, and fault states
- Scalability: Multiple CI867K01 modules can be installed per rack to expand Modbus TCP node capacity
System Architecture & Signal Flow
The CI867K01 occupies a standard module slot in the AC800M S800 I/O rack or the PM8xx CPU rack. Communication flow is as follows:
- AC800M CPU executes application task and writes/reads process data to/from CI867K01 via CEX-Bus backplane
- CI867K01 maps internal data to Modbus register tables (Coils 0x, Discrete Inputs 1x, Input Registers 3x, Holding Registers 4x)
- Modbus TCP frames are transmitted/received over the RJ-45 Ethernet port to/from field devices or SCADA
- Response data is written back to the AC800M application database within the configured scan cycle
Configuration is performed entirely within ABB Control Builder M using the CI867K01 hardware library object — no manual IP configuration via external tools required.
Sourcing & Quality Verification
- Stock Status: Genuine OEM modules sourced from authorized ABB distribution channels and verified surplus inventory
- Inspection Standard: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional pre-shipment check
- Packaging: Anti-static ESD bag + foam-lined carton; original ABB packaging preserved where available
- Documentation: ABB datasheet, declaration of conformity, and test record available upon request
- Warranty: 12-month Konmask operational warranty against manufacturing defects
Procurement Process
- Inquiry: Submit RFQ via support@konmask.com with quantity, required delivery date, and destination port
- Quotation: Formal quotation with unit price, lead time, and shipping options issued within 24 business hours
- Order Confirmation: Purchase order accepted; payment terms: T/T, L/C, or PayPal for qualified accounts
- Inspection & Dispatch: Pre-shipment inspection completed; tracking number provided within 48 hours of payment clearance
- Delivery: DHL / FedEx / UPS express (3–7 business days globally); sea freight available for bulk orders
- After-Sales: Technical support and RMA process managed by Konmask engineering team
Technical FAQ
Q: Is CI867K01 compatible with AC800M PM891 redundant controllers?
A: Yes. The CI867K01 is fully compatible with PM891 and supports hot-standby redundancy configurations. During CPU switchover, Modbus TCP connections are re-established automatically within the configured timeout period.
Q: Can CI867K01 act as both Modbus TCP Master and Slave simultaneously?
A: No. The module operates in one role per configuration instance. However, multiple CI867K01 modules in the same rack can be configured independently — one as Master, another as Slave.
Q: What Control Builder M version is required?
A: ABB Control Builder M version 5.1 or later is recommended. The CI867K01 hardware library must be installed. Consult ABB document 3BSE043660R1 release notes for version-specific compatibility.
Q: Is the module suitable for hazardous area installation?
A: The CI867K01 itself is rated IP20 for standard control room / cabinet installation. For Zone 2 hazardous areas, it must be installed within an ATEX-certified enclosure meeting the required Ex e or Ex p protection concept.
Q: What is the maximum number of Modbus TCP nodes supported?
A: Up to 10 simultaneous TCP connections per module. For larger node counts, additional CI867K01 modules can be added to the rack.
