Process Automation Backplane Solution – ABB RF615 3BHT100010R1 | AC800M Series
Where This Product Is Used

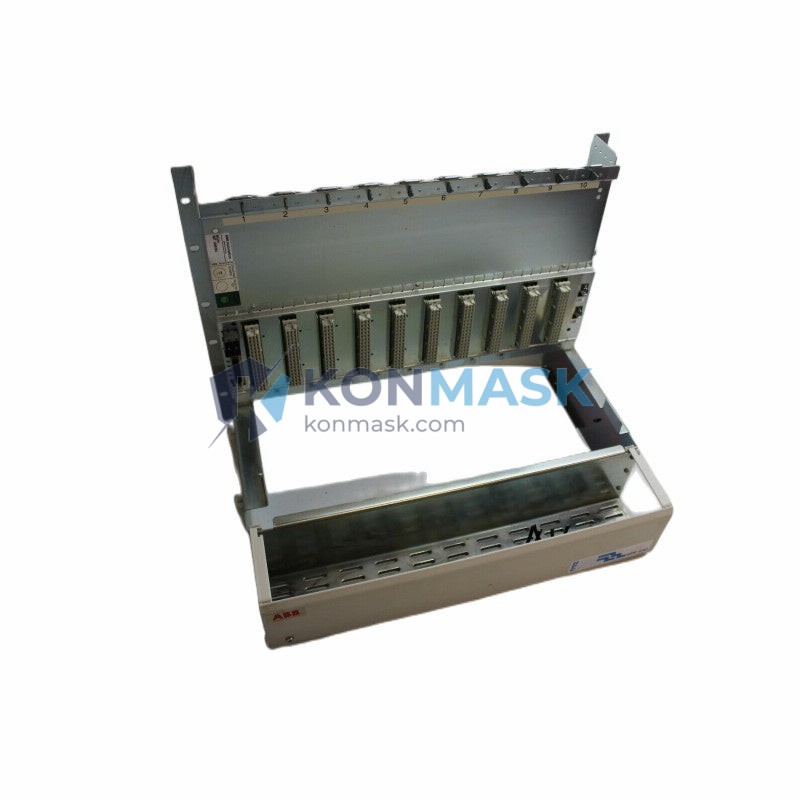

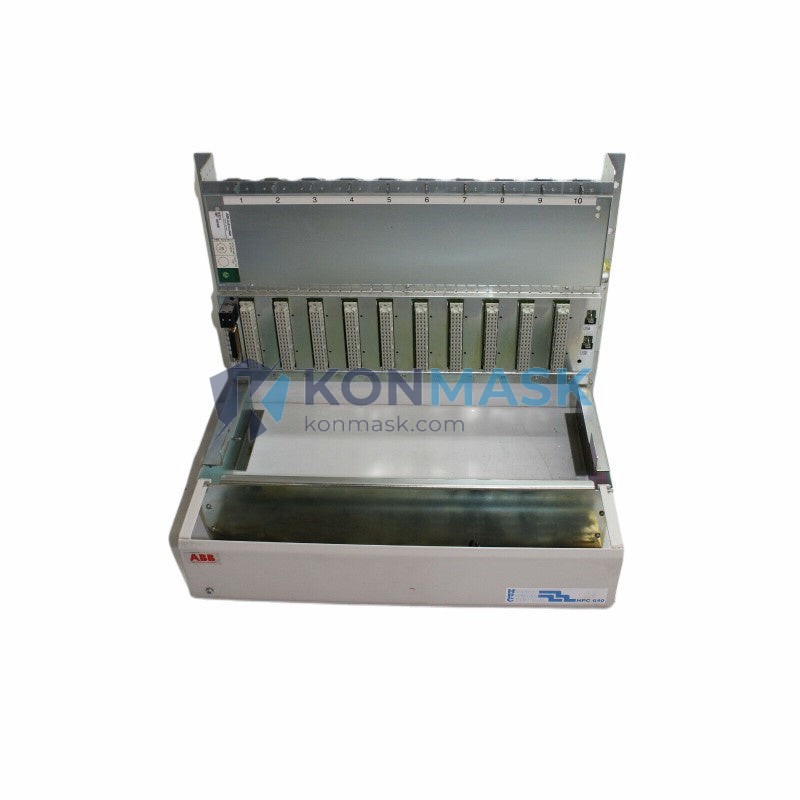

The ABB RF615 (3BHT100010R1) Card Rack is a structural backplane module engineered for deployment within ABB’s AC800M Distributed Control System (DCS) architecture. It serves as the physical and electrical backbone that houses and interconnects I/O modules, communication interfaces, and processor units in mission-critical industrial environments.
Typical application sites include:
- Oil & Gas – Upstream wellhead control panels, midstream pipeline SCADA cabinets, and downstream refinery DCS marshalling racks
- Power Generation – Turbine control systems, boiler management units, and substation automation panels
- Pulp & Paper / Chemical – Continuous process control loops requiring high-density I/O card mounting
- Water & Wastewater – SCADA-integrated pump station control enclosures
- Pharmaceuticals – GMP-compliant batch control cabinets with validated DCS configurations
Technical Specifications
| Manufacturer | ABB |
| Part Number (SKU) | RF615 / 3BHT100010R1 |
| Series | AC800M |
| Module Type | Card Rack / Backplane |
| Weight | 2,700 g (approx.) |
| Compatibility | ABB AC800M DCS I/O modules and communication units |
| Mounting | DIN rail / panel-mount (standard AC800M enclosure) |
| Country of Origin | Refer to product label |
For full electrical ratings, slot count, and bus specifications, refer to ABB document 3BHS135153 or contact our technical team.
Why Engineers Specify This Model
- System Integrity – Designed exclusively for AC800M architecture, ensuring deterministic backplane communication and eliminating compatibility risk
- High-Density I/O Hosting – Accommodates multiple I/O and function modules in a compact footprint, reducing cabinet space requirements
- Robust Construction – Industrial-grade materials rated for continuous operation in harsh environments (vibration, EMI, temperature extremes)
- Simplified Maintenance – Hot-swap-compatible slot design (per AC800M system rules) minimises planned downtime during module replacement
- Long Service Life – ABB AC800M platform has an extended lifecycle roadmap, protecting capital investment in existing DCS infrastructure
Complete System Bill of Materials
The RF615 Card Rack is typically specified alongside the following AC800M components. Konmask.com stocks or can source the full BOM:
- ABB PM866 / PM864 – AC800M Processor Module
- ABB CI854 / CI857 – PROFIBUS / FOUNDATION Fieldbus Communication Interface
- ABB AI810 / AO810 – Analog Input / Output Modules
- ABB DI810 / DO810 – Digital Input / Output Modules
- ABB SD821 / SD822 – Power Supply Units
- ABB TB820 – ModuleBus Optical Port
Contact us with your full BOM for consolidated sourcing and volume pricing.
Compliance & Industry Standards
- Designed and manufactured under ABB’s ISO 9001-certified quality management system
- Compliant with IEC 61131-2 (Programmable Controllers – Hardware Requirements)
- Suitable for use in SIL-assessed systems when integrated per ABB functional safety guidelines
- CE marked for European market deployment
- RoHS compliant
Quality Assurance & Sourcing
Every unit shipped by Konmask.com undergoes the following verification process:
- Visual inspection against ABB OEM cosmetic and labelling standards
- Serial number and date-code verification
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
We source exclusively from authorised distribution channels and vetted industrial surplus partners. Counterfeit-free guarantee backed by our return policy.
How to Source This Part
- Add to Cart – Proceed directly for standard lead times
- Request a Quote – Email support@konmask.com with your PO number, required quantity, and delivery deadline
- Urgent / Emergency Orders – Call or WhatsApp +0086 19859288691 for same-day response on critical plant shutdowns
- BOM Sourcing – Submit your full parts list for consolidated pricing and single-shipment delivery
We ship globally via DHL Express, FedEx, and UPS with full export documentation (commercial invoice, packing list, COO).
Application-Specific FAQ
Q: Is the RF615 compatible with the AC800M S900 remote I/O system?
A: The RF615 is a local rack for the AC800M controller cabinet. For S900 remote I/O, ABB uses dedicated S900 carrier modules. Contact us to confirm the correct part for your topology.
Q: Can I mix AI810 and DI810 modules in the same RF615 rack?
A: Yes. The AC800M backplane supports mixed I/O module types within the same rack, subject to power budget and slot addressing rules defined in ABB’s AC800M Hardware Configuration manual.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock scenarios, typical lead time is 2–4 weeks. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day functional warranty on all parts. Extended warranty options are available — enquire at the time of order.
Q: Can you provide an IEC 62443 / cybersecurity compliance statement?
A: Hardware components such as the RF615 are passive backplane structures and do not contain firmware. Cybersecurity compliance is governed at the controller and network layer. We can provide ABB’s relevant security documentation upon request.
