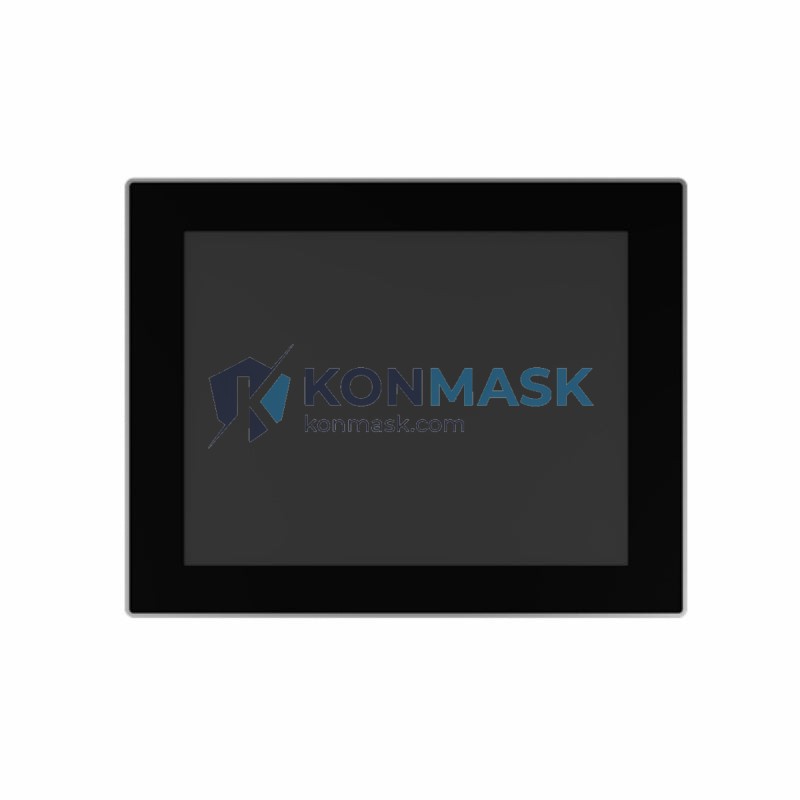

ABB CP635-WEB – 12.1″ SVGA HMI Web Control Panel | AC500 / AC500-S Platform
Engineering Background
The ABB CP635-WEB is a high-performance Human-Machine Interface (HMI) panel engineered for demanding industrial automation environments. Developed under ABB’s AC500 control platform ecosystem, this panel integrates a full-featured web server, enabling remote visualization and diagnostics without additional middleware. It is designed to meet the rigorous requirements of process control, machine automation, and infrastructure management applications across energy, manufacturing, and utilities sectors.
Product Positioning
Targeted at procurement engineers and system integrators who require a reliable, standards-compliant HMI with native web connectivity, the CP635-WEB eliminates the need for third-party SCADA software for basic remote monitoring. Its IEC 61131-3 compatibility and open communication protocols make it a preferred choice for multi-vendor automation architectures.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | CP635-WEB |
| Brand / Manufacturer | ABB |
| Product Series | AC500 / CP600 HMI Series |
| Display Size | 12.1 inch (307 mm diagonal) |
| Display Type | TFT LCD, SVGA (800 × 600 px) |
| Touchscreen | Resistive touch, single-point |
| Processor | 1 GHz ARM Cortex-A8 |
| RAM | 512 MB DDR3 |
| Flash Storage | 256 MB internal NAND Flash |
| Operating System | Embedded Linux (real-time kernel) |
| Programming Standard | IEC 61131-3 compliant |
| Web Server | Built-in HTTP/HTTPS web server |
| Ethernet | 2 × RJ45, 10/100 Mbps |
| Serial Ports | 1 × RS-232, 1 × RS-485 |
| USB | 2 × USB 2.0 Host, 1 × USB Device |
| SD Card Slot | 1 × MicroSD (up to 32 GB) |
| Supported Protocols | Modbus TCP/IP, Modbus RTU, PROFIBUS DP, CANopen, EtherNet/IP |
| Supply Voltage | 24 V DC (18–30 V DC range) |
| Power Consumption | ≤ 25 W typical |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel cut-out, flush mount |
| Dimensions (W × H × D) | Approx. 340 × 270 × 60 mm |
| Weight | 780 g (net) |
| Country of Origin | Germany |
| Certifications | CE, UL, cUL, RoHS |
| HS Code | 8537.10 |
Proven Application Environments
- Power & Energy: Substation automation, transformer monitoring, switchgear control panels
- Water & Wastewater: Pump station HMI, SCADA front-end, remote lift station monitoring
- Manufacturing: Machine tool control, conveyor line supervision, press and packaging lines
- Oil & Gas: Wellhead control, pipeline SCADA, compressor station HMI
- Building Automation: HVAC control, BMS integration, energy metering dashboards
- Infrastructure: Traffic management, tunnel ventilation, railway signaling auxiliaries
Engineering Advantages
- Native Web Visualization: Built-in web server enables browser-based remote monitoring from any device without additional SCADA licensing costs.
- Multi-Protocol Support: Simultaneous Modbus TCP, EtherNet/IP, and PROFIBUS DP connectivity reduces gateway hardware requirements.
- Dual Ethernet Ports: Supports network segmentation — isolate OT and IT networks on a single panel without external switches.
- IEC 61131-3 Compliance: Fully compatible with ABB Automation Builder IDE; supports Ladder, FBD, ST, IL, and SFC programming languages.
- IP65 Front Panel: Suitable for wash-down environments and dusty industrial enclosures without additional sealing.
- ARM Cortex-A8 Performance: 1 GHz processor ensures smooth graphical rendering and fast PLC scan cycle response even with complex mimic diagrams.
System Architecture & Signal Flow
The CP635-WEB operates as a standalone HMI or as a networked visualization node within an ABB AC500 PLC system. Signal flow is as follows:
- Field Devices (sensors, actuators, drives) → connect via RS-485 Modbus RTU or PROFIBUS DP to the CP635-WEB serial/fieldbus ports.
- PLC / Controller → communicates with CP635-WEB via Ethernet (Modbus TCP or EtherNet/IP) for real-time data exchange.
- CP635-WEB → processes tag data, renders graphical screens, logs alarms, and serves web pages to remote clients.
- Remote Clients (PC, tablet, smartphone) → access live process data via standard web browser over LAN/WAN without additional software.
- Engineering Station → connects via USB or Ethernet for project download, firmware update, and diagnostics using ABB Automation Builder.
Sourcing & Quality Verification
- Authorized Supply Chain: All ABB CP635-WEB units sourced by Konmask.com are procured through verified ABB-authorized distribution channels or directly from ABB-certified surplus inventories.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification (part number, serial number, date code), and functional power-on test prior to dispatch.
- Authenticity Guarantee: Konmask provides full traceability documentation including supplier certificates of conformance (CoC) upon request.
- Packaging: Shipped in original ABB anti-static packaging or equivalent ESD-safe packaging with foam cushioning to prevent transit damage.
- Warranty: 12-month Konmask warranty against manufacturing defects; DOA replacement within 30 days of receipt.
Procurement Process
- Inquiry: Submit your RFQ via email to support@konmask.com or via the product page. Include quantity, required delivery date, and destination country.
- Quotation: Konmask responds within 1 business day with pricing, lead time, and shipping options (DHL Express, FedEx, sea freight for bulk orders).
- Order Confirmation: Purchase order accepted via email or Shopify checkout. Pro-forma invoice issued for wire transfer or credit card payment.
- Export Documentation: Commercial invoice, packing list, and certificate of origin provided for all international shipments. HS Code: 8537.10.
- Delivery: Standard lead time 3–7 business days for in-stock units. Express delivery available to most destinations within 2–3 business days.
- After-Sales: Technical support available via email and WhatsApp. Firmware and configuration assistance provided for qualified engineers.
Technical FAQ
Q: Is the CP635-WEB compatible with third-party PLCs (Siemens, Schneider, Mitsubishi)?
A: Yes. Via Modbus TCP/IP and Modbus RTU protocols, the CP635-WEB can communicate with most third-party PLCs. EtherNet/IP compatibility also enables integration with Allen-Bradley ControlLogix/CompactLogix systems.
Q: Can the web server function be used without an ABB PLC?
A: Yes. The built-in web server operates independently of the PLC connection. It can serve process data from any Modbus-compatible data source connected to the panel.
Q: What software is required for programming?
A: ABB Automation Builder (free download from ABB website) is the primary IDE. The CP635-WEB is also compatible with ABB Panel Builder 600 for HMI screen design.
Q: Is the unit suitable for hazardous area (ATEX/IECEx) installation?
A: The standard CP635-WEB is not ATEX-certified. For hazardous area applications, consult ABB for the appropriate Ex-rated enclosure solution.
Q: What is the maximum number of tags supported?
A: The CP635-WEB supports up to 10,000 process tags depending on the project configuration and communication cycle time settings.
Q: Can I request a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your inquiry. ABB official datasheets and installation manuals are available upon request.
