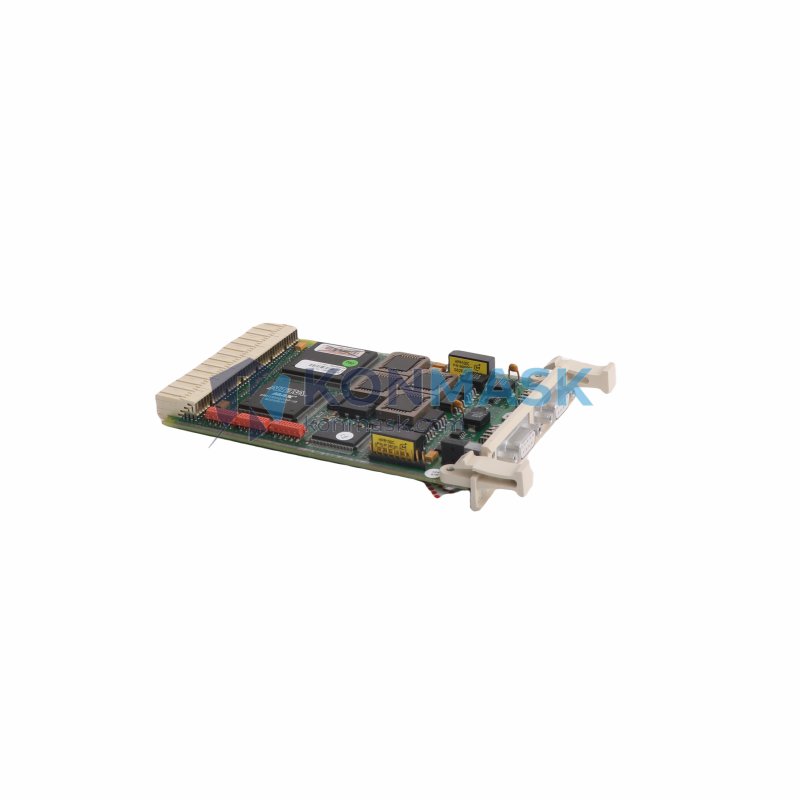

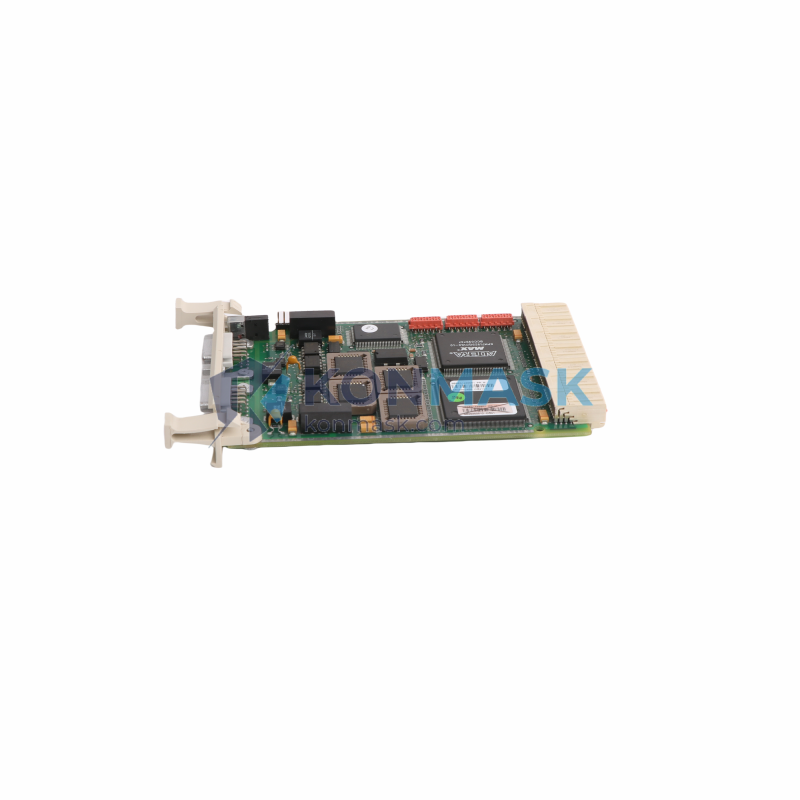

ABB CI541V1 – PROFIBUS DP Interface Submodule | 3BSE014666R1 | AC500 PLC Platform
Engineering Background: The CI541V1 is ABB’s dedicated PROFIBUS DP master/slave interface submodule engineered for the AC500 modular PLC family and legacy Advant Controller architectures. Designed to meet the rigorous demands of process automation, discrete manufacturing, and energy management, this module enables seamless fieldbus integration where signal integrity and deterministic communication are non-negotiable.
Product Positioning: Targeting procurement engineers and system integrators who require a verified, drop-in replacement or expansion module for existing ABB AC500 installations. The CI541V1 eliminates the need for gateway hardware by providing native PROFIBUS DP connectivity directly on the CPU backplane, reducing latency and simplifying network topology.
Complete Technical Specifications
- Part Number: CI541V1
- OEM Reference: 3BSE014666R1
- Manufacturer: ABB (ASEA Brown Boveri)
- Country of Origin: Germany (DE)
- Module Type: Interface Submodule – PROFIBUS DP Master/Slave
- Compatible Platform: ABB AC500 PLC Series; Advant Controller 500
- Communication Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Baud Rate: Up to 12 Mbit/s
- Max DP Slaves: 125 per segment
- Connector Type: 9-pin Sub-D (DB9)
- Power Supply: Supplied via CPU backplane (no external power required)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 5–95% (non-condensing)
- Protection Class: IP20
- Weight: Approx. 160 g
- HS Code: 8537.10
- Certifications: CE, UL, cUL
- Firmware: Configurable via ABB Automation Builder / Control Builder Plus
Proven Application Environments
- Process Automation: Oil & gas, chemical, and water treatment plants requiring deterministic PROFIBUS DP fieldbus control
- Discrete Manufacturing: Automotive assembly lines, packaging machinery, and conveyor systems with distributed I/O
- Energy & Utilities: Substation automation, power distribution panels, and renewable energy SCADA integration
- Building Automation: HVAC control, access systems, and intelligent building management via PROFIBUS DP backbone
- Marine & Offshore: Certified for harsh environments with wide temperature tolerance and vibration resistance
Engineering Advantages
- Native Backplane Integration: Plugs directly into AC500 CPU slot — no external gateway, no additional wiring complexity
- Dual-Role Operation: Configurable as PROFIBUS DP Master or Slave within the same hardware footprint
- High-Speed Fieldbus: Supports full 12 Mbit/s PROFIBUS DP bandwidth for time-critical process data exchange
- Hot-Swap Capable: Supports module replacement without full system shutdown (subject to AC500 CPU firmware version)
- Diagnostic Transparency: Integrated LED status indicators and GSD-file-based diagnostics for rapid fault isolation
- Long Product Lifecycle: ABB AC500 platform commitment ensures spare part availability and firmware support through 2030+
System Architecture & Signal Flow
The CI541V1 interfaces directly with the AC500 CPU via the internal communication bus on the backplane. In Master mode, the module cyclically polls up to 125 DP slave devices, exchanging process image data (inputs/outputs) with the CPU at configurable update rates. In Slave mode, it exposes a defined I/O area to an upstream PROFIBUS DP Master controller. Configuration is performed offline using ABB Automation Builder with the module’s GSD file, enabling full parameterization of baud rate, slave addresses, watchdog timers, and diagnostic reporting before deployment.
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified OEM surplus stock
- Inspection: Each unit undergoes visual inspection, label verification (3BSE014666R1 barcode cross-check), and functional continuity check prior to shipment
- Packaging: Anti-static ESD bag + foam-lined carton; original ABB packaging preserved where available
- Warranty: 12-month Konmask operational warranty against manufacturing defects
- Traceability: Batch records and serial number documentation available upon request for regulated industries
Procurement Process
- Confirm part number CI541V1 / 3BSE014666R1 against your BOM or existing system label
- Submit RFQ or place order directly via Konmask.com product page
- Receive order confirmation with lead time and shipping estimate within 1 business day
- Shipment via DHL Express / FedEx International with full tracking and commercial invoice
- Post-delivery technical support available via email or WhatsApp for installation queries
Technical FAQ
Q: Is CI541V1 compatible with AC500 V2 and V3 CPUs?
A: Yes. The CI541V1 is compatible with AC500 V2 (PM5xx series) and AC500 V3 (PM5xx-ETH series) CPUs. Verify firmware version ≥ 2.x for full feature support.
Q: Can I use CI541V1 as both Master and Slave simultaneously?
A: No. The module operates in a single role per configuration. Role selection is made during project configuration in Automation Builder.
Q: What GSD file is required for third-party PROFIBUS Masters?
A: Download the ABB CI541V1 GSD file from the ABB Library (library.abb.com) or contact Konmask support for the file package.
Q: Is this module RoHS compliant?
A: Yes. The CI541V1 / 3BSE014666R1 complies with EU RoHS Directive 2011/65/EU.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For bulk orders (>5 units), contact us for priority allocation.
