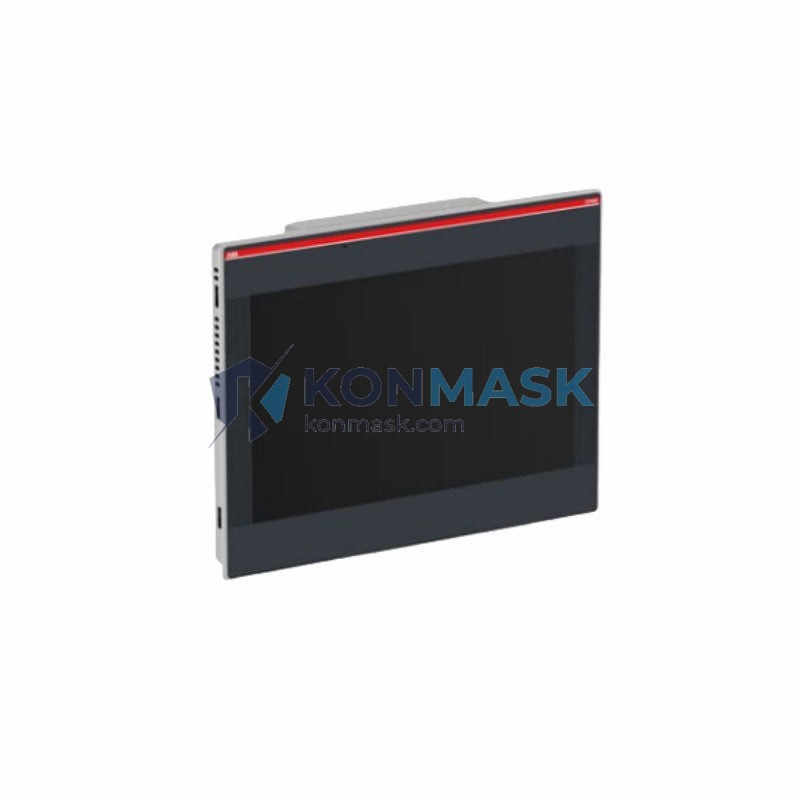

ABB CP665 (1SAP565100R0001) – 13.3″ TFT Touch Screen HMI Control Panel | AC500 Series
Engineering Background
The ABB CP665 is a high-performance Human-Machine Interface (HMI) panel engineered for demanding industrial automation environments. Designed as a native companion to ABB’s AC500 PLC platform, the CP665 delivers a large-format, high-resolution touch interface that bridges operator interaction with complex control logic. It is widely deployed in power distribution, process automation, building management, and machine control applications where reliable visualization and fast response are non-negotiable.
Product Positioning
As a procurement engineer sourcing HMI solutions for AC500-based control systems, the CP665 represents ABB’s flagship panel in the CP600 series — offering the largest display footprint, full Ethernet connectivity, and compatibility with ABB’s Automation Builder engineering suite. Konmask.com supplies genuine ABB CP665 units (Part No. 1SAP565100R0001) with full traceability, suitable for both OEM integration and MRO replacement.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CP665 |
| Part Number | 1SAP565100R0001 |
| Manufacturer | ABB Ltd. |
| Series | AC500 / CP600 HMI Series |
| Display Size | 13.3″ (338 mm) diagonal |
| Display Type | TFT LCD, Widescreen |
| Resolution | 1280 × 800 pixels (WXGA) |
| Touch Technology | Resistive touch screen |
| Processor | ARM Cortex-A8, 600 MHz |
| RAM | 256 MB DDR |
| Flash Storage | 256 MB internal |
| Operating System | Linux-based embedded OS |
| Communication Interfaces | 2× Ethernet RJ45 (10/100 Mbps), 2× USB Host, 1× USB Device, 1× RS-232/RS-485 (COM1) |
| PLC Integration | Native AC500 coupling via internal bus; supports Modbus TCP, PROFIBUS DP, EtherNet/IP via optional modules |
| Engineering Software | ABB Automation Builder (Panel Builder 600) |
| Supply Voltage | 24 V DC (±20%) |
| Power Consumption | ≤ 25 W |
| Protection Rating | IP65 (front panel), IP20 (rear) |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | Panel cut-out, portrait or landscape |
| Dimensions (W×H×D) | Approx. 360 × 240 × 55 mm |
| Weight | Approx. 1.8 kg |
| Certifications | CE, UL, cUL, RoHS |
| MTBF | > 50,000 hours |
Proven Application Environments
- Power & Energy: Substation automation, switchgear control, energy management systems (EMS)
- Process Industries: Water/wastewater treatment, chemical processing, oil & gas upstream/midstream
- Building Automation: HVAC control, BMS integration, elevator and escalator management
- Machine OEM: Packaging lines, printing machines, textile machinery, food & beverage processing
- Infrastructure: Railway signaling auxiliaries, tunnel ventilation, pump station control
Engineering Advantages
- Largest display in CP600 series — 13.3″ WXGA panel enables complex mimic diagrams, trend charts, and alarm lists on a single screen without scrolling
- Seamless AC500 integration — Direct internal bus coupling eliminates external communication wiring and reduces latency to <1 ms for HMI-PLC data exchange
- IP65 front protection — Suitable for wash-down environments and dusty industrial floors without additional enclosure engineering
- Dual Ethernet ports — Supports network segmentation: one port for plant LAN/SCADA, one for local PLC network, enhancing cybersecurity architecture
- Open Linux platform — Enables custom web-based visualization and VNC remote access without proprietary runtime licensing fees
- Panel Builder 600 compatibility — Unified engineering environment with AC500 IEC 61131-3 programming reduces project commissioning time
System Architecture & Signal Flow
The CP665 operates as the visualization and operator interaction layer within an AC500 control system architecture:
- Field Level: Sensors, actuators, and I/O modules connect to AC500 CPU via standard I/O bus (S500 or S500-eCo modules)
- Control Level: AC500 CPU executes IEC 61131-3 control programs (LD, FBD, ST, IL, SFC) and manages process data
- HMI Level: CP665 couples directly to AC500 CPU via internal coupling interface — process variables are mapped to HMI tags in Panel Builder 600
- Supervision Level: CP665 Ethernet port connects to plant SCADA/DCS via Modbus TCP or OPC-UA for data aggregation and remote monitoring
- Remote Access: VNC server on CP665 enables remote panel viewing and operation from engineering workstations or mobile devices
Sourcing & Quality Verification
- Origin: Genuine ABB factory production, traceable via ABB serial number and date code
- Condition: New-in-box (NIB) or refurbished units available — condition clearly stated per order
- Inspection: Each unit undergoes power-on functional test, display uniformity check, and communication port verification before shipment
- Documentation: ABB datasheet, CE declaration of conformity, and packing list provided with every shipment
- Warranty: 12-month Konmask warranty covering manufacturing defects; ABB OEM warranty honored where applicable
- Counterfeit Prevention: All units verified against ABB product authentication database; holographic labels and serial number cross-check performed
Procurement Process
- Inquiry: Submit RFQ via Konmask.com product page or email support@konmask.com with quantity, required delivery date, and destination country
- Quotation: Formal quotation issued within 4 business hours including unit price, freight estimate, lead time, and payment terms
- Order Confirmation: Purchase order accepted via email or Shopify checkout; proforma invoice issued for T/T wire transfer or credit card payment
- Quality Check & Packing: Pre-shipment inspection completed; units packed in anti-static foam with original ABB packaging where available
- Shipment: DHL Express / FedEx International Priority standard; sea freight available for bulk orders (>10 units); tracking number provided within 24 hours of dispatch
- After-Sales: Technical support available via email and WhatsApp; replacement or refund processed within 7 business days for verified defects
Technical FAQ
Q: Is the CP665 compatible with AC500 V2 and V3 CPU generations?
A: Yes. The CP665 is compatible with all AC500 CPU generations (PM5xx, PM5xx-ETH, PM5xx V3) when used with ABB Automation Builder 2.x or later and Panel Builder 600 v3.x.
Q: Can the CP665 communicate with third-party PLCs (Siemens, Mitsubishi, etc.)?
A: Yes, via Ethernet-based protocols. Panel Builder 600 supports Modbus TCP, EtherNet/IP, and PROFINET drivers for third-party PLC connectivity. Direct internal bus coupling is exclusive to ABB AC500.
Q: What is the panel cut-out dimension for CP665 installation?
A: Refer to ABB document 1SAP500900R0001 (CP600 Installation Manual) for exact cut-out dimensions. Konmask can provide the installation template drawing upon request.
Q: Does the CP665 support multi-language display?
A: Yes. Panel Builder 600 supports Unicode-based multi-language projects. Language switching can be triggered by operator input or PLC variable at runtime.
Q: What is the typical lead time for CP665 from Konmask?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is 2–6 weeks depending on ABB factory availability. Contact us for real-time stock status.
